1-30 — AIR CLEANER (#63760) — 431 parça

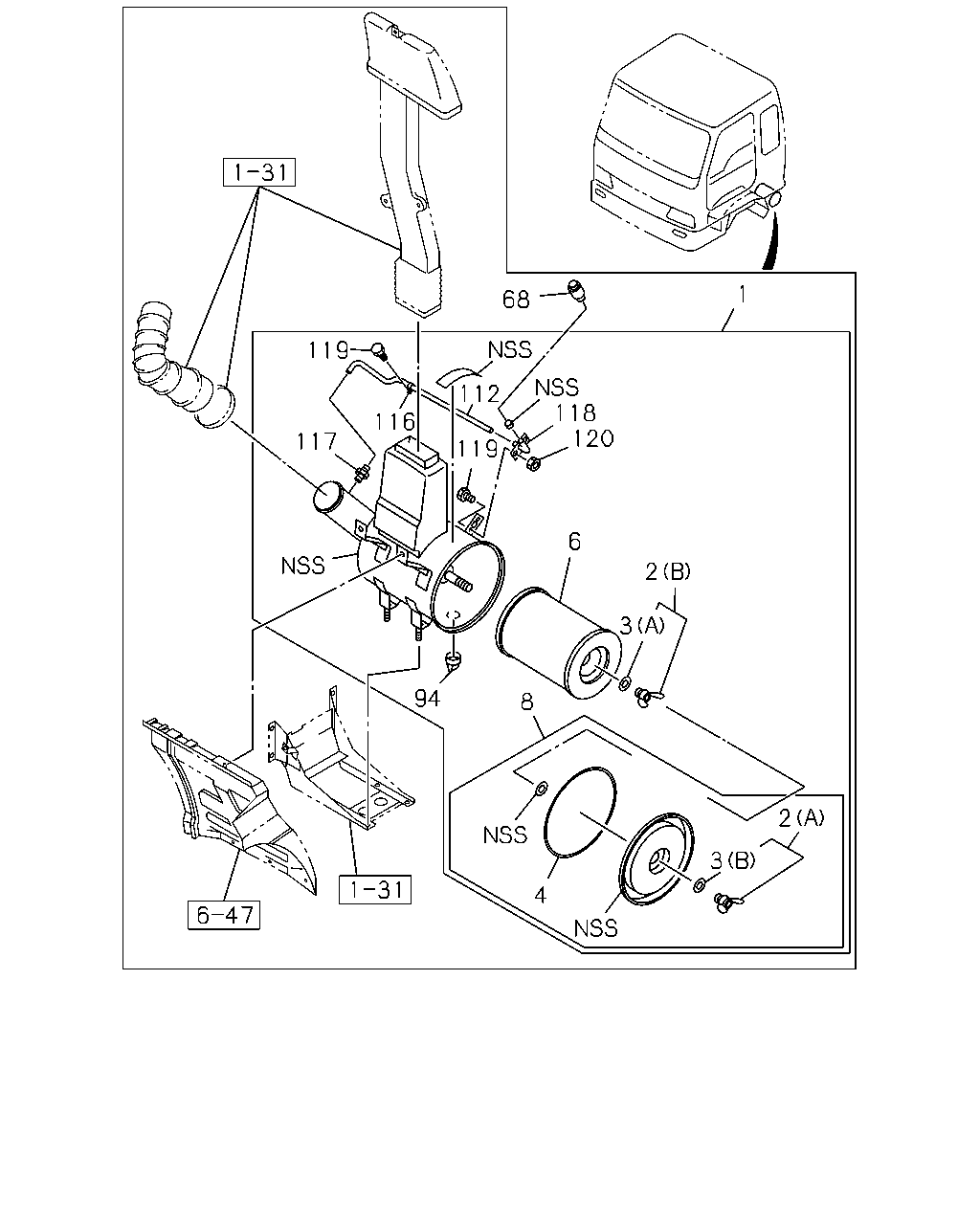

çizim 90562
1 68 119 118 120 112 116 117 119 6 2 3 94 8 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-3 01 1 9601-0004 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-773-2 01 1 9601-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14210-826-2 01 1 9804- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-774-1 01 1 9601-9606 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-780-0 01 1 9601-9606 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-795-0 01 1 9607-9703 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-806-0 01 1 9704-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0406- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9601-0004 ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9601-0405 ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 0406- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9601-0004 ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9601-0405 ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 9601-0004 ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9601-9803 ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-128-0 01 1 9804- ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9601-9803 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14215-181-0 01 1 9601-9606 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9601-9803 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) BEST VALUE PARTS 		1-87610-058-0 01 1 9601-9606 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0005-0405 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0406- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9601-0004 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9601-0004 ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0405 ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0406- ● ● ● ● ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09360-879-0 01 1 9601-9607 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-273-0 01 1 9804- ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14219-255-0 01 1 9601-9606 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9607-9803 ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0406- ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9601-9606 ● ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9601-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09701-145-0 01 1 9607-9607 ● ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9601-9606 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9601-9803 ● ● ● ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 9804-0004 ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0005-0405 ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0406- ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-272-0 01 1 9804- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9601-0004 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9601-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 02 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9601-0004 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ● ●

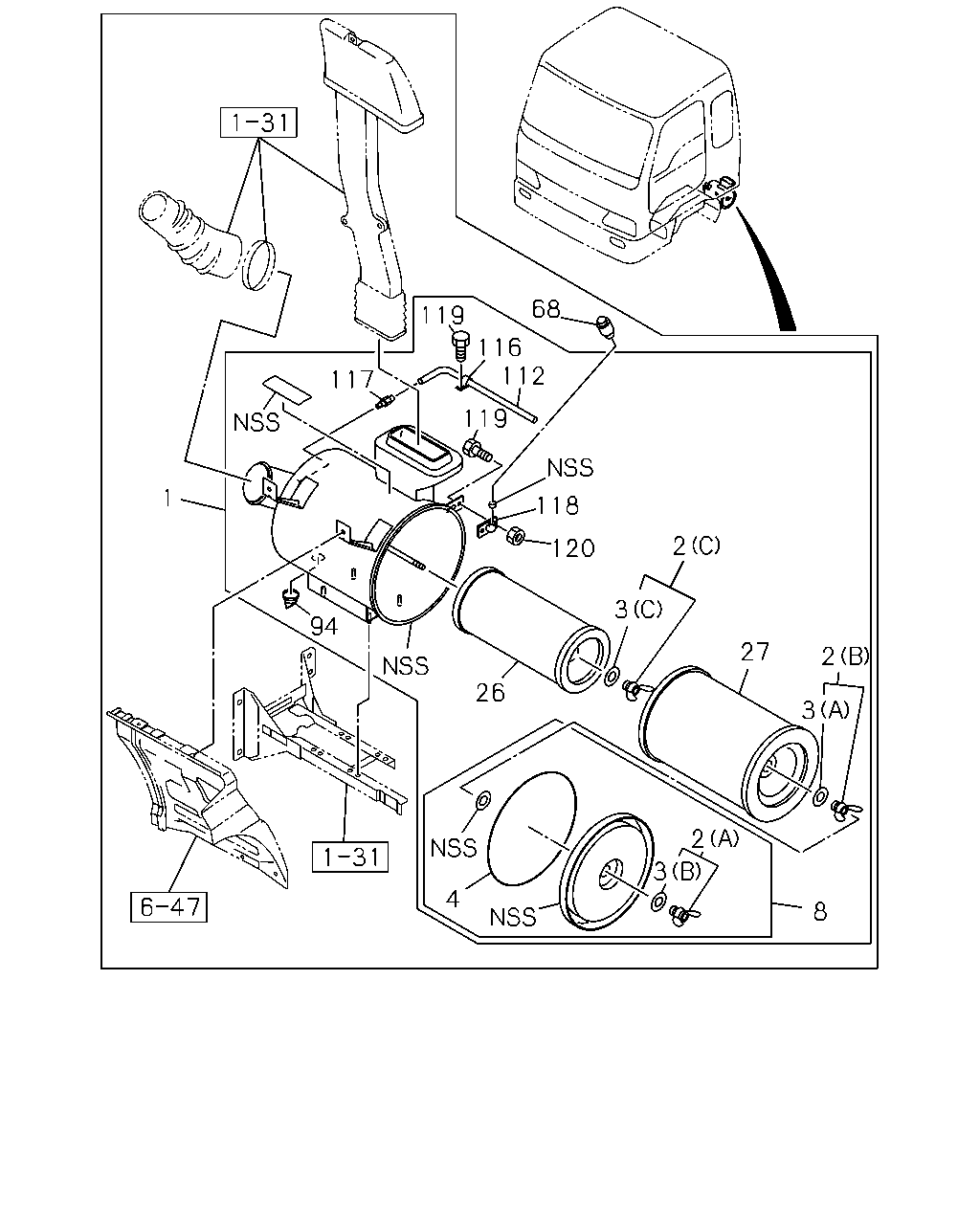

çizim 91351
68 119 116 112 117 119 1 118 2 120 3 94 27 2 26 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-3 01 1 9601-0004 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-773-2 01 1 9601-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14210-826-2 01 1 9804- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-774-1 01 1 9601-9606 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-780-0 01 1 9601-9606 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-795-0 01 1 9607-9703 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-806-0 01 1 9704-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0406- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9601-0004 ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9601-0405 ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 0406- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9601-0004 ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9601-0405 ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 9601-0004 ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9601-9803 ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-128-0 01 1 9804- ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0005-0405 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0406- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9601-0004 ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-151-0 01 1 9601-0405 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-151-0 01 1 0406- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0406- ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9601- ● ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9601-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-181-0 01 1 9601-0405 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-181-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0406- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) BEST VALUE PARTS 		1-87610-058-0 01 1 9601-0405 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9601-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9601-0004 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9601-0004 ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0405 ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0406- ● ● ● ● ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09360-879-0 01 1 9601-9607 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-273-0 01 1 9804- ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14219-255-0 01 1 9601-9606 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9607-9803 ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0406- ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9601-9606 ● ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9601-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09701-145-0 01 1 9607-9607 ● ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9601-9606 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9601-9803 ● ● ● ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 9804-0004 ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0005-0405 ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0406- ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-272-0 01 1 9804- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9601-0004 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9601-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 02 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9601-0004 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ● ●

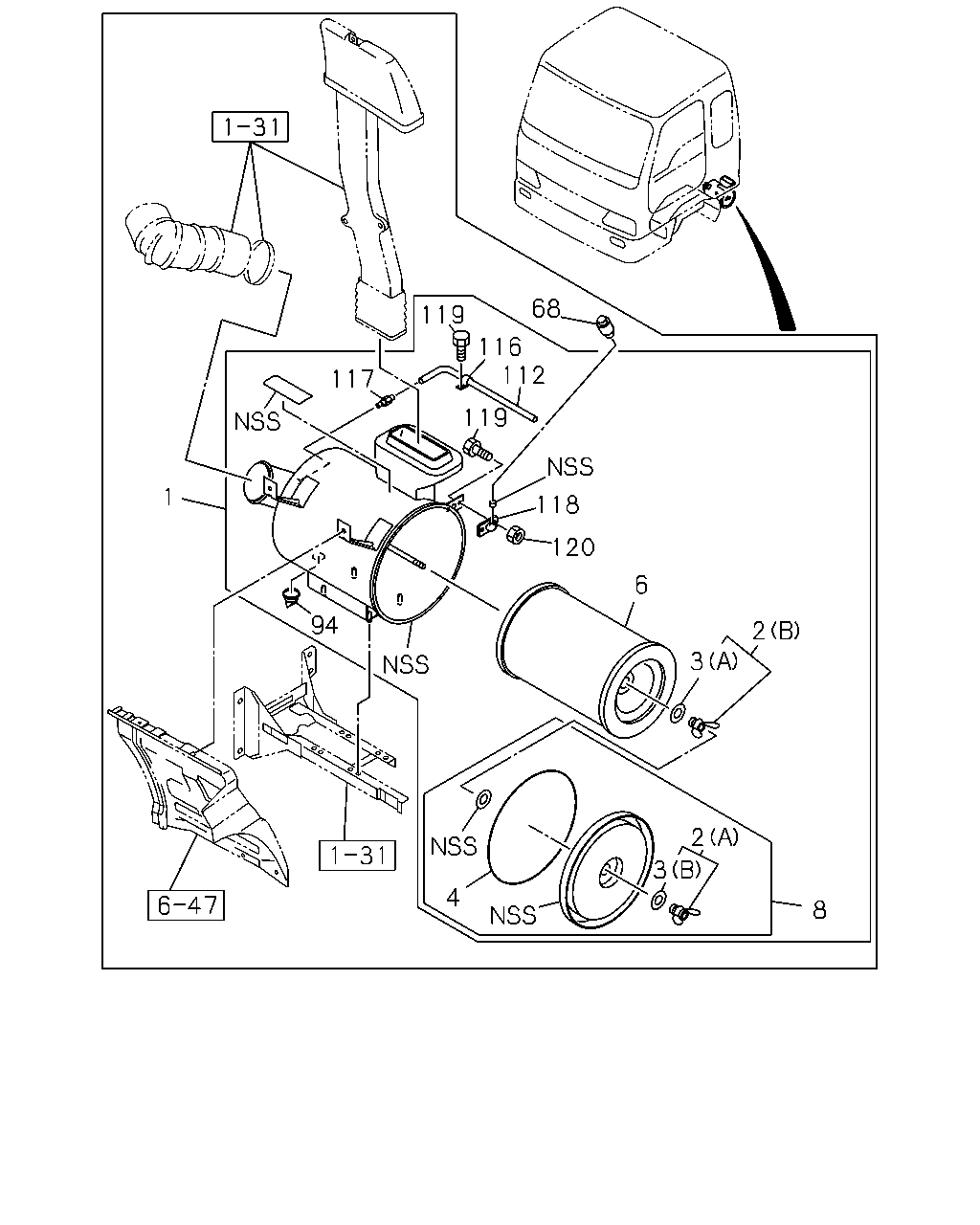

çizim 91429
68 119 116 112 117 119 1 118 120 6 94 2 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-3 01 1 9601-0004 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-773-2 01 1 9601-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14210-826-2 01 1 9804- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-774-1 01 1 9601-9606 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-780-0 01 1 9601-9606 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-795-0 01 1 9607-9703 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-806-0 01 1 9704-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0406- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9601-0004 ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9601-0405 ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 0406- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9601-0004 ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9601-0405 ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 9601-0004 ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9601-9803 ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-128-0 01 1 9804- ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14215-172-0 01 1 9601-9803 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14215-181-0 01 1 9601-9606 ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 11"(WG8) BEST VALUE PARTS 		1-87610-117-0 01 1 9601-9803 ● ●
6 FILTER; ACL
AIR CLEANER DRY DONALDSON 13"(E6U) BEST VALUE PARTS 		1-87610-058-0 01 1 9601-9606 ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0005-0405 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0406- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9601-0004 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9601-0004 ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0405 ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0406- ● ● ● ● ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09360-879-0 01 1 9601-9607 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-273-0 01 1 9804- ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14219-255-0 01 1 9601-9606 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9607-9803 ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0406- ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9601-9606 ● ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9601-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09701-145-0 01 1 9607-9607 ● ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9601-9606 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9601-9803 ● ● ● ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 9804-0004 ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0005-0405 ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0406- ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-272-0 01 1 9804- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9601-0004 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9601-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 02 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9601-0004 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ● ●

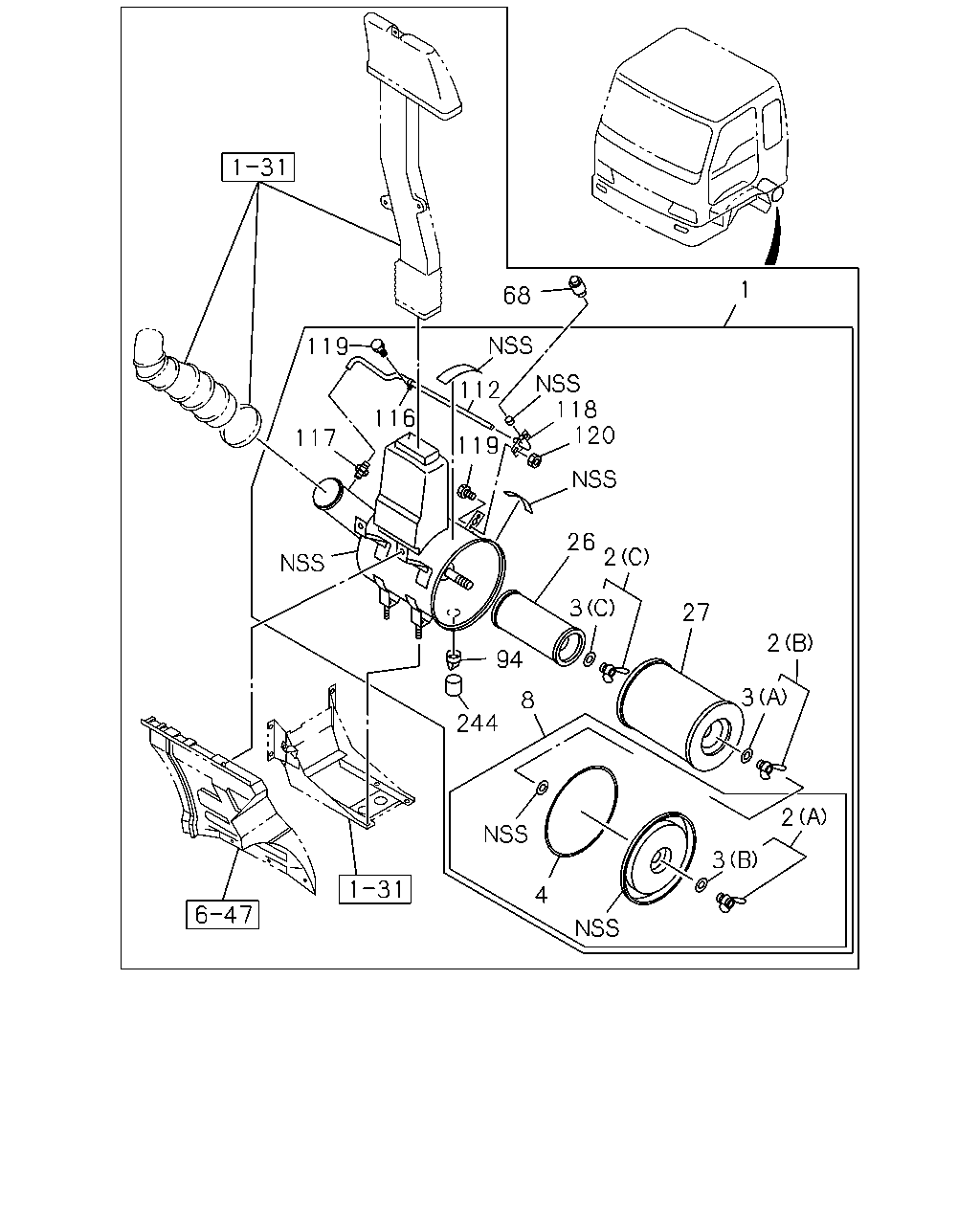

çizim 91452
1 68 119 118 120 112 116 117 119 26 2 3 27 2 94 3 8 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-3 01 1 9601-0004 ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-778-4 01 1 0005- ● ● ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"(WG8) 		1-14210-773-2 01 1 9601-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14210-826-2 01 1 9804- ●
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14210-774-1 01 1 9601-9606 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-780-0 01 1 9601-9606 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-795-0 01 1 9607-9703 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-806-0 01 1 9704-9803 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 9804-0405 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-807-1 01 1 0406- ●
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0406- ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 9601-0004 ● ●
2 NUT; WING,ELEMENT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		1-14217-036-0 01 1 0005- ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9601-0004 ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0405 ● ● ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0406- ● ● ● ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 9601-0405 ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14217-003-0 01 1 0406- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0406- ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 9601-0004 ● ●
3 WASHER; SEAL,WING NUT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) (C) 		9-14219-177-0 01 1 0005- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9601-0004 ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0405 ● ● ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0406- ● ● ● ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 9601-0405 ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (C) 		1-14219-032-0 01 1 0406- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0406- ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 9601-0004 ● ●
4 GASKET; COVER TO BODY
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-141-0 01 1 0005- ● ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 9804-0405 ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0406- ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-128-0 01 1 9601-9803 ● ●
4 GASKET; COVER TO BODY
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-128-0 01 1 9804- ●
8 COVER ASM; ACL 1-14212-084-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14212-084-0 01 1 0005- ● ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9601-0004 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0005-0405 ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14212-053-0 01 1 0406- ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0406- ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 9601-0004 ● ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-111-0 01 1 0005- ● ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-151-0 01 1 9601-0405 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-151-0 01 1 0406- ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0406- ●
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-118-0 01 1 9601- ● ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 9601-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14215-172-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-181-0 01 1 9601-0405 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-181-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0406- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) BEST VALUE PARTS 		1-87610-058-0 01 1 9601-0405 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0406- ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 9601-0004 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) BEST VALUE PARTS 		1-87610-117-0 01 1 0005- ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9601-0004 ● ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005- ● ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9601-0004 ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0405 ● ● ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0406- ● ● ● ● ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09360-879-0 01 1 9601-9607 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 9608-0004 ● ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14219-260-0 01 1 0005- ● ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-273-0 01 1 9804- ●
112 HOSE; INDICATOR
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-14219-255-0 01 1 9601-9606 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9607-9803 ● ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 9804-0405 ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-259-0 01 1 0406- ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0406- ●
116 CLIP; INDICATOR HOSE 1-09701-145-0 01 1 9601-9606 ● ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 13"(E6U) 		1-09701-145-0 01 1 9601-9606 ●
116 CLIP; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-09701-145-0 01 1 9607-9607 ● ●
116 CLIP; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-09701-145-0 02 1 9601-9606 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9601-9803 ● ● ● ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 9804-0004 ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 9804-0004 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0005-0405 ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0005-0405 ●
117 JOINT; INDICATOR HOSE
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) 		1-14210-040-0 01 1 0406- ● ● ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0406- ●
117 JOINT; INDICATOR HOSE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EURO2 SPECIFICATION<THN> 		1-14219-272-0 01 1 9804- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9601-0004 ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0405 ● ● ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0406- ● ● ● ● ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 13"(E6U) M6X16 		9-02040-616-0 03 1 9601-9606 ●
119 BOLT; INDICATOR BRKT
AIR CLEANER DRY DONALDSON 11" DOUBLE ELEMENT(Q2X) M6X16 		9-02040-616-0 03 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 04 1 9601-9606 ● ●
119 BOLT; INDICATOR BRKT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) M6X16 		9-02040-616-0 02 1 9607-9607 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9608-0004 ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0405 ● ● ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0406- ● ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9601-0004 ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0405 ● ● ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0406- ● ● ● ● ● ●
244 COVER ASM; VALVE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-281-0 01 1 9804-0405 ●
244 COVER ASM; VALVE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-281-0 01 1 9804-0405 ●
244 COVER ASM; VALVE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) EXC. EURO2 SPECIFICATION<THN> 		1-14219-281-0 01 1 0406- ●
244 COVER ASM; VALVE
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14219-281-0 01 1 0406- ●
244 COVER ASM; VALVE 1-14219-281-0 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
