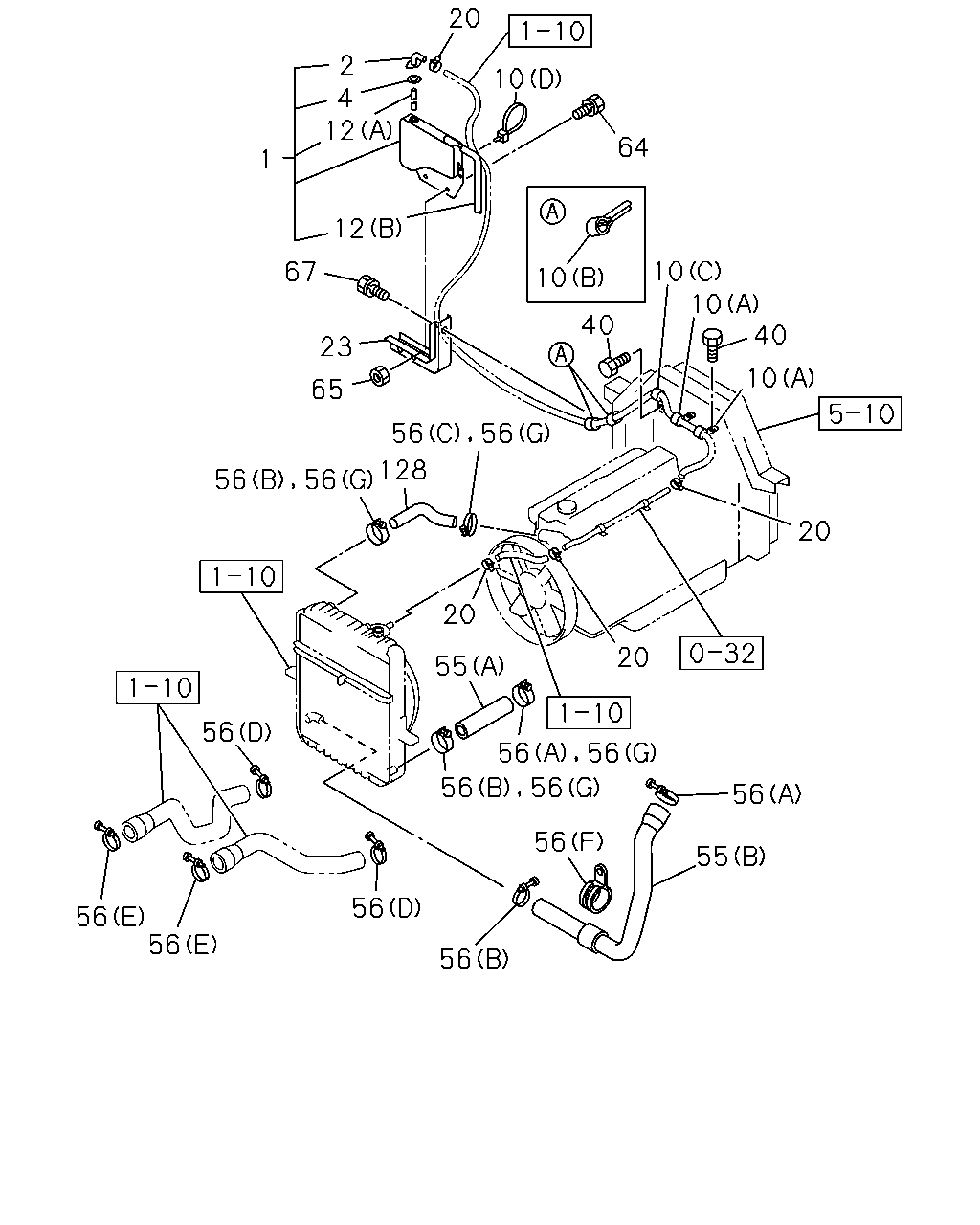

1-11 — RADIATOR HOSE AND SUB TANK (#63759) — 125 parça

20 2 4 12 10 64 1 12 10 10 67 10 40 40 23 10 65 128 20 20 20 55 56 56 56 56 56 55 56 56 56 56 56 56 56 56 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9601-9812	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0004	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0005-0405	●	●	●	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0406-	●	●	●	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9601-9812	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0004	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0005-0405	●	●	●	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0406-	●	●	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9601-0004	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0005-0405	●	●	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0406-	●	●	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0201-0405	●	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0406-	●	●	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9601-0004	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0005-0405	●	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0406-0801	●	●	●	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0802-		●	●	●	●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (A) ID=14.5 L=40	1-09701-014-0	02	1	0802-	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9601-0004	●	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0005-0405	●	●	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0406-	●	●	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9601-0004	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0005-0405			●	●	●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0406-			●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9601-0004	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	9-09525-235-0	01	1	0005-0405	●	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	9-09525-235-0	01	1	0406-0606	●	●	●	●	●	●
10	CLIP; RUBBER HOSE (B) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●	●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0405	●	●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0406-0801	●	●				●
10	CLIP; RUBBER HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0802-		●				●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0802-	●
10	CLIP; RUBBER HOSE EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	9703-9803			●
10	CLIP; RUBBER HOSE EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	9804-0301			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0302-0405			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0406-0801			●
10	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> (A) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0802-			●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0004	●	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0005-0405	●	●	●	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0406-	●	●	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9601-0004	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0005-0405	●	●	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0406-	●	●	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9601-0004	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0005-0405	●	●	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0406-	●	●	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9601-0004	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0005-0405	●	●	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0406-	●	●	●	●	●	●
40	BOLT; CLIP EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	02	1	0802-	●
40	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-0004	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0405	●	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0406-0512	●	●	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0601-0801	●	●	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0802-		●	●	●	●	●
40	BOLT; CLIP EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	04	1	0802-	●
40	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9703-9803			●
40	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9804-0301			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0302-0405			●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0406-0512			●			●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-			●			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-869-1	01	1	0406-						●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9601-0004				●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-0	01	1	9601-0004			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0005-0405				●	●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-2	01	1	0005-0405			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-2	01	1	0406-				●	●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-2	01	1	0406-			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-554-0	01	1	9601-		●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-543-0	01	1	9601-0004	●
55	HOSE; WATER,RAD OUTLET FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) GVR(GV****) (A)	1-21437-543-0	01	1	0005-0011	●
55	HOSE; WATER,RAD OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (A)	1-21437-543-0	01	1	0005-0011	●
55	HOSE; WATER,RAD OUTLET FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) (A)	1-21437-543-0	01	1	0012-	●
55	HOSE; WATER,RAD OUTLET FVR WIDE CAB SHORT CHASSIS(FV**FC) (B)	1-21437-701-0	01	1	0005-	●
55	HOSE; WATER,RAD OUTLET FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (B)	1-21437-701-0	01	1	0005-	●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-649-0	01	1	9610-9612			●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-658-0	01	1	9701-9704			●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-663-0	01	1	9705-9803			●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-663-2	01	1	9804-			●
56	CLIP; WATER HOSE,RAD (G) ID=63	1-09704-067-0	04	1	9601-0004			●	●
56	CLIP; WATER HOSE,RAD FVR WIDE CAB SHORT CHASSIS(FV**FC) (D) ID=63	1-09704-067-0	02	1	0005-	●
56	CLIP; WATER HOSE,RAD FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (D) ID=63	1-09704-067-0	02	1	0005-	●
56	CLIP; WATER HOSE,RAD (G) ID=63	1-09704-067-0	04	1	0005-0405			●	●	●
56	CLIP; WATER HOSE,RAD (G) ID=63	1-09704-067-0	04	1	0406-			●	●	●	●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	9601-9803	●	●
56	CLIP; WATER HOSE,RAD (C) ID=76	1-09704-069-0	01	1	9601-	●	●
56	CLIP; WATER HOSE,RAD (A) ID=70	1-09704-078-0	01	1	9601-	●	●
56	CLIP; WATER HOSE,RAD FVR WIDE CAB SHORT CHASSIS(FV**FC) (E) ID=74	1-09704-101-0	02	1	0005-	●
56	CLIP; WATER HOSE,RAD FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (E) ID=74	1-09704-101-0	02	1	0005-	●
56	CLIP; WATER HOSE,RAD FVR WIDE CAB SHORT CHASSIS(FV**FC) (F) ID=68	8-94224-262-0	01	1	0005-	●
56	CLIP; WATER HOSE,RAD FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (F) ID=68	8-94224-262-0	01	1	0005-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-0004	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0405	●	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0406-0707	●	●	●	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●	●	●	●	●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9601-9606	●	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-0004	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0005-0405	●	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0406-0602	●	●	●	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-0004	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0405	●	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0406-0512	●	●	●	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●	●	●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0406-						●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9601-9708				●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-450-0	01	1	9601-9708			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-0004				●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	9709-0004			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0005-0405				●	●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	0005-0405			●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	0406-0707				●	●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	0406-0707			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	0708-				●	●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-450-0	01	1	0708-			●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	9601-9708	●	●
128	HOSE; WATER,RAD INL EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-21437-544-0	01	1	9709-0004	●	●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	0005-		●
128	HOSE; WATER,RAD INL EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-21437-544-0	01	1	0005-	●
128	HOSE; WATER,RAD INL SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-21437-700-0	01	1	9709-	●
128	HOSE; WATER,RAD INL EURO2 SPECIFICATION<THN>	1-21437-648-0	01	1	9610-9803			●
128	HOSE; WATER,RAD INL EURO2 SPECIFICATION<THN>	1-21437-648-0	01	1	9804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
