◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10704 - FVR/GVR-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#63757) — 1303 parça

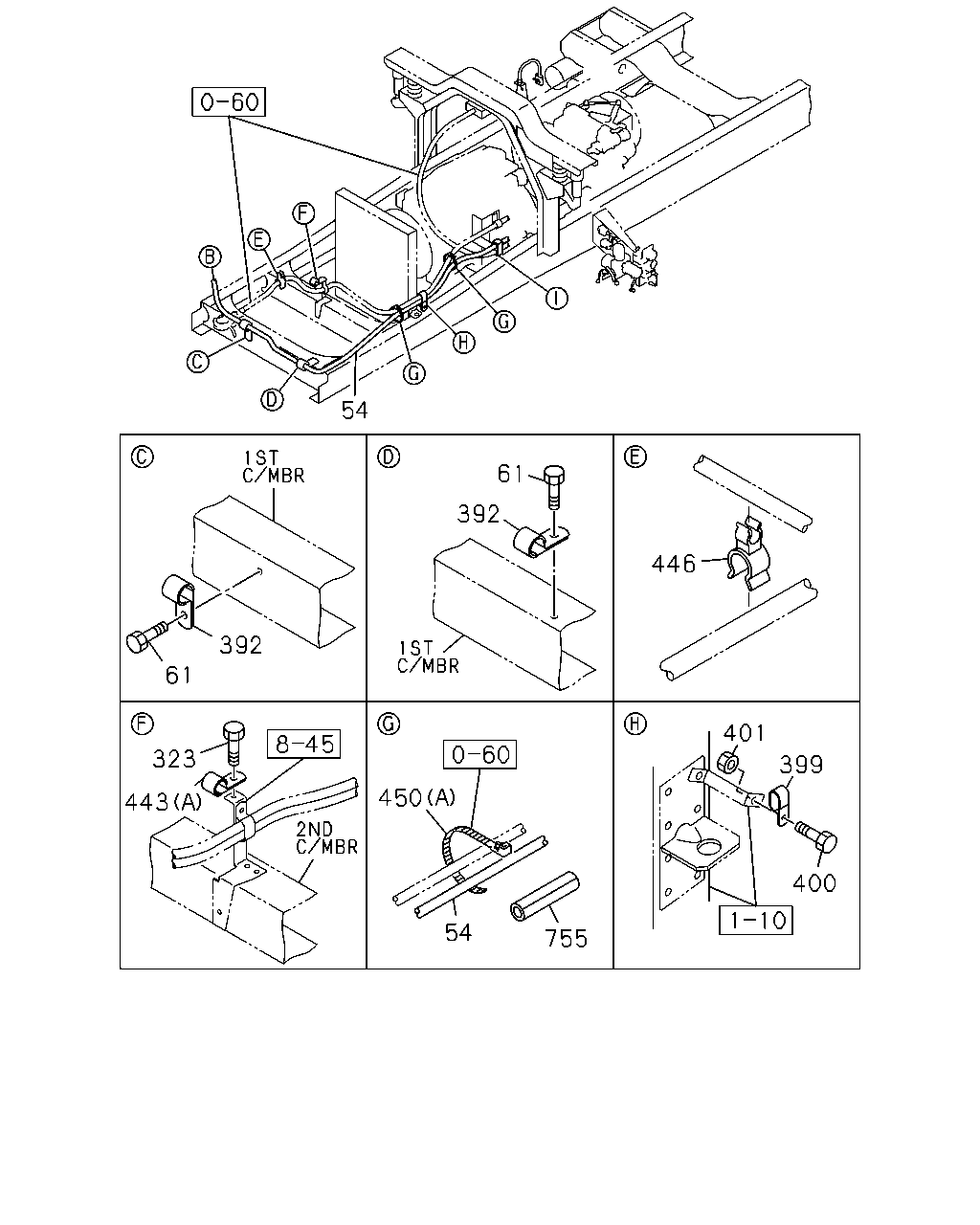

çizim 85420
54 61 392 446 392 61 401 323 399 450 443 400 54 755
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ● ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0406-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 9601-0004 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 0005-0606 ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		0-95235-265-0 02 1 0607- ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 01 1 9601-0606 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		0-95235-265-0 01 1 0607- ● ●
392 CLIP; ACCEL CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 0005-0405 ●
392 CLIP; ACCEL CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 0406-0606 ●
392 CLIP; ACCEL CONT CABLE
ID=11 L=20 		0-95235-035-0 01 1 0607- ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9704 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-0004 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005- ● ● ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 9601- ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0406-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0004 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0005-0405 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0406-0606 ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0606 ●
443 CLIP; CABLE
(A) ID=7 L=16 		0-95234-625-0 01 1 0607- ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 9601-0004 ● ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 0005- ● ● ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 9601-0004 ● ● ● ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0005-0103 ● ● ● ● ● ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0104-0403 ● ● ● ● ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (A) L=140 		5-09707-031-1 02 1 0104-0403 ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) L=140 		5-09707-031-1 02 1 0104-0403 ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0404-0405 ● ● ● ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (A) L=140 		5-09707-031-1 02 1 0404-0405 ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) L=140 		5-09707-031-1 02 1 0404-0405 ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0406- ● ● ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (A) L=140 		5-09707-031-1 02 1 0406- ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) L=140 		5-09707-031-1 02 1 0406- ●
450 CLIP; BAND
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) (A) L=140 		5-09707-031-1 02 1 0406- ●
450 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 9811- ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (B) 		1-09707-187-0 01 1 0104- ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (B) 		1-09707-187-0 01 1 0104- ●
755 SLEEVE; RUBBER,CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> ID=29 OD=39 L=40 		1-09337-013-0 02 1 9811-0004 ●

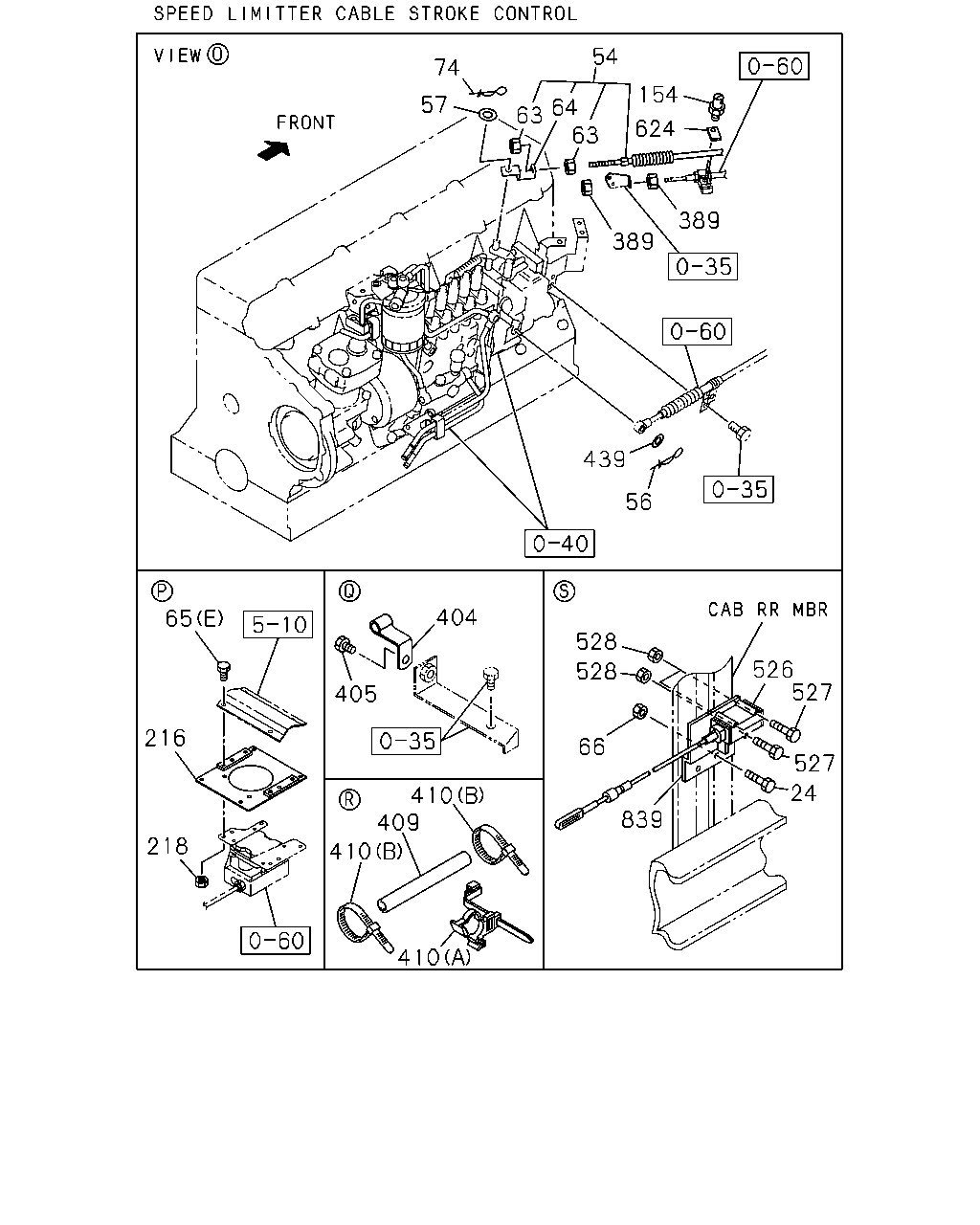

çizim 85431
54 74 154 57 64 63 63 624 389 389 439 56 404 65 528 526 527 528 405 216 66 527 24 410 409 839 218 410 410
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 BOLT; BRKT
A/T<X9D> M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ●
24 BOLT; BRKT
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-0004 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0405 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0406- ● ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0004 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0405 ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0406-0605 ● ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ● ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9609 ● ●
63 NUT; LOCK,BRKT
FVR(FV****) M8 		9-09111-408-0 02 1 9601-9609 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9610-9705 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9706-9803 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9804-0004 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0303 ● ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0005-0303 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0304-0405 ● ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0406-0604 ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0406-0604 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0605- ● ●
63 NUT; LOCK,BRKT
EXC. EURO3 SPECIFICATION<NJX> M8 		9-09111-408-0 02 1 0605- ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0605- ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9609 ● ●
64 BRACKET; ENG CONT CABLE
FVR(FV****) 		1-23219-105-1 01 1 9601-9609 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9610-9705 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9706-9803 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9804-0004 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0405 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0406-0604 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0406-0604 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0605- ● ●
64 BRACKET; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-110-0 01 1 0005- ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-0004 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0405 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-0004 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0405 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0405 ● ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0406- ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0004 ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0405 ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0904 ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ● ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X30 FLANGE 		0-28080-830-0 04 1 9602-9606 ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9607-9803 ●
65 BOLT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0512 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
66 NUT; BRKT
A/T<X9D> M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ●
66 NUT; BRKT
A/T<X9D> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-0004 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-1509 ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601- ● ●
154 BOLT; CABLE BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-23321-272-0 01 1 9601-0004 ● ●
154 BOLT; CABLE BRKT
FVR WIDE CAB SHORT CHASSIS(FV**FC) 		9-23321-272-0 01 1 0005- ●
216 BRACKET
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-47477-687-0 01 1 9601-0004 ●
216 BRACKET
FVR WIDE CAB SHORT CHASSIS(FV**FC) 		1-47477-687-0 01 1 0005- ●
216 BRACKET
GVR(GV****) 		1-47477-958-1 01 1 9804- ●
218 NUT; BRKT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 		9-09110-408-0 04 1 9601-9606 ●
218 NUT; BRKT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 04 1 9607-9803 ●
218 NUT; BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 04 1 9804-0004 ●
218 NUT; BRKT
GVR(GV****) M8 FLANGE 		0-91150-108-0 04 1 9804-0004 ●
218 NUT; BRKT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ●
218 NUT; BRKT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
389 NUT; ACCEL CONT CABLE FIX
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE 		0-91150-106-0 02 1 9601-0004 ● ●
389 NUT; ACCEL CONT CABLE FIX
FVR WIDE CAB SHORT CHASSIS(FV**FC) M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ●
389 NUT; ACCEL CONT CABLE FIX
FVR WIDE CAB SHORT CHASSIS(FV**FC) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
404 CLIP; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=11 H=45 L=25 		1-09700-866-0 01 1 9601-9708 ● ●
404 CLIP; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50 		1-09701-096-0 01 1 9709-0004 ● ●
404 CLIP; CABLE
FVR WIDE CAB SHORT CHASSIS(FV**FC) ID=18 L=25 H=50 		1-09701-096-0 01 1 0005- ●
405 BOLT; CABLE CLIP
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
409 SLEEVE
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 9601-9803 ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140 		5-09707-031-0 02 1 9601-9803 ● ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 9709-9810 ● ●
410 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 01 1 9811-0004 ● ● ● ● ●
410 CLIP; BAND
GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 9811-0004 ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 01 1 9811-0004 ●
410 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) 		1-09707-187-0 01 1 0005- ●
410 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 02 1 9811-0004 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0004 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0405 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0406-0605 ● ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606-0607 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0608- ● ● ● ● ● ●
526 SENSOR; ACCEL
EURO3 SPECIFICATION<NJX> 		1-81534-003-2 01 1 0605-0605 ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0406-0605 ●
526 SENSOR; ACCEL
EURO3 SPECIFICATION<NJX> 		1-80250-030-0 01 1 0606- ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0606- ●
526 SENSOR; ACCEL
A/T<X9D> 		1-80250-015-0 01 1 0005- ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0406-0604 ●
527 BOLT; ACCEL SENSOR
EURO3 SPECIFICATION<NJX> M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0605- ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0605- ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28080-650-0 03 1 0005-0512 ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28050-650-0 03 1 0601- ●
528 NUT; ACCEL SENSOR
A/T<X9D> M6 FLANGE 		0-91150-106-0 03 1 0005-0602 ●
528 NUT; ACCEL SENSOR
A/T<X9D> M6 FLANGE 		0-91180-106-0 03 1 0603- ●
624 PLATE; CONT LINK
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-47477-576-0 01 1 9601-0004 ● ●
624 PLATE; CONT LINK
FVR WIDE CAB SHORT CHASSIS(FV**FC) 		1-47477-576-0 01 1 0005- ●
624 PLATE; CONT LINK
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> 		1-47478-243-0 01 1 9807-9810 ●
839 BRACKET; THROTTLE SENSOR
A/T<X9D> 		1-47478-703-0 01 1 0005- ●

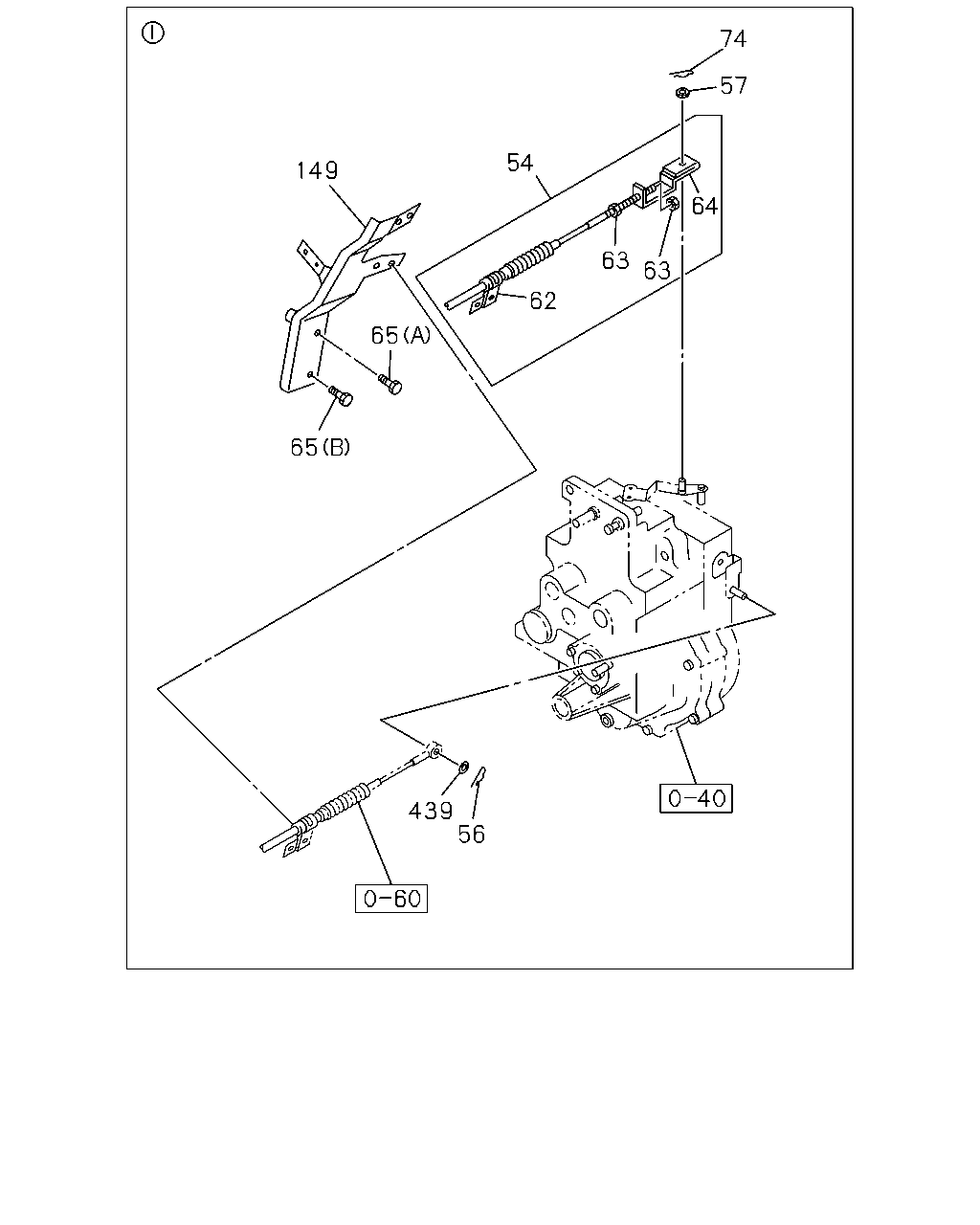

çizim 85499
74 57 54 149 64 63 63 62 65 65 439 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-0004 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0405 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0406- ● ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0004 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0405 ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0406-0605 ● ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ● ● ● ●
62 CLIP; ENG CONT CABLE
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=30 		1-09701-104-0 01 1 9912-0004 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 9912-0004 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0005-0007 ● ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0005-0007 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0008-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0008-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0406- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9705 ● ●
62 CLIP; ENG CONT CABLE
EXC. ENGINE REAR PTO<SV1> L=30 		1-09700-326-0 01 1 9706-9709 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9710-9911 ● ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09700-326-0 01 1 9710-9911 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9912- ●
62 CLIP; ENG CONT CABLE
FVR(FV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=16 		1-09700-597-0 01 1 9601-0004 ●
62 CLIP; ENG CONT CABLE
L=16 		1-09700-597-0 01 1 0005-0604 ●
62 CLIP; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> L=16 		1-09700-597-0 01 1 0605- ●
62 CLIP; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9610-9709 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9710-9908 ●
62 CLIP; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9909-0004 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94397-228-0 01 1 9909-0004 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 0005-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 0406- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9609 ● ●
63 NUT; LOCK,BRKT
FVR(FV****) M8 		9-09111-408-0 02 1 9601-9609 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9610-9705 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9706-9803 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9804-0004 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0303 ● ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0005-0303 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0304-0405 ● ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0406-0604 ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0406-0604 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0605- ● ●
63 NUT; LOCK,BRKT
EXC. EURO3 SPECIFICATION<NJX> M8 		9-09111-408-0 02 1 0605- ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0605- ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9609 ● ●
64 BRACKET; ENG CONT CABLE
FVR(FV****) 		1-23219-105-1 01 1 9601-9609 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9610-9705 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9706-9803 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9804-0004 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0405 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0406-0604 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0406-0604 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0605- ● ●
64 BRACKET; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-110-0 01 1 0005- ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-0004 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0405 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-0004 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0405 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0405 ● ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0406- ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0004 ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0405 ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0904 ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ● ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X30 FLANGE 		0-28080-830-0 04 1 9602-9606 ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9607-9803 ●
65 BOLT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0512 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-0004 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-1509 ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601- ● ●
149 BRACKET; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-107-0 01 1 9601-0004 ●
149 BRACKET; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-006-1 01 1 9601-9803 ●
149 BRACKET; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-006-2 01 1 9804-0004 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-006-2 01 1 9804-0004 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 0005-0405 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-006-2 01 1 0005-0405 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 0406- ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 9610-9803 ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> 		8-94394-532-1 01 1 9804-0405 ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> 		8-94394-532-1 01 1 0406- ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 0406- ●
149 BRACKET; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-94392-784-0 01 1 9807-0004 ●
149 BRACKET; ENG CONT 8-97600-861-1 01 1 0005- ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0004 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0405 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0406-0605 ● ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606-0607 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0608- ● ● ● ● ● ●

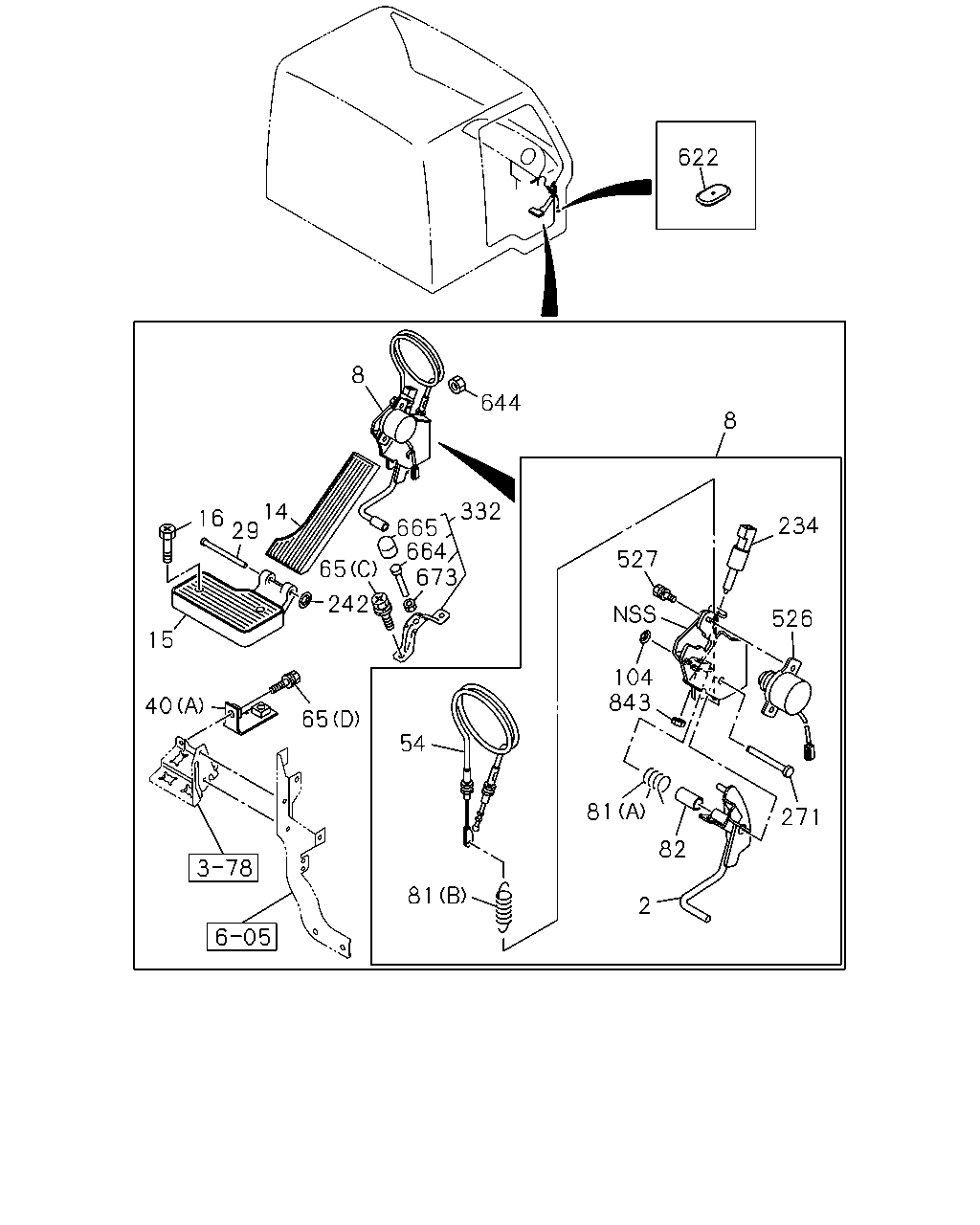

çizim 85504
622 8 644 8 332 14 16 29 234 665 664 673 527 65 242 526 15 104 843 40 65 54 81 271 82 81 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 LEVER; ENG CONT 1-71907-500-1 01 1 0406-0604 ●
2 LEVER; ENG CONT
EURO3 SPECIFICATION<NJX> 		1-71907-500-2 01 1 0605- ●
2 LEVER; ENG CONT 1-71907-500-2 01 1 0605- ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9601-0004 ● ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 0005-0604 ● ● ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 0605- ● ● ● ●
2 LEVER; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-210-2 01 1 0605- ●
8 LINK ASM; ENG CONT
EURO3 SPECIFICATION<NJX> 		1-71907-161-9 01 1 0605-0605 ●
8 LINK ASM; ENG CONT 1-73996-545-2 01 1 0406-0605 ●
8 LINK ASM; ENG CONT
EURO3 SPECIFICATION<NJX> 		1-73996-545-3 01 1 0606- ●
8 LINK ASM; ENG CONT 1-73996-545-3 01 1 0606- ●
8 LINK ASM; ENG CONT
AUSTRALIA EQUIPMENT(RR3) 		1-73996-276-2 01 1 9601-9705 ●
8 LINK ASM; ENG CONT
AUSTRALIA EQUIPMENT(RR3) 		1-73996-276-2 01 1 9706-9810 ● ●
8 LINK ASM; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 		1-73996-276-2 01 1 9811-0004 ● ●
8 LINK ASM; ENG CONT
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-206-6 01 1 9601-9810 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9601-9810 ● ●
8 LINK ASM; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-206-6 01 1 9811-0004 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) 		1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> 		1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0005-0604 ● ● ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0605- ● ● ● ●
8 LINK ASM; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-73996-206-6 01 1 0605- ●

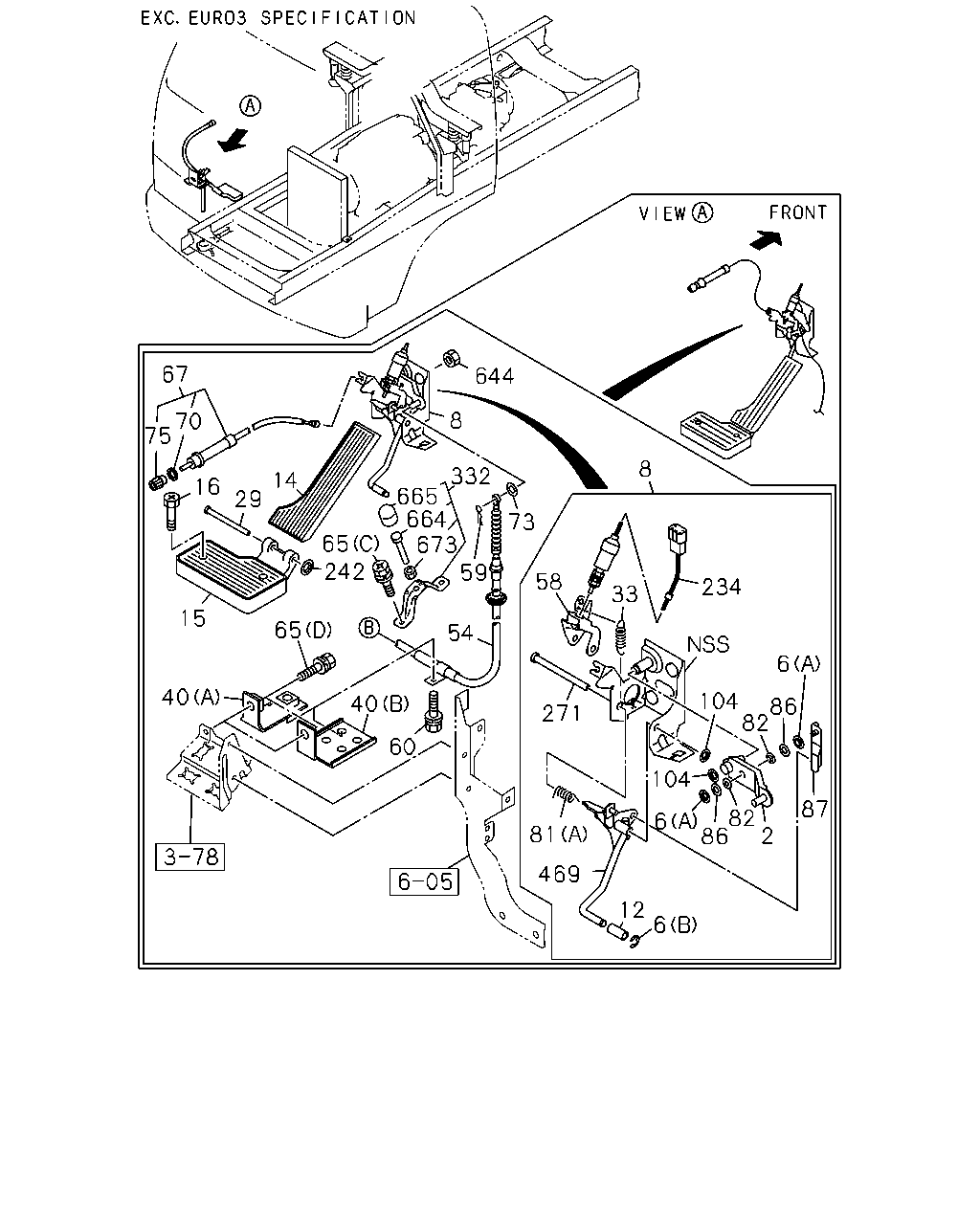

14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9601-9708 ● ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-0405 ● ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0406- ● ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9601-9803 ● ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 9804-0405 ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0406- ● ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9902 ● ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0405 ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0406- ● ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9803 ● ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0405 ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0406- ● ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-79738-844-2 01 1 0212- ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-47477-148-2 01 1 9601-9803 ● ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-47477-148-2 01 1 9804-9908 ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-47478-612-0 01 1 9909-0211 ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-47478-612-0 01 1 0212- ● ● ● ● ●

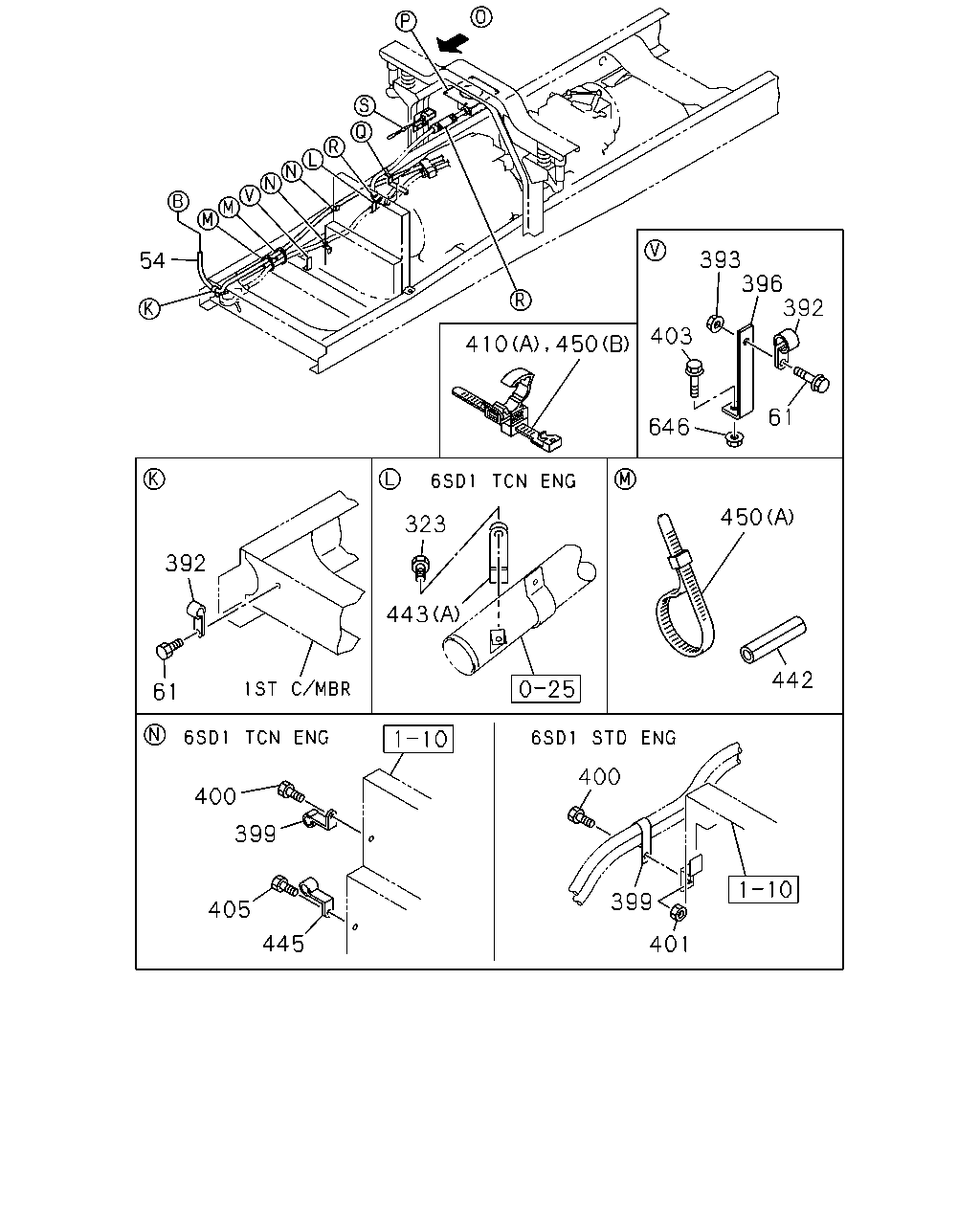

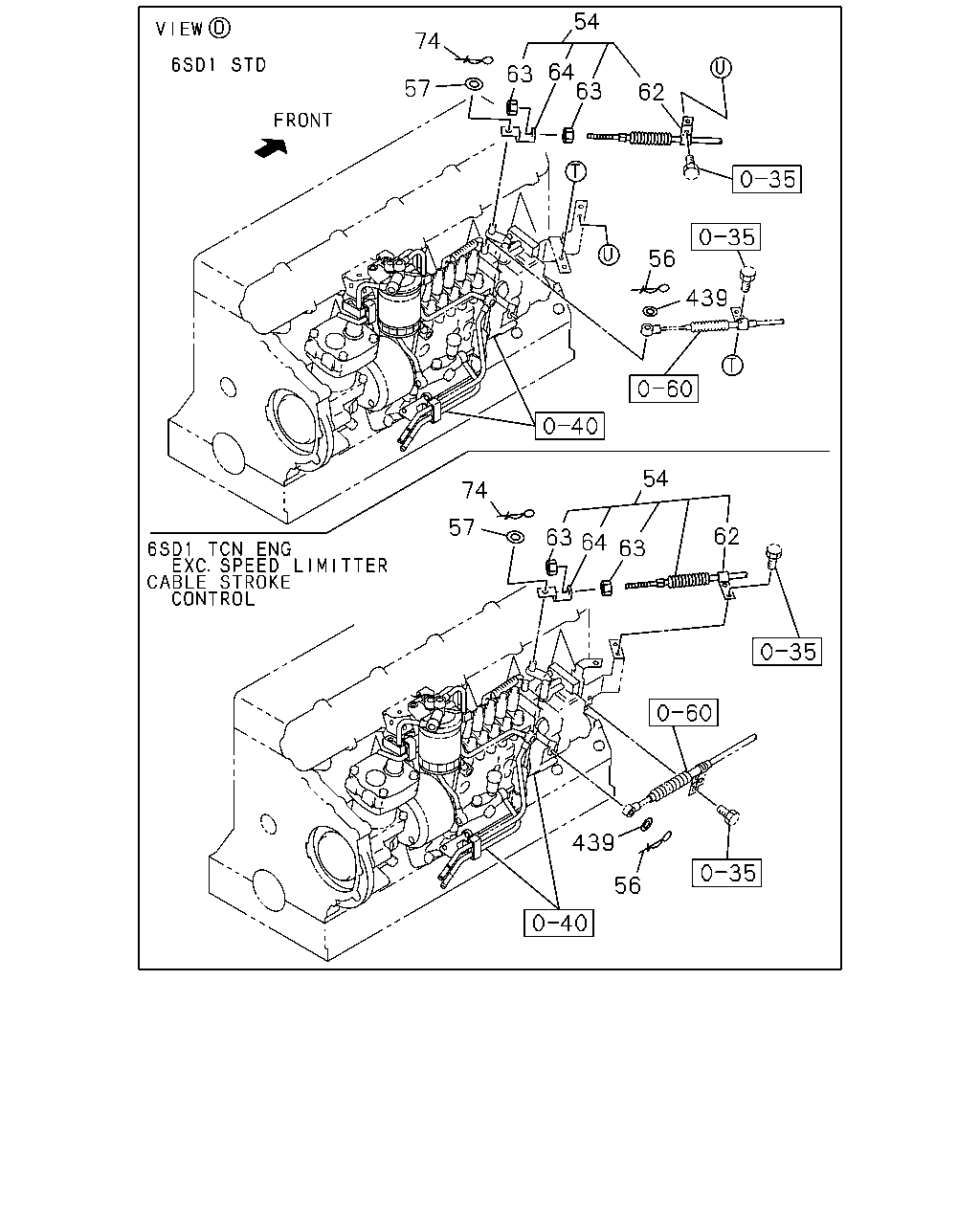

54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●

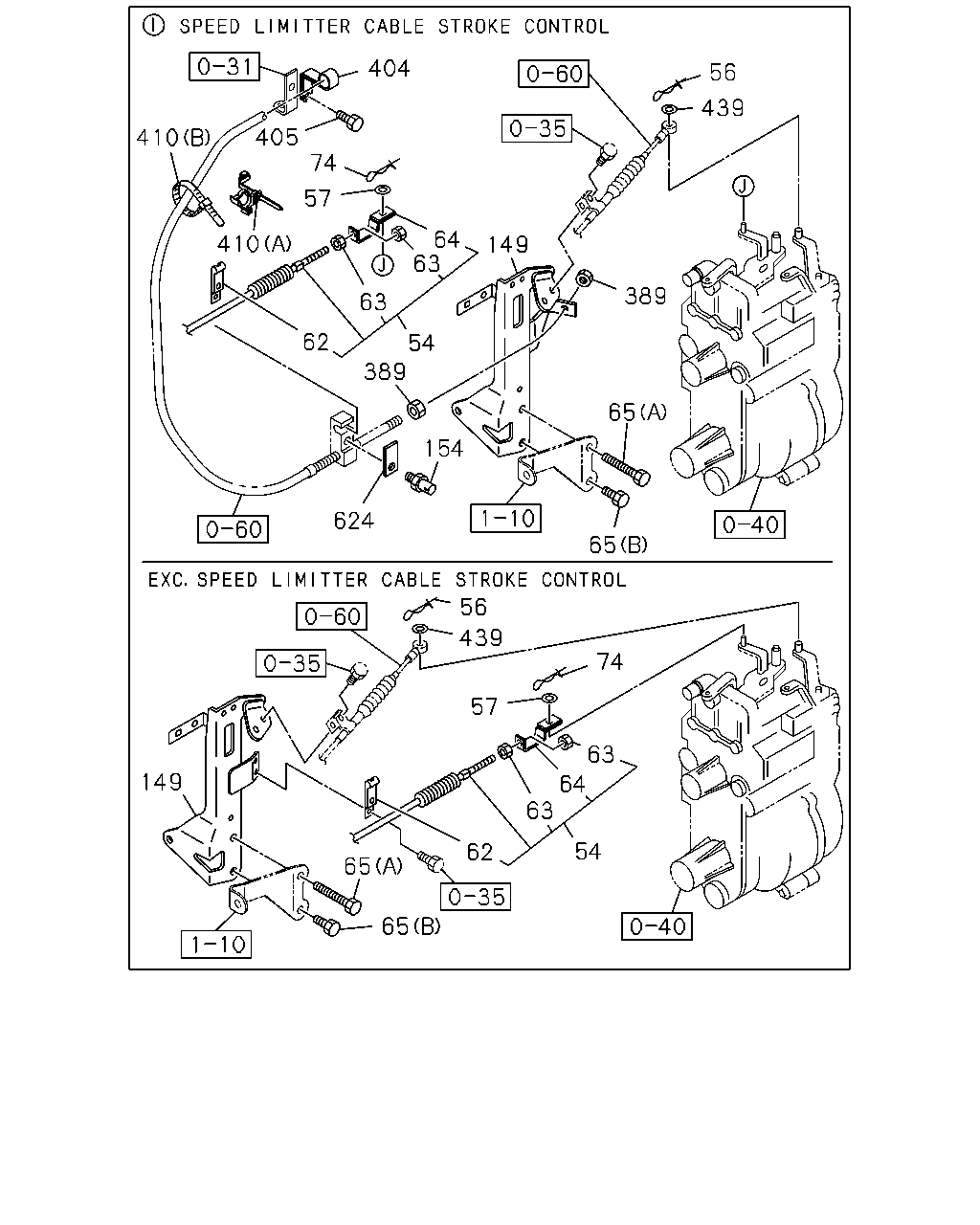

54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●

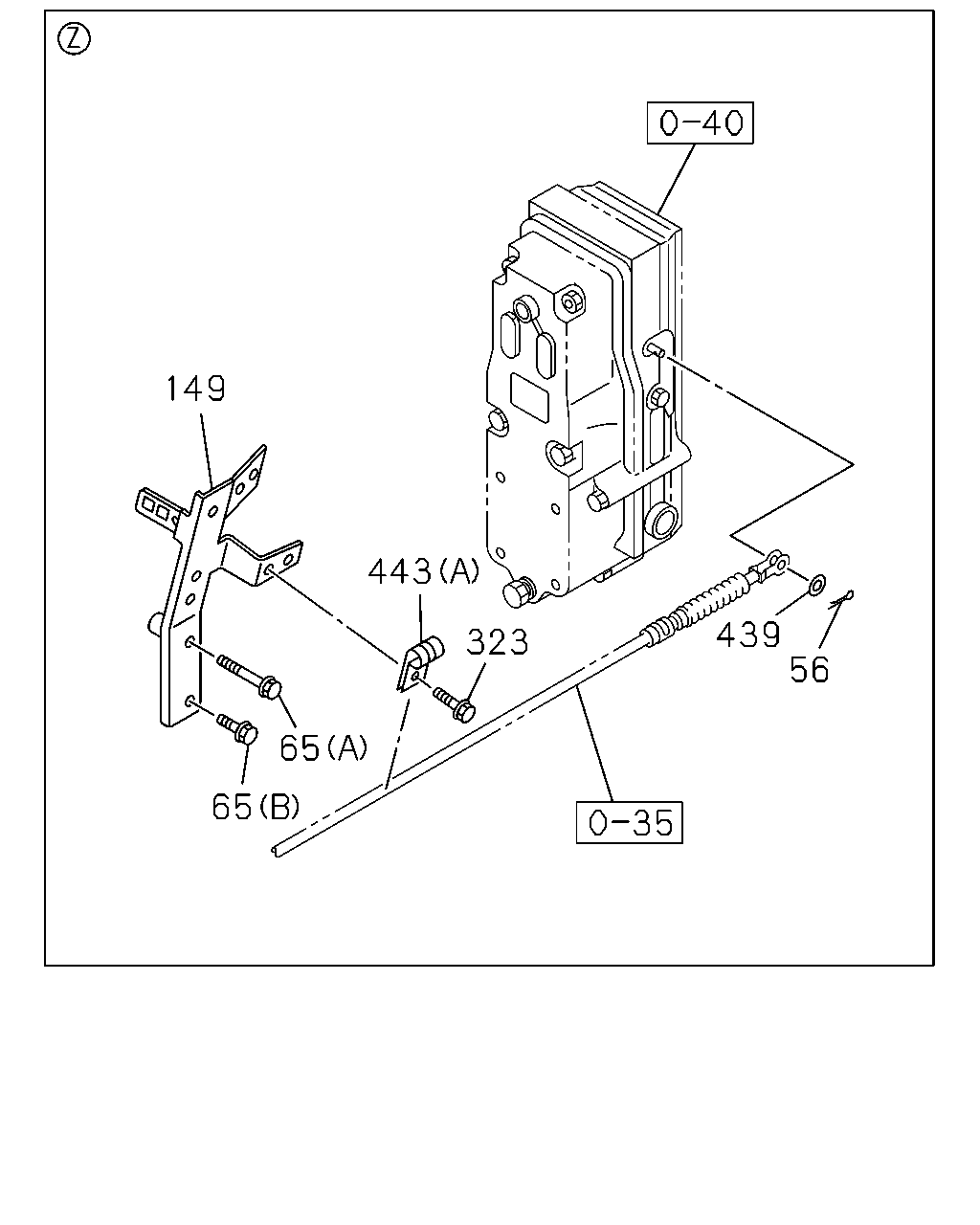

65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-0004 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0405 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-0004 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0405 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0405 ● ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0406- ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0004 ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0405 ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0904 ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ● ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X30 FLANGE 		0-28080-830-0 04 1 9602-9606 ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9607-9803 ●
65 BOLT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0512 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0406-0604 ●
81 SPRING; RETURN,ENG CONT LEVER
EURO3 SPECIFICATION<NJX> (B) 		8-97997-917-0 01 1 0605- ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0605- ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9601-0004 ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0005-0405 ● ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0406- ● ● ● ● ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0406-0604 ●
82 BUSHING; ENG CONT LVR
EURO3 SPECIFICATION<NJX> L=31.5 		1-53459-627-0 01 1 0605- ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0605- ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9601-0004 ● ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0005-0604 ● ● ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0605- ● ● ● ●
82 BUSHING; ENG CONT LVR
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-244-1 02 1 0605- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0406-0604 ●
104 NUT; ENG CONT
EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0605- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0605- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9601-0004 ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0005-0604 ● ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0605- ● ● ● ●
104 NUT; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0605- ●
234 SWITCH; ACCEL 1-82380-131-1 01 1 0406-0604 ●
234 SWITCH; ACCEL
EURO3 SPECIFICATION<NJX> 		1-82380-131-2 01 1 0605- ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0605- ●
234 SWITCH; ACCEL
AUSTRALIA EQUIPMENT(RR3) 		1-82440-098-0 01 1 9601-9810 ●
234 SWITCH; ACCEL
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 		1-82440-098-0 01 1 9811-0004 ● ●
234 SWITCH; ACCEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82380-114-1 01 1 9601-9810 ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9601-9810 ● ● ●
234 SWITCH; ACCEL
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82380-114-2 01 1 9811-0004 ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) 		1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> 		1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL 1-82380-114-3 01 1 0005-0604 ● ● ● ● ●
234 SWITCH; ACCEL 1-82380-114-3 01 1 0605- ● ● ● ●
234 SWITCH; ACCEL
EXC. EURO3 SPECIFICATION<NJX> 		1-82380-114-3 01 1 0605- ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9601-9803 ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9804-0405 ● ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0406- ● ● ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0406-0604 ●
271 SHAFT; ENG CONT
EURO3 SPECIFICATION<NJX> OD=8.0 L=69 		1-71907-298-0 01 1 0605- ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0605- ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9601-0004 ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0604 ● ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0605- ● ● ● ●
271 SHAFT; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> OD=8.0 L=74 		1-71907-212-1 01 1 0605- ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9601-9803 ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9804-0212 ● ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301-0405 ● ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0406- ● ● ● ● ● ●
526 SENSOR; ACCEL
EURO3 SPECIFICATION<NJX> 		1-81534-003-2 01 1 0605-0605 ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0406-0605 ●
526 SENSOR; ACCEL
EURO3 SPECIFICATION<NJX> 		1-80250-030-0 01 1 0606- ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0606- ●
526 SENSOR; ACCEL
A/T<X9D> 		1-80250-015-0 01 1 0005- ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0406-0604 ●
527 BOLT; ACCEL SENSOR
EURO3 SPECIFICATION<NJX> M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0605- ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0605- ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28080-650-0 03 1 0005-0512 ●
527 BOLT; ACCEL SENSOR
A/T<X9D> M6X50 FLANGE 		0-28050-650-0 03 1 0601- ●
622 GROMMET; ACCEL CONT CABLE
EURO3 SPECIFICATION<NJX> OD=30 		8-94107-655-0 01 1 0605- ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9601-0004 ● ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0405 ● ● ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0406- ● ● ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9601-9803 ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9804-0405 ● ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0406- ● ● ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9601-9803 ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9804-0212 ● ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9601-9803 ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9804-0405 ● ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0406-0512 ● ● ● ● ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ● ● ● ● ●
843 NUT
M12 		9-99111-412-0 01 1 0406-0512 ●
843 NUT
M12 		0-91111-512-0 01 1 0601-0604 ●
843 NUT
EURO3 SPECIFICATION<NJX> M12 		0-91111-512-0 01 1 0605- ●
843 NUT
M12 		0-91111-512-0 01 1 0605- ●
çizim 85505
149 443 439 56 323 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-0004 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0405 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0406- ● ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-0004 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0405 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-0004 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0405 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0405 ● ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0406- ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0004 ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0405 ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0904 ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ● ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X30 FLANGE 		0-28080-830-0 04 1 9602-9606 ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9607-9803 ●
65 BOLT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0512 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
149 BRACKET; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-107-0 01 1 9601-0004 ●
149 BRACKET; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-006-1 01 1 9601-9803 ●
149 BRACKET; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-006-2 01 1 9804-0004 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-006-2 01 1 9804-0004 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 0005-0405 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-006-2 01 1 0005-0405 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 0406- ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 9610-9803 ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> 		8-94394-532-1 01 1 9804-0405 ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> 		8-94394-532-1 01 1 0406- ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 0406- ●
149 BRACKET; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-94392-784-0 01 1 9807-0004 ●
149 BRACKET; ENG CONT 8-97600-861-1 01 1 0005- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0406-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0004 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0405 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0406-0605 ● ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606-0607 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0608- ● ● ● ● ● ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0406-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0004 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0005-0405 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0406-0606 ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0606 ●
443 CLIP; CABLE
(A) ID=7 L=16 		0-95234-625-0 01 1 0607- ●
çizim 85536
54 74 64 63 63 57 62 56 439 54 74 57 62 63 64 63 439 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-0004 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0405 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0406- ● ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0004 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0405 ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0406-0605 ● ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ● ● ● ●
62 CLIP; ENG CONT CABLE
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=30 		1-09701-104-0 01 1 9912-0004 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 9912-0004 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0005-0007 ● ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0005-0007 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0008-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0008-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0406- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9705 ● ●
62 CLIP; ENG CONT CABLE
EXC. ENGINE REAR PTO<SV1> L=30 		1-09700-326-0 01 1 9706-9709 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9710-9911 ● ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09700-326-0 01 1 9710-9911 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9912- ●
62 CLIP; ENG CONT CABLE
FVR(FV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=16 		1-09700-597-0 01 1 9601-0004 ●
62 CLIP; ENG CONT CABLE
L=16 		1-09700-597-0 01 1 0005-0604 ●
62 CLIP; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> L=16 		1-09700-597-0 01 1 0605- ●
62 CLIP; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9610-9709 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9710-9908 ●
62 CLIP; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9909-0004 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94397-228-0 01 1 9909-0004 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 0005-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 0406- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9609 ● ●
63 NUT; LOCK,BRKT
FVR(FV****) M8 		9-09111-408-0 02 1 9601-9609 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9610-9705 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9706-9803 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9804-0004 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0303 ● ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0005-0303 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0304-0405 ● ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0406-0604 ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0406-0604 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0605- ● ●
63 NUT; LOCK,BRKT
EXC. EURO3 SPECIFICATION<NJX> M8 		9-09111-408-0 02 1 0605- ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0605- ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9609 ● ●
64 BRACKET; ENG CONT CABLE
FVR(FV****) 		1-23219-105-1 01 1 9601-9609 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9610-9705 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9706-9803 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9804-0004 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0405 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0406-0604 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0406-0604 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0605- ● ●
64 BRACKET; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-110-0 01 1 0005- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-0004 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-1509 ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601- ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0004 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0405 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0406-0605 ● ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606-0607 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0608- ● ● ● ● ● ●
çizim 85645
393 396 392 54 403 410 61 646 450 323 392 443 442 61 400 400 399 399 405 445 401 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ● ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9601-0004 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0406-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 9601-0004 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 0005-0606 ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		0-95235-265-0 02 1 0607- ● ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 01 1 9601-0606 ● ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		0-95235-265-0 01 1 0607- ● ●
392 CLIP; ACCEL CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 0005-0405 ●
392 CLIP; ACCEL CONT CABLE
ID=11 L=20 		9-09525-035-0 01 1 0406-0606 ●
392 CLIP; ACCEL CONT CABLE
ID=11 L=20 		0-95235-035-0 01 1 0607- ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
396 BRACKET; CLIP
L=145 B=25 		1-47477-697-0 01 1 0005-0303 ●
396 BRACKET; CLIP
L=145 B=25 		1-47479-123-0 01 1 0304- ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9704 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-0004 ● ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005- ● ● ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 9601- ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-0004 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0005-0602 ● ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0405 ●
403 BOLT; BRKT,ACCEL PEDAL
M8X20 FLANGE 		0-28680-820-0 01 1 0406-0512 ●
403 BOLT; BRKT,ACCEL PEDAL
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
405 BOLT; CABLE CLIP
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140 		5-09707-031-0 02 1 9601-9803 ● ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 9709-9810 ● ●
410 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 01 1 9811-0004 ● ● ● ● ●
410 CLIP; BAND
GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 9811-0004 ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 01 1 9811-0004 ●
410 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) 		1-09707-187-0 01 1 0005- ●
410 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 02 1 9811-0004 ●
442 SLEEVE; RUBBER,OIL PIPE
L=150 		1-09360-677-1 01 1 9811- ● ●
442 SLEEVE; RUBBER,OIL PIPE
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 0104- ● ●
442 SLEEVE; RUBBER,OIL PIPE
FVR WIDE CAB SHORT CHASSIS(FV**FC) ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 0104- ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0406-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0004 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0005-0405 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0406-0606 ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0606 ●
443 CLIP; CABLE
(A) ID=7 L=16 		0-95234-625-0 01 1 0607- ●
445 CLIP; RAD
ID=7 L=20 		9-09524-635-0 01 1 0406-0606 ●
445 CLIP; RAD
ID=7 L=20 		0-95234-635-0 01 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 9601- ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 9601-0004 ● ● ● ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0005-0103 ● ● ● ● ● ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0104-0403 ● ● ● ● ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (A) L=140 		5-09707-031-1 02 1 0104-0403 ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) L=140 		5-09707-031-1 02 1 0104-0403 ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0404-0405 ● ● ● ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (A) L=140 		5-09707-031-1 02 1 0404-0405 ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) L=140 		5-09707-031-1 02 1 0404-0405 ●
450 CLIP; BAND
(A) L=140 		5-09707-031-1 02 1 0406- ● ● ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (A) L=140 		5-09707-031-1 02 1 0406- ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) L=140 		5-09707-031-1 02 1 0406- ●
450 CLIP; BAND
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) (A) L=140 		5-09707-031-1 02 1 0406- ●
450 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 9811- ● ●
450 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) ALLISON MD3060P A/T(Y4G) (B) 		1-09707-187-0 01 1 0104- ● ●
450 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (B) 		1-09707-187-0 01 1 0104- ●
646 NUT; BRKT,LEVER
M8 FLANGE 		0-91150-108-0 01 1 0005-0405 ●
646 NUT; BRKT,LEVER
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
646 NUT; BRKT,LEVER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
çizim 85679
404 56 439 405 410 74 57 64 63 410 149 389 63 62 54 389 65 154 624 65 56 439 74 57 63 149 64 63 54 62 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-0004 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0405 ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0406- ● ● ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-0004 ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0405 ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0406-0605 ● ● ● ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ● ● ● ●
62 CLIP; ENG CONT CABLE
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=30 		1-09701-104-0 01 1 9912-0004 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 9912-0004 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09701-104-0 01 1 0005-0007 ● ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0005-0007 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0008-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0008-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> L=30 		1-09701-104-0 01 1 0406- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9705 ● ●
62 CLIP; ENG CONT CABLE
EXC. ENGINE REAR PTO<SV1> L=30 		1-09700-326-0 01 1 9706-9709 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9710-9911 ● ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09700-326-0 01 1 9710-9911 ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9912- ●
62 CLIP; ENG CONT CABLE
FVR(FV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=16 		1-09700-597-0 01 1 9601-0004 ●
62 CLIP; ENG CONT CABLE
L=16 		1-09700-597-0 01 1 0005-0604 ●
62 CLIP; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> L=16 		1-09700-597-0 01 1 0605- ●
62 CLIP; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9610-9709 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9710-9908 ●
62 CLIP; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9909-0004 ●
62 CLIP; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94397-228-0 01 1 9909-0004 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 0005-0405 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 0406- ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9609 ● ●
63 NUT; LOCK,BRKT
FVR(FV****) M8 		9-09111-408-0 02 1 9601-9609 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9610-9705 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9610-9705 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9706-9803 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9706-9803 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9804-0004 ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 9804-0004 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0303 ● ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0005-0303 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0304-0405 ● ● ●
63 NUT; LOCK,BRKT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
FVR STD CAB MIDDLE CHASSIS(FV**MF) M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0304-0405 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0406-0604 ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0406-0604 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0605- ● ●
63 NUT; LOCK,BRKT
EXC. EURO3 SPECIFICATION<NJX> M8 		9-09111-408-0 02 1 0605- ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0605- ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9609 ● ●
64 BRACKET; ENG CONT CABLE
FVR(FV****) 		1-23219-105-1 01 1 9601-9609 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9610-9705 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9610-9705 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9706-9803 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9706-9803 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9804-0004 ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 9804-0004 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0405 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE
FVR STD CAB MIDDLE CHASSIS(FV**MF) 		1-23219-105-1 01 1 0005-0405 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0406-0604 ● ● ●
64 BRACKET; ENG CONT CABLE
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0406-0604 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0605- ● ●
64 BRACKET; ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0605- ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-110-0 01 1 0005- ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-0004 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0405 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-0004 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0405 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0405 ● ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0406- ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0004 ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0405 ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0904 ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ● ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X30 FLANGE 		0-28080-830-0 04 1 9602-9606 ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9607-9803 ●
65 BOLT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0512 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-0004 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-1509 ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09987-141-0 01 1 1510- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601- ● ●
149 BRACKET; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-107-0 01 1 9601-0004 ●
149 BRACKET; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-006-1 01 1 9601-9803 ●
149 BRACKET; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94390-006-2 01 1 9804-0004 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-006-2 01 1 9804-0004 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 0005-0405 ●
149 BRACKET; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-006-2 01 1 0005-0405 ●
149 BRACKET; ENG CONT 8-94390-006-2 01 1 0406- ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 9610-9803 ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> 		8-94394-532-1 01 1 9804-0405 ●
149 BRACKET; ENG CONT
EURO2 SPECIFICATION<THN> 		8-94394-532-1 01 1 0406- ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 0406- ●
149 BRACKET; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEATER & DEFROSTER(C41) 		8-94392-784-0 01 1 9807-0004 ●
149 BRACKET; ENG CONT 8-97600-861-1 01 1 0005- ●
154 BOLT; CABLE BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-23321-272-0 01 1 9601-0004 ● ●
154 BOLT; CABLE BRKT
FVR WIDE CAB SHORT CHASSIS(FV**FC) 		9-23321-272-0 01 1 0005- ●
389 NUT; ACCEL CONT CABLE FIX
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE 		0-91150-106-0 02 1 9601-0004 ● ●
389 NUT; ACCEL CONT CABLE FIX
FVR WIDE CAB SHORT CHASSIS(FV**FC) M6 FLANGE 		0-91150-106-0 02 1 0005-0602 ●
389 NUT; ACCEL CONT CABLE FIX
FVR WIDE CAB SHORT CHASSIS(FV**FC) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
404 CLIP; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=11 H=45 L=25 		1-09700-866-0 01 1 9601-9708 ● ●
404 CLIP; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50 		1-09701-096-0 01 1 9709-0004 ● ●
404 CLIP; CABLE
FVR WIDE CAB SHORT CHASSIS(FV**FC) ID=18 L=25 H=50 		1-09701-096-0 01 1 0005- ●
405 BOLT; CABLE CLIP
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140 		5-09707-031-0 02 1 9601-9803 ● ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 9709-9810 ● ●
410 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 01 1 9811-0004 ● ● ● ● ●
410 CLIP; BAND
GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 9811-0004 ●
410 CLIP; BAND
SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 01 1 9811-0004 ●
410 CLIP; BAND
FVR WIDE CAB SHORT CHASSIS(FV**FC) (A) 		1-09707-187-0 01 1 0005- ●
410 CLIP; BAND
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> (A) 		1-09707-187-0 02 1 9811-0004 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-0004 ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0405 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0406-0605 ● ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606-0607 ● ● ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0608- ● ● ● ● ● ●
624 PLATE; CONT LINK
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-47477-576-0 01 1 9601-0004 ● ●
624 PLATE; CONT LINK
FVR WIDE CAB SHORT CHASSIS(FV**FC) 		1-47477-576-0 01 1 0005- ●
624 PLATE; CONT LINK
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> 		1-47478-243-0 01 1 9807-9810 ●
çizim 184107
67 644 8 70 75 332 8 14 16 665 664 673 59 29 73 6 242 58 234 33 15 65 54 6 40 40 104 86 82 271 60 104 87 82 6 81 469 12 6 86 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 LEVER; ENG CONT 1-71907-500-1 01 1 0406-0604 ●
2 LEVER; ENG CONT
EURO3 SPECIFICATION<NJX> 		1-71907-500-2 01 1 0605- ●
2 LEVER; ENG CONT 1-71907-500-2 01 1 0605- ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9601-0004 ● ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 0005-0604 ● ● ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 0605- ● ● ● ●
2 LEVER; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-210-2 01 1 0605- ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9601-0004 ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0005-0604 ● ● ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0605-0605 ● ● ● ●
6 RING; SNAP,LINK TO LINK
EXC. EURO3 SPECIFICATION<NJX> (A) ID=4 		9-09185-404-0 02 1 0605-0605 ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605- ● ● ● ●
6 RING; SNAP,LINK TO LINK
EXC. EURO3 SPECIFICATION<NJX> (A) ID=4 		0-91805-504-0 02 1 0605- ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9601-9802 ● ● ● ●
8 LINK ASM; ENG CONT
EURO3 SPECIFICATION<NJX> 		1-71907-161-9 01 1 0605-0605 ●
8 LINK ASM; ENG CONT 1-73996-545-2 01 1 0406-0605 ●
8 LINK ASM; ENG CONT
EURO3 SPECIFICATION<NJX> 		1-73996-545-3 01 1 0606- ●
8 LINK ASM; ENG CONT 1-73996-545-3 01 1 0606- ●
8 LINK ASM; ENG CONT
AUSTRALIA EQUIPMENT(RR3) 		1-73996-276-2 01 1 9601-9705 ●
8 LINK ASM; ENG CONT
AUSTRALIA EQUIPMENT(RR3) 		1-73996-276-2 01 1 9706-9810 ● ●
8 LINK ASM; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 		1-73996-276-2 01 1 9811-0004 ● ●
8 LINK ASM; ENG CONT
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-206-6 01 1 9601-9810 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9601-9810 ● ●
8 LINK ASM; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73996-206-6 01 1 9811-0004 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) 		1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> 		1-73996-206-6 01 1 9811-0004 ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0005-0604 ● ● ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0605- ● ● ● ●
8 LINK ASM; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-73996-206-6 01 1 0605- ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9601-9802 ● ● ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9601-9708 ● ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-0405 ● ● ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0406- ● ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9601-9803 ● ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 9804-0405 ● ● ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0406- ● ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9902 ● ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0405 ● ● ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0406- ● ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9803 ● ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0405 ● ● ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0406- ● ● ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9601-0004 ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 0005-0604 ● ● ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 0605- ● ● ● ●
33 SPRING; IDLING CONT LEVER
EXC. EURO3 SPECIFICATION<NJX> 		8-94414-815-0 01 1 0605- ●
40 BRACKET; ENG CONT CABLE
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 		1-79738-844-2 01 1 0212- ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-47477-148-2 01 1 9601-9803 ● ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-47477-148-2 01 1 9804-9908 ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
(A) 		1-47478-612-0 01 1 9909-0211 ● ● ● ● ●
40 BRACKET; ENG CONT CABLE
EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 		1-47478-612-0 01 1 0212- ● ● ● ● ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265 		1-73996-561-0 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265 		1-73996-561-0 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO2 SPECIFICATION<THN> L=2959 		1-73996-562-0 01 1 0304-0405 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0406-0604 ●
54 CABLE; ENG CONT
EURO3 SPECIFICATION<NJX> L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0605- ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-1 01 1 9601-0004 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2637 		1-73996-366-1 01 1 0005- ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 9601-0004 ●
54 CABLE; ENG CONT
L=2939 		1-73998-940-6 01 1 0005- ●
54 CABLE; ENG CONT
L=2397 		1-73996-295-7 01 1 9601- ●
54 CABLE; ENG CONT
FVR WIDE CAB(FV**F*) L=2636.5 		1-73996-296-6 01 1 9601-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) L=2636.5 		1-73996-296-6 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-3 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5 		1-73996-239-4 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR WIDE CAB SHORT CHASSIS(FV**FC) L=2646.5 		1-73996-437-1 01 1 0005- ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) GVR(GV****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5 		1-73996-299-5 01 1 9804-0004 ●
54 CABLE; ENG CONT
FVR STD CAB(FV**M*) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0005-0303 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0304-0604 ●
54 CABLE; ENG CONT
FVR STD CAB SHORT CHASSIS(FV**MC) GVR(GV****) L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5 		1-73996-299-5 01 1 0605- ●
54 CABLE; ENG CONT
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
EURO2 SPECIFICATION<THN> L=2755 		1-73996-347-3 01 1 9804- ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) L=2949 		1-73996-284-1 01 1 9706-9709 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 9710-0303 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>, EURO2 SPECIFICATION<THN> L=2949 		1-73996-284-2 01 1 0304-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-1 01 1 9710-9806 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2996.5 		1-73996-348-3 01 1 9807-0004 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) EURO2 SPECIFICATION<THN> L=2996.5 		1-73996-348-3 01 1 0005-0405 ●
54 CABLE; ENG CONT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> L=3006.5 		1-73996-436-2 01 1 9807-0004 ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9601-0004 ● ● ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 0005-0604 ● ● ● ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 0605- ● ● ● ●
58 LEVER; IDLING CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-242-1 01 1 0605- ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9601-9803 ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9804-0604 ● ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 0605- ● ● ● ●
59 PIN; SNAP,ENG CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> L=27.7 		1-09747-005-0 01 1 0605- ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0405 ● ● ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0607 ● ● ● ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0608-0904 ● ● ● ●
60 BOLT; CABLE
EXC. EURO3 SPECIFICATION<NJX> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0608-0904 ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ●
60 BOLT; CABLE
EXC. EURO3 SPECIFICATION<NJX> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-0004 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0405 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-0004 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0405 ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0406-0512 ● ● ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0405 ● ● ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0406- ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-0004 ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0405 ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0406-0904 ● ● ● ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ● ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X30 FLANGE 		0-28080-830-0 04 1 9602-9606 ●
65 BOLT
FVR(FV****) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9607-9803 ●
65 BOLT
FVR STD CAB MIDDLE CHASSIS(FV**MF) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 9804-0004 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0512 ●
65 BOLT
FVR WIDE CAB SHORT CHASSIS(FV**FC) GVR(GV****) (E) M8X35 FLANGE 		0-28650-835-0 04 1 0601- ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9601-9803 ● ● ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9804-0204 ● ● ● ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-0 01 1 0205-0604 ● ● ● ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-1 01 1 0605- ● ● ● ●
67 CABLE ASM; IDLE CONT
EXC. EURO3 SPECIFICATION<NJX> L=315 		1-73908-423-1 01 1 0605- ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9601-9803 ● ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9804-0604 ● ● ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 0605- ● ● ● ●
70 NUT; CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> 		1-73908-045-1 01 1 0605- ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0604 ● ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0605-0605 ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> ID=8.4 		9-09160-508-0 01 1 0605-0605 ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ● ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9601-9803 ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9804-0109 ● ● ● ● ●
75 KNOB ASM; IDLING CONT 8-97137-504-0 01 1 0110-0204 ● ● ● ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0205-0604 ● ● ● ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0605- ● ● ● ●
75 KNOB ASM; IDLING CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-73908-409-0 01 1 0605- ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0406-0604 ●
81 SPRING; RETURN,ENG CONT LEVER
EURO3 SPECIFICATION<NJX> (B) 		8-97997-917-0 01 1 0605- ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0605- ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9601-0004 ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0005-0405 ● ● ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0406- ● ● ● ● ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0406-0604 ●
82 BUSHING; ENG CONT LVR
EURO3 SPECIFICATION<NJX> L=31.5 		1-53459-627-0 01 1 0605- ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0605- ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9601-0004 ● ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0005-0604 ● ● ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0605- ● ● ● ●
82 BUSHING; ENG CONT LVR
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-244-1 02 1 0605- ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9601-0004 ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0005-0604 ● ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0605- ● ● ● ●
86 WASHER; PL,ENG CONT LEVER
EXC. EURO3 SPECIFICATION<NJX> ID=6.4 		9-09160-506-0 02 1 0605- ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9601-0004 ● ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 0005-0604 ● ● ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 0605- ● ● ● ●
87 LINK; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-211-1 01 1 0605- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0406-0604 ●
104 NUT; ENG CONT
EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0605- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0605- ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9601-0004 ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0005-0604 ● ● ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0605- ● ● ● ●
104 NUT; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0605- ●
234 SWITCH; ACCEL 1-82380-131-1 01 1 0406-0604 ●
234 SWITCH; ACCEL
EURO3 SPECIFICATION<NJX> 		1-82380-131-2 01 1 0605- ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0605- ●
234 SWITCH; ACCEL
AUSTRALIA EQUIPMENT(RR3) 		1-82440-098-0 01 1 9601-9810 ●
234 SWITCH; ACCEL
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EXC. EURO2 SPECIFICATION<THN> 		1-82440-098-0 01 1 9811-0004 ● ●
234 SWITCH; ACCEL
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82380-114-1 01 1 9601-9810 ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9601-9810 ● ● ●
234 SWITCH; ACCEL
FVR STD CAB MIDDLE CHASSIS(FV**MF) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82380-114-2 01 1 9811-0004 ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL
FVR WIDE CAB MIDDLE CHASSIS(FVR5FF) FVR STD CAB SHORT CHASSIS(FVR5MC) FVR STD CAB MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL
FVR WIDE CAB MIDDLE CHASSIS(FV**FF) 		1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL
FVR STD CAB MIDDLE CHASSIS(FV**MF) AUSTRALIA EQUIPMENT(RR3) EURO2 SPECIFICATION<THN> 		1-82380-114-2 01 1 9811-0004 ●
234 SWITCH; ACCEL 1-82380-114-3 01 1 0005-0604 ● ● ● ● ●
234 SWITCH; ACCEL 1-82380-114-3 01 1 0605- ● ● ● ●
234 SWITCH; ACCEL
EXC. EURO3 SPECIFICATION<NJX> 		1-82380-114-3 01 1 0605- ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9601-9803 ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9804-0405 ● ● ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0406- ● ● ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0406-0604 ●
271 SHAFT; ENG CONT
EURO3 SPECIFICATION<NJX> OD=8.0 L=69 		1-71907-298-0 01 1 0605- ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0605- ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9601-0004 ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0604 ● ● ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0605- ● ● ● ●
271 SHAFT; ENG CONT
EXC. EURO3 SPECIFICATION<NJX> OD=8.0 L=74 		1-71907-212-1 01 1 0605- ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9601-9803 ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9804-0212 ● ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301-0405 ● ● ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0406- ● ● ● ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 9601-0004 ● ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 0005-0604 ● ● ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 0605- ● ● ● ●
469 LEVER ASM
EXC. EURO3 SPECIFICATION<NJX> 		1-71907-209-5 01 1 0605- ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9601-0004 ● ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0405 ● ● ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0406- ● ● ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9601-9803 ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9804-0405 ● ● ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0406- ● ● ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9601-9803 ● ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9804-0212 ● ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9601-9803 ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9804-0405 ● ● ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0406-0512 ● ● ● ● ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ● ● ● ● ●
çizim 184327
443 323 443 323 760 445 405
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0406-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0512 ● ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
405 BOLT; CABLE CLIP
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0405 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28080-816-0 01 1 0406-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
405 BOLT; CABLE CLIP
FVR WIDE CAB SHORT CHASSIS(FV**FC) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0406-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0004 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0005-0405 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0406-0606 ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ● ● ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0606 ●
443 CLIP; CABLE
(A) ID=7 L=16 		0-95234-625-0 01 1 0607- ●
445 CLIP; RAD
ID=7 L=20 		9-09524-635-0 01 1 0406-0606 ●
445 CLIP; RAD
ID=7 L=20 		0-95234-635-0 01 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 9601- ●
760 NUT; CLIP,BRKT
M8 FLANGE 		0-91150-108-0 01 1 0406-0602 ●
760 NUT; CLIP,BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
