0-84A — FEED PUMP; INJECTION PUMP (#63750) — 65 parça

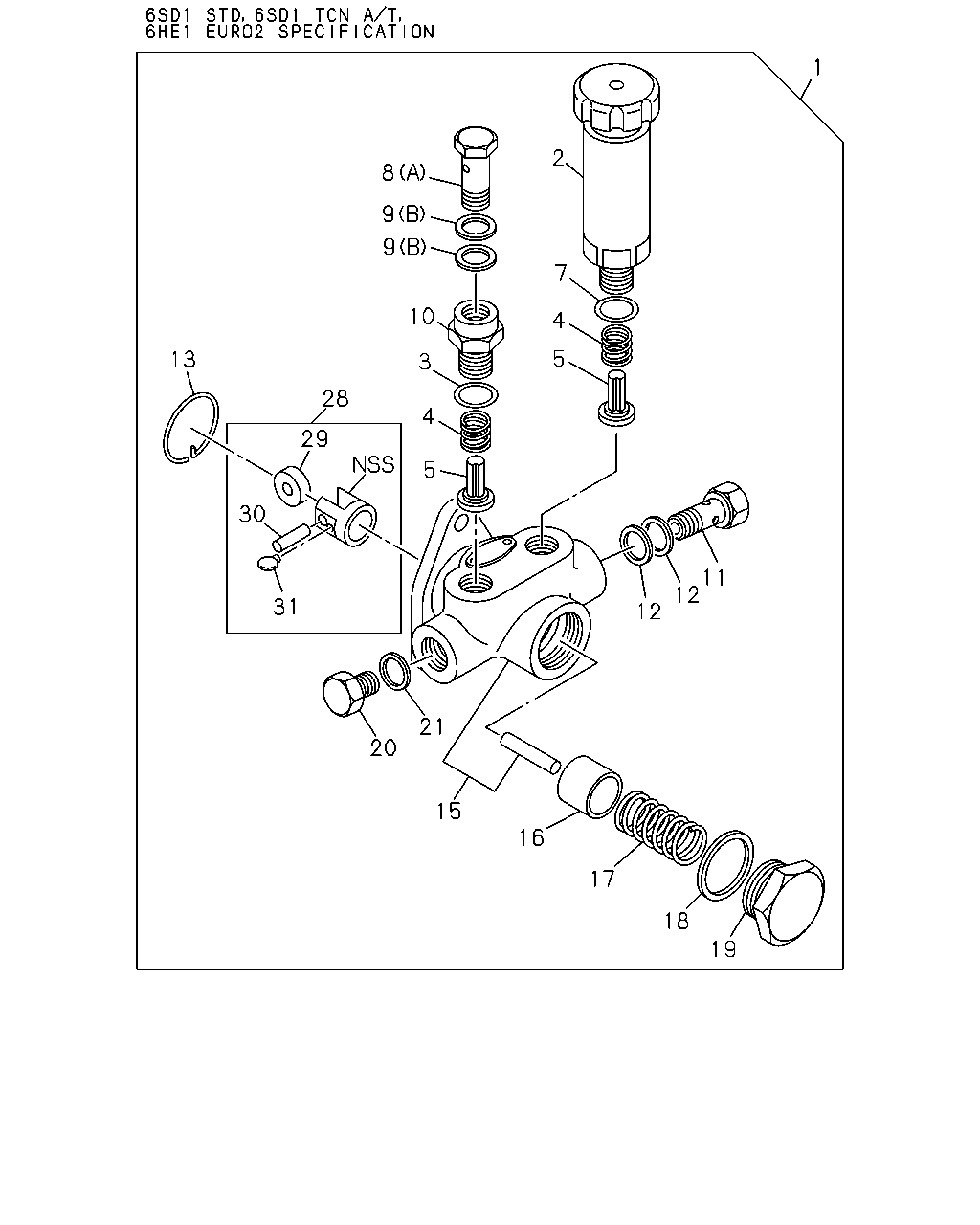

1 2 8 9 9 7 10 4 5 13 3 28 4 29 5 30 11 12 31 12 21 20 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: M = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, K = 8-94395-904-1, L = 8-94395-906-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-813-1, J = 8-94395-901-1	1-15750-155-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-003-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	1-15759-012-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81355-025-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: M = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: M = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-007-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	1-15754-002-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	1-15759-043-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81351-416-0	02	1	-

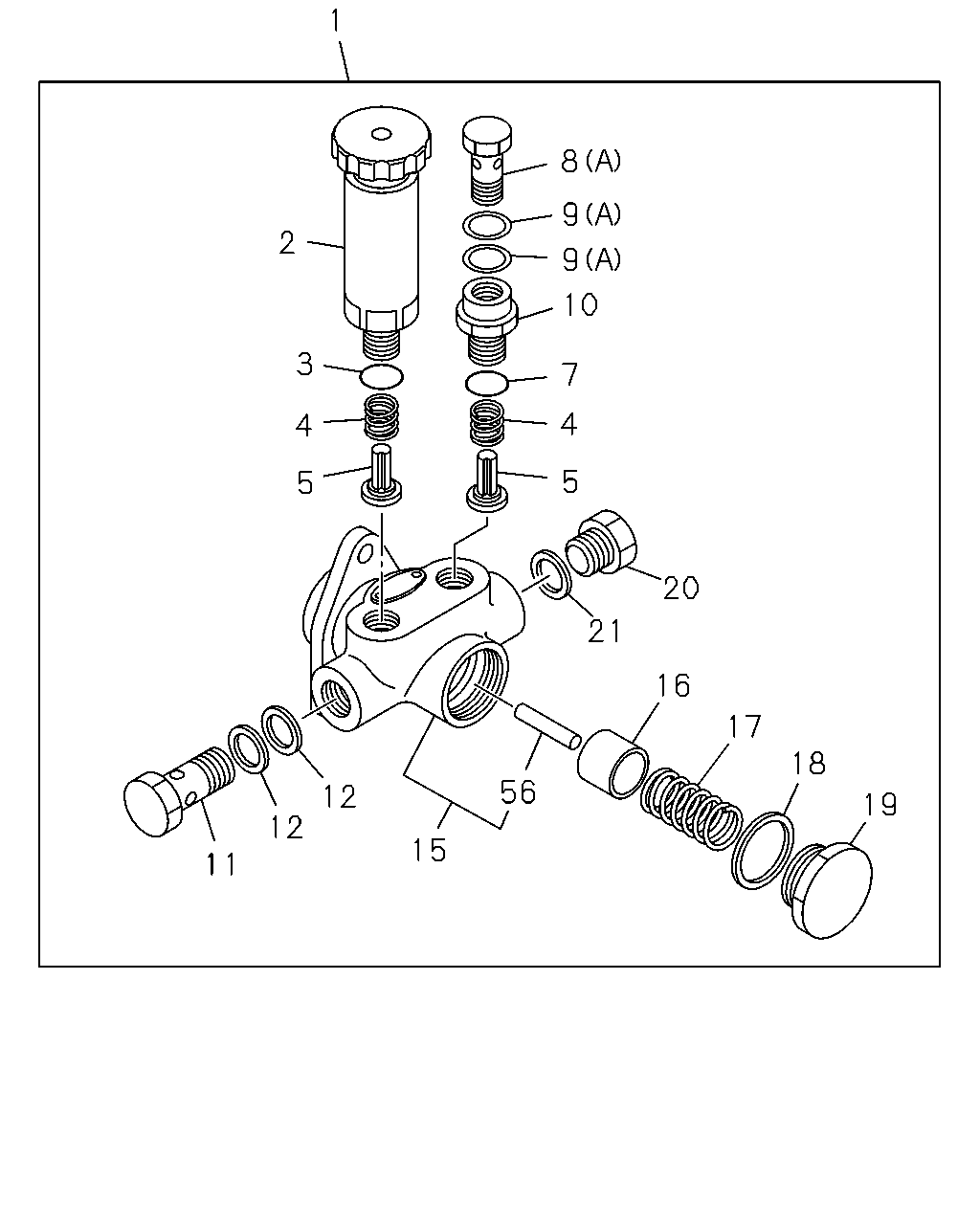

1 8 9 2 9 10 3 7 4 4 5 5 20 21 16 17 18 56 12 19 12 15 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0	1-15750-090-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: M = 8-94395-919-3	1-15750-113-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, K = 8-94395-904-1, L = 8-94395-906-0	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 8-94395-813-1, J = 8-94395-901-1	1-15750-155-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81351-602-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-19623-016-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	1-15759-012-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-003-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-029-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	1-15759-012-0	02	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0	1-15751-019-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: M = 8-94395-919-3	1-15751-027-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, M = 8-94395-919-3	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	9-81351-302-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: M = 8-94395-919-3	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0, G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-025-1, B = 1-15603-026-1, C = 1-15603-035-0, D = 1-15603-036-0, E = 1-15603-236-0, F = 1-15603-272-0	1-15619-102-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, I = 8-94395-813-1, J = 8-94395-901-1, K = 8-94395-904-1, L = 8-94395-906-0, M = 8-94395-919-3	1-15759-007-0	01	1	-
56	PUSH ROD ASM PART: G = 8-94390-081-1, H = 8-94391-333-0, K = 8-94395-904-1, L = 8-94395-906-0	8-97115-990-0	01	1	-
56	PUSH ROD ASM PART: I = 8-94395-813-1, J = 8-94395-901-1	8-97115-991-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
