Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#63741) — 62 parça
◀

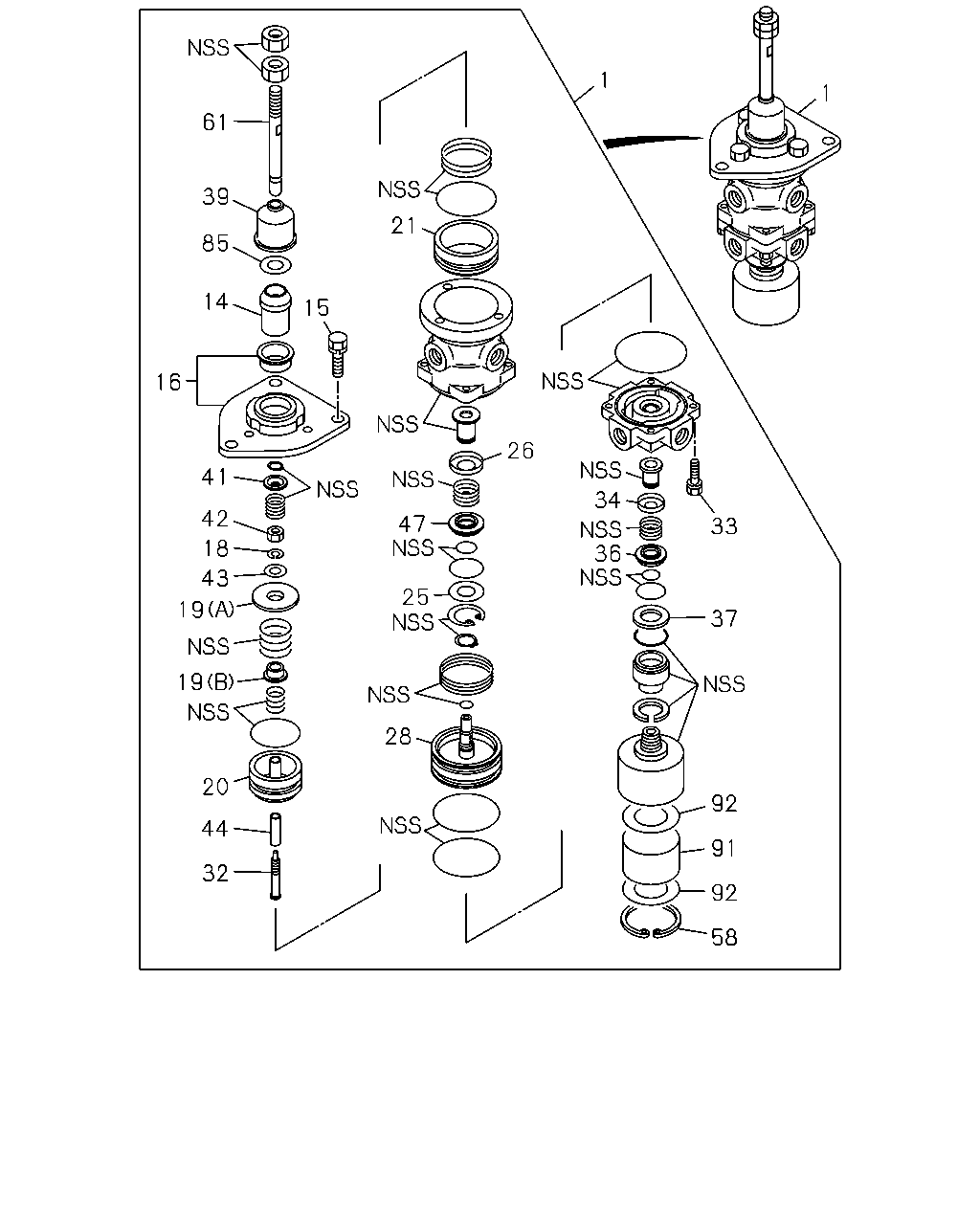

[334A] -'13/6 COMPONENT (29 parça)
[334A] -'13/6 REPAIR KIT (3 parça)

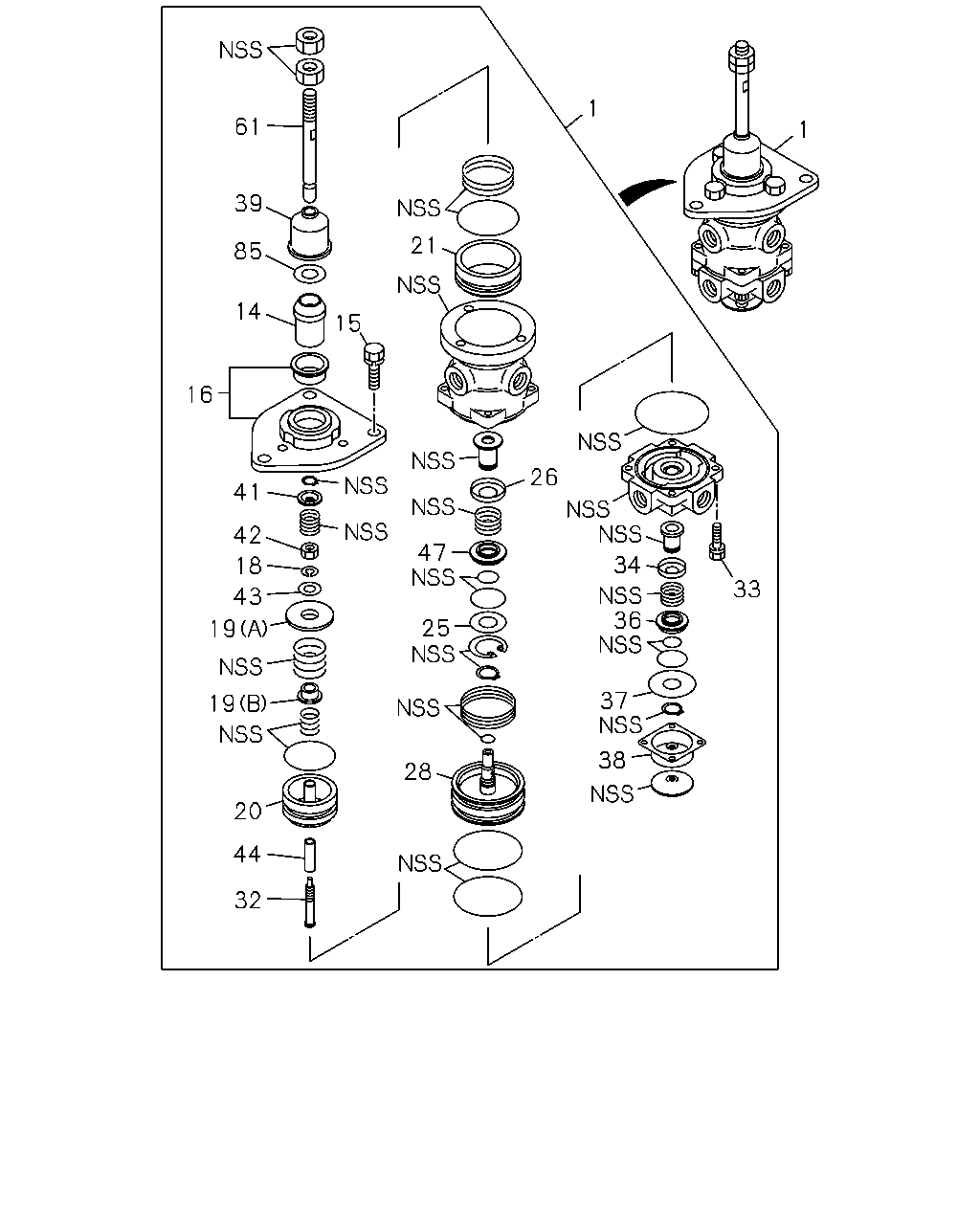

[334A] '13/7- COMPONENT (27 parça)
[334A] '13/7- REPAIR KIT (3 parça)
▶
58
92
91
92
37
33
34
36
1
1
26
28
25
47
21
15
32
44
20
19
19
18
43
42
41
16
14
85
39
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
8-98139-251-1
01
1
1008-1306
1
VALVE; BRK
8-98166-520-0
01
1
1307-
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
1008-
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
1008-
16
PLATE; MTG,BRKT VLV
1-48119-364-3
01
1
1008-
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
1008-
19
SEAT; SPRING,BRK VLV
(B)
1-48119-370-1
01
1
1008-
19
SEAT; SPRING,BRK VLV
(A)
1-48119-371-0
01
1
1008-
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
1008-
21
BUSHING; UPR BODY
1-48119-317-0
01
1
1008-
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
1008-
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
1008-
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
1008-
32
SCREW; BRK VLV
1-48119-323-0
01
1
1008-
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
1008-
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
1008-
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
1008-
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
1008-
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
1008-
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
1008-
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
1008-
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
1008-
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
1008-
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
1008-
58
RING; RET,EXH,BRK VLV
8-98140-079-0
01
1
1008-1306
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
1008-
85
WASHER; PUSH ROD
1-48119-366-0
01
1
1008-
91
FILTER; SILENCER
8-98140-078-0
01
1
1008-1306
92
PLATE; FILTER
8-98140-077-0
02
1
1008-1306
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; RUBBER,BRK VLV
8-98140-081-0
01
1
1008-1306
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-391-0
01
1
1307-
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
1008-
61
39
85
14
16
41
42
18
43
19
19
20
44
32
28
25
47
26
21
15
1
1
34
36
37
38
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
8-98139-251-1
01
1
1008-1306
1
VALVE; BRK
8-98166-520-0
01
1
1307-
14
PLUNGER; BRK VLV
1-48119-365-0
01
1
1008-
15
BOLT; PLATE,BRK VLV
1-48119-232-1
03
1
1008-
16
PLATE; MTG,BRKT VLV
1-48119-364-3
01
1
1008-
18
WASHER; LK,SEAT,BRK VLV
1-48199-024-0
01
1
1008-
19
SEAT; SPRING,BRK VLV
(B)
1-48119-370-1
01
1
1008-
19
SEAT; SPRING,BRK VLV
(A)
1-48119-371-0
01
1
1008-
20
PISTON; UPR,BRK VLV
1-48119-318-0
01
1
1008-
21
BUSHING; UPR BODY
1-48119-317-0
01
1
1008-
25
WASHER; PISTON,BRK VLV
1-48129-149-0
01
1
1008-
26
RETAINER; VLV,BRK VLV
1-48122-003-0
01
1
1008-
28
PISTON; LWR,BRK VLV
1-48119-337-0
01
1
1008-
32
SCREW; BRK VLV
1-48119-323-0
01
1
1008-
33
BOLT; BODY,BRK VLV
1-48129-068-0
04
1
1008-
34
RETAINER; VLV,BRK VLV
1-48122-010-0
01
1
1008-
36
RETAINER; GASKET,BRK VLV
1-48129-298-0
01
1
1008-
37
WASHER; VLV LWR,BRK VLV
1-48129-321-0
01
1
1008-
38
COVER; EXH,BRK VLV
1-48119-597-0
01
1
1307-
39
BOOT; PLUNGER,BRK VLV
1-48119-438-0
01
1
1008-
41
PLATE; STEM,BRK VLV
1-48129-167-0
01
1
1008-
42
NUT; SPR SEAT,BRK VLV
1-48199-025-0
01
1
1008-
43
WASHER; SPR SEAT,BRK VLV
1-48129-170-0
01
1
1008-
44
SLEEVE; PISTON,BRK VLV
1-48119-322-0
01
1
1008-
47
RETAINER; GASKET,BRK VLV
1-48129-297-0
01
1
1008-
61
ROD; PUSH,BRK VLV
1-48119-363-0
01
1
1008-
85
WASHER; PUSH ROD
1-48119-366-0
01
1
1008-
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; RUBBER,BRK VLV
8-98140-081-0
01
1
1008-1306
3
REPAIR KIT; RUBBER,BRK VLV
1-85576-391-0
01
1
1307-
4
REPAIR KIT; SPRING,BRK VLV
1-85576-179-0
01
1
1008-
