◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#63738) — 338 parça

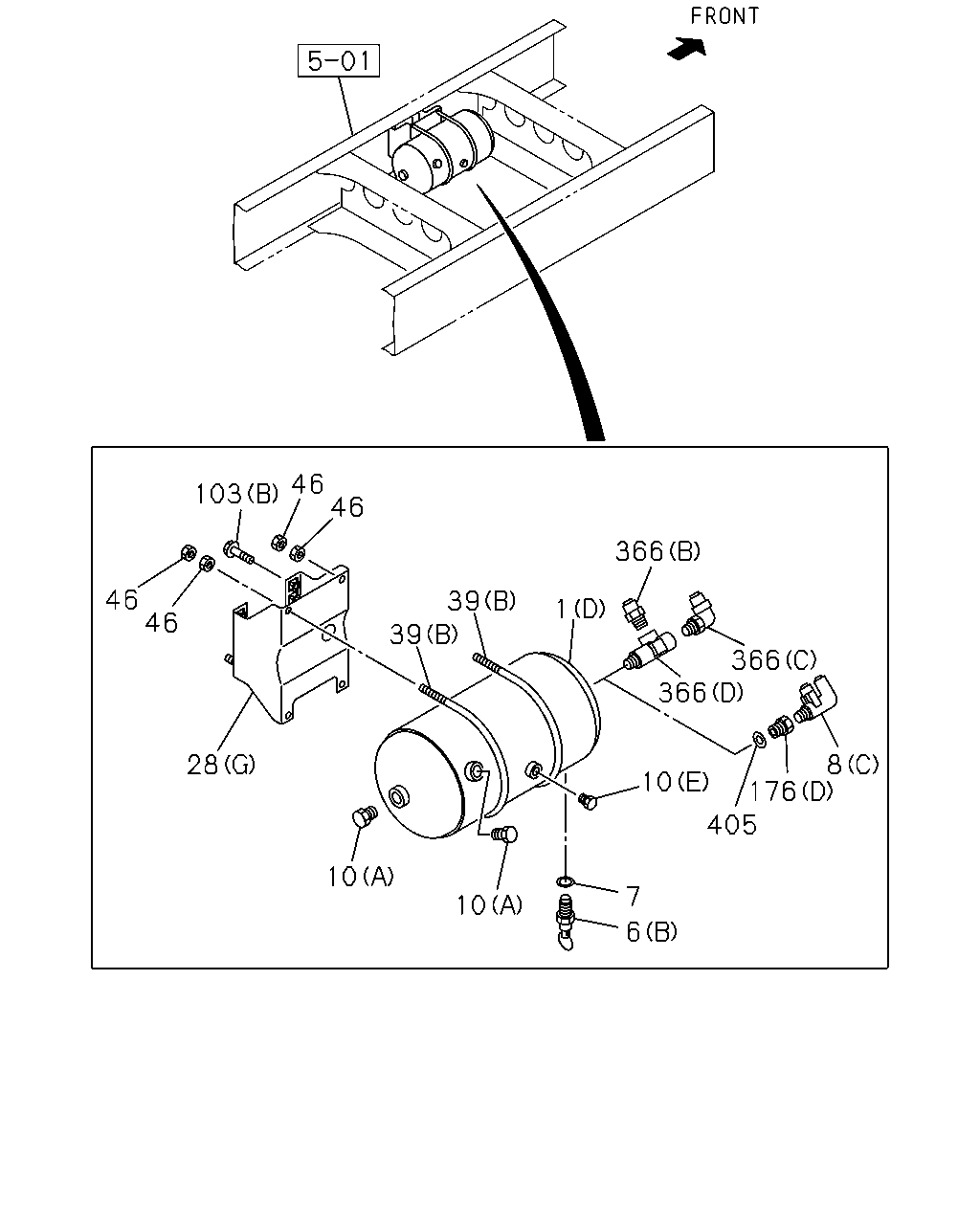

çizim 171024
46 103 366 46 39 1 39 366 366 10 405 8 176 10 28 46 46 10 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1008-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 02 1 1307-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-1306
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1307-1510
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1511-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 04 1 1008-1510
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1511-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1307-1510
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-1306
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-1306
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1510
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511-
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1008-
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1008-1306
8 CONNECTOR; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1511-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-1306
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1307-1510
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1511-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1307-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1307-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1307-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1307-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1306
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307-
176 ADAPTER
(E) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1307-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1307-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1307-
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 02 1 1008-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
366 CONNECTOR; NYLON TUBE
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(C) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(D) 		1-09661-501-0 01 1 1008-1306
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1307-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1307-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1008-1306
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1307-

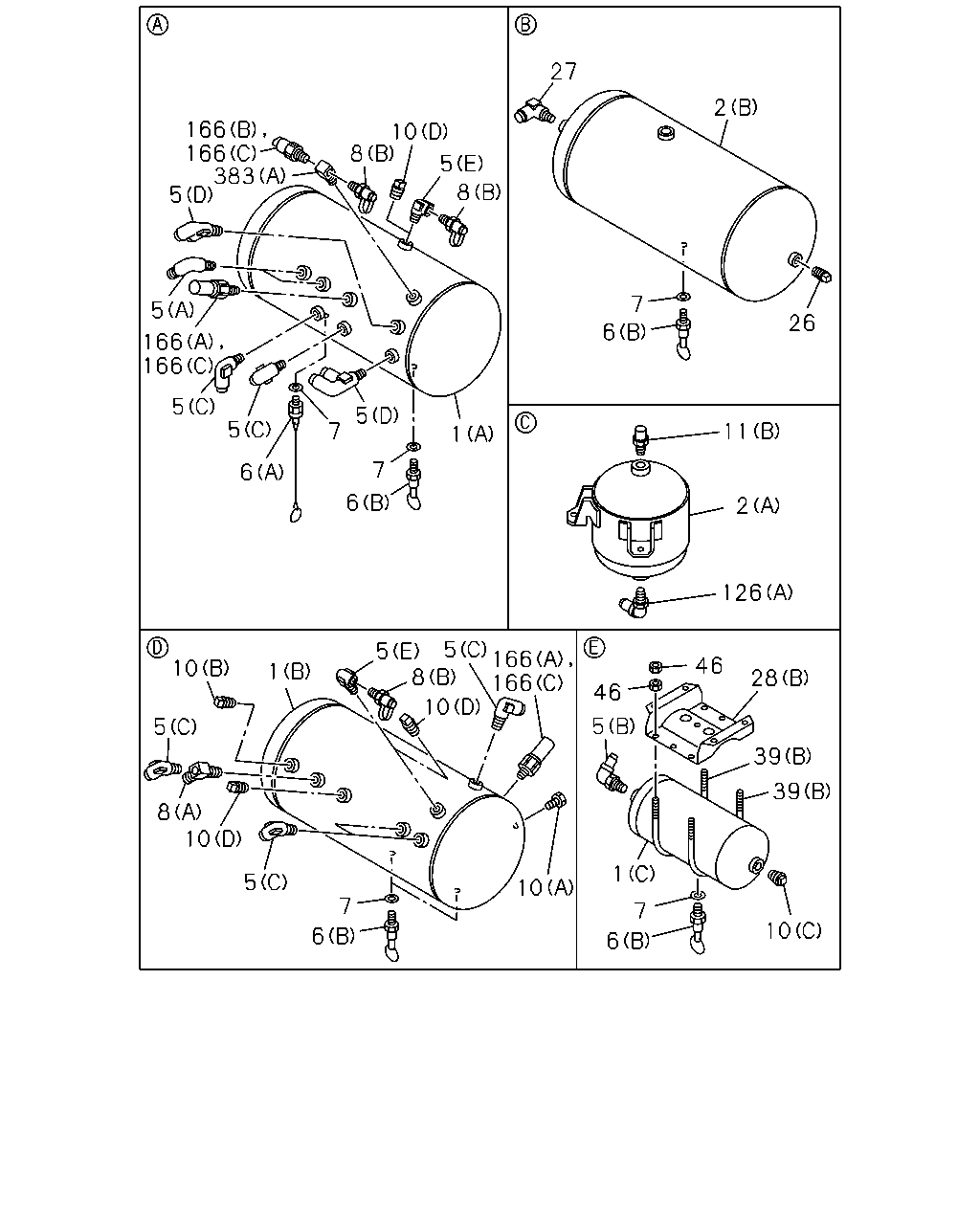

çizim 171028
27 2 26 7 6 11 2 126 46 28 39 39 10 1 7 6 5 46 166 166 5 5 8 10 1 10 5 8 10 52 7 6 10 6 7 7 5 1 8 5 10 8 166 166 383 5 5 166 166 5 5 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1008-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1008-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1008-
5 UNION; AIR TANK
(E) PT1/4 2WAY 		1-09660-693-0 02 1 1008-1306
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1008-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1008-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 02 1 1307-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-1306
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1307-1510
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1511-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 04 1 1008-1510
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1511-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1307-1510
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-1306
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-1306
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1510
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1511-
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1008-
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1008-1306
8 CONNECTOR; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1511-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-1306
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1307-1510
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1511-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1307-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1307-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-1306
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1008-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1008-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1307-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1307-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY 		1-09660-693-0 01 1 1307-
126 CONNECTOR; ELBOW
(C) 		8-98227-936-0 01 1 1307-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) 		1-48340-058-2 02 1 1008-1306
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(C) STAMP 5.5 		8-97609-249-0 03 1 1307-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 		1-48340-065-0 01 1 1008-1306
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1307-
383 UNION; 3 WAY
(A) 		1-09660-363-0 01 1 1008-

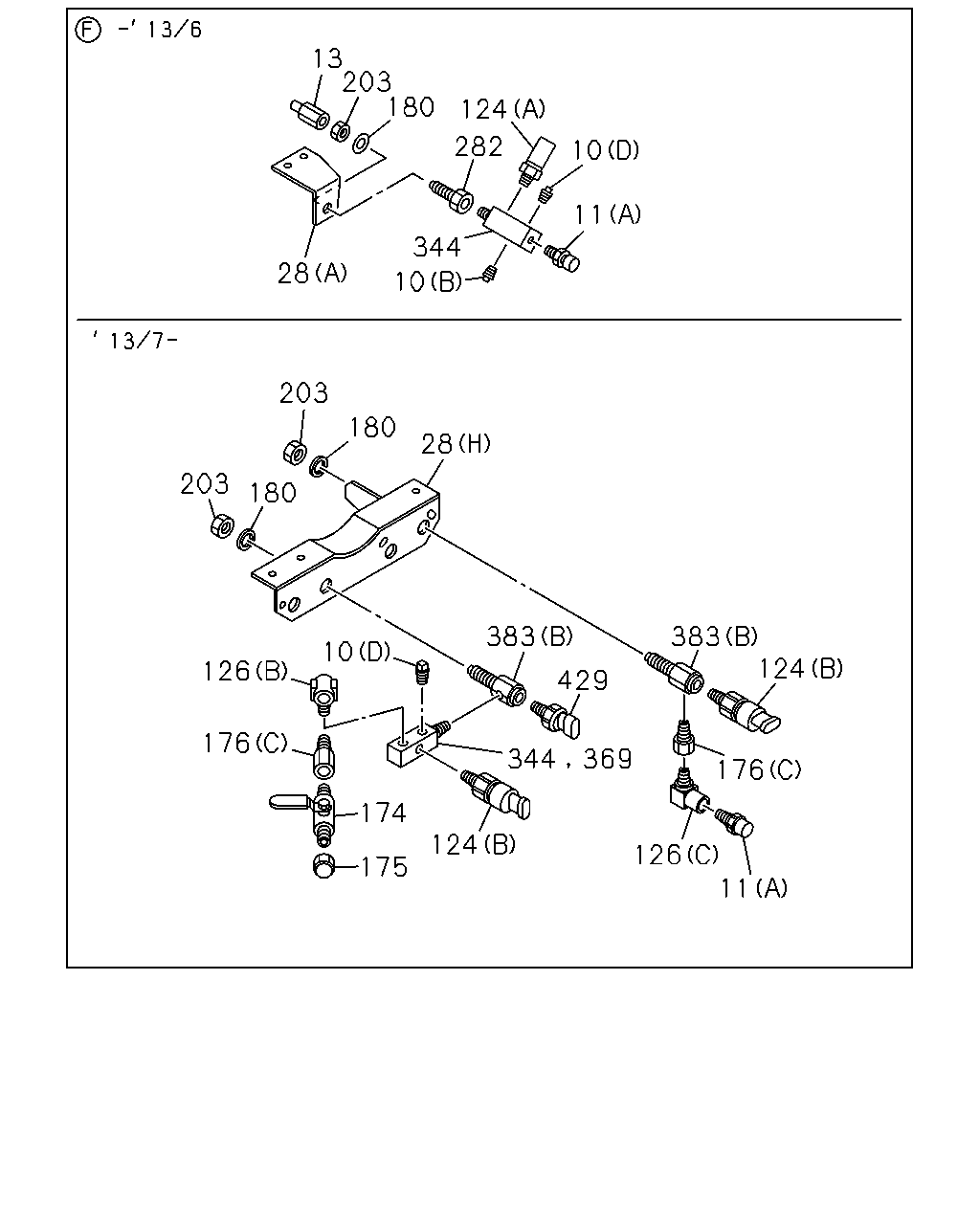

çizim 171031
124 176 126 11 369 344 124 175 176 174 126 10 383 429 383 28 180 203 180 203 28 344 11 10 10 282 124 180 203 13
BalonParca AdiParca NoAdetTipApplied Date
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1511-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-1306
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1307-1510
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1511-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1307-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1307-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-1306
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1008-1306
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
124 SWITCH; AIR PRESSURE
(A) 		1-48340-065-0 01 1 1008-1306
124 SWITCH; AIR PRESSURE
(B) STAMP 5.5 		8-97609-249-0 02 1 1307-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY 		1-09660-693-0 01 1 1307-
126 CONNECTOR; ELBOW
(C) 		8-98227-936-0 01 1 1307-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1307-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1307-
176 ADAPTER
(E) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1307-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1307-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1307-
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 02 1 1008-
180 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 1008-1306
180 WASHER; LK
ID=18.2 		0-91510-518-0 02 1 1307-
203 NUT
M16 		0-91110-516-0 01 1 1008-1306
203 NUT
M18 		0-91110-518-0 02 1 1307-
282 UNION; 2 WAY 1-09650-222-1 01 1 1008-1306
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 1008-1306
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1307-
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1307-
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1307-
383 UNION; 3 WAY
(A) 		1-09660-363-0 01 1 1008-
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1307-

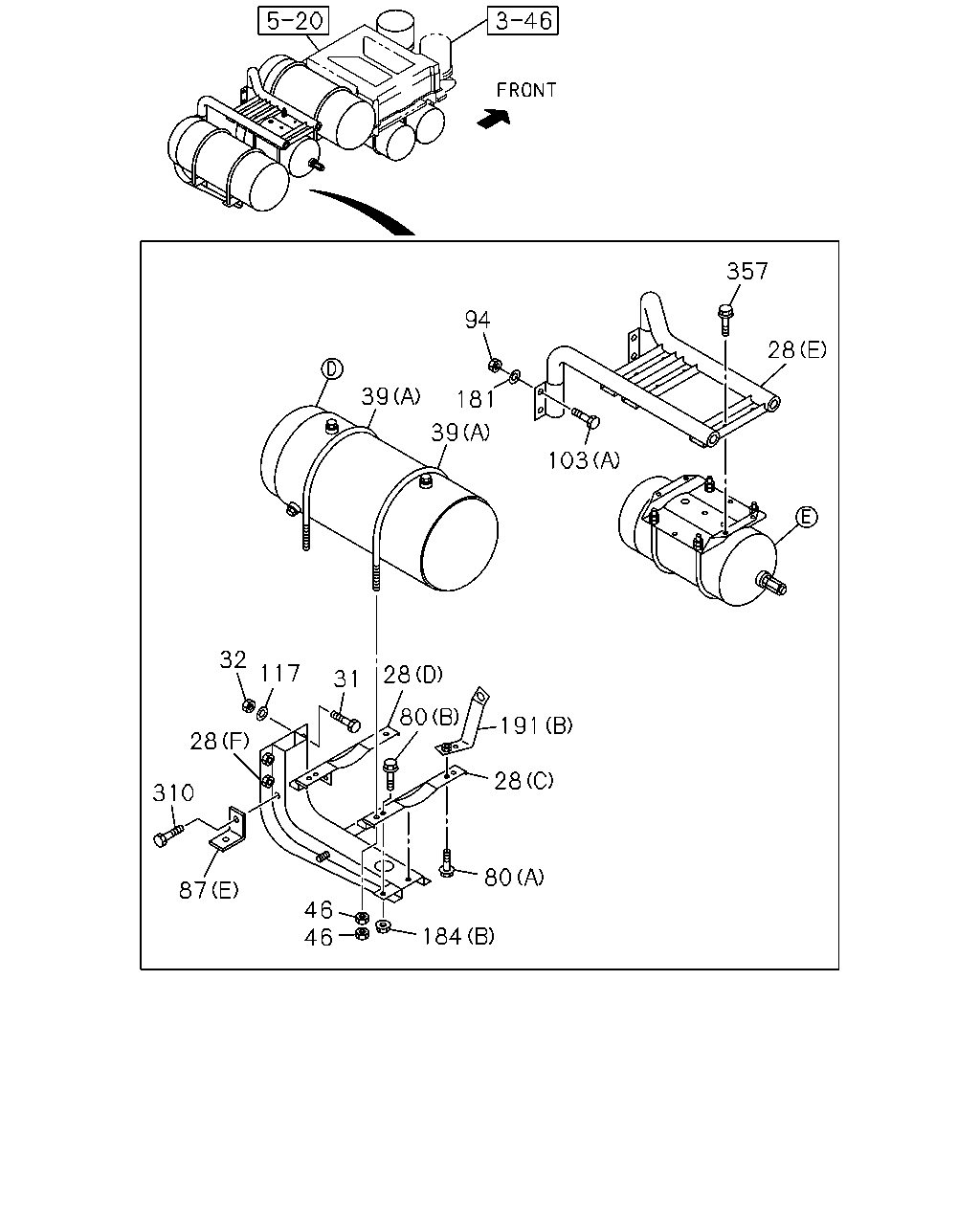

çizim 171039
28 357 103 39 181 94 39 31 117 32 28 191 28 80 184 46 46 87 310 28 80
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 1008-
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1307-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1307-
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 04 1 1008-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008-
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1008-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1306
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1008-
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1008-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1008-1306
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1307-
357 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1307-

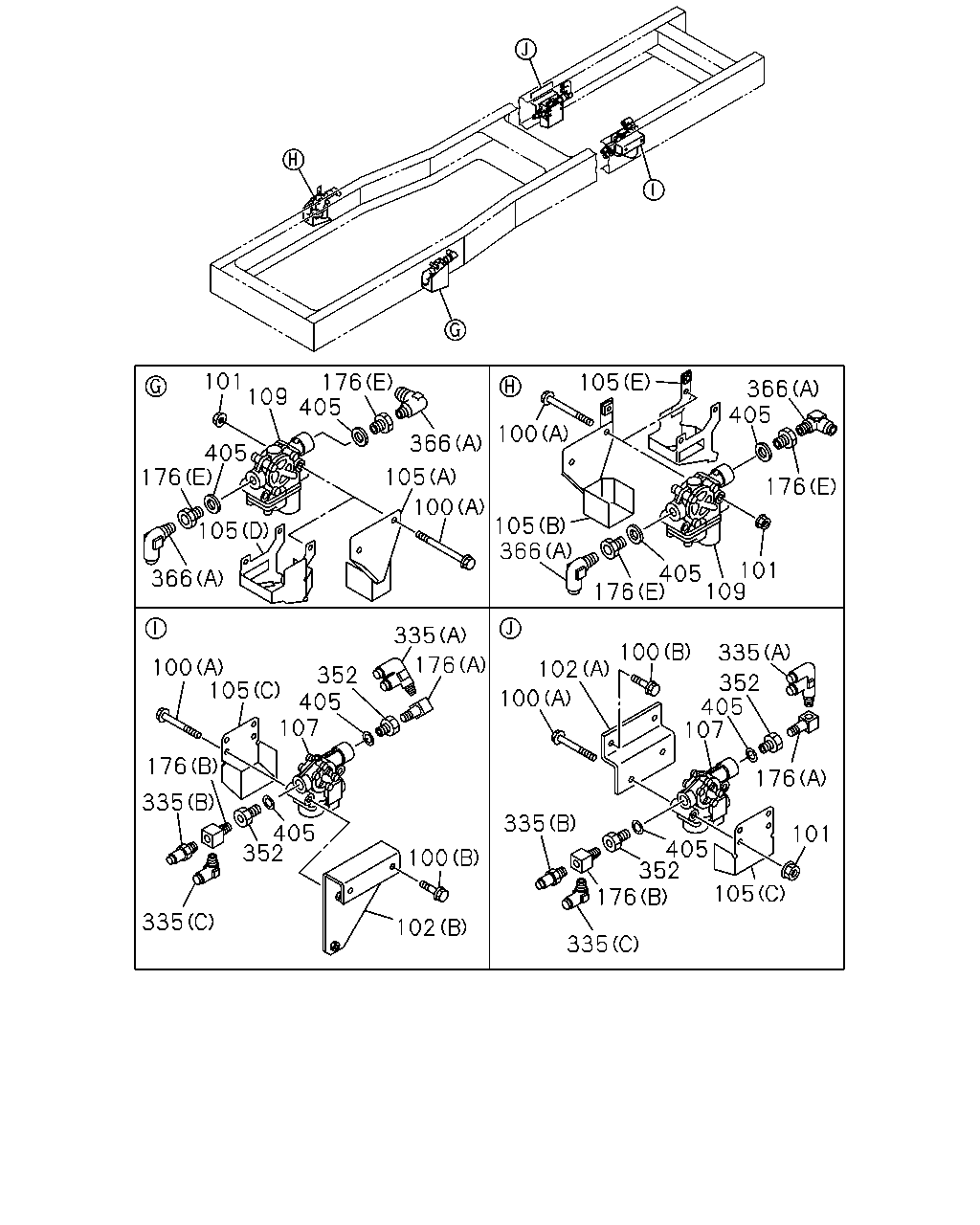

çizim 171057
101 176 109 405 366 105 105 366 176 100 405 100 105 352 405 107 176 405 335 352 335 100 102 102 100 100 335 352 405 107 176 101 405 352 335 176 105 100 105 366 105 366 176 109 405 176 405 101 335 335 176
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 08 1 1008-1306
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1307-1504
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1307-1504
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1505-
100 BOLT; MODULATOR
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 1008-1306
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1307-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1307-
102 BRACKET; MODULATOR
(A) 		1-47471-180-0 01 1 1008-1504
102 BRACKET; MODULATOR
(A) 		8-98300-018-0 01 1 1505-
102 BRACKET; MODULATOR
(B) 		8-98049-914-0 01 1 1008-1504
102 BRACKET; MODULATOR
(B) 		8-98300-020-0 01 1 1505-
105 COVER; MODULATOR
(C) 		8-98302-925-0 01 1 1505-
105 COVER; MODULATOR
(C) 		1-47471-354-0 02 1 1008-1504
105 COVER; MODULATOR
(D) 		8-98300-150-0 01 1 1505-
105 COVER; MODULATOR
(A) 		8-98147-199-0 01 1 1008-1504
105 COVER; MODULATOR
(C) 		8-98302-924-0 01 1 1505-
105 COVER; MODULATOR
(B) 		8-98147-206-0 01 1 1008-1504
105 COVER; MODULATOR
(E) 		8-98300-154-0 01 1 1505-
107 MODULATOR; RR 1-48240-115-0 02 1 1008-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1008-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
176 ADAPTER
(E) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1307-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1307-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1307-
176 ADAPTER
(A) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
176 ADAPTER
(B) PT3/8 3WAY 		1-09661-300-0 02 1 1008-
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1008-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1008-
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1008-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
366 CONNECTOR; NYLON TUBE
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(C) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(D) 		1-09661-501-0 01 1 1008-1306
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1307-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 1307-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1008-1306
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1307-

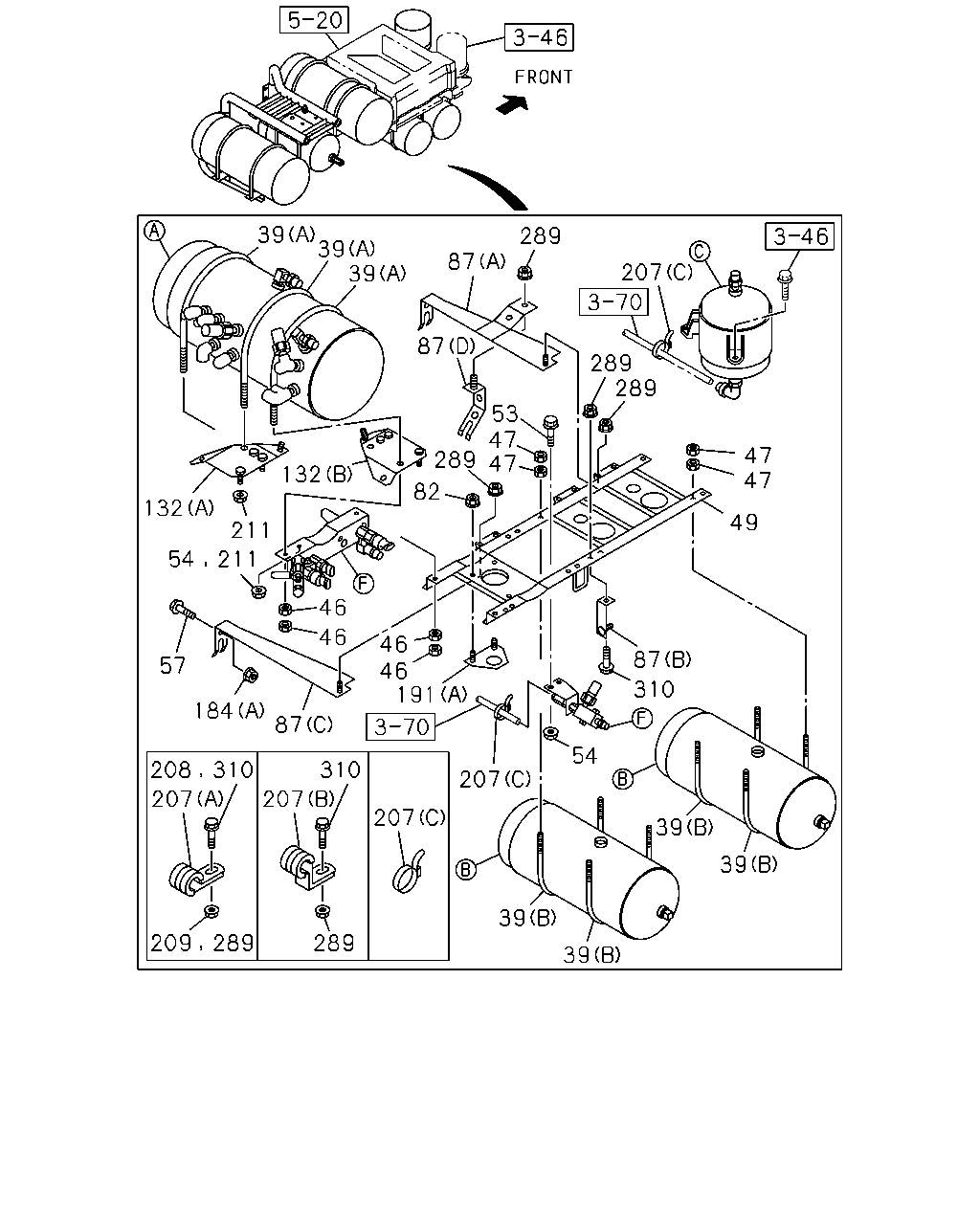

çizim 171087
87 289 207 289 289 47 47 49 87 310 54 207 207 39 39 39 39 289 207 310 310 208 207 209 289 184 87 57 54 211 211 132 132 82 46 46 46 46 191 289 47 47 53 87 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 03 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1307-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 1307-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1008-
49 BRACKET; AIR TANK 1-48316-065-1 01 1 1008-1306
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1307-
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1008-1306
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1307-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1008-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008-
132 BRACKET; STRING GUIDE
(A) 		8-98140-096-0 01 1 1008-1306
132 BRACKET; STRING GUIDE
(B) 		8-98200-122-0 01 1 1307-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 13 1 1008-1306
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1307-
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 1008-1306
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1307-
207 CLIP; AIR PIPE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1008-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 01 1 1008-1306
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 13 1 1307-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1008-
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1008-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1008-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1008-1306
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1307-
çizim 366134
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
