◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#63735) — 130 parça
çizim 171020
301 301 347 301 328 327 319 311 335 297 348 329 319 327 328 301 346 334 297
BalonParca AdiParca NoAdetTipApplied Date
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1008-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1008-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1008-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1008-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1008-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1008-
311 BOOT; WEDGE 1-47649-042-0 02 1 1008-
311 BOOT; WEDGE 1-47649-042-0 02 1 1008-
319 RING; DRIVE 1-47629-200-0 04 1 1008-
319 RING; DRIVE 1-47629-200-0 04 1 1008-
327 SPRING; ADJ 1-47629-196-0 04 1 1008-
327 SPRING; ADJ 1-47629-196-0 04 1 1008-
328 CAGE; SPRING 1-47629-192-0 04 1 1008-
328 CAGE; SPRING 1-47629-192-0 04 1 1008-
329 SCREW; LOCATING 1-47619-149-1 04 1 1008-
329 SCREW; LOCATING 1-47619-149-1 04 1 1008-
334 SPRING; ROD 1-47649-041-0 02 1 1008-
334 SPRING; ROD 1-47649-041-0 02 1 1008-
335 RETAINER; SPRING 1-47649-020-0 02 1 1008-
335 RETAINER; SPRING 1-47649-020-0 02 1 1008-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1008-
346 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1008-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1008-
347 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1008-
348 CAP; EXPANDER 1-47649-044-0 02 1 1008-
348 CAP; EXPANDER 1-47649-044-0 02 1 1008-

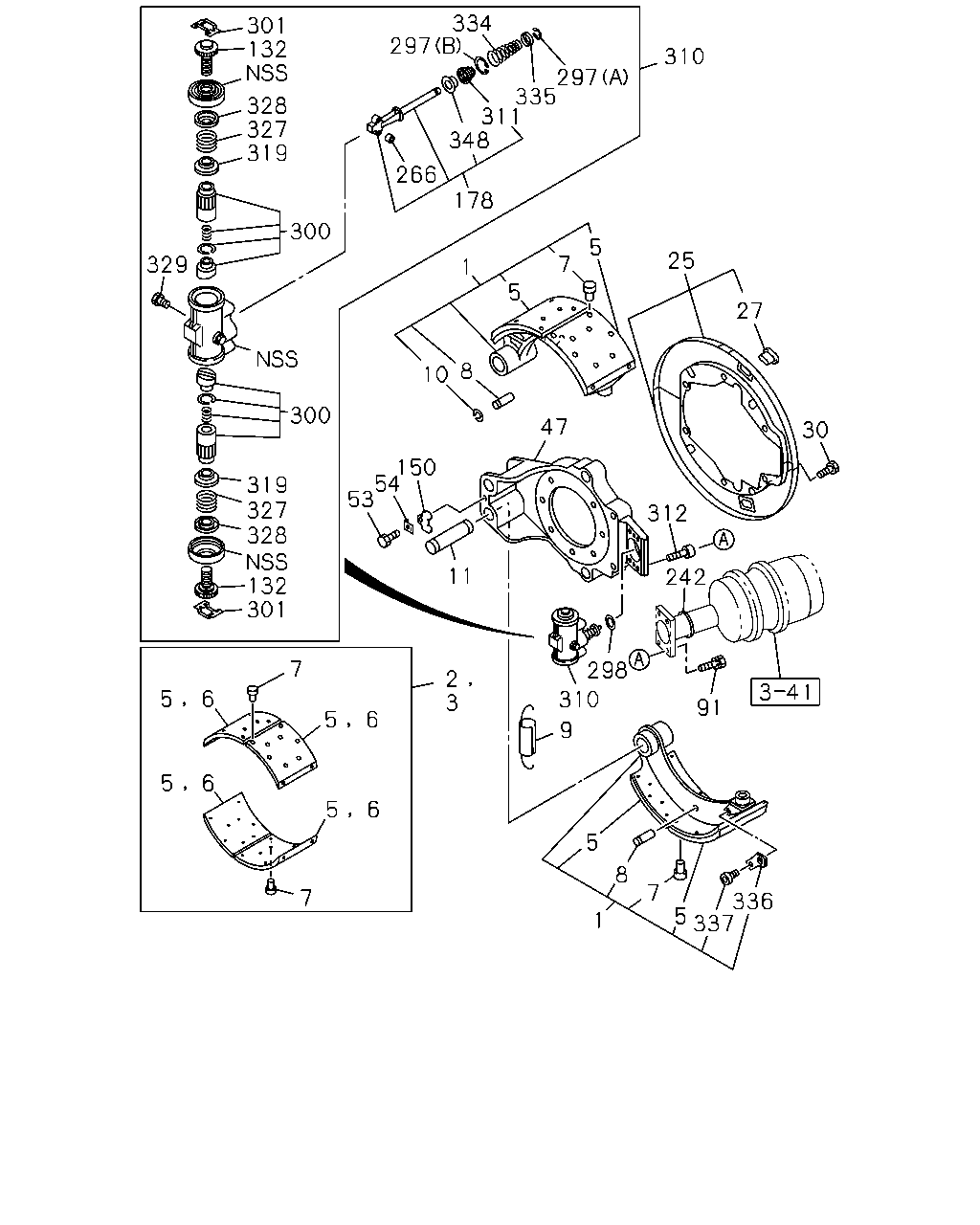

çizim 171079
301 132 328 327 319 300 329 300 319 327 328 132 301 297 334 335 297 310 311 348 266 178 1 7 5 27 25 47 8 10 150 54 53 11 312 242 91 336 337 5 7 8 5 1 3 2 7 5 6 5 6 7 6 5 5 6 298 310 9 30 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
LEADING 		1-47170-324-0 01 1 1008-1510
1 SHOE; BRK,RR
LEADING 		1-47170-324-0 01 1 1008-1510
1 SHOE; BRK,RR 1-47170-324-0 01 1 1511-
1 SHOE; BRK,RR 1-47170-324-0 01 1 1511-
1 SHOE; BRK,RR
TRAILING 		1-47170-325-0 01 1 1008-1510
1 SHOE; BRK,RR
TRAILING 		1-47170-325-0 01 1 1008-1510
1 SHOE; BRK,RR 1-47170-325-0 01 1 1511-
1 SHOE; BRK,RR 1-47170-325-0 01 1 1511-
1 SHOE; BRK,RR
LEADING 		1-47170-326-0 01 1 1008-1510
1 SHOE; BRK,RR
LEADING 		1-47170-326-0 01 1 1008-1510
1 SHOE; BRK,RR 1-47170-326-0 01 1 1511-
1 SHOE; BRK,RR 1-47170-326-0 01 1 1511-
1 SHOE; BRK,RR
TRAILING 		1-47170-327-0 01 1 1008-1510
1 SHOE; BRK,RR
TRAILING 		1-47170-327-0 01 1 1008-1510
1 SHOE; BRK,RR 1-47170-327-0 01 1 1511-
1 SHOE; BRK,RR 1-47170-327-0 01 1 1511-
2 LINING SET; RR BRK,STANDARD 1-88310-775-1 02 1 1008-
2 LINING SET; RR BRK,STANDARD 1-88310-775-1 02 1 1008-
2 LINING SET; RR BRK,STANDARD
BEST VALUE PARTS 		1-87610-132-0 01 1 1008-
2 LINING SET; RR BRK,STANDARD
BEST VALUE PARTS 		1-87610-132-0 01 1 1008-
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-1 02 1 1008-
3 LINING SET; RR BRK,OVER SIZE 1-88310-776-1 02 1 1008-
5 LINING; RR BRK SHOE,STANDARD 1-47126-093-0 08 1 1008-
5 LINING; RR BRK SHOE,STANDARD 1-47126-093-0 08 1 1008-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-094-0 08 1 1008-
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-094-0 08 1 1008-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 1008-
7 RIVET; LINING,RR BRK
L=15.5 		1-09732-053-0 AR 1 1008-
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING 		1-47119-136-0 02 1 1008-
8 PIN; RETURN SPRING,RR BRK SHOE
TRAILING 		1-47119-136-0 02 1 1008-
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING 		1-47119-172-0 02 1 1008-
8 PIN; RETURN SPRING,RR BRK SHOE
LEADING 		1-47119-172-0 02 1 1008-
9 SPRING; RETURN,BRK SHOE 1-09583-365-1 02 1 1008-
9 SPRING; RETURN,BRK SHOE 1-09583-365-1 02 1 1008-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 1008-
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 02 1 1008-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1008-
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 		1-47131-045-0 04 1 1008-
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1008-1309
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1008-1309
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310-
25 COVER SET; RR BRK DRUM 1-47151-878-0 02 1 1310-
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1008-1309
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1008-1309
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1008-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1008-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1008-
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1008-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		1-47137-472-0 02 1 1008-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD 		8-98091-253-1 02 1 1307-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-549-0 01 1 1008-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98091-254-1 01 1 1307-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		1-47137-550-0 01 1 1008-1306
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD 		8-98091-255-1 01 1 1307-
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1008-
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1008-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1008-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1008-
91 BOLT; CHAMBER
M10X53 		1-47139-148-0 08 1 1008-
91 BOLT; CHAMBER
M10X53 		1-47139-148-0 08 1 1008-
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1008-
132 SCREW; ADJ,RR BRK 1-47623-035-2 04 1 1008-
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 1008-
150 PLATE; LK,ANCHOR PIN 1-47133-010-0 02 1 1008-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1008-
178 WEDGE; RR WHEEL CYL 1-47640-012-0 02 1 1008-
242 SEAL 1-47159-186-0 04 1 1008-
242 SEAL 1-47159-186-0 04 1 1008-
266 ROLLER; WEDGE 1-47643-007-0 04 1 1008-
266 ROLLER; WEDGE 1-47643-007-0 04 1 1008-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1008-
297 RING; SNAP
(A) 		1-47649-031-0 02 1 1008-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1008-
297 RING; SNAP
(B) 		1-47649-034-1 02 1 1008-
298 GASKET 1-48259-231-0 02 1 1008-
298 GASKET 1-48259-231-0 02 1 1008-
300 SLEEVE 1-47629-247-1 04 1 1008-
300 SLEEVE 1-47629-247-1 04 1 1008-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1008-
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1008-
310 EXPANDER 1-47601-087-0 02 1 1008-
310 EXPANDER 1-47601-087-0 02 1 1008-
311 BOOT; WEDGE 1-47649-042-0 02 1 1008-
311 BOOT; WEDGE 1-47649-042-0 02 1 1008-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1008-
312 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1008-
319 RING; DRIVE 1-47629-200-0 04 1 1008-
319 RING; DRIVE 1-47629-200-0 04 1 1008-
327 SPRING; ADJ 1-47629-196-0 04 1 1008-
327 SPRING; ADJ 1-47629-196-0 04 1 1008-
328 CAGE; SPRING 1-47629-192-0 04 1 1008-
328 CAGE; SPRING 1-47629-192-0 04 1 1008-
329 SCREW; LOCATING 1-47619-149-1 04 1 1008-
329 SCREW; LOCATING 1-47619-149-1 04 1 1008-
334 SPRING; ROD 1-47649-041-0 02 1 1008-
334 SPRING; ROD 1-47649-041-0 02 1 1008-
335 RETAINER; SPRING 1-47649-020-0 02 1 1008-
335 RETAINER; SPRING 1-47649-020-0 02 1 1008-
336 PLATE; PIVOT 1-47119-152-0 04 1 1008-
336 PLATE; PIVOT 1-47119-152-0 04 1 1008-
337 BOLT; PLATE 1-47119-153-0 04 1 1008-
337 BOLT; PLATE 1-47119-153-0 04 1 1008-
348 CAP; EXPANDER 1-47649-044-0 02 1 1008-
348 CAP; EXPANDER 1-47649-044-0 02 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
