Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#63725) — 372 parça

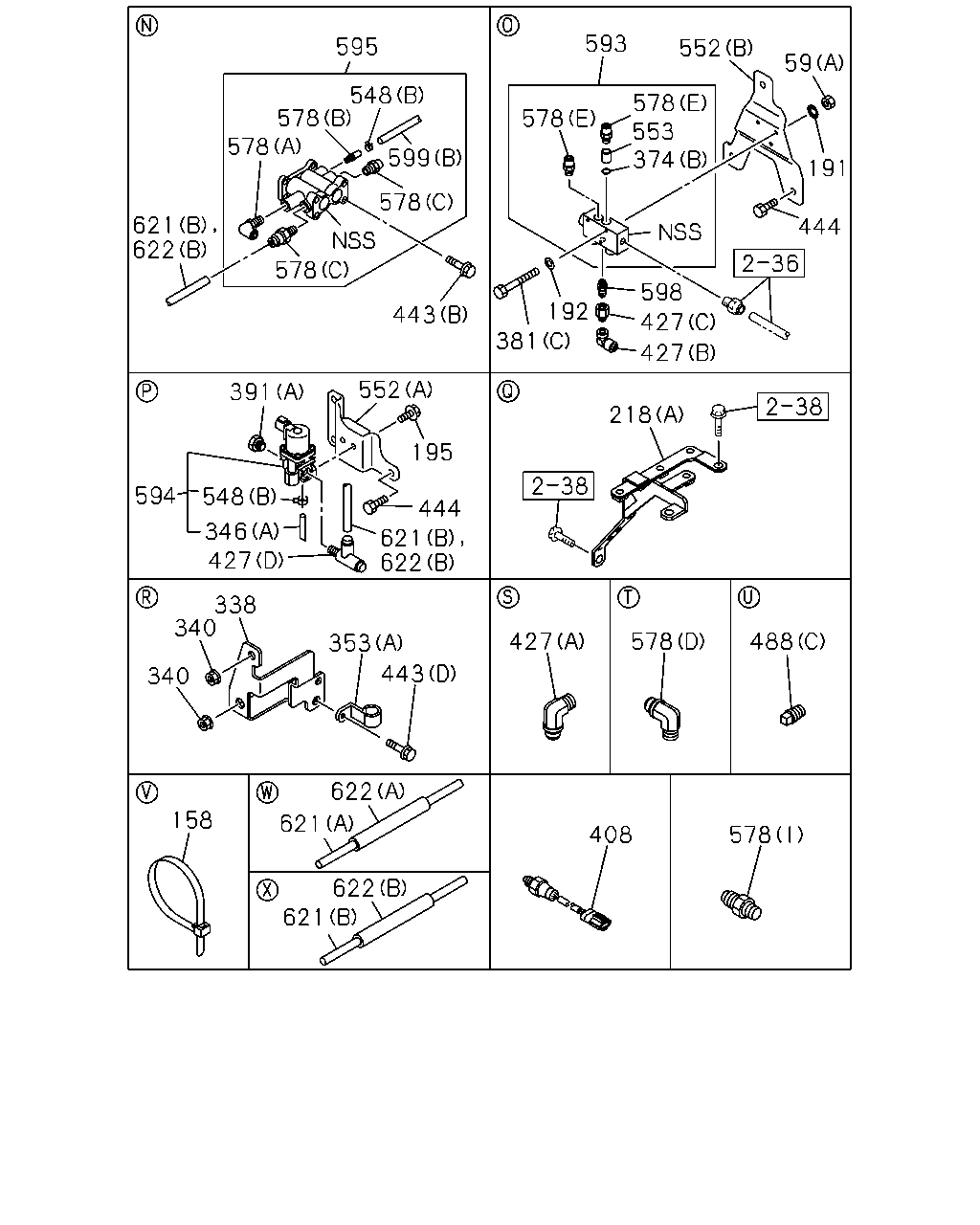

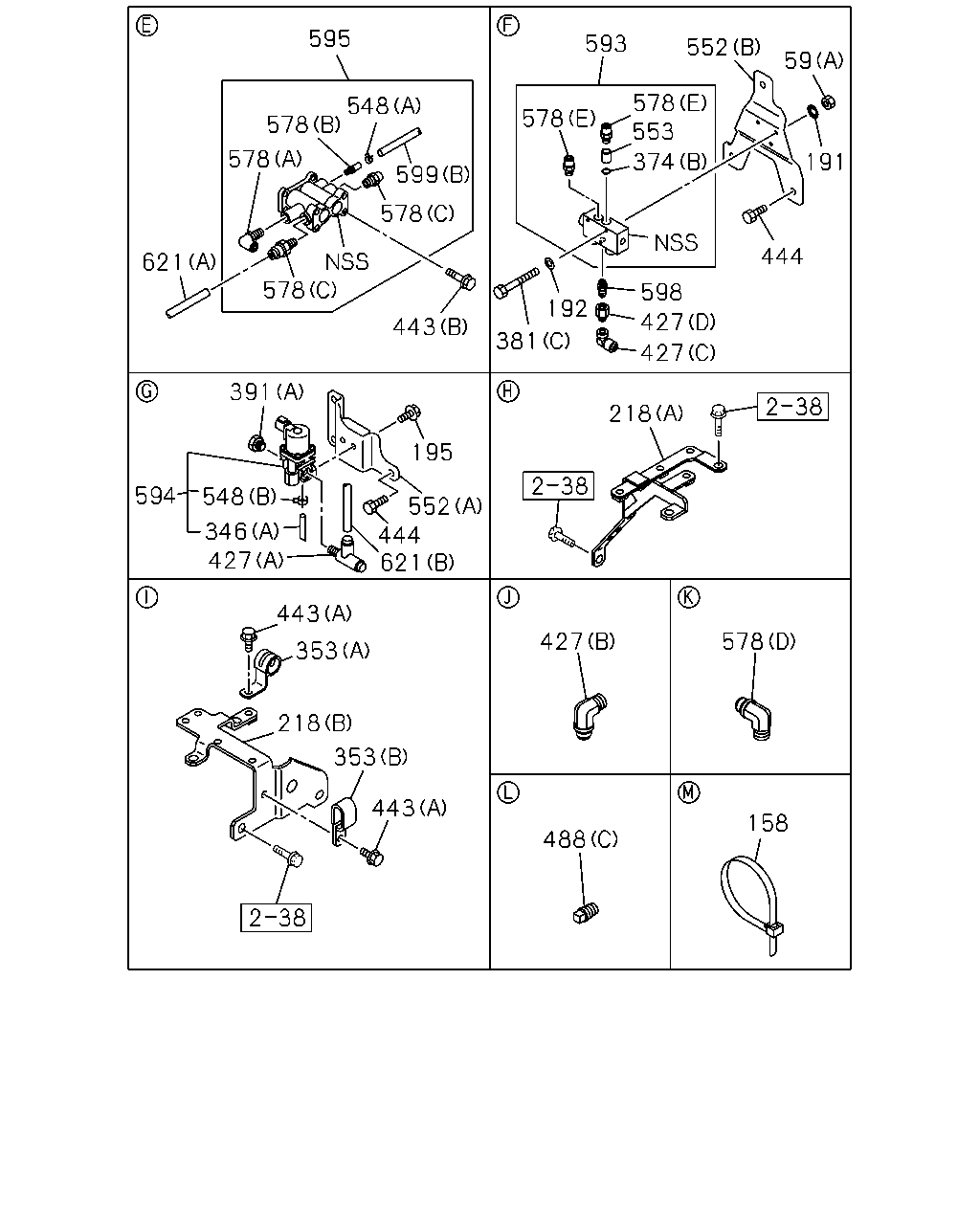

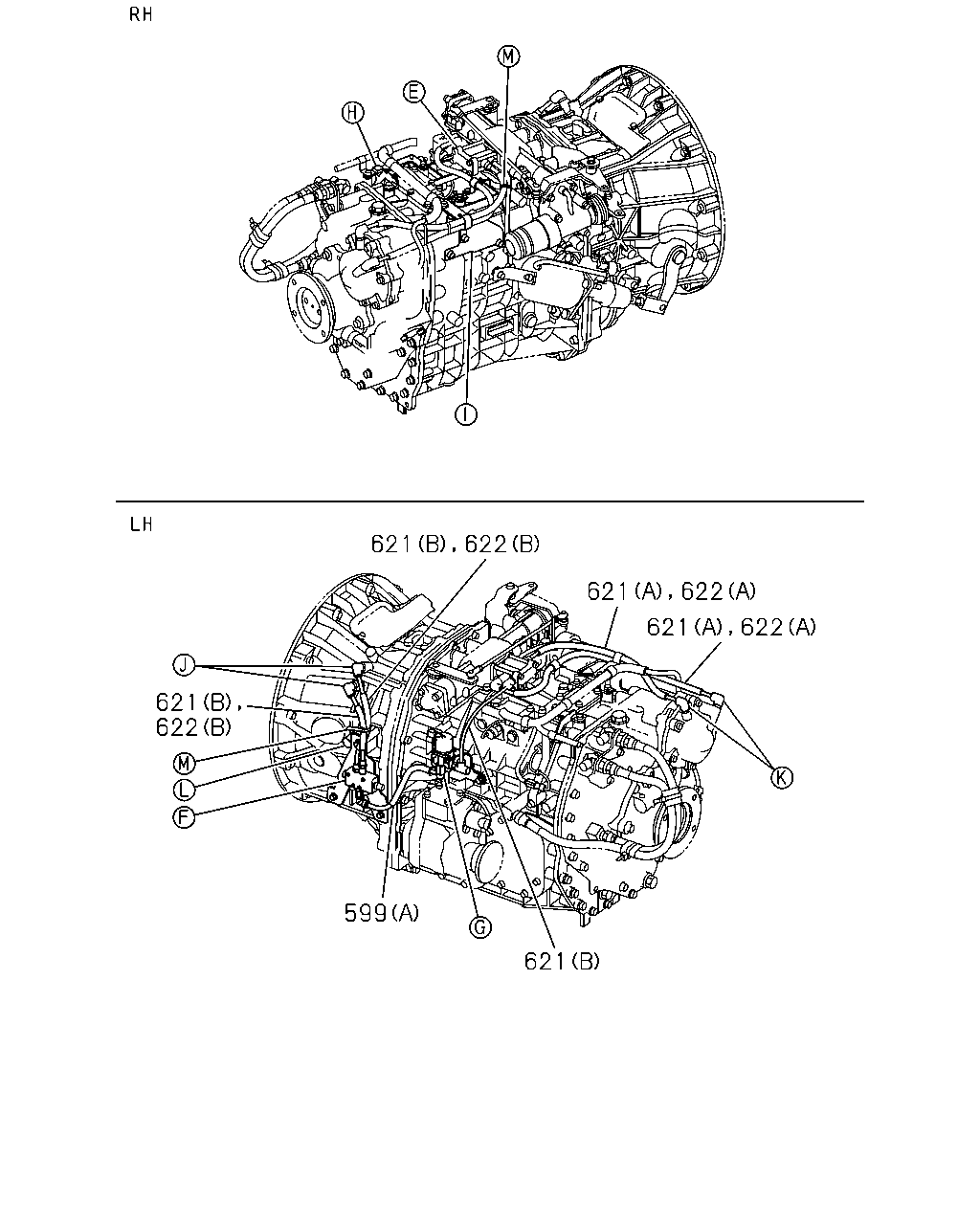

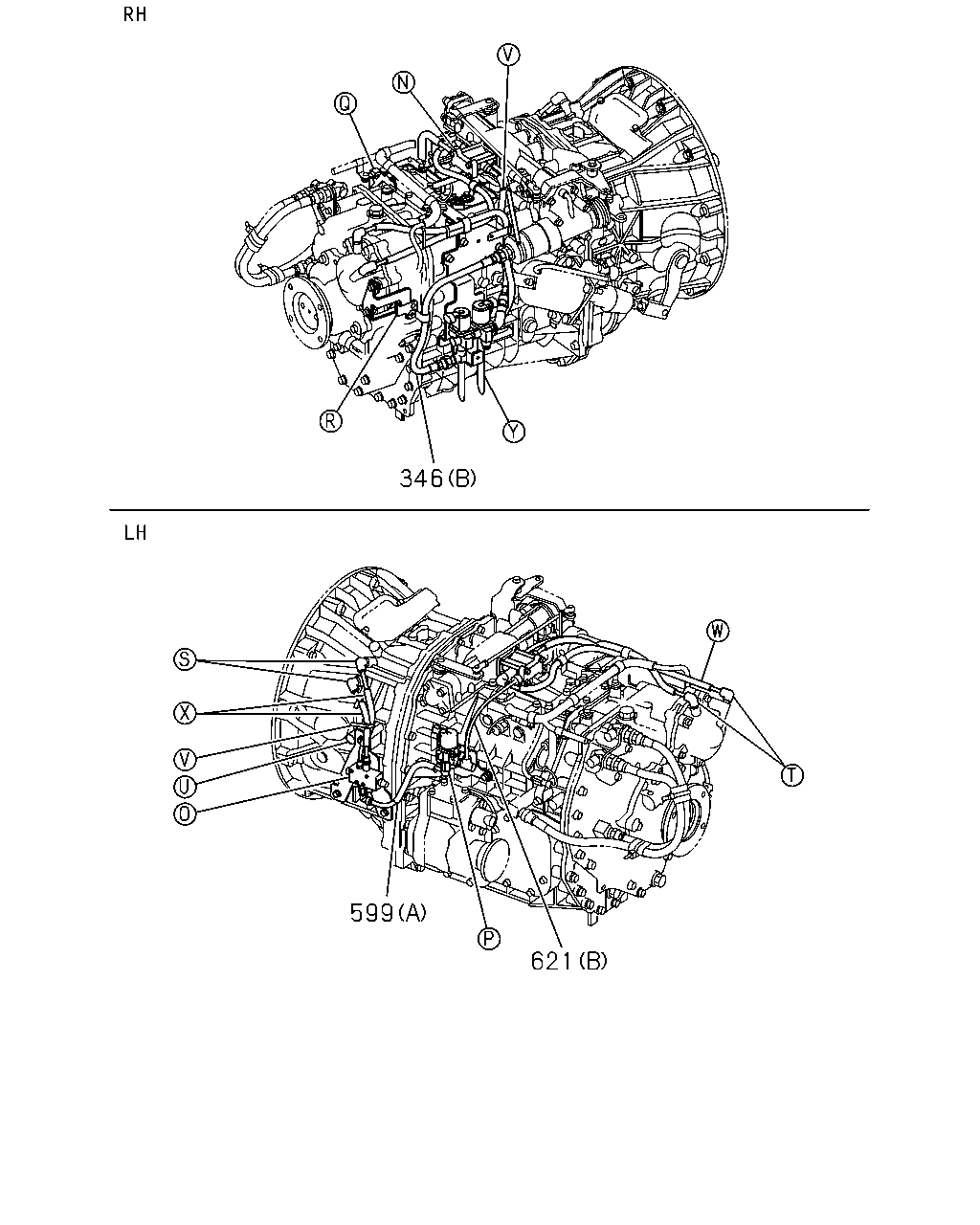

621 621 622 622 622 621 621 622 599 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1306
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1307-
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	1008-1306
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	1307-
622	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1008-

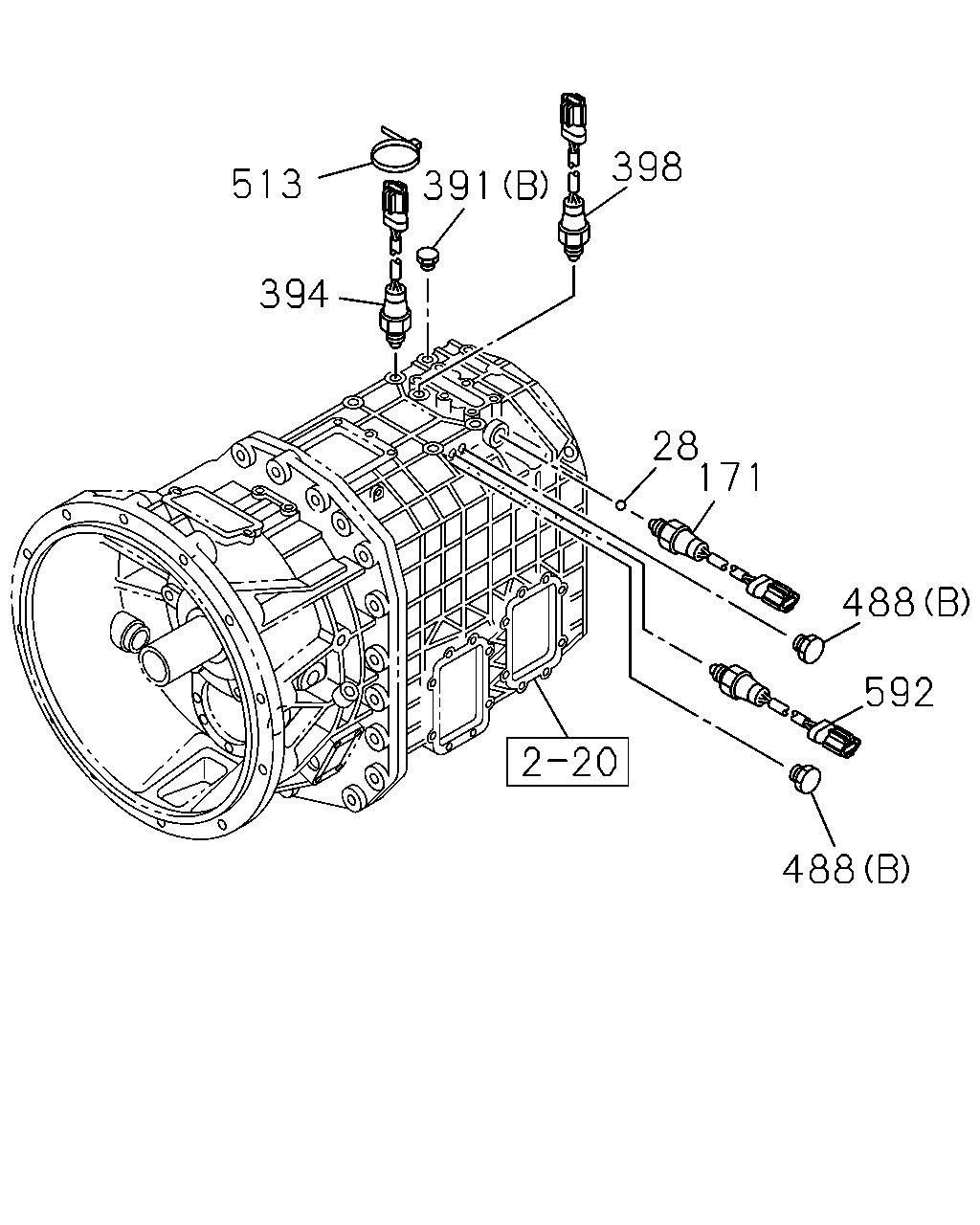

488 592 391 513 394 398 28 171 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BALL; INTER LK	9-00097-501-0	02	1	1008-
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1008-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
391	PLUG; SW HOLE (B) M14X9	8-98042-944-0	02	1	1008-1306
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	1008-1304
391	PLUG; SW HOLE (A) M12X9	0-92002-412-0	01	1	1305-
394	SWITCH; RANGE CHANGE	8-98228-482-0	02	1	1307-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	1008-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-
513	CLIP; BAND L=140	5-09707-031-1	02	1	1307-
592	SWITCH; POSITION	8-98042-853-0	01	1	1008-1209
592	SWITCH; POSITION	8-98228-482-0	01	1	1210-

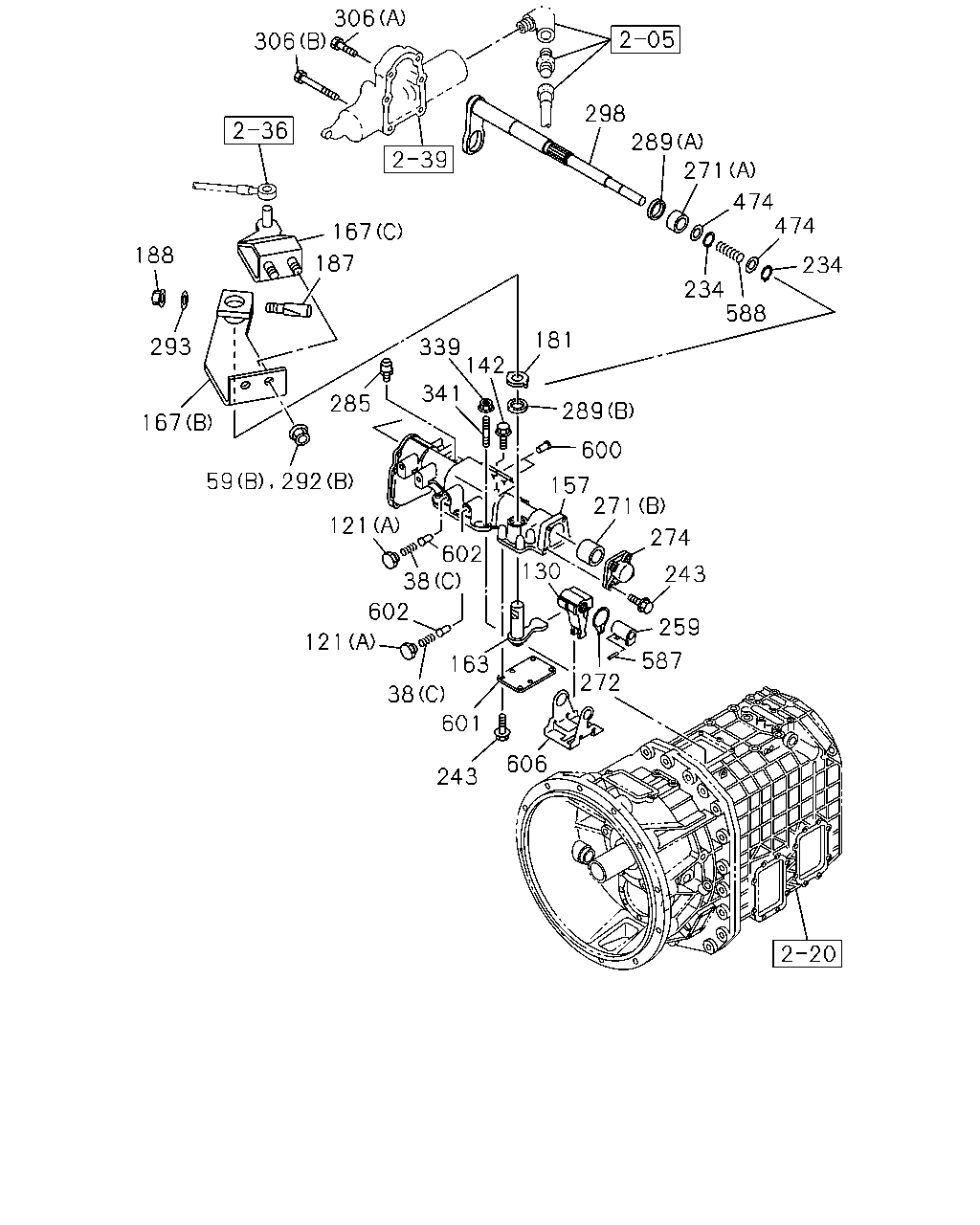

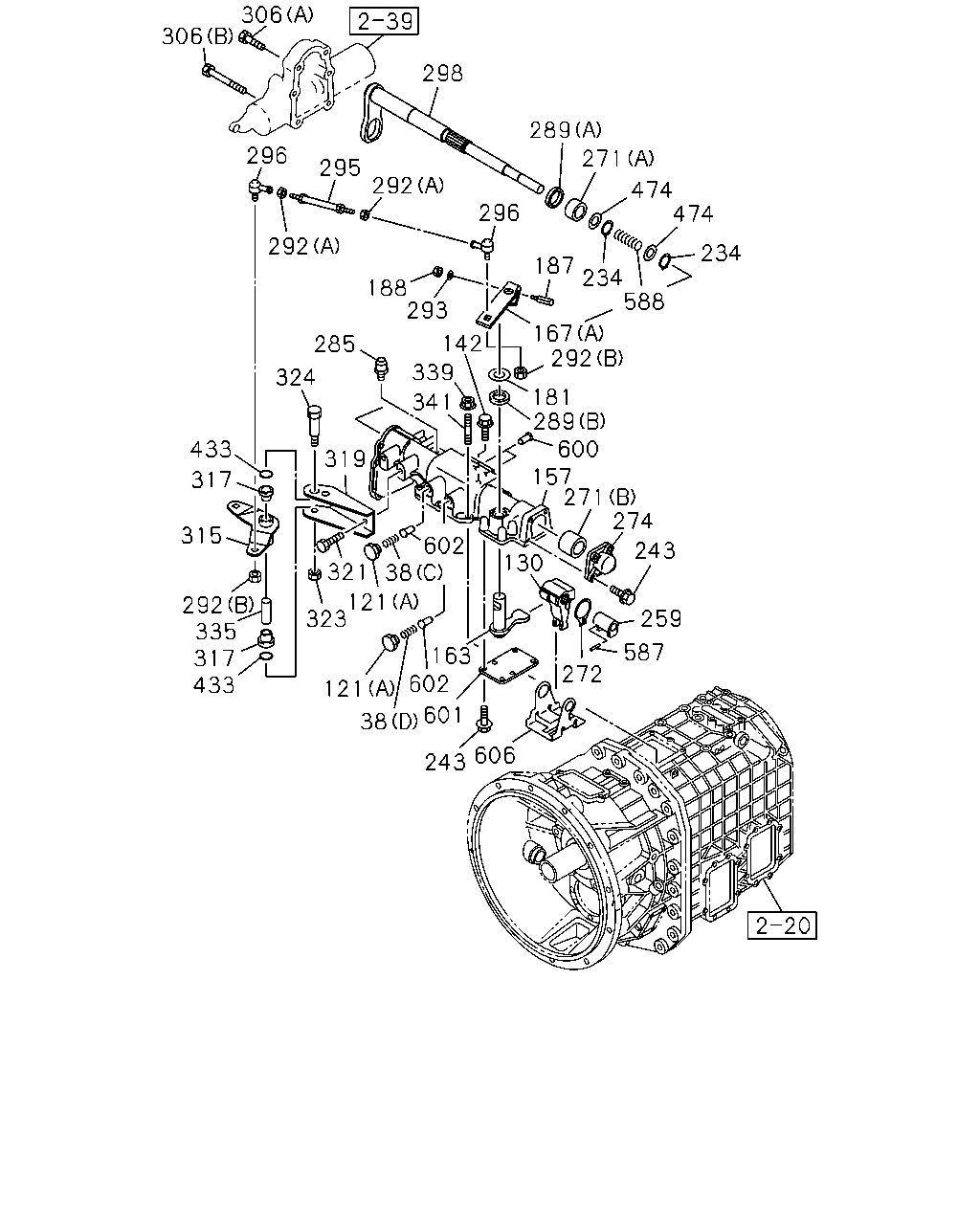

306 306 298 296 295 292 292 289 296 271 474 234 474 588 234 187 167 292 181 289 600 157 271 274 243 259 587 272 130 602 606 243 601 38 602 121 163 38 121 323 321 319 341 339 142 293 188 285 324 433 317 315 292 335 317 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1306
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1306
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1307-
121	PLUG; DETENT SPR (B) M16X12	0-92002-416-0	01	1	1008-
121	PLUG; DETENT SPR (A) M14X9	8-98042-944-0	02	1	1008-
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	1008-
142	BOLT; QUAD BOX M10X30 FLANGE	0-28751-030-0	01	1	1008-
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	1008-1306
157	BOX; QUAD,TRANS	8-98220-885-0	01	1	1307-
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	1008-1306
163	LEVER; SELECT,INTERNAL	1-33522-202-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL (C)	8-98052-192-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL (A)	1-33521-190-0	01	1	1008-1306
167	LEVER; SELECT,EXTERNAL (B)	1-33521-194-0	01	1	1307-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1008-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1008-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1008-
234	RING; SNAP ID=14.7	0-91800-616-0	02	1	1008-
243	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1307-
243	BOLT; COVER M8X35 FLANGE	0-28650-835-0	10	1	1008-1306
243	BOLT; COVER M8X35 FLANGE	0-28650-835-0	04	1	1307-
259	GUIDE; SELECT,CONT BOX	1-33519-135-0	01	1	1008-1306
259	GUIDE; SELECT,CONT BOX	8-98222-568-0	01	1	1307-
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1008-
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1008-
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	1008-
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	1008-1306
274	COVER; SHAFT,QUAD BOX	8-98220-886-0	01	1	1307-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1008-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1008-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1008-
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1008-1306
292	NUT; LINK ROD (B) M8 FLANGE	0-91180-108-0	02	1	1307-1408
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1008-1306
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1008-
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	1008-1306
296	ROD END	1-09760-108-0	02	1	1008-1306
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	1008-1306
298	SHAFT; SHIFT LEVER	8-98222-566-0	01	1	1307-
306	BOLT; SHIFT ASSISTOR (A) M10X45 FLANGE	0-28151-045-0	02	1	1008-
306	BOLT; SHIFT ASSISTOR (B) M10X80 FLANGE	0-28151-080-0	04	1	1008-
315	LEVER; SELECT	1-33651-754-0	01	1	1008-1306
317	BUSHING; LEVER	1-09330-119-0	02	1	1008-1306
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	1008-1306
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	1008-1306
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	1008-1306
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	1008-1306
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	1008-1306
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1008-
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	1008-
433	GASKET; BUSHING	1-09623-636-0	02	1	1008-1306
474	WASHER; SPRING STOPPER	9-09160-716-0	02	1	1008-1306
474	WASHER; SPRING STOPPER	8-98222-569-0	02	1	1307-
587	PIN; SHIFT GUIDE	9-08160-420-0	01	1	1008-
588	SPRING; RETURN,QUADRANT BOX	1-09580-576-0	01	1	1008-
600	PLUNGER; VLV	1-33263-037-0	02	1	1008-
601	COVER; SHAFT,SELECT	1-33545-011-0	01	1	1008-
602	PLUNGER; DETENT	1-33263-037-0	02	1	1008-
606	INHIBITOR	1-33529-116-0	01	1	1008-

306 306 167 187 188 293 167 285 339 181 341 142 292 59 121 602 38 602 121 163 38 601 243 606 272 259 243 274 271 157 600 289 588 234 234 474 474 271 289 298 587 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1306
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1306
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1307-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1409-
59	NUT (A)	1-09440-068-0	04	1	1008-
121	PLUG; DETENT SPR (B) M16X12	0-92002-416-0	01	1	1008-
121	PLUG; DETENT SPR (A) M14X9	8-98042-944-0	02	1	1008-
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	1008-
142	BOLT; QUAD BOX M10X30 FLANGE	0-28751-030-0	01	1	1008-
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	1008-1306
157	BOX; QUAD,TRANS	8-98220-885-0	01	1	1307-
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	1008-1306
163	LEVER; SELECT,INTERNAL	1-33522-202-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL (C)	8-98052-192-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL (A)	1-33521-190-0	01	1	1008-1306
167	LEVER; SELECT,EXTERNAL (B)	1-33521-194-0	01	1	1307-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	1008-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	1008-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	1008-
234	RING; SNAP ID=14.7	0-91800-616-0	02	1	1008-
243	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1307-
243	BOLT; COVER M8X35 FLANGE	0-28650-835-0	10	1	1008-1306
243	BOLT; COVER M8X35 FLANGE	0-28650-835-0	04	1	1307-
259	GUIDE; SELECT,CONT BOX	1-33519-135-0	01	1	1008-1306
259	GUIDE; SELECT,CONT BOX	8-98222-568-0	01	1	1307-
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	1008-
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	1008-
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	1008-
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	1008-1306
274	COVER; SHAFT,QUAD BOX	8-98220-886-0	01	1	1307-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1008-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	1008-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	1008-
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	1008-1306
292	NUT; LINK ROD (B) M8 FLANGE	0-91180-108-0	02	1	1307-1408
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	1008-1306
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	1008-
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	1008-1306
298	SHAFT; SHIFT LEVER	8-98222-566-0	01	1	1307-
306	BOLT; SHIFT ASSISTOR (A) M10X45 FLANGE	0-28151-045-0	02	1	1008-
306	BOLT; SHIFT ASSISTOR (B) M10X80 FLANGE	0-28151-080-0	04	1	1008-
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1008-
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	1008-
474	WASHER; SPRING STOPPER	9-09160-716-0	02	1	1008-1306
474	WASHER; SPRING STOPPER	8-98222-569-0	02	1	1307-
587	PIN; SHIFT GUIDE	9-08160-420-0	01	1	1008-
588	SPRING; RETURN,QUADRANT BOX	1-09580-576-0	01	1	1008-
600	PLUNGER; VLV	1-33263-037-0	02	1	1008-
601	COVER; SHAFT,SELECT	1-33545-011-0	01	1	1008-
602	PLUNGER; DETENT	1-33263-037-0	02	1	1008-
606	INHIBITOR	1-33529-116-0	01	1	1008-

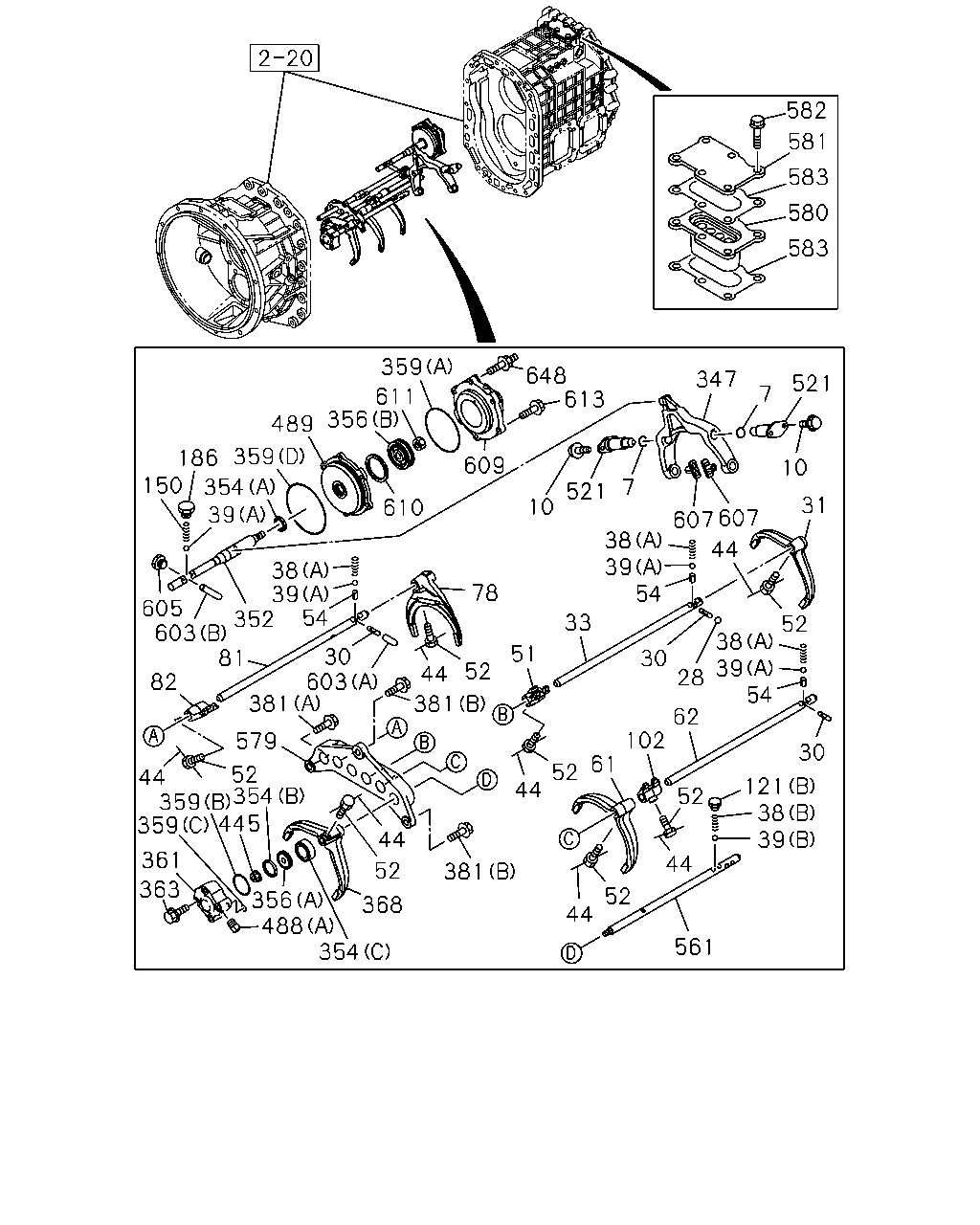

582 581 583 580 583 561 39 38 121 30 54 39 38 52 31 28 62 102 61 52 44 52 52 44 381 30 33 54 44 39 38 607 607 10 51 52 44 368 354 488 356 363 361 78 52 44 381 603 381 30 579 52 354 359 359 445 82 81 54 39 38 352 603 44 605 39 150 354 186 359 489 356 611 359 648 613 609 610 10 521 7 347 7 521 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	1008-
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	1008-
28	BALL; INTER LK	9-00097-501-0	02	1	1008-
30	PIN; INTER LK	9-33534-003-0	03	1	1008-
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	1008-
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	1008-
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1008-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1008-
38	SPRING; DETENT (C)	1-09580-574-0	01	1	1008-1306
38	SPRING; DETENT (D)	1-09580-580-0	01	1	1008-1306
38	SPRING; DETENT (D)	1-09580-580-0	02	1	1307-
39	BALL; DETENT (A)	1-09843-012-0	04	1	1008-
39	BALL; DETENT (B)	9-00097-013-0	01	1	1008-
44	WIRE; LK L=200	9-08351-020-0	07	1	1008-
51	BLOCK; SHIFT,1ST & 2ND	1-33511-617-0	01	1	1008-
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	1008-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1008-
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	1008-
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	1008-
78	ARM; SHIFT,REV	1-33511-589-0	01	1	1008-
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	1008-
82	BLOCK; SHIFT,REV	1-33511-600-0	01	1	1008-
102	BLOCK; SHIFT,3RD & 4TH	1-33511-615-0	01	1	1008-
121	PLUG; DETENT SPR (B) M16X12	0-92002-416-0	01	1	1008-
121	PLUG; DETENT SPR (A) M14X9	8-98042-944-0	02	1	1008-
150	SPRING; DETENT BALL	1-09580-379-0	01	1	1008-
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	1008-
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	1008-
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	1008-
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	1008-
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	1008-
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	1008-
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	1008-
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	1008-
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	1008-
359	GASKET; AIR CYL (B) ID=55.6	8-98075-598-0	01	1	1008-
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	1008-
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	1008-
361	CYLINDER; AIR,SHIFT	1-33561-019-0	01	1	1008-
363	BOLT; AIR CYL M10X60 FLANGE	8-98169-763-0	04	1	1008-
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	1008-1510
368	ARM; SHIFT,SPLITTER GEAR	8-98318-482-0	01	1	1511-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-
381	BOLT (C)	1-09044-111-0	04	1	1008-
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	1008-
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-
489	COVER; AIR CYL	1-33569-052-0	01	1	1008-
521	SPINDLE; 6TH	1-33519-131-0	02	1	1008-
561	ROD; SHIFT	1-33531-466-0	01	1	1008-
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-2	01	1	1008-
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1008-
581	COVER; BLOCK	1-33141-056-0	01	1	1008-
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1008-
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1008-
603	ROD; INTER LK (A) L=49	1-33534-005-0	01	1	1008-
603	ROD; INTER LK (B) L=77	1-33534-010-0	01	1	1008-
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	1008-
607	PIECE; SHIFT	1-33518-010-0	02	1	1008-
609	BODY; AIR,CYL	1-33561-018-0	01	1	1008-
610	SEAL; PISTON	1-33738-054-0	01	1	1008-
611	NUT; SHAFT	8-97324-304-0	01	1	1008-
613	BOLT; AIR CYL M10X45 FLANGE	0-28151-045-0	03	1	1008-
648	STUD; AIR CYL M10X20,M10X45 L=75	8-98010-335-0	03	1	1008-

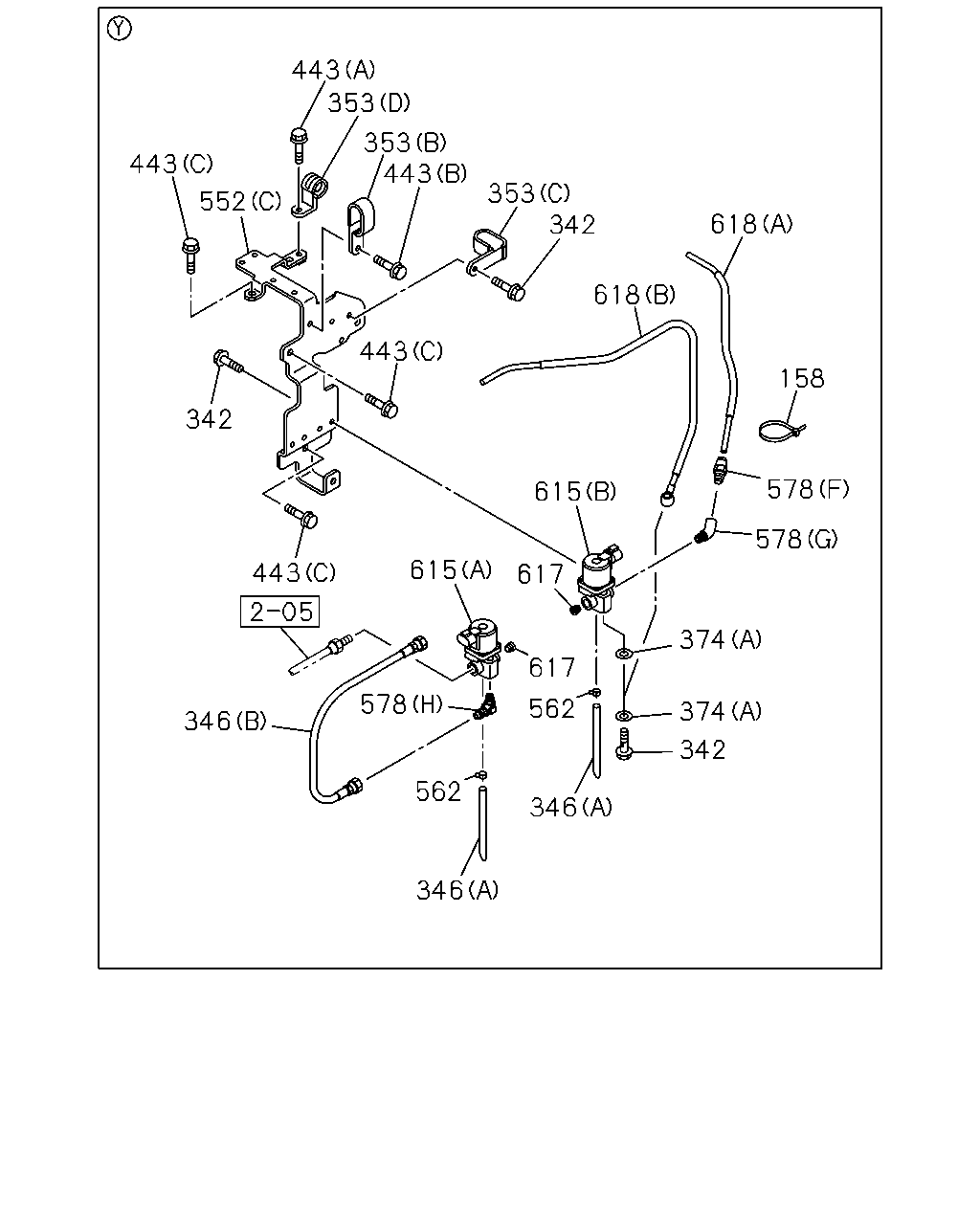

342 374 374 578 578 158 618 618 615 617 617 562 346 346 562 578 615 346 443 342 443 342 353 443 353 353 443 443 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-
342	BOLT M8X16 FLANGE	0-28050-816-0	05	1	1307-
342	BOLT M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1307-
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1307-1401
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1307-
353	CLIP; AIR HOSE (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1307-
353	CLIP; AIR HOSE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	1307-
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	1008-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	02	1	1307-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09661-390-0	01	1	1008-
443	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1307-
443	BOLT; CLIP (C) M10X25 FLANGE	0-28751-025-0	05	1	1307-
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	1008-
552	BRACKET (C)	8-98222-117-0	01	1	1307-
552	BRACKET (A)	1-33719-082-0	01	1	1008-
552	BRACKET (B)	1-33719-083-0	01	1	1008-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	02	1	1307-
578	CONNECTOR (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1307-
578	CONNECTOR (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1307-
578	CONNECTOR (I) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1307-
578	CONNECTOR (G) R1/4 & RC1/4	1-09664-211-0	02	1	1307-
578	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-
578	CONNECTOR (E)	1-09661-292-0	02	1	1008-
578	CONNECTOR (C)	1-33712-023-0	02	1	1008-
578	CONNECTOR (A)	1-33712-024-0	01	1	1008-
578	CONNECTOR (B)	1-33712-026-0	01	1	1008-
615	VALVE; MAGNETIC (A)	8-98222-558-0	01	1	1307-
615	VALVE; MAGNETIC (B)	8-98222-559-0	01	1	1307-
617	PLUG	8-97320-204-0	02	1	1307-
618	TUBE; NYLON (B) L=730	8-98222-118-0	01	1	1307-
618	TUBE; NYLON (A) L=400	8-98222-734-0	01	1	1307-

578 408 622 621 621 158 622 427 578 488 443 353 338 340 340 622 444 621 218 427 427 598 192 381 195 552 391 548 427 594 346 622 621 578 578 443 599 548 595 578 578 593 552 578 578 374 59 191 444 553

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1409-
59	NUT (A)	1-09440-068-0	04	1	1008-
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-
191	WASHER; LK	1-09503-311-0	04	1	1008-
192	WASHER; PL	1-09503-310-0	04	1	1008-
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	1008-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-350-0	01	1	1008-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-490-0	01	1	1008-1306
338	BRACKET; FLEX TUBE	8-98222-750-1	01	1	1307-
340	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1307-1401
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1307-
353	CLIP; AIR HOSE (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1307-
353	CLIP; AIR HOSE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	1307-
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	1008-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	02	1	1307-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09661-390-0	01	1	1008-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-
381	BOLT (C)	1-09044-111-0	04	1	1008-
391	PLUG; SW HOLE (B) M14X9	8-98042-944-0	02	1	1008-1306
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	1008-1304
391	PLUG; SW HOLE (A) M12X9	0-92002-412-0	01	1	1305-
408	SWITCH; SELECT,4TH 5TH	8-98228-507-0	01	1	1307-
427	CONNECTOR; NYLON TUBE (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-
427	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	1008-
427	CONNECTOR; NYLON TUBE (D) M12	1-09660-931-1	01	1	1008-
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1008-
443	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1307-
443	BOLT; CLIP (C) M10X25 FLANGE	0-28751-025-0	05	1	1307-
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	1008-
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	06	1	1008-
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-
548	CLIP; HOSE (B) ID=7.8	8-94246-958-0	01	1	1008-
548	CLIP; HOSE (A)	1-33712-028-0	01	1	1008-
552	BRACKET (C)	8-98222-117-0	01	1	1307-
552	BRACKET (A)	1-33719-082-0	01	1	1008-
552	BRACKET (B)	1-33719-083-0	01	1	1008-
553	ADAPTER; AIR	1-09661-389-0	01	1	1008-
578	CONNECTOR (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1307-
578	CONNECTOR (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1307-
578	CONNECTOR (I) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1307-
578	CONNECTOR (G) R1/4 & RC1/4	1-09664-211-0	02	1	1307-
578	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-
578	CONNECTOR (E)	1-09661-292-0	02	1	1008-
578	CONNECTOR (C)	1-33712-023-0	02	1	1008-
578	CONNECTOR (A)	1-33712-024-0	01	1	1008-
578	CONNECTOR (B)	1-33712-026-0	01	1	1008-
593	VALVE; SPLITTER	1-33712-009-0	01	1	1008-
594	VALVE; MAGNETIC,AIR	1-82564-069-0	01	1	1008-
595	VALVE; RANGE	1-33712-029-1	01	1	1008-
598	UNION M10 & M12 STRAIGHT	1-09664-235-0	01	1	1008-
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1306
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1307-
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	1008-1306
622	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	1307-
622	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1008-

488 158 578 427 218 443 353 218 353 443 621 552 444 346 427 195 391 548 594 578 443 578 599 548 595 578 578 621 552 593 59 578 578 374 553 444 191 598 192 381 427 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1409-
59	NUT (A)	1-09440-068-0	04	1	1008-
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-
191	WASHER; LK	1-09503-311-0	04	1	1008-
192	WASHER; PL	1-09503-310-0	04	1	1008-
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	1008-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-350-0	01	1	1008-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-490-0	01	1	1008-1306
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1307-1401
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1307-
353	CLIP; AIR HOSE (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1307-
353	CLIP; AIR HOSE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	1307-
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	1008-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	02	1	1307-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09661-390-0	01	1	1008-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1008-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1008-
381	BOLT (C)	1-09044-111-0	04	1	1008-
391	PLUG; SW HOLE (B) M14X9	8-98042-944-0	02	1	1008-1306
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	1008-1304
391	PLUG; SW HOLE (A) M12X9	0-92002-412-0	01	1	1305-
427	CONNECTOR; NYLON TUBE (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-
427	CONNECTOR; NYLON TUBE (C) DIN8 ELBOW	1-09660-924-1	01	1	1008-
427	CONNECTOR; NYLON TUBE (D) M12	1-09660-931-1	01	1	1008-
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1008-
443	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1307-
443	BOLT; CLIP (C) M10X25 FLANGE	0-28751-025-0	05	1	1307-
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	1008-
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	06	1	1008-
488	PLUG; AIR CYL (B) M14X9	8-98042-944-0	02	1	1008-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1008-
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	1008-
548	CLIP; HOSE (B) ID=7.8	8-94246-958-0	01	1	1008-
548	CLIP; HOSE (A)	1-33712-028-0	01	1	1008-
552	BRACKET (C)	8-98222-117-0	01	1	1307-
552	BRACKET (A)	1-33719-082-0	01	1	1008-
552	BRACKET (B)	1-33719-083-0	01	1	1008-
553	ADAPTER; AIR	1-09661-389-0	01	1	1008-
578	CONNECTOR (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1307-
578	CONNECTOR (H) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1307-
578	CONNECTOR (I) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1307-
578	CONNECTOR (G) R1/4 & RC1/4	1-09664-211-0	02	1	1307-
578	CONNECTOR (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1008-
578	CONNECTOR (E)	1-09661-292-0	02	1	1008-
578	CONNECTOR (C)	1-33712-023-0	02	1	1008-
578	CONNECTOR (A)	1-33712-024-0	01	1	1008-
578	CONNECTOR (B)	1-33712-026-0	01	1	1008-
593	VALVE; SPLITTER	1-33712-009-0	01	1	1008-
594	VALVE; MAGNETIC,AIR	1-82564-069-0	01	1	1008-
595	VALVE; RANGE	1-33712-029-1	01	1	1008-
598	UNION M10 & M12 STRAIGHT	1-09664-235-0	01	1	1008-
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1306
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1307-
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-

346 599 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1307-1401
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR (B) L=450	1-09363-965-0	01	1	1307-
599	TUBE; NYLON (A)	1-09377-036-1	01	1	1008-
599	TUBE; NYLON (B)	1-33712-027-0	01	1	1008-
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	1008-1306
621	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1307-
621	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
