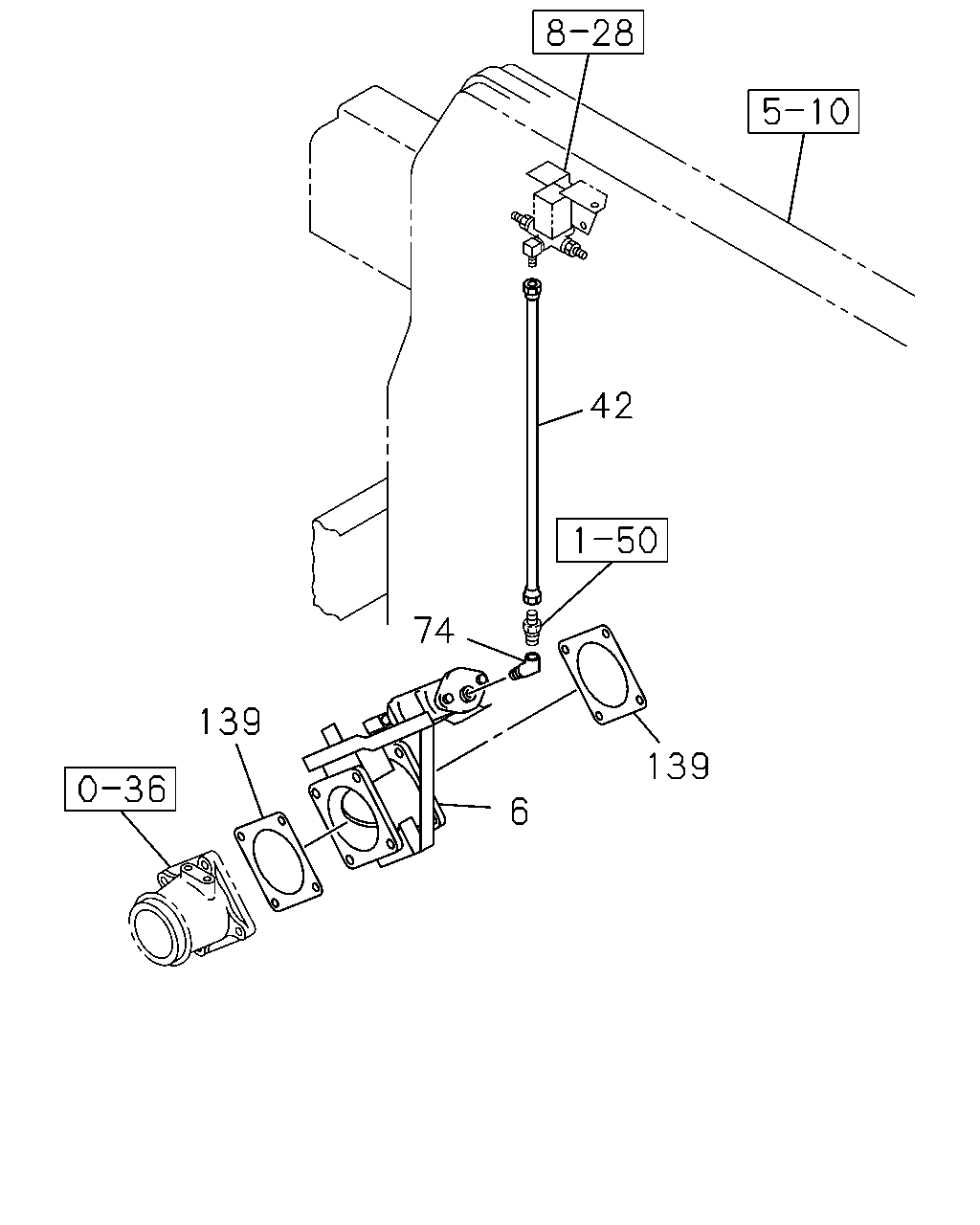

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#63715) — 13 parça
◀
[155A] '13/7- VALVE;FIXING (6 parça)
[155A] -'13/6 VALVE;FIXING (6 parça)
[155A] PIPING (1 parça)
▶
42
139
6
139
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-97629-737-3
01
1
1008-
42
HOSE; FLEX,EXH BRK
L=470
1-09363-714-0
01
1
1008-1306
42
HOSE; FLEX,EXH BRK
L=400
1-09363-743-0
01
1
1307-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1008-1306
74
CONNECTOR; EXH BRK VLV
R1/4 & RC1/4
1-09664-211-0
01
1
1307-
139
GASKET; EXH BRK VLV
ID=100
1-14145-175-0
02
1
1008-
139
74
6
139
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-97629-737-3
01
1
1008-
42
HOSE; FLEX,EXH BRK
L=470
1-09363-714-0
01
1
1008-1306
42
HOSE; FLEX,EXH BRK
L=400
1-09363-743-0
01
1
1307-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1008-1306
74
CONNECTOR; EXH BRK VLV
R1/4 & RC1/4
1-09664-211-0
01
1
1307-
139
GASKET; EXH BRK VLV
ID=100
1-14145-175-0
02
1
1008-
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
76
PIPE ASM; AIR UNION TO UNION
L=498
8-98152-426-0
01
1
1008-
