Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#63712) — 23 parça
◀

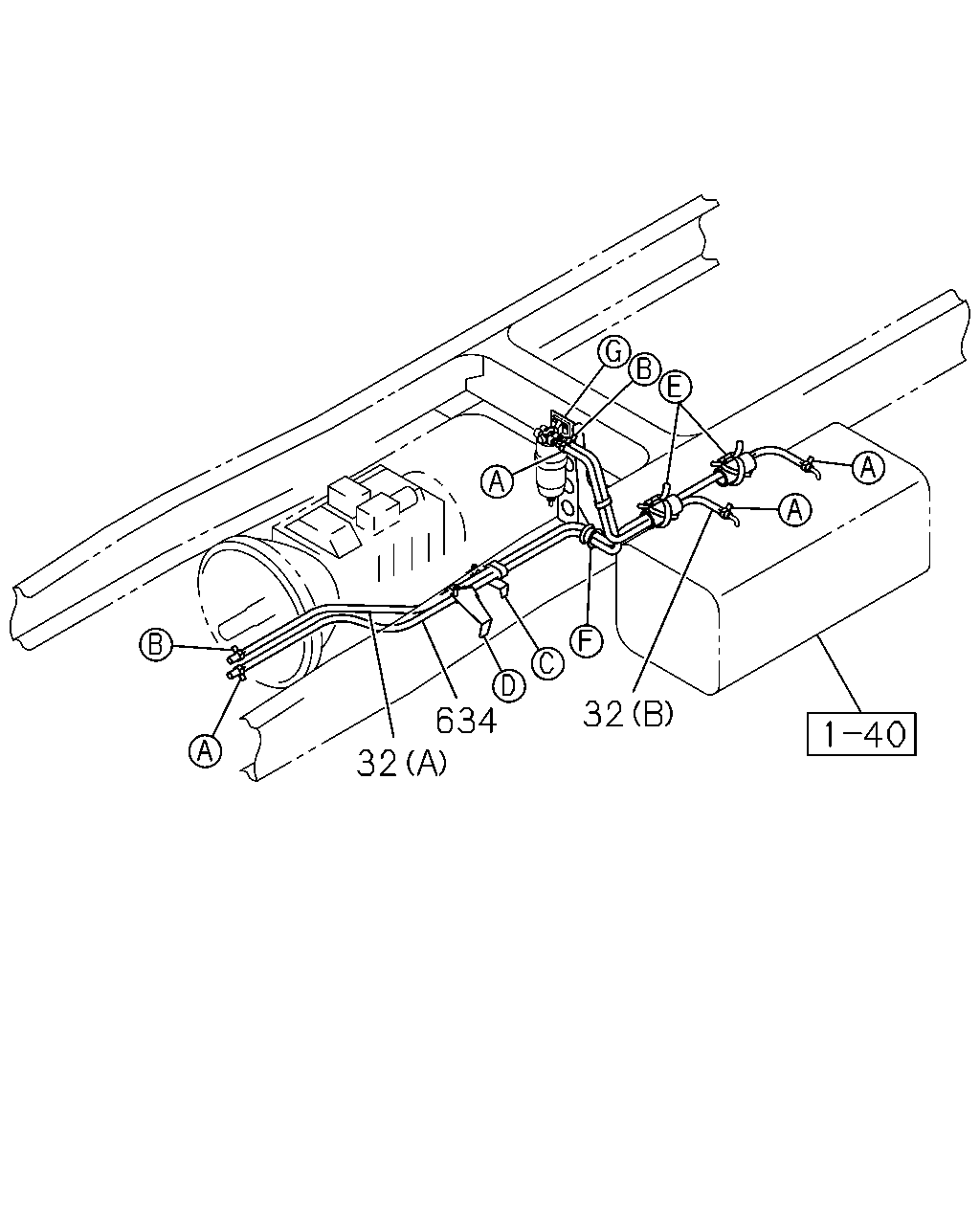

[141A] PIPING (3 parça)

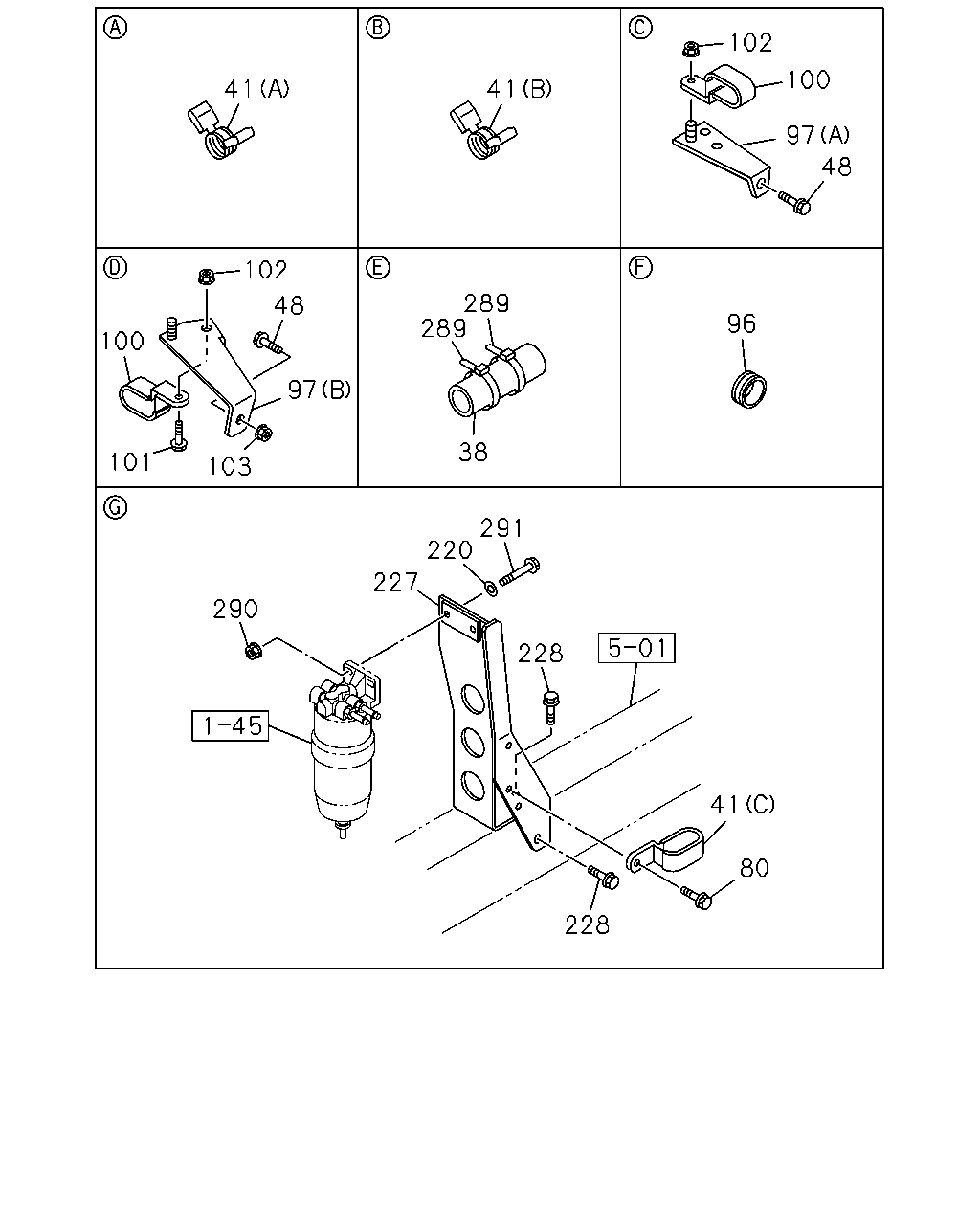

[141A] FIXING (20 parça)
▶
32
32
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=1150 SERVICED BY L=3000
0-01260-300-0
01
1
1008-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1550 SERVICED BY L=3000
0-01262-300-0
01
1
1008-
634
HOSE; RUBBER RETURN
L=1900 SERVICED BY L=3000
0-01260-300-0
01
1
1008-
41
41
102
100
97
48
100
102
101
103
97
48
289
289
38
96
290
227
291
220
228
228
41
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1008-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=19X32 H=17.5 L=22.5
1-09701-315-0
01
1
1008-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
1008-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
1008-
48
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1008-
80
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
0-28650-820-0
01
1
1008-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18
1-09891-003-0
01
1
1008-1306
96
GROMMET; PIPE,FUEL TANK
ID=39 OD=45 T=19
1-09332-077-0
01
1
1307-
97
BRACKET; CLIP
(B)
1-47471-283-0
01
1
1008-
97
BRACKET; CLIP
(A)
8-98172-058-0
01
1
1008-
100
CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5
1-09701-315-0
02
1
1008-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
01
1
1008-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
02
1
1008-
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1008-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
1008-
227
BRACKET; FUEL SEDIMENTER
8-98144-953-0
01
1
1008-
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28051-040-0
03
1
1008-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
1008-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
1008-
291
BOLT; FILER TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1008-
