11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

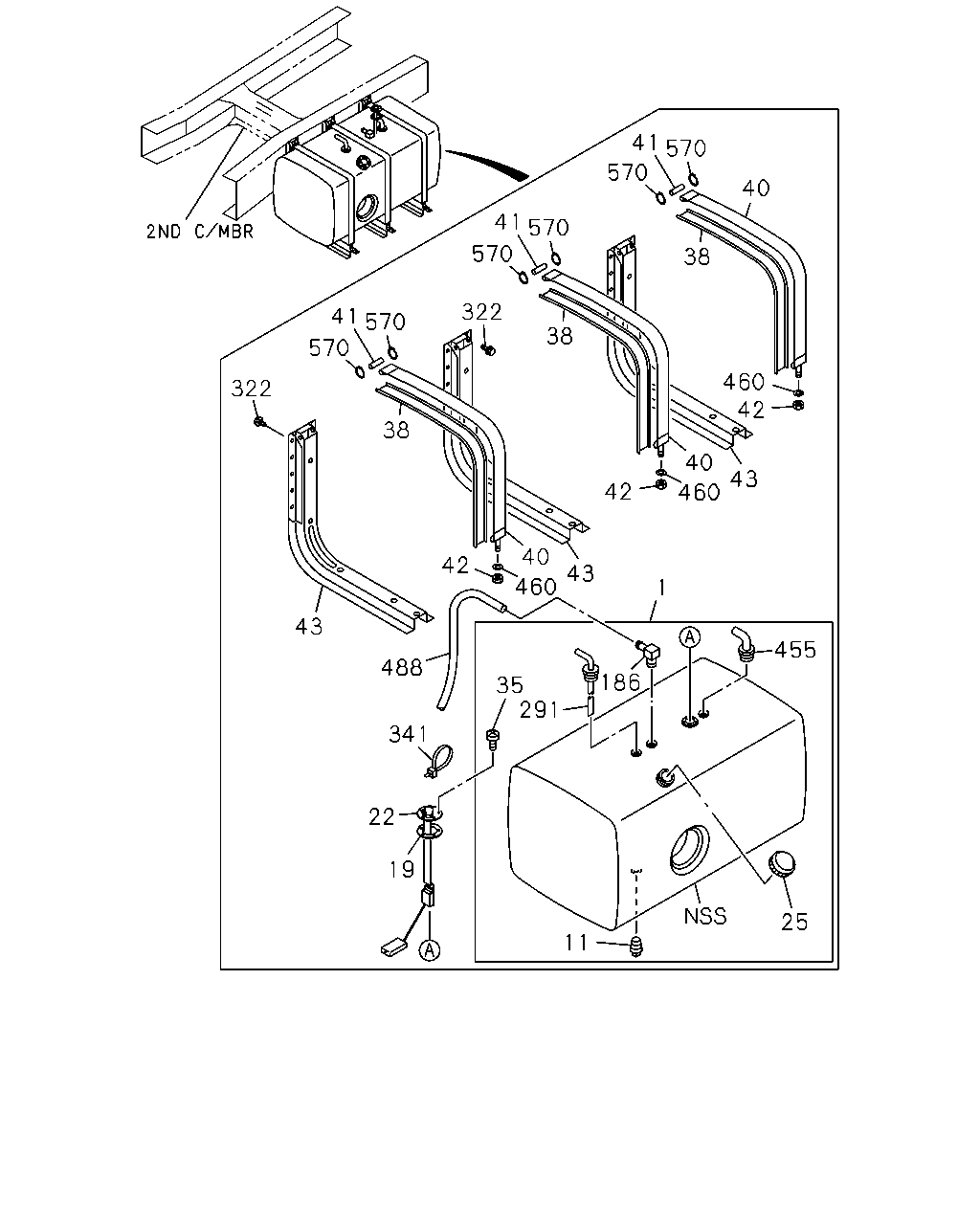

1-40 — FUEL TANK
(#63711) — 20 parça
41
570
570
40
570
41
570
38
38
322
570
41
570
38
322
43
42
40
43
460
42
40
460
43
42
460
488
341
22
19
35
291
11
186
1
455
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1280X700X700 550L
8-98140-322-0
01
1
1008-
11
PLUG; DRAIN,FUEL TANK
8-98154-085-0
02
1
1008-
19
GASKET; FUEL TANK UNIT
ID=45 OD=67
1-83149-003-0
01
1
1008-
22
UNIT; FUEL TANK
1-83141-150-1
01
1
1008-
25
CAP; FILLER,FUEL TANK
1-22440-057-2
01
1
1008-
35
SCREW; FUEL TANK UNIT
8-98168-468-0
05
1
1008-
38
INSULATION; SUPPORT BELT
8-98048-490-0
03
1
1008-
40
BELT; SUPPORT,FUEL TANK
8-98048-517-0
03
1
1008-
41
PIN; SUPPORT BELT
8-98048-491-0
03
1
1008-
42
NUT; SUPPORT BELT
1-22559-027-0
03
1
1008-
43
BRACKET; FUEL TANK
8-98110-151-0
03
1
1008-
186
VALVE; GT,FUEL TANK
8-98154-029-0
01
1
1008-
291
PIPE; FUEL,SUCTION
8-98154-021-0
01
1
1008-
322
BOLT; BRKT FIX
M12X45 FLANGE
0-28051-245-0
18
1
1008-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1008-
455
PIPE; FUEL,RETURN
8-98154-022-0
01
1
1008-
460
WASHER; PL,BRKT
ID=17 OD=32
9-09160-616-0
03
1
1008-1306
460
WASHER; PL,BRKT
0-91610-616-0
03
1
1307-
488
HOSE; RUBBER
8-98151-246-0
01
1
1008-
570
CLIP; PIN
1-22559-024-0
06
1
1008-
