◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#63703) — 74 parça

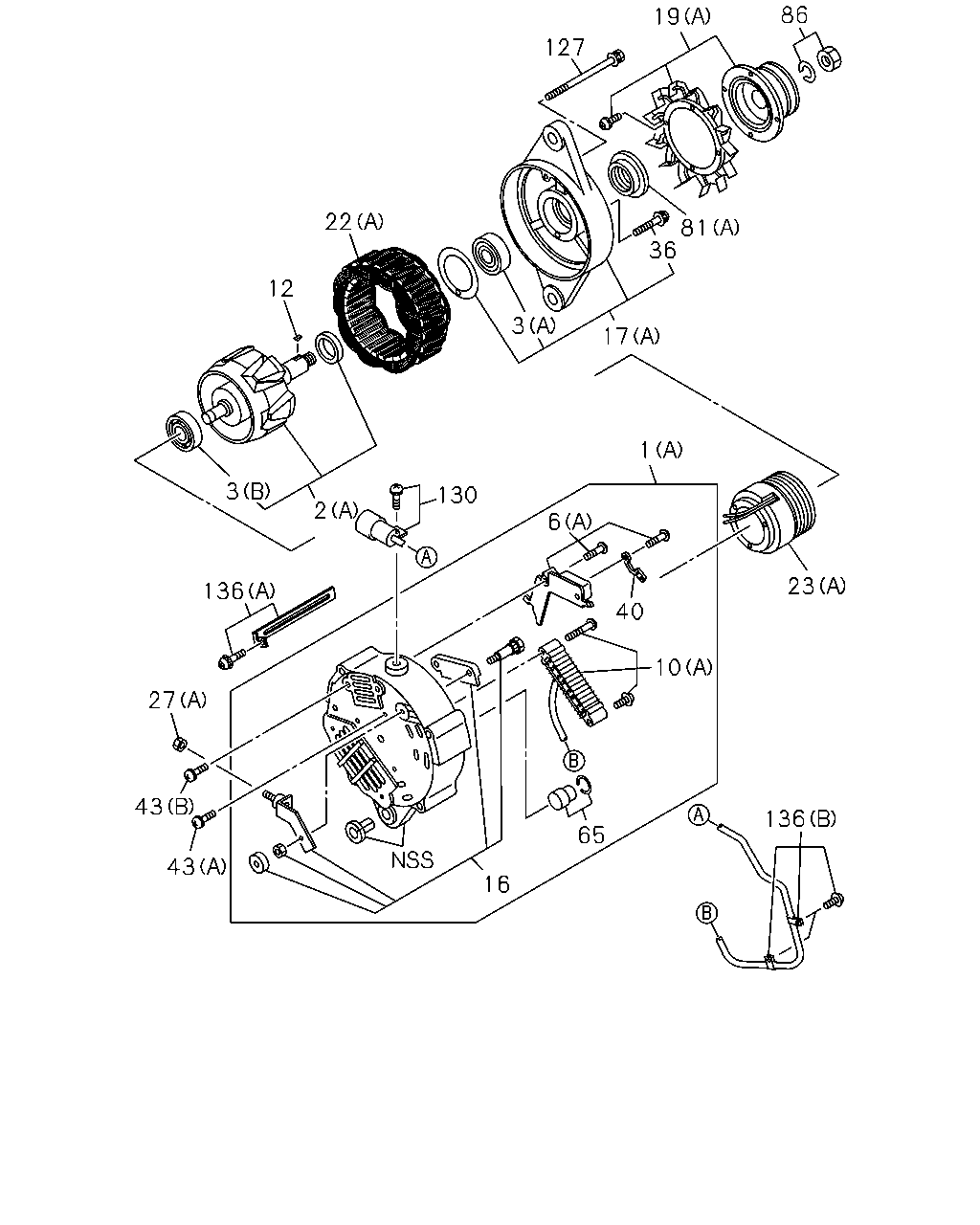

çizim 170984
43 43 27 136 2 130 6 1 23 136 10 40 65 16 3 12 22 3 17 36 81 127 19 86
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 1-81200-572-8 		8-98024-557-3 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: B = 8-98201-083-2 		8-98181-100-1 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81221-105-0 01 1 -
2 ROTOR; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-638-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: B = 8-98201-083-2 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: B = 8-98201-083-2 		1-81229-758-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-572-8 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81260-019-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-688-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81219-141-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98181-102-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-572-8 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 1-81200-572-8 		1-81229-890-0 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81213-116-1 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: B = 8-98201-083-2 		8-97382-872-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81222-139-1 01 1 -
19 PULLEY; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98181-099-0 01 1 -
22 STATOR; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81211-135-0 01 1 -
22 STATOR; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-640-0 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: A = 1-81200-572-8 		1-81212-031-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-645-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-772-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-687-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 1-81200-572-8 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 1-81200-572-8 		1-81222-164-1 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: B = 8-98201-083-2 		1-81229-476-0 03 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-572-8 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-572-8 		1-81229-817-0 01 1 -
65 CONDENSER; GEN
ASM PART: A = 1-81200-572-8 		1-84132-016-0 01 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-813-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: B = 8-98201-083-2 		8-97382-870-0 02 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 1-81200-572-8 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 1-81200-572-8 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 1-81200-572-8 		1-81229-894-0 01 1 -
136 CLAMP; GENERATOR
(A) ASM PART: A = 1-81200-572-8 		1-81229-775-0 01 1 -
136 CLAMP; GENERATOR
(B) ASM PART: A = 1-81200-572-8 		1-81229-897-0 01 1 -

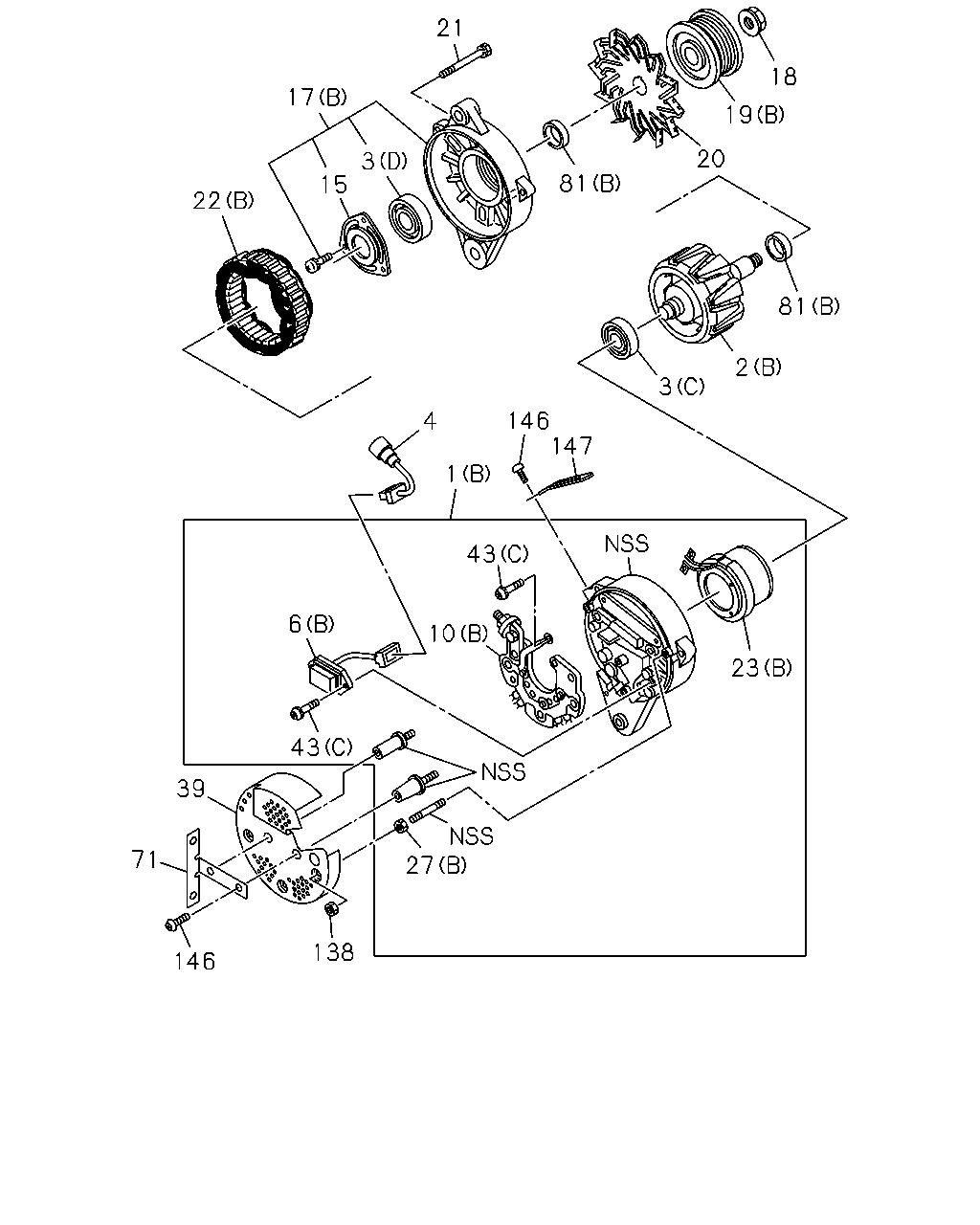

çizim 362651
146 71 39 138 43 6 10 43 23 27 1 4 146 147 22 15 17 3 21 81 20 19 18 81 2 3
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
(A) ASM PART: A = 1-81200-572-8 		8-98024-557-3 01 1 -
1 COVER ASM; RR,GEN
(B) ASM PART: B = 8-98201-083-2 		8-98181-100-1 01 1 -
2 ROTOR; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81221-105-0 01 1 -
2 ROTOR; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-638-0 01 1 -
3 BEARING; ROTOR,GEN
(C) ASM PART: B = 8-98201-083-2 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(D) ASM PART: B = 8-98201-083-2 		1-81229-758-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-572-8 		1-81229-816-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: B = 8-98201-083-2 		8-98181-104-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81260-019-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-688-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81219-141-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98181-102-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: B = 8-98201-083-2 		1-81229-760-1 01 1 -
17 COVER ASM; FRT,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81213-116-1 01 1 -
17 COVER ASM; FRT,GEN
(B) ASM PART: B = 8-98201-083-2 		8-97382-872-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: B = 8-98201-083-2 		8-98040-643-0 01 1 -
19 PULLEY; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81222-139-1 01 1 -
19 PULLEY; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98181-099-0 01 1 -
20 FAN; GEN
ASM PART: B = 8-98201-083-2 		8-97382-874-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: B = 8-98201-083-2 		1-81229-382-0 03 1 -
22 STATOR; GEN
(A) ASM PART: A = 1-81200-572-8 		1-81211-135-0 01 1 -
22 STATOR; GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-640-0 01 1 -
23 COIL; ROTOR GEN
(A) ASM PART: A = 1-81200-572-8 		1-81212-031-0 01 1 -
23 COIL; ROTOR GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-645-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-772-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: B = 8-98201-083-2 		8-98040-687-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: B = 8-98201-083-2 		8-98181-103-0 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: B = 8-98201-083-2 		1-81229-476-0 03 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-572-8 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-572-8 		1-81229-817-0 01 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: B = 8-98201-083-2 		8-98203-925-0 01 1 -
81 SPACER; ROTOR,GEN
(A) ASM PART: A = 1-81200-572-8 		1-81229-813-0 01 1 -
81 SPACER; ROTOR,GEN
(B) ASM PART: B = 8-98201-083-2 		8-97382-870-0 02 1 -
138 NUT; COVER,GENERATOR
ASM PART: B = 8-98201-083-2 		8-98040-690-0 03 1 -
146 SCREW; HOLDER
ASM PART: B = 8-98201-083-2 		1-81229-469-0 03 1 -
147 CLIP; GEN
ASM PART: B = 8-98201-083-2 		8-98212-483-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
