◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#6370) — 28 parça

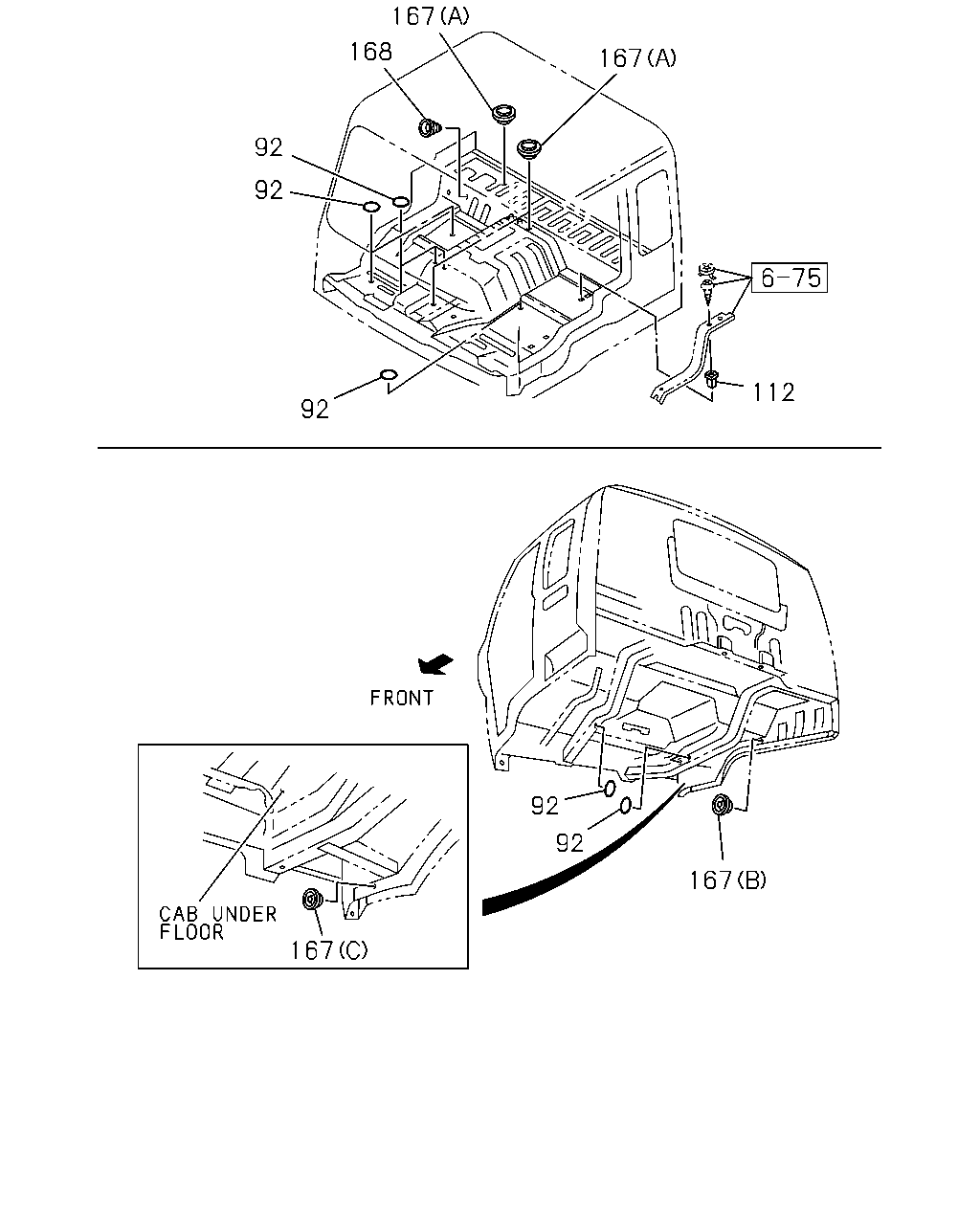

çizim 41685
167 168 167 92 92 112 92 92 92 167 167
BalonParca AdiParca NoAdetTipApplied Date
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 10 1 9604-9612
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9701-9712
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9801-
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9801-
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9604-9612
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 07 1 9701-9904
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 05 1 9905-
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9801-
92 SEAL; LOCATION HOLE
SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 08 1 9604-9612
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 05 1 9701-9712
92 SEAL; LOCATION HOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 05 1 9701-9712
92 SEAL; LOCATION HOLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 05 1 9801-9904
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 07 1 9905-
92 SEAL; LOCATION HOLE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 09 1 9604-9612
92 SEAL; LOCATION HOLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK 		1-76798-019-0 01 1 9701-
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9604-
167 GROMMET; LOCATION HOLE
(A) FLOOR PANEL SIDE OD=23.5 		1-09983-155-0 03 1 9604-9612
167 GROMMET; LOCATION HOLE
(A) FLOOR PANEL SIDE OD=23.5 		1-09983-155-0 01 1 9701-9709
167 GROMMET; LOCATION HOLE
(A) ENGINE FOOD & BED PAN OD=23.5 		1-09983-101-0 04 1 9710-9904
167 GROMMET; LOCATION HOLE
(A) FLOOR PANEL SIDE OD=23.5 		1-09983-101-0 01 1 9905-
167 GROMMET; LOCATION HOLE
(A) ENGINE FOOD & BED PAN OD=23.5 		1-09983-155-0 04 1 9604-9709
167 GROMMET; LOCATION HOLE
(A) FLOOR PANEL SIDE OD=23.5 		1-09983-101-0 01 1 9710-9904
167 GROMMET; LOCATION HOLE
(A) ENGINE FOOD & BED PAN OD=23.5 		1-09983-101-0 04 1 9905-
167 GROMMET; LOCATION HOLE
(B) FLOOR SIDE FRONT OD=35 		8-94122-971-0 04 1 9604-9808
167 GROMMET; LOCATION HOLE
(B) FLOOR SIDE FRONT OD=35 		8-94122-971-0 06 1 9809-
167 GROMMET; LOCATION HOLE
(C) FLOOR SIDE FRONT OD=15.0 		8-94279-040-0 04 1 9604-9808
167 GROMMET; LOCATION HOLE
(C) FLOOR SIDE FRONT OD=15.0 		8-94279-040-0 02 1 9809-
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9604-
