0-65 — STARTER (#637) — 85 parça

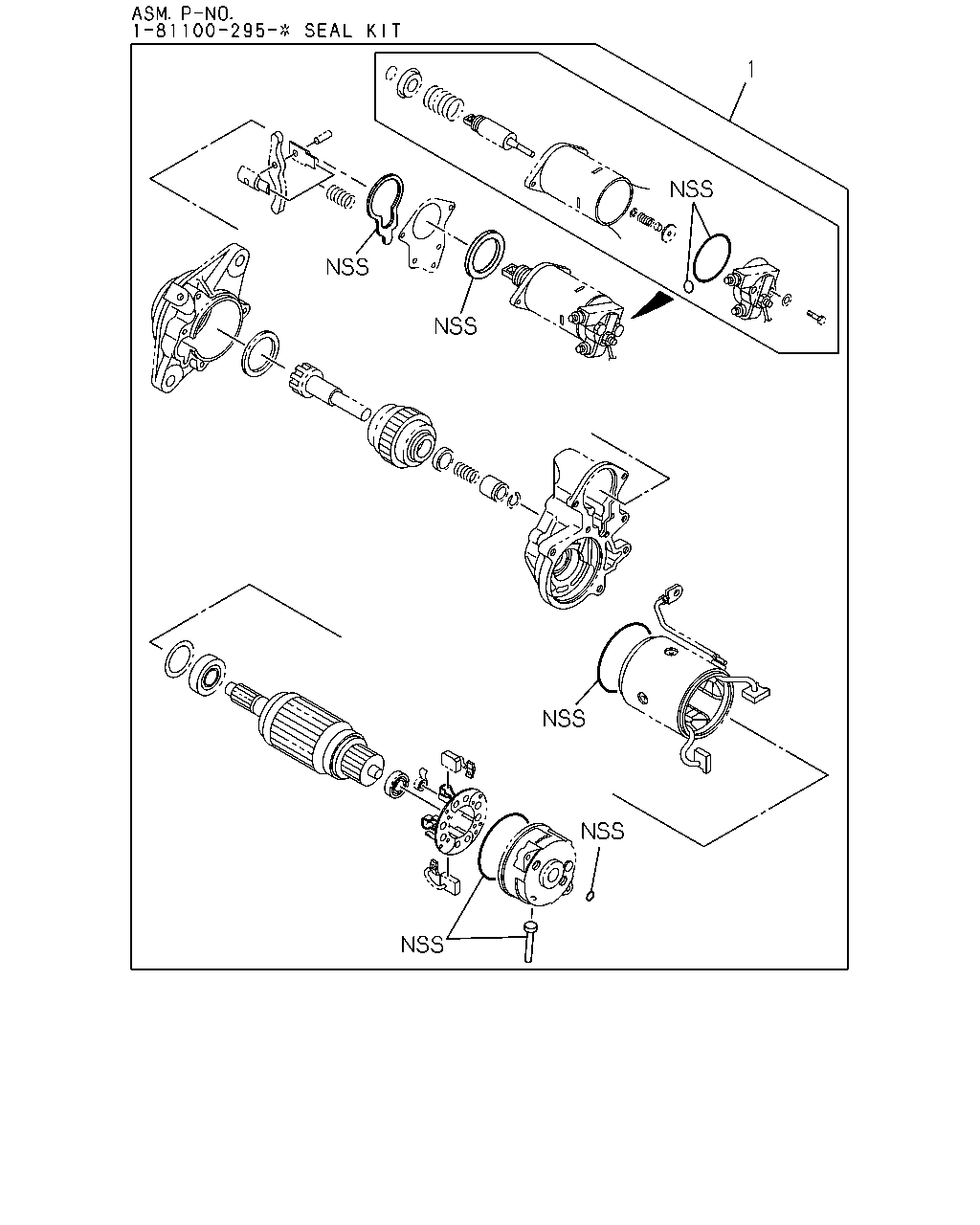

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	SEAL KIT; STARTER ASM PART: A = 1-81100-295-0	1-81129-671-0	01	1	-

28 79 29 31 79 2 30 117 31 116 116 13 54 8 20 21 20 11 9 23 16 41 50 17 27 50 22 27

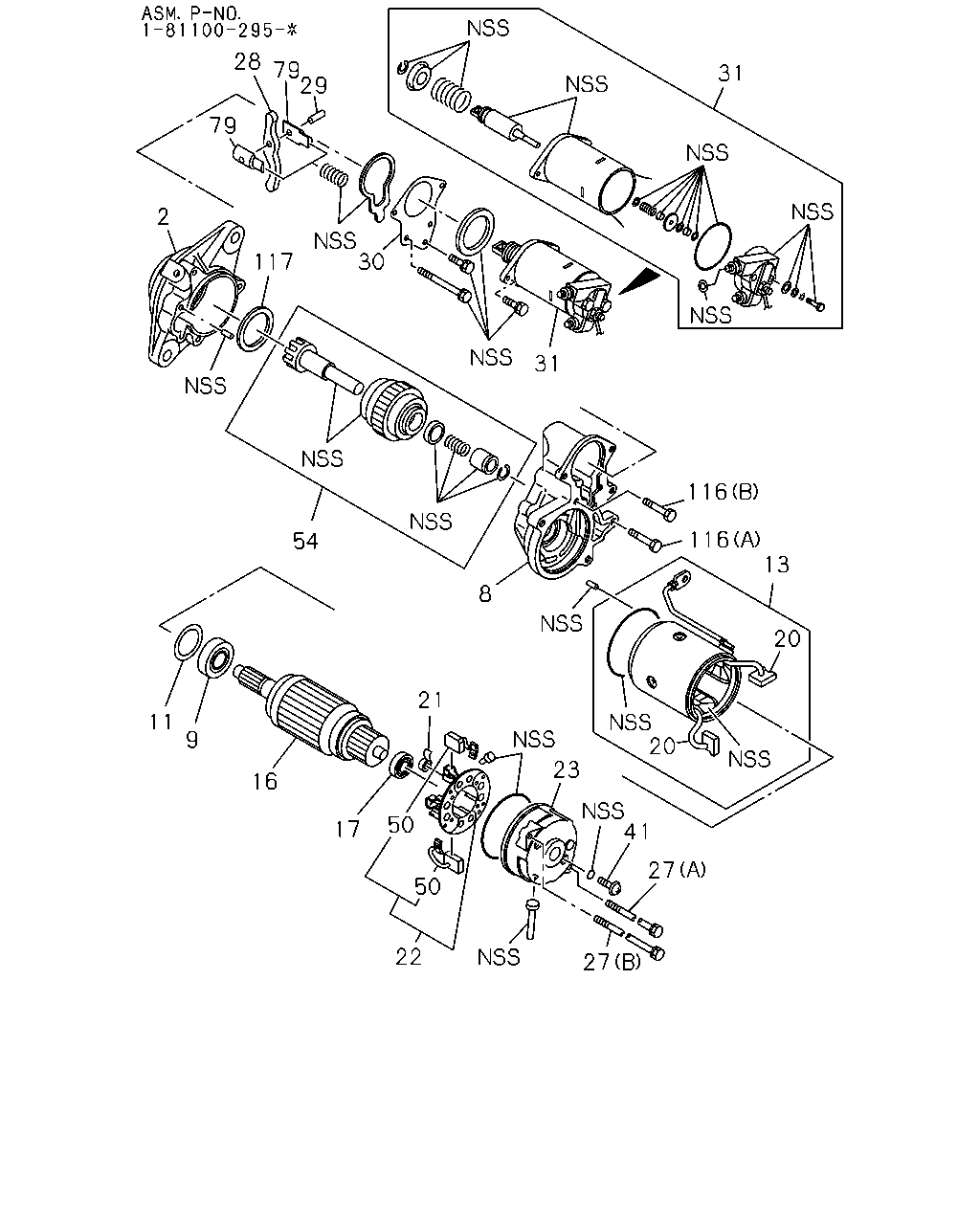

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-94399-159-3	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-295-0	1-81123-041-1	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-295-0	1-81118-052-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-295-0	8-94340-476-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: A = 1-81100-295-0	9-82125-213-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-94399-159-3	1-81111-001-0	01	1	-9402
13	YOKE; STARTER ASM PART: B = 8-94399-159-3	1-81111-009-0	01	1	9403-
13	YOKE; STARTER ASM PART: A = 1-81100-295-0	1-81129-704-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94399-159-3	1-81121-055-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-295-0	1-81121-061-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-295-0	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94399-159-3	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94399-159-3	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-295-0	1-81116-057-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-94399-159-3	1-81119-004-0	02	1	-9402
20	BRUSH; (+),STARTER ASM PART: B = 8-94399-159-3	8-94171-853-0	02	1	9403-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-295-0	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-295-0	1-81118-057-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94399-159-3	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-295-0	1-81115-218-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94399-159-3	1-81129-623-0	01	1	-9402
23	COVER; RR COVER STARTER ASM PART: B = 8-94399-159-3	1-81129-701-0	01	1	9403-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-295-0	1-81129-606-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-295-0	1-81129-607-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94399-159-3	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94399-159-3	1-81129-702-0	02	1	9410-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94399-159-3	5-81129-123-0	02	1	-9409
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-295-0	1-81127-037-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-295-0	8-94340-471-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-295-0	1-81129-670-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94399-159-3	1-81151-088-1	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-295-0	1-81151-094-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-295-0	1-81129-602-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94399-159-3	5-81129-130-0	02	1	-9409
50	BRUSH; (-),STARTER ASM PART: A = 1-81100-295-0	1-81116-058-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94399-159-3	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-295-0	1-81129-614-0	01	1	-
79	HOLDER; SHIFT LEVER ASM PART: A = 1-81100-295-0	1-81118-051-0	02	1	-
116	BOLT; BRKT (A) ASM PART: A = 1-81100-295-0	1-81129-604-0	01	1	-
116	BOLT; BRKT (B) ASM PART: A = 1-81100-295-0	1-81129-605-0	01	1	-
117	WASHER; CLUTCH ASM PART: A = 1-81100-295-0	8-94340-468-0	01	1	-

41 77 23 77 22 20 13 26 27 16 58 17 20 17 43 44 52 114 115 43 46 54 2 31 47 27 48

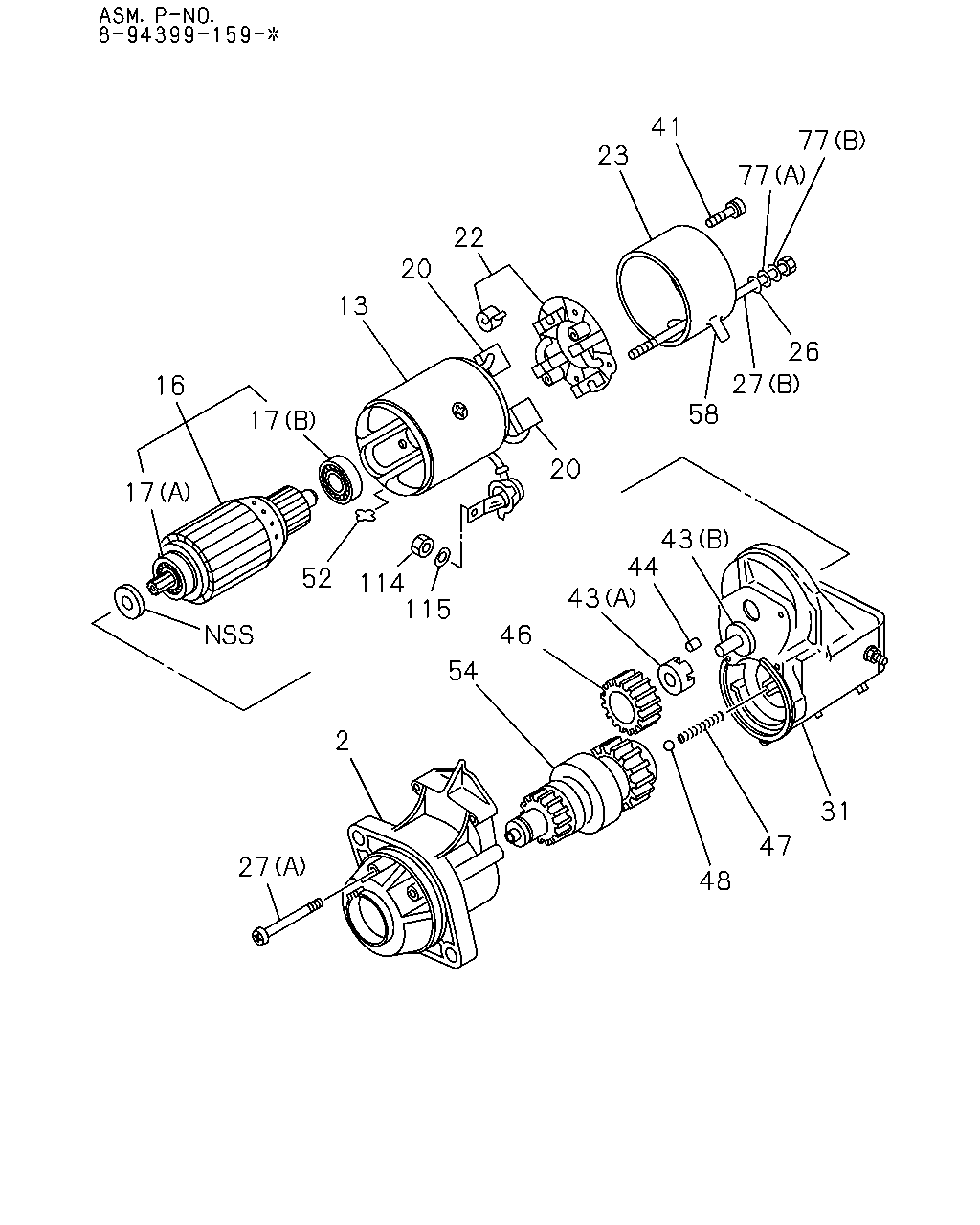

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-94399-159-3	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-295-0	1-81123-041-1	01	1	-
13	YOKE; STARTER ASM PART: B = 8-94399-159-3	1-81111-001-0	01	1	-9402
13	YOKE; STARTER ASM PART: B = 8-94399-159-3	1-81111-009-0	01	1	9403-
13	YOKE; STARTER ASM PART: A = 1-81100-295-0	1-81129-704-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94399-159-3	1-81121-055-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-295-0	1-81121-061-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-295-0	1-81129-609-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94399-159-3	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94399-159-3	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-295-0	1-81116-057-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-94399-159-3	1-81119-004-0	02	1	-9402
20	BRUSH; (+),STARTER ASM PART: B = 8-94399-159-3	8-94171-853-0	02	1	9403-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-295-0	1-81118-057-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94399-159-3	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-295-0	1-81115-218-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94399-159-3	1-81129-623-0	01	1	-9402
23	COVER; RR COVER STARTER ASM PART: B = 8-94399-159-3	1-81129-701-0	01	1	9403-
26	SEAL; THROUGH BOLT STARTER ASM PART: B = 8-94399-159-3	5-81129-131-0	02	1	-9402
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-295-0	1-81129-606-0	01	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-295-0	1-81129-607-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94399-159-3	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94399-159-3	1-81129-702-0	02	1	9410-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94399-159-3	5-81129-123-0	02	1	-9409
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94399-159-3	1-81151-088-1	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-295-0	1-81151-094-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-295-0	1-81129-602-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94399-159-3	5-81129-130-0	02	1	-9409
43	RETAINER; PINION STARTER (A) ASM PART: B = 8-94399-159-3	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: B = 8-94399-159-3	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: B = 8-94399-159-3	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-94399-159-3	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-94399-159-3	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 8-94399-159-3	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER ASM PART: B = 8-94399-159-3	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94399-159-3	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-295-0	1-81129-614-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-94399-159-3	1-81129-677-0	01	1	9309-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-94399-159-3	5-81129-122-0	01	1	-9308
77	WASHER; THROUGH BOLT,STARTER (A) ASM PART: B = 8-94399-159-3	5-81129-124-0	02	1	-9402
77	WASHER; THROUGH BOLT,STARTER (B) ASM PART: B = 8-94399-159-3	9-09150-506-0	02	1	-9409
114	NUT; TERMINAL ASM PART: B = 8-94399-159-3	5-81129-126-0	01	1	-
115	WASHER; TERMINAL ASM PART: B = 8-94399-159-3	5-81129-134-0	01	1	-
