6-76 — FLOOR EQUIPMENT AND SEALING (#6369) — 40 parça

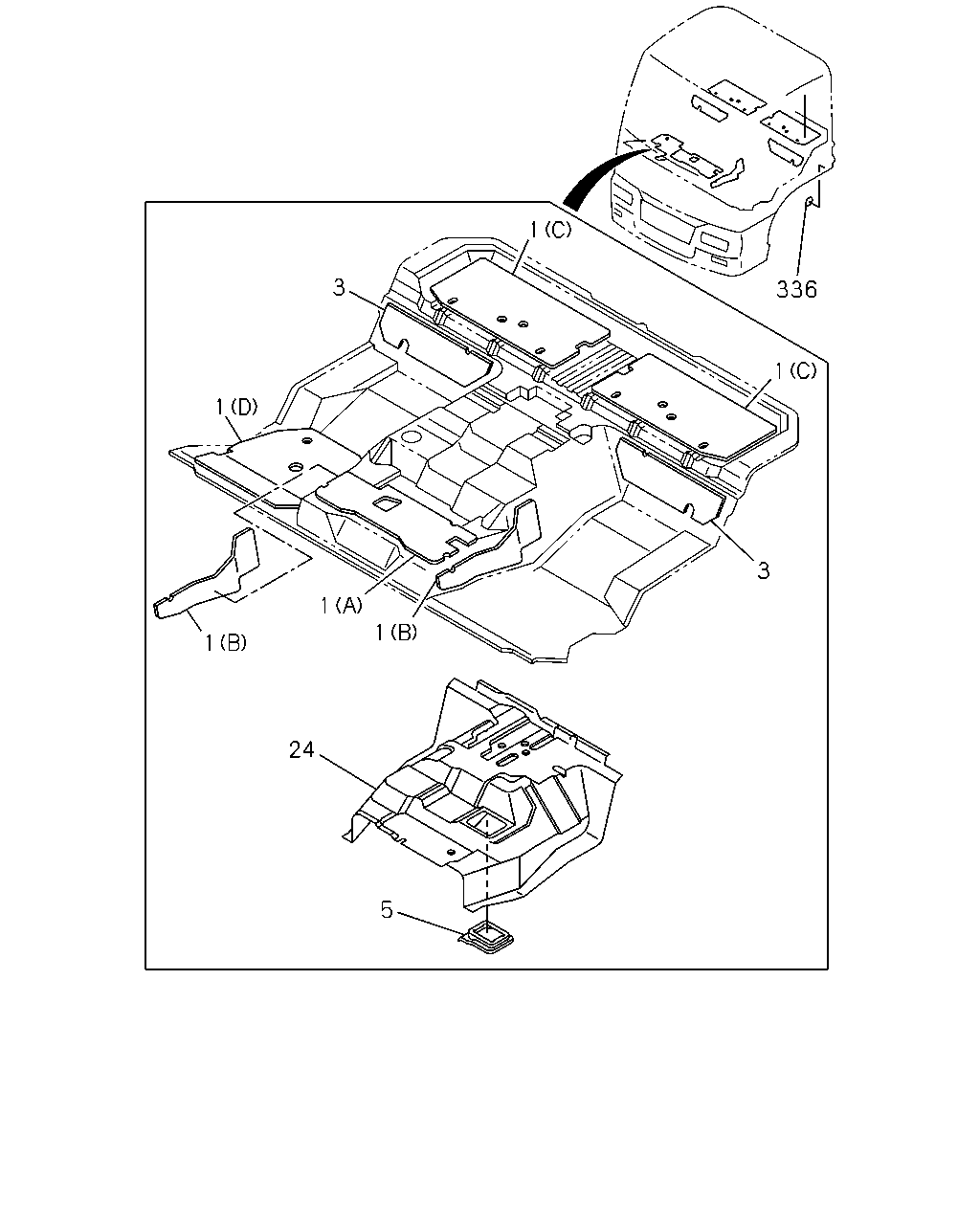

1 3 336 1 1 3 1 1 1 24 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHEET; MELTING,FLOOR (A) ENGINE HOOD FRONT CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9604-9711
1	SHEET; MELTING,FLOOR (A) ENGINE HOOD FRONT CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	02	1	9712-
1	SHEET; MELTING,FLOOR (C) BED PAN UPPER CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	02	1	9604-9711
1	SHEET; MELTING,FLOOR (C) BED PAN UPPER CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9712-9903
1	SHEET; MELTING,FLOOR (C) BED PAN UPPER CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9904-
1	SHEET; MELTING,FLOOR (D) FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9604-9702
1	SHEET; MELTING,FLOOR (D) FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9703-
1	SHEET; MELTING,FLOOR (B) ENGINE HOOD SIDE CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9604-9711
1	SHEET; MELTING,FLOOR (B) ENGINE HOOD SIDE CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9712-
1	SHEET; MELTING,FLOOR (B) ENGINE HOOD SIDE CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9604-9711
1	SHEET; MELTING,FLOOR (B) ENGINE HOOD SIDE CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9712-
3	SHEET; MELTING,BED PAN CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9604-9711
3	SHEET; MELTING,BED PAN CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9712-
3	SHEET; MELTING,BED PAN CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9604-9711
3	SHEET; MELTING,BED PAN CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	01	1	9712-
5	COVER; CHANGE LEVER	1-33619-163-0	01	1	9604-
24	INSULATOR; HEAT,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ENGINE FOOD	1-71907-373-5	01	1	9604-
24	INSULATOR; HEAT,FRT PARKING BRAKE TRANSFER REAR(WB5) ENGINE FOOD	1-71907-375-5	01	1	9604-
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	9604-
336	SEAL; FLOOR SIDE EXC. SPRING BRAKE(SU9) OD=25 BLACK	1-76798-019-0	01	1	9604-

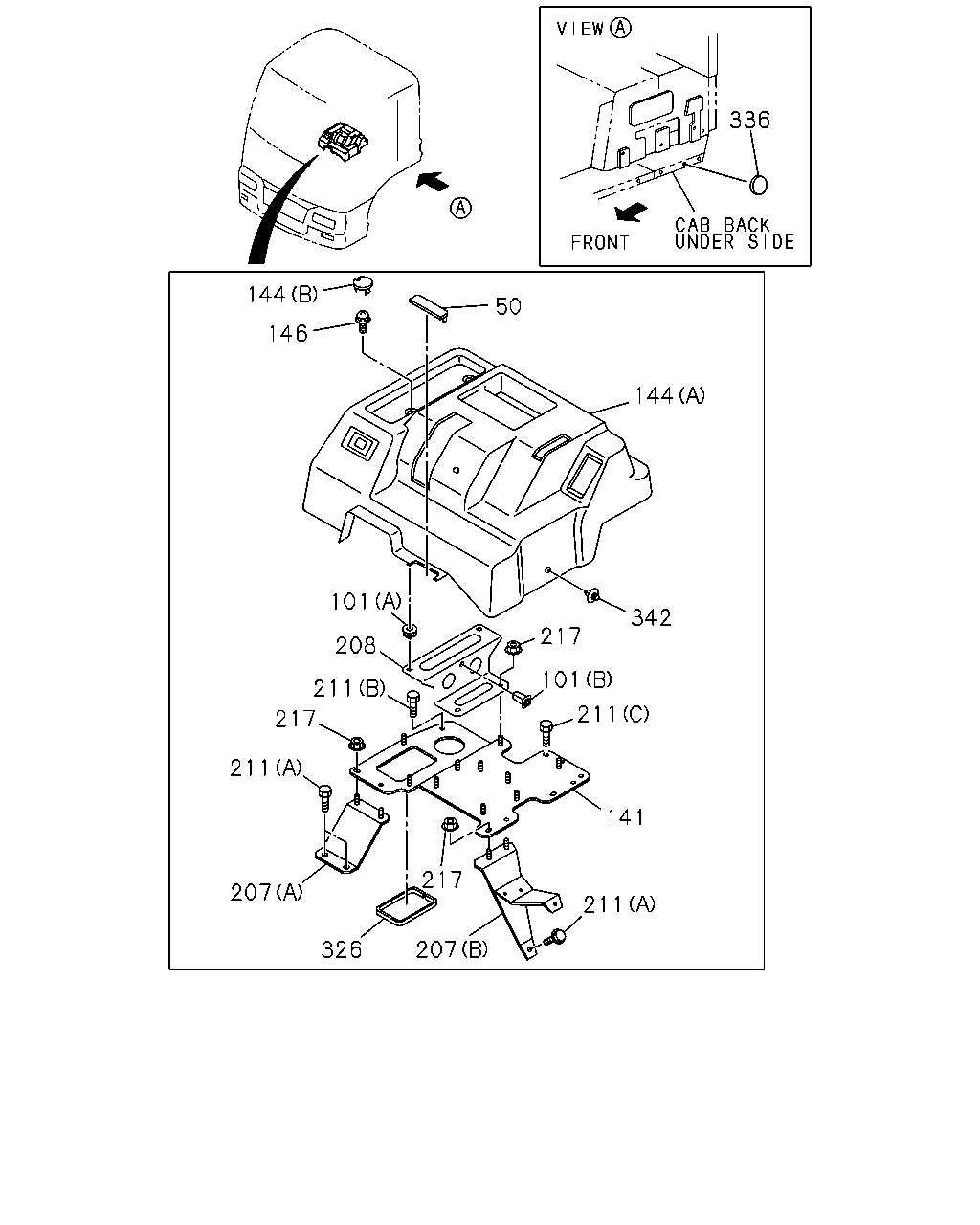

336 144 50 146 144 101 342 217 208 101 211 211 217 211 141 217 207 211 326 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	COVER ASM; SUPPORT,SIDE	1-72537-124-0	01	1	9604-
101	GROMMET; SCREW,FLOOR BOARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) D=7X7 L=7.5	5-09983-007-0	02	1	9604-
101	GROMMET; SCREW,FLOOR BOARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	01	1	9604-
141	HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-79996-111-1	01	1	9604-9904
141	HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-79996-438-0	01	1	9905-
144	COVER; HAND BRK VLV SPRING BRAKE(SU9) (A)	1-72417-318-2	01	1	9604-
144	COVER; HAND BRK VLV SPRING BRAKE(SU9) (B)	1-72537-106-0	02	1	9604-9812
144	COVER; HAND BRK VLV SPRING BRAKE(SU9) (B)	1-72538-166-0	02	1	9901-
146	BOLT; COVER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9604-
207	BRACKET ASM; HAND BRAKE VALVE SPRING BRAKE(SU9) (A)	1-79996-129-0	01	1	9604-
207	BRACKET ASM; HAND BRAKE VALVE SPRING BRAKE(SU9) (B)	1-79996-130-0	01	1	9604-
208	BRACKET ASM; COVER & BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-79996-347-0	01	1	9604-
211	BOLT; COVER SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9604-
211	BOLT; COVER SPRING BRAKE(SU9) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9604-
211	BOLT; COVER SPRING BRAKE(SU9) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	9604-
217	NUT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	06	1	9604-
326	SEAL; COVER SPRING BRAKE(SU9)	1-79996-132-0	01	1	9604-
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	9604-
336	SEAL; FLOOR SIDE EXC. SPRING BRAKE(SU9) OD=25 BLACK	1-76798-019-0	01	1	9604-
342	FASTENER SPRING BRAKE(SU9) D8X13.5	1-09987-248-1	01	1	9604-
