Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

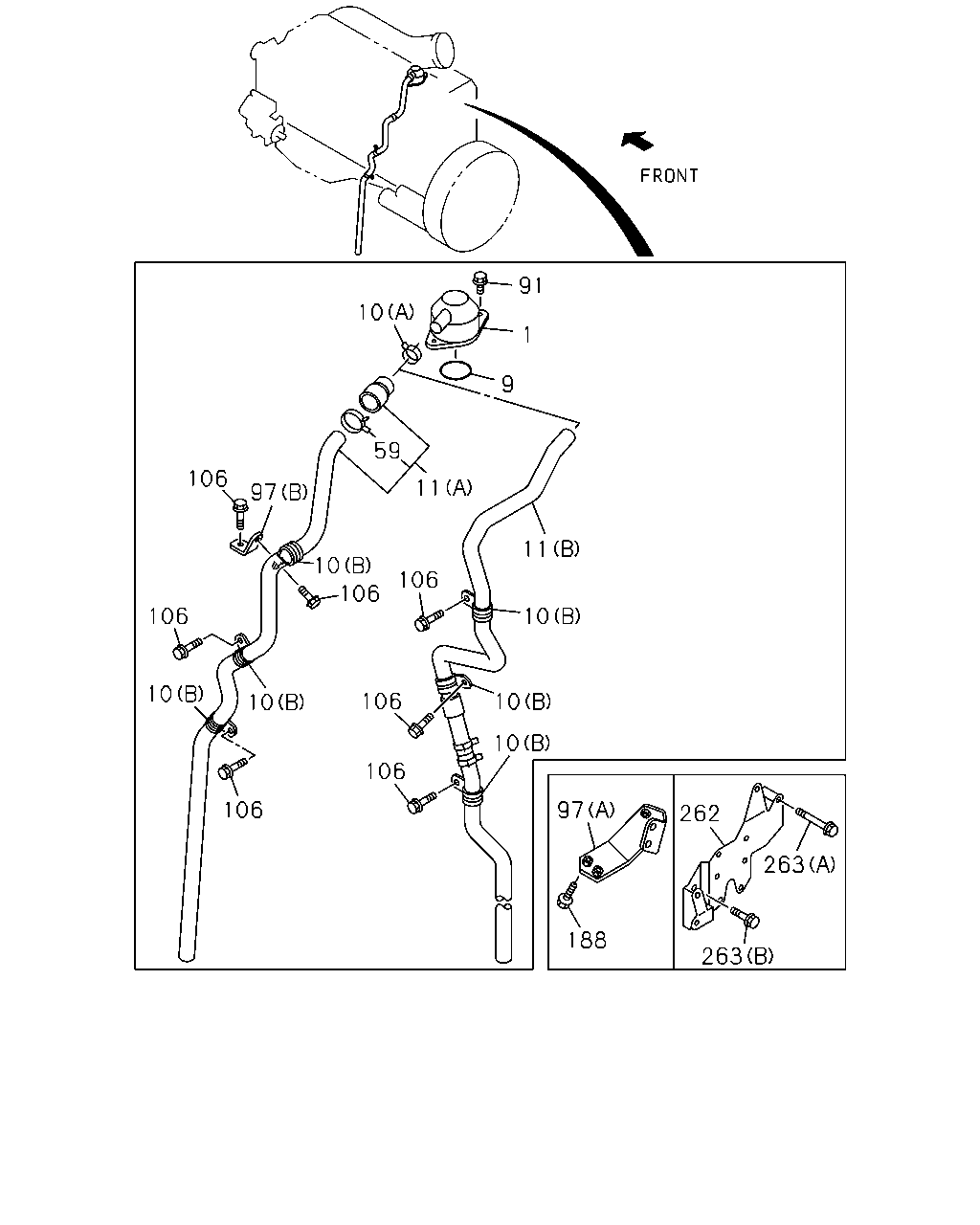

0-28 — VENTILATION SYSTEM
(#63683) — 19 parça
10
91
1
9
106
106
97
10
106
106
10
11
59
106
10
10
106
106
10
10
97
262
263
188
11
263
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
1008-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
1008-
10
CLIP; AIR BREATHER
(B) ID=31 L=30
1-09700-969-0
03
1
1008-1208
10
CLIP; AIR BREATHER
(B) ID=29 L=30
8-98225-679-0
04
1
1209-
10
CLIP; AIR BREATHER
(A) ID=28.5
1-09707-150-0
01
1
1008-
11
HOSE; RUBBER,AIR
(A)
1-11742-086-3
01
1
1008-1208
11
HOSE; RUBBER,AIR
(B)
8-98225-542-0
01
1
1209-
59
CLIP; HOSE
ID=33.6
8-94362-518-0
01
1
1008-1208
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28151-020-0
02
1
1008-
97
BRACKET; HOSE
(A)
1-15419-726-0
01
1
1008-
97
BRACKET; HOSE
(B)
8-97629-739-0
01
1
1008-
106
BOLT; DRAIN PIPE
M8X12 FLANGE
0-28050-812-0
01
1
1008-
106
BOLT; DRAIN PIPE
M8X16 FLANGE
0-28050-816-0
01
1
1008-1208
106
BOLT; DRAIN PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1209-
106
BOLT; DRAIN PIPE
M8X25 FLANGE
0-28050-825-0
02
1
1008-
188
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1008-
262
BRACKET; OIL SEPARETOR
1-13345-220-1
01
1
1008-
263
BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE
0-28151-090-0
01
1
1008-
263
BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE
0-28951-425-0
02
1
1008-
