9-01 — TOOLS (#63670) — 132 parça

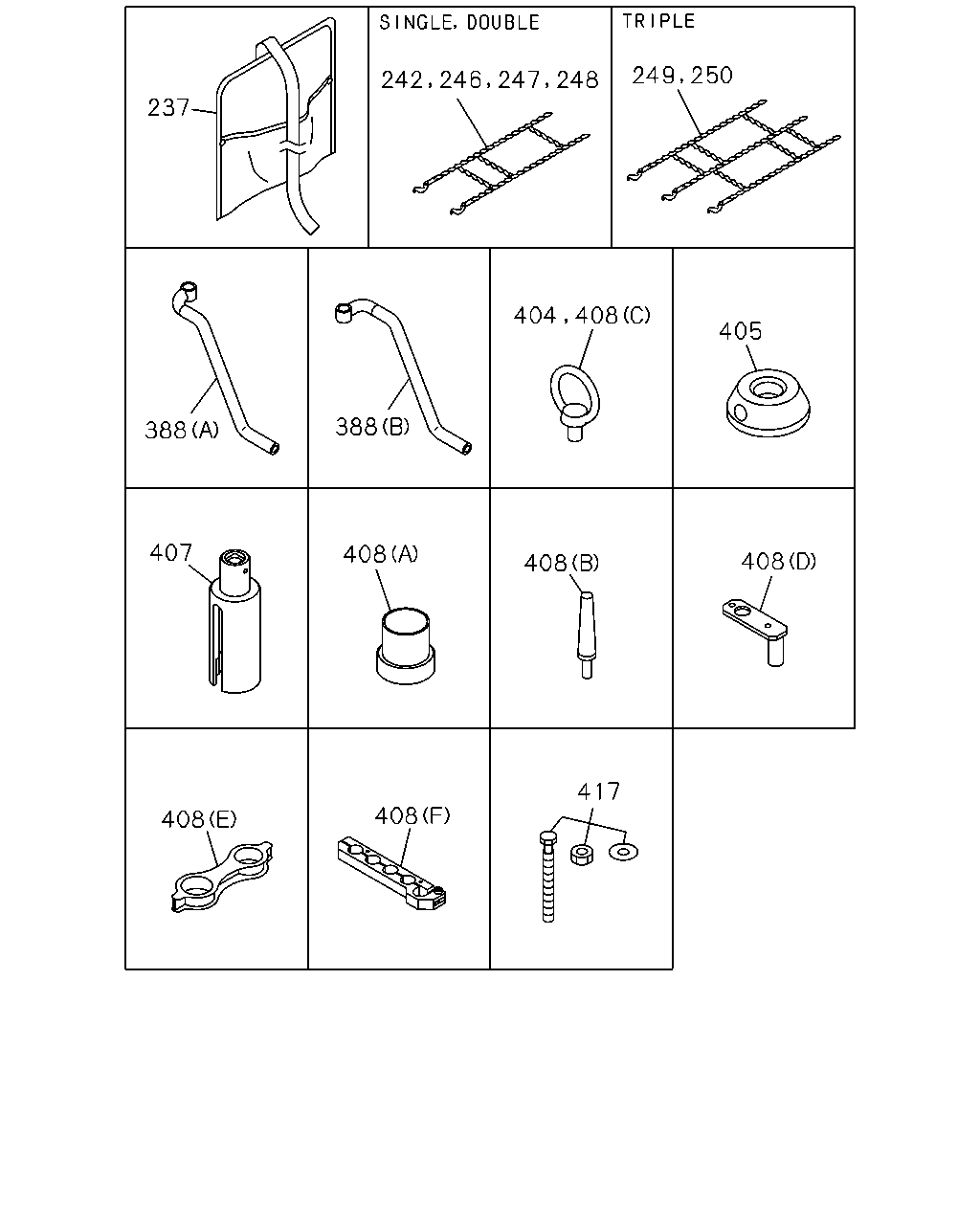

408 408 408 407 408 408 417 388 388 237 242 246 247 248 249 250 404 408 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	1008-1306
237	BAG; TOOL	8-97130-902-1	01	1	1307-
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1008-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1008-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1008-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1008-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1008-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1008-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1008-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1008-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1008-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1008-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1008-
404	TOOL; SETTING,MAIN COUNTER	1-85221-262-0	02	1	1008-1306
405	GUIDE; COUNTER	1-85221-264-0	01	1	1008-
407	SOCKET; SW	1-85221-267-1	01	1	1008-
408	TOOL; SETTING,SHIFT ASSISTER (C)	1-85221-262-0	02	1	1008-
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	1008-1306
408	TOOL; SETTING,SHIFT ASSISTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-85221-268-0	01	1	1307-
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	1008-1306
408	TOOL; SETTING,SHIFT ASSISTER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-85221-269-0	01	1	1307-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (D)	1-85221-257-0	01	1	1008-1306
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (D)	1-85221-257-0	01	1	1307-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (E)	1-85221-259-0	01	1	1008-1306
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (E)	1-85221-259-0	01	1	1307-
408	TOOL; SETTING,SHIFT ASSISTER MJT7S M/T(Y3E) (F)	1-85221-260-0	01	1	1008-1306
408	TOOL; SETTING,SHIFT ASSISTER MJT7 M/T<Y9E> (F)	1-85221-260-0	01	1	1307-
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	1008-

12 141 130 135 143 144 146 151 153 154 156 160 163 163 163 163 164 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1008-1306
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	1307-1501
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1502-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1008-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1008-1306
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1008-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1008-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	1008-1306
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1008-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1008-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1008-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1008-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1008-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1008-
163	TOOL; SETTING MJT7 M/T<Y9E> (D) L=150	1-85221-163-0	01	1	1307-
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1307-
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1008-
163	TOOL; SETTING MJT7S M/T(Y3E) (B) OD=150	1-85221-167-0	01	1	1008-1306
163	TOOL; SETTING MJT7 M/T<Y9E> (B) OD=150	1-85221-167-0	01	1	1307-
164	GUIDE; SNAP RING PILOT BRG	1-85176-001-0	01	1	1008-1306
165	SETTING TOOL; PTO MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85221-177-0	01	1	1008-1306

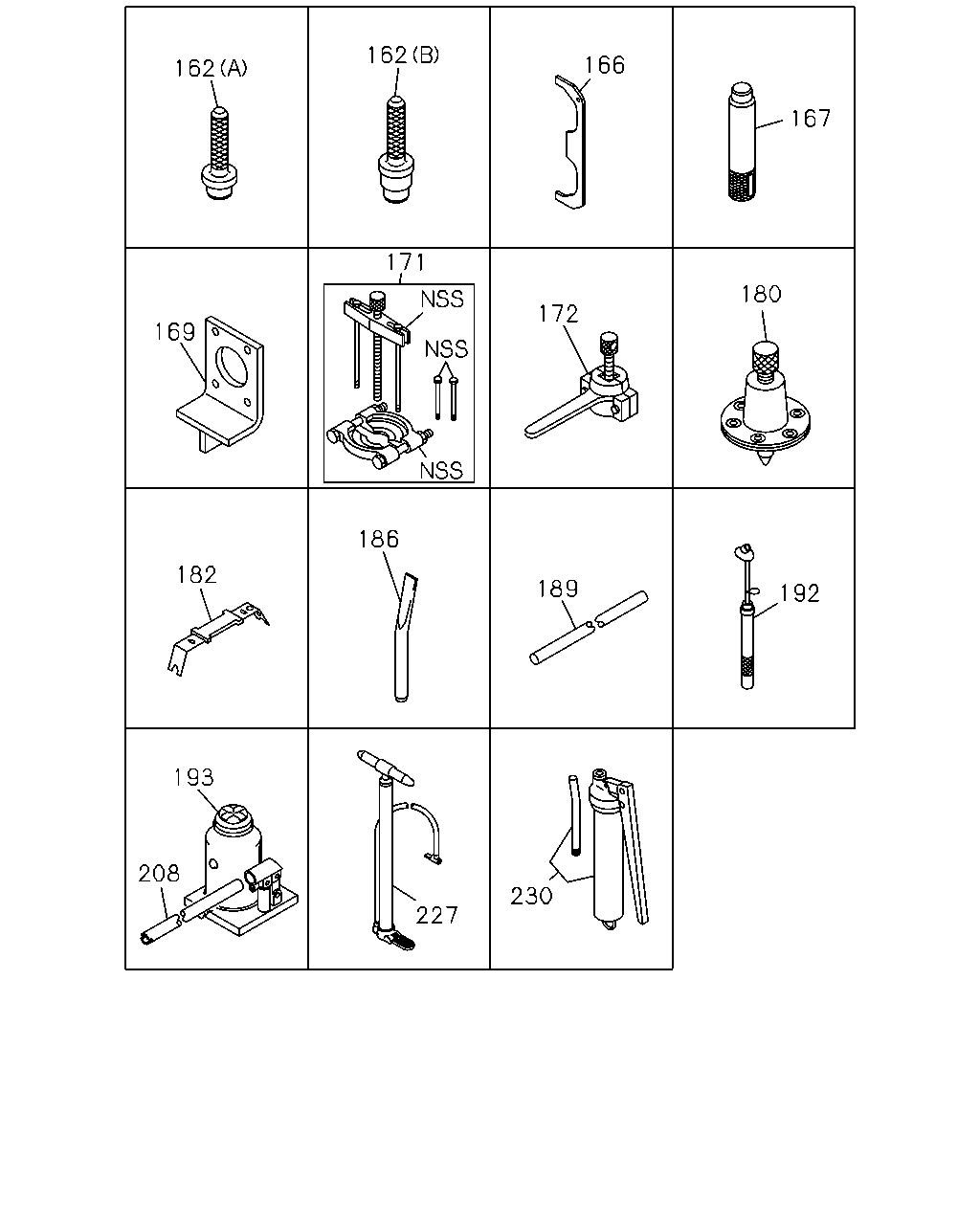

162 162 166 167 180 172 171 169 182 186 189 192 230 227 208 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	1008-1306
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	1008-1306
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=60.4	8-98169-696-0	01	1	1008-
167	ALIGNER; CLU PILOT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) L=300 OD=52.5	1-85253-025-0	01	1	1008-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1008-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1008-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1008-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	1008-1306
182	REMOVER ASM	1-85239-008-0	01	1	1008-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1008-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1008-1306
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	1307-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1008-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1008-1306
193	JACK ASM 15TON	1-85510-019-2	01	1	1307-
208	HANDLE; JACK L=600	1-85515-009-0	01	1	1008-1107
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1008-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	1008-1306
230	PUMP; GREASE	1-85556-007-5	01	1	1307-

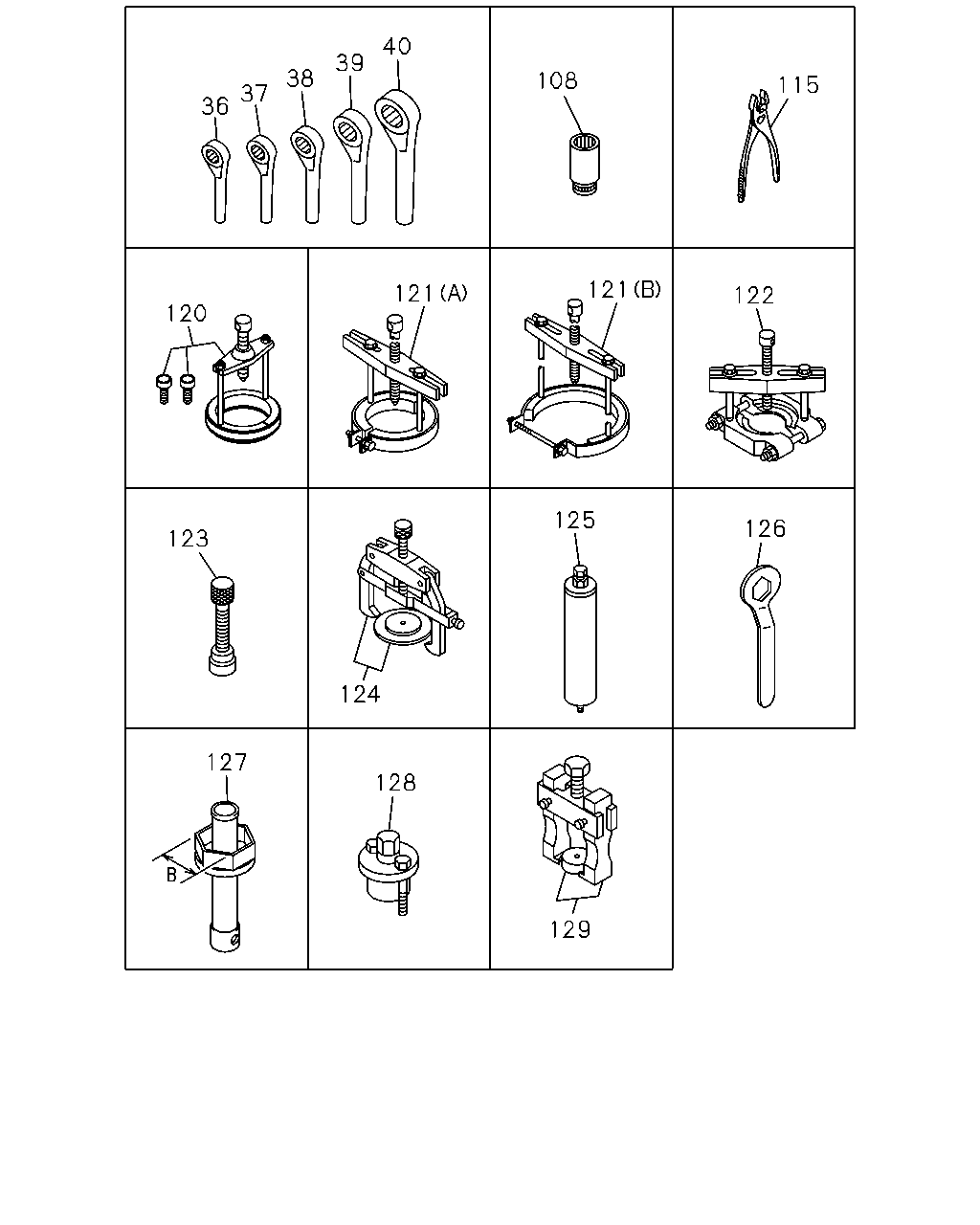

115 122 126 125 124 123 127 128 129 121 121 120 108 40 39 38 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	1008-
37	WRENCH; 27	9-85111-375-0	01	1	1008-
38	WRENCH; 32	9-85111-358-0	01	1	1008-
39	WRENCH; 36	9-85111-374-0	01	1	1008-
40	WRENCH; 41	9-85111-356-0	01	1	1008-
108	WRENCH; SOCKET	9-85113-132-0	01	1	1008-
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	1008-1306
115	PLIER	5-85171-002-0	01	1	1307-1410
115	PLIER	8-98282-845-0	01	1	1411-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1008-
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	1008-
121	PULLER ASM; COUNTER REAR MJT7S M/T(Y3E) (A) OD=146	1-85210-074-0	01	1	1008-1306
121	PULLER ASM; COUNTER REAR MJT7 M/T<Y9E> (A) OD=146	1-85210-074-0	01	1	1307-
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1008-
123	PULLER; SPEEDOMETER BUSHING MJT7S M/T(Y3E)	9-85210-091-0	01	1	1008-1306
123	PULLER; SPEEDOMETER BUSHING MJT7 M/T<Y9E>	9-85210-091-0	01	1	1307-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1008-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1008-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1008-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1008-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	1008-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1008-

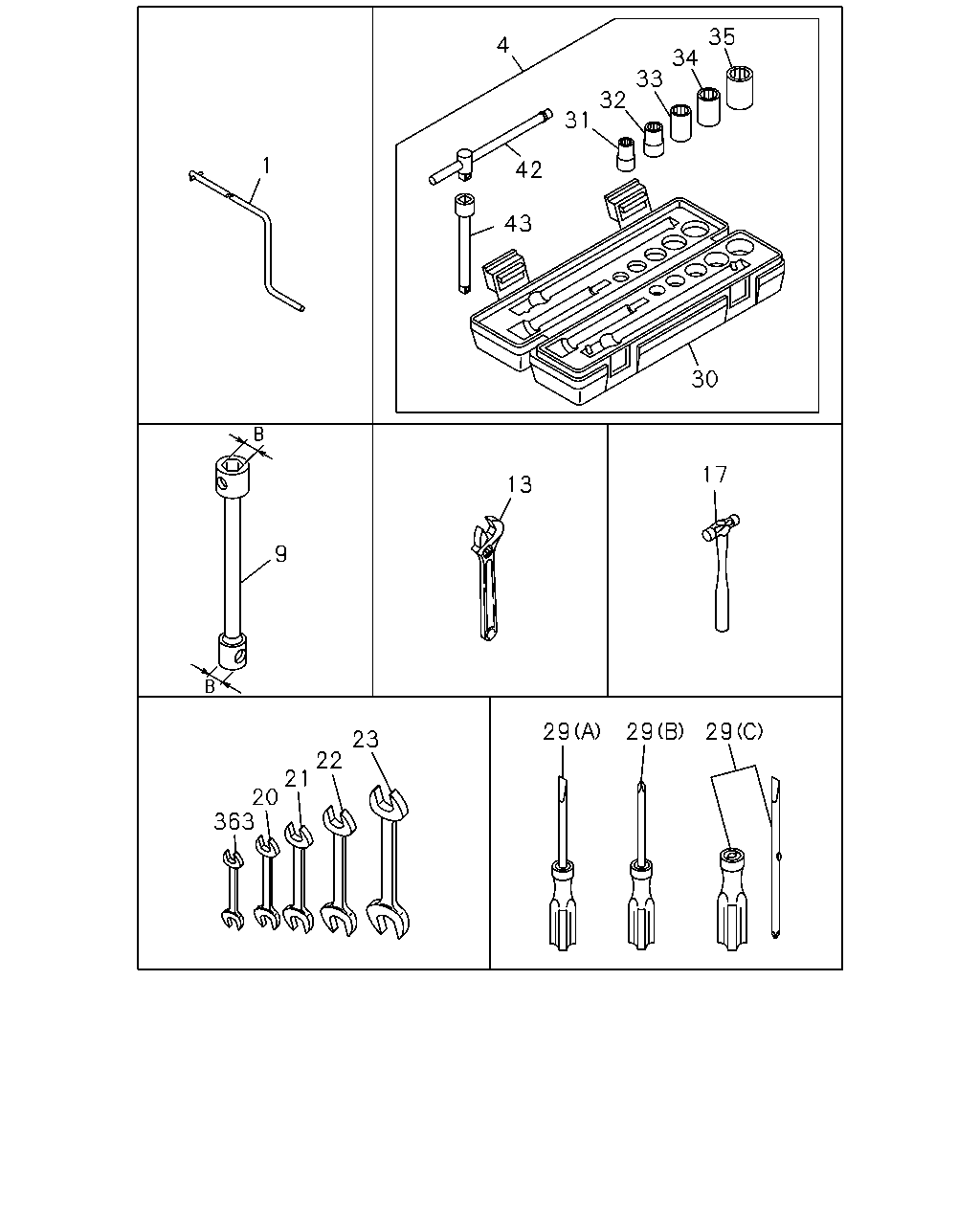

1 4 35 34 33 32 31 42 43 30 17 13 9 23 22 21 20 363 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	1008-
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1008-1306
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	1307-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1008-1306
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	1307-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1008-1306
13	WRENCH; MONKEY L=247	1-85117-006-0	01	1	1307-1407
13	WRENCH; MONKEY L=255	8-98270-303-0	01	1	1408-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	1008-1306
17	HAMMER	9-85121-406-0	01	1	1307-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1008-1306
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	1307-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1008-1306
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	1307-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1008-1306
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	1307-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1008-1306
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	1307-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1008-1306
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	1307-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1008-1306
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	1307-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1008-1306
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	1307-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1008-1306
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	1307-
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1008-1306
31	WRENCH; 12	1-85000-495-0	01	1	1307-
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1008-1306
32	WRENCH; 14	1-85000-496-0	01	1	1307-
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1008-1306
33	WRENCH; 17	1-85000-497-0	01	1	1307-
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1008-1306
34	WRENCH; 19	1-85000-498-0	01	1	1307-
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1008-1306
35	WRENCH; 22	1-85000-499-0	01	1	1307-
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1008-1306
42	HANDLE; SLIDING	1-85000-500-0	01	1	1307-
43	BAR; EXTENSION,SOCKET WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1008-1306
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	01	1	1307-
