◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#6367) — 62 parça

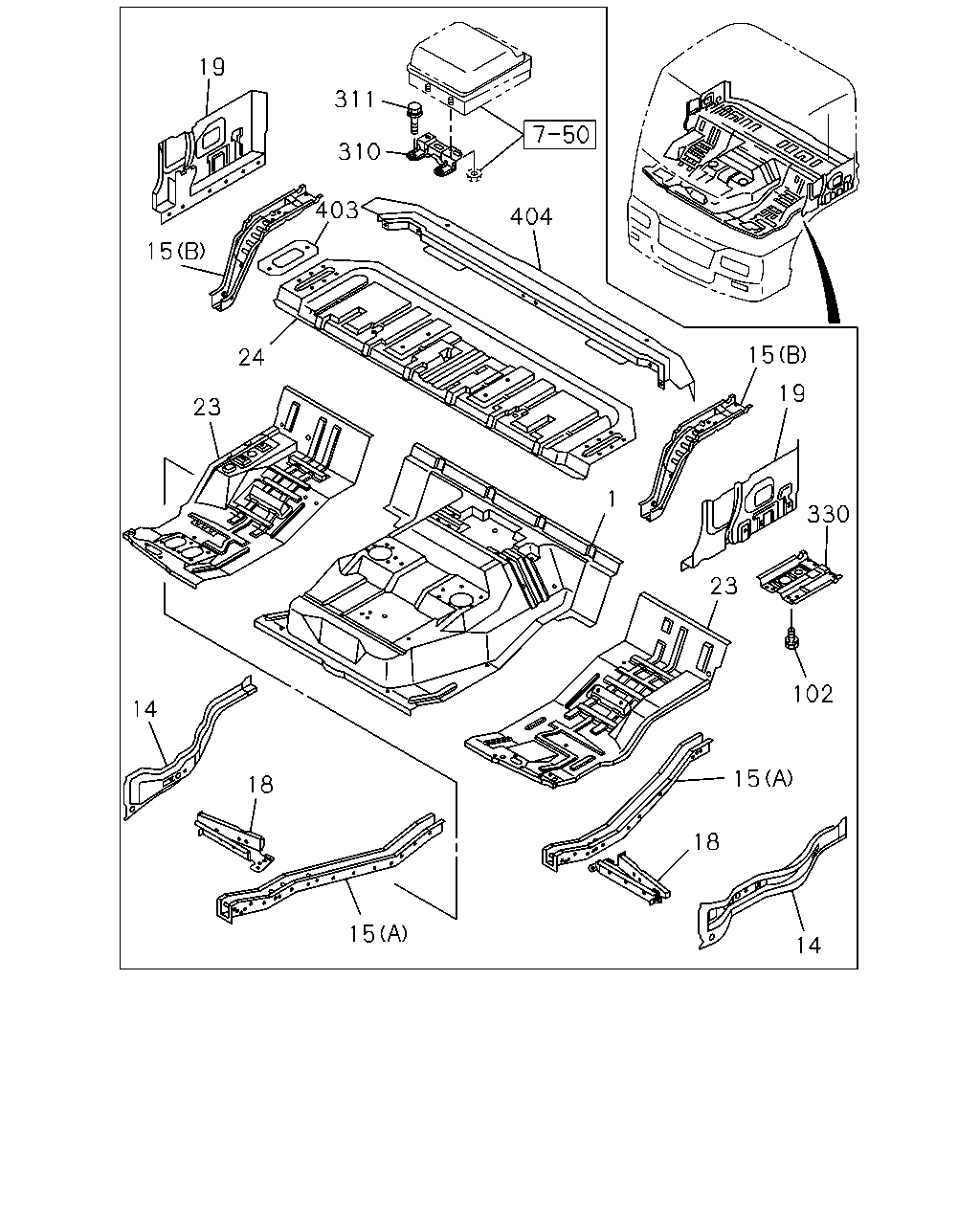

çizim 41714
19 311 310 403 404 15 15 24 19 23 1 330 23 102 14 15 18 18 15 14
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUMP CONTROL LEVER<RC4> 		1-62172-625-6 01 1 9604-
1 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL(SV6) 		1-62172-625-6 01 1 9604-
1 PANEL; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-614-5 01 1 9604-
14 PANEL; FLOOR SIDE,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62482-918-6 01 1 9604-
14 PANEL; FLOOR SIDE,FRT
DUMP CONTROL LEVER<RC4> 		1-62482-918-6 01 1 9604-
14 PANEL; FLOOR SIDE,FRT
PTO CONTROL(SV6) 		1-62482-918-6 01 1 9604-
14 PANEL; FLOOR SIDE,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62482-917-6 01 1 9604-
14 PANEL; FLOOR SIDE,FRT
DUMP CONTROL LEVER<RC4> 		1-62482-917-6 01 1 9604-
14 PANEL; FLOOR SIDE,FRT
PTO CONTROL(SV6) 		1-62482-917-6 01 1 9604-
15 FRAME; UNDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) (A) 		1-62472-670-3 01 1 9604-
15 FRAME; UNDER
DUMP CONTROL LEVER<RC4> (A) 		1-62472-670-3 01 1 9604-
15 FRAME; UNDER
PTO CONTROL(SV6) (A) 		1-62472-670-3 01 1 9604-
15 FRAME; UNDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) (B) 		1-62472-680-1 01 1 9604-
15 FRAME; UNDER
DUMP CONTROL LEVER<RC4> (B) 		1-62472-680-1 01 1 9604-
15 FRAME; UNDER
PTO CONTROL(SV6) (B) 		1-62472-680-1 01 1 9604-
15 FRAME; UNDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) (B) 		1-62472-598-6 01 1 9604-
15 FRAME; UNDER
DUMP CONTROL LEVER<RC4> (B) 		1-62472-598-6 01 1 9604-
15 FRAME; UNDER
PTO CONTROL(SV6) (B) 		1-62472-598-6 01 1 9604-
15 FRAME; UNDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) (A) 		1-62472-669-3 01 1 9604-
15 FRAME; UNDER
DUMP CONTROL LEVER<RC4> (A) 		1-62472-669-3 01 1 9604-
15 FRAME; UNDER
PTO CONTROL(SV6) (A) 		1-62472-669-3 01 1 9604-
18 FRAME; FLOOR,CENTER SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62483-105-5 01 1 9604-
18 FRAME; FLOOR,CENTER SIDE
DUMP CONTROL LEVER<RC4> 		1-62483-105-5 01 1 9604-
18 FRAME; FLOOR,CENTER SIDE
PTO CONTROL(SV6) 		1-62483-105-5 01 1 9604-
18 FRAME; FLOOR,CENTER SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62472-671-3 01 1 9604-
18 FRAME; FLOOR,CENTER SIDE
DUMP CONTROL LEVER<RC4> 		1-62472-671-3 01 1 9604-
18 FRAME; FLOOR,CENTER SIDE
PTO CONTROL(SV6) 		1-62472-671-3 01 1 9604-
19 PANEL; FLOOR SIDE,REAR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62472-660-2 01 1 9604-
19 PANEL; FLOOR SIDE,REAR
DUMP CONTROL LEVER<RC4> 		1-62472-660-2 01 1 9604-
19 PANEL; FLOOR SIDE,REAR
PTO CONTROL(SV6) 		1-62472-660-2 01 1 9604-
19 PANEL; FLOOR SIDE,REAR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62472-659-2 01 1 9604-
19 PANEL; FLOOR SIDE,REAR
DUMP CONTROL LEVER<RC4> 		1-62472-659-2 01 1 9604-
19 PANEL; FLOOR SIDE,REAR
PTO CONTROL(SV6) 		1-62472-659-2 01 1 9604-
23 PANEL; FLOOR,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-615-4 01 1 9604-9903
23 PANEL; FLOOR,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-801-0 01 1 9904-0101
23 PANEL; FLOOR,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 0102-
23 PANEL; FLOOR,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62183-272-4 01 1 9604-9903
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62183-272-4 01 1 9604-9903
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62183-272-4 01 1 9604-9903
23 PANEL; FLOOR,SIDE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-800-0 01 1 9904-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-800-0 01 1 9904-
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-800-0 01 1 9904-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-642-4 01 1 9604-9903
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-642-4 01 1 9604-9903
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 9904-
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-803-0 01 1 9904-
24 PANEL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-540-9 01 1 9604-
24 PANEL; BED PAN
DUMP CONTROL LEVER<RC4> 		1-62172-540-9 01 1 9604-
24 PANEL; BED PAN
PTO CONTROL(SV6) 		1-62172-540-9 01 1 9604-
102 BOLT; FLOOR BOARD
PARKING BRAKE TRANSFER REAR(WB5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9604-
102 BOLT; FLOOR BOARD
SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9604-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9604-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9604-
330 REINFORCEMENT; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-585-5 01 1 9604-
330 REINFORCEMENT; FLOOR
DUMP CONTROL LEVER<RC4> 		1-62172-585-5 01 1 9604-
330 REINFORCEMENT; FLOOR
PTO CONTROL(SV6) 		1-62172-585-5 01 1 9604-
403 PATCH; FIRE EXTINGUSHER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-569-0 01 1 9604-9810
403 PATCH; FIRE EXTINGUSHER
DUMP CONTROL LEVER<RC4> 		1-62172-569-0 01 1 9604-9810
403 PATCH; FIRE EXTINGUSHER
PTO CONTROL(SV6) 		1-62172-569-0 01 1 9604-9810
404 RAIL ASM; MTG,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62472-596-8 01 1 9604-
404 RAIL ASM; MTG,RR
DUMP CONTROL LEVER<RC4> 		1-62472-596-8 01 1 9604-
404 RAIL ASM; MTG,RR
PTO CONTROL(SV6) 		1-62472-596-8 01 1 9604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
