Sayfa 8-73 - Isuzu EPC

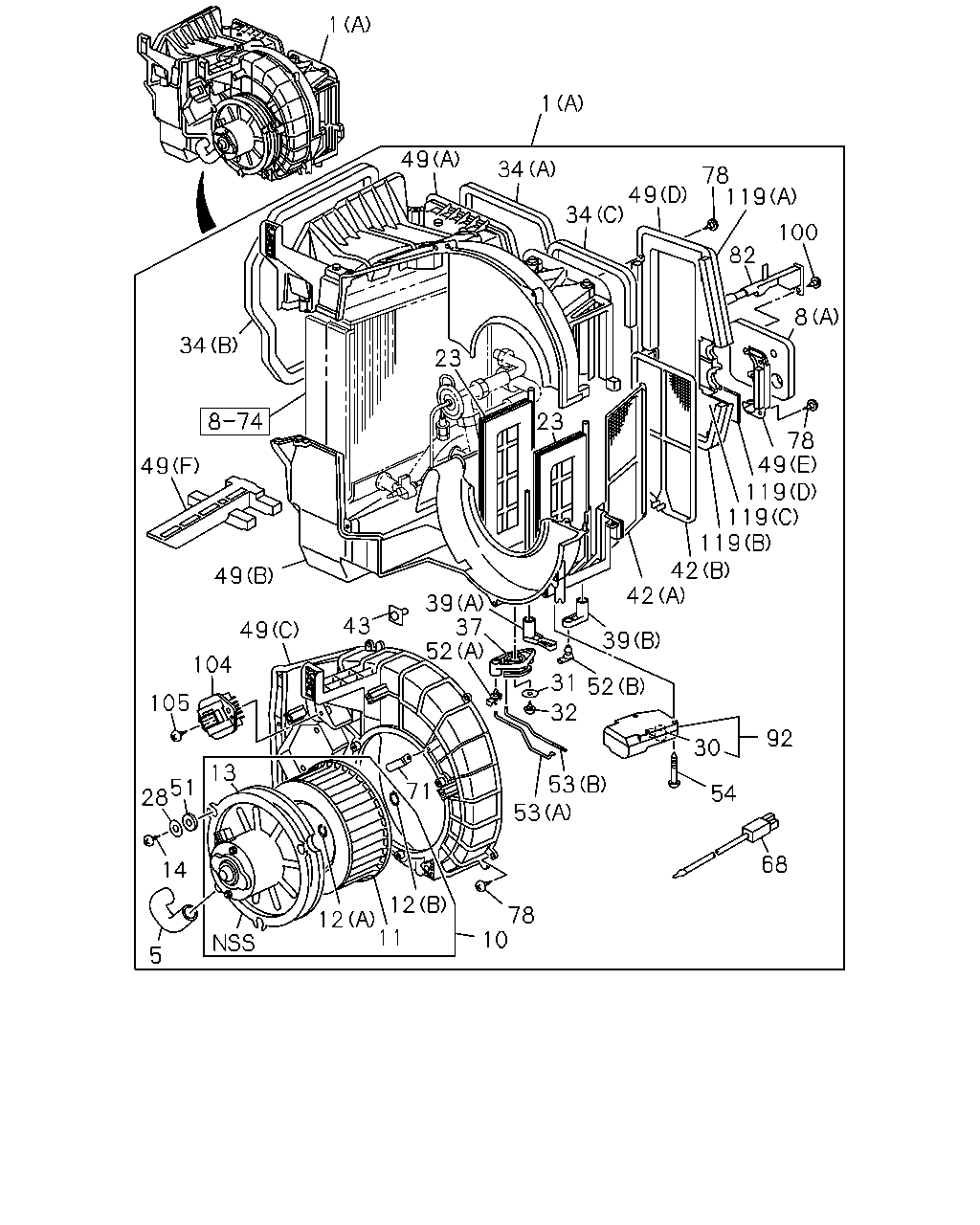

8-73 — BLOWER UNIT (#63665) — 190 parça

1 1 49 34 34 49 78 100 82 119 8 78 49 119 119 119 42 42 52 39 54 30 68 92 53 53 78 10 12 12 11 5 14 28 105 104 49 49 13 51 39 43 37 52 71 32 31 49 34 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM HEATER & DEFROSTER(C41) (B)	1-83561-181-2	01	1	1307-
1	BLOWER ASM (A)	1-83561-183-2	01	1	1008-1306
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83561-183-2	01	1	1307-
5	HOSE; AIR	1-83563-147-0	01	1	1008-1306
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-147-0	01	1	1307-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83579-801-1	01	1	1307-
8	SEAL; BLOWER UNIT (A)	1-83539-261-1	01	1	1008-1306
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-261-1	01	1	1307-
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-164-0	01	1	1008-1306
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	1307-
11	IMPELLER; FAN MOTOR	1-83579-796-0	01	1	1008-1306
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-796-0	01	1	1307-
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	1008-1306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	1307-
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	1008-1306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	1307-
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	1008-1306
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	1307-
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	1008-1306
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	1307-
23	SHUTTER; BLOWER UNIT	1-83579-797-0	02	1	1008-1306
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1307-
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	1008-1306
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	1307-
30	LEVER; ACTUATOR	1-83564-345-1	01	1	1008-1306
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	1307-
31	WASHER; LEVER	1-83579-095-0	01	1	1008-1306
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	1307-
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	1008-1306
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1307-
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	1008-1306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	1307-
34	LINING; BLOWER UNIT (C)	1-83579-634-2	01	1	1008-1306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-634-2	01	1	1307-
34	LINING; BLOWER UNIT (B)	1-83579-644-0	01	1	1008-1306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-644-0	01	1	1307-
37	LEVER; MODE LEVER	1-83564-375-0	01	1	1008-1306
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-375-0	01	1	1307-
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-373-0	01	1	1008-1306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-373-0	01	1	1307-
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-374-0	01	1	1008-1306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-374-0	01	1	1307-
42	FILTER; BLOWER UNIT (B)	1-83579-800-1	01	1	1008-1306
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-800-1	01	1	1307-
42	FILTER; BLOWER UNIT (A)	1-83579-993-0	02	1	1008-1306
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	1307-
43	BOLT; CASE	1-83579-657-2	04	1	1008-1306
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	1307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-369-0	01	1	1307-
49	CASE; BLOWER UNIT (A)	1-83564-368-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-368-0	01	1	1307-
49	CASE; BLOWER UNIT (C)	1-83564-370-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-370-0	01	1	1307-
49	CASE; BLOWER UNIT (D)	1-83564-371-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-371-0	01	1	1307-
49	CASE; BLOWER UNIT (E)	1-83564-372-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-372-0	01	1	1307-
49	CASE; BLOWER UNIT (B)	1-83564-378-0	01	1	1008-1306
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-378-0	01	1	1307-
49	CASE; BLOWER UNIT (F)	8-97500-034-0	01	1	1008-1306
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	1307-
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	1008-1306
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	1307-
52	CLIP; LEVER TO CASE (A)	1-83574-136-0	01	1	1008-1306
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-136-0	01	1	1307-
52	CLIP; LEVER TO CASE (B)	8-94248-794-0	01	1	1008-1306
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	01	1	1307-
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	1008-1306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	1307-
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-799-0	01	1	1008-1306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-799-0	01	1	1307-
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	1008-1306
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	1307-
68	THERMOSTAT; BLOWER UNIT	1-83544-026-1	01	1	1008-1306
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	1307-
71	CLIP; HARNESS	8-97096-145-0	01	1	1008-1306
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97096-145-0	01	1	1307-
78	SCREW; CASE TO CASE M4X16	8-94324-850-0	18	1	1008-1306
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	18	1	1307-
82	BRACKET; BLOWER UNIT	1-83571-932-0	01	1	1008-1306
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-932-0	01	1	1307-
92	ACTUATOR; BLOWER UNIT	1-83579-798-1	01	1	1008-1306
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-798-1	01	1	1307-
100	SCREW; BRKT M4X16	8-94324-850-0	01	1	1008-1306
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	1307-
104	RESISTOR; BLOWER UNIT	1-83519-093-0	01	1	1008-1306
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1307-
105	SCREW; RESISTOR M4X16	8-94324-850-0	02	1	1008-1306
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1307-
119	LINING; CASE (A)	1-83579-670-1	01	1	1008-1306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	1307-
119	LINING; CASE (B)	1-83579-671-1	01	1	1008-1306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	1307-
119	LINING; CASE (D)	1-83579-672-0	01	1	1008-1306
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-672-0	01	1	1307-
119	LINING; CASE (C)	1-83579-795-0	01	1	1008-1306
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-795-0	01	1	1307-

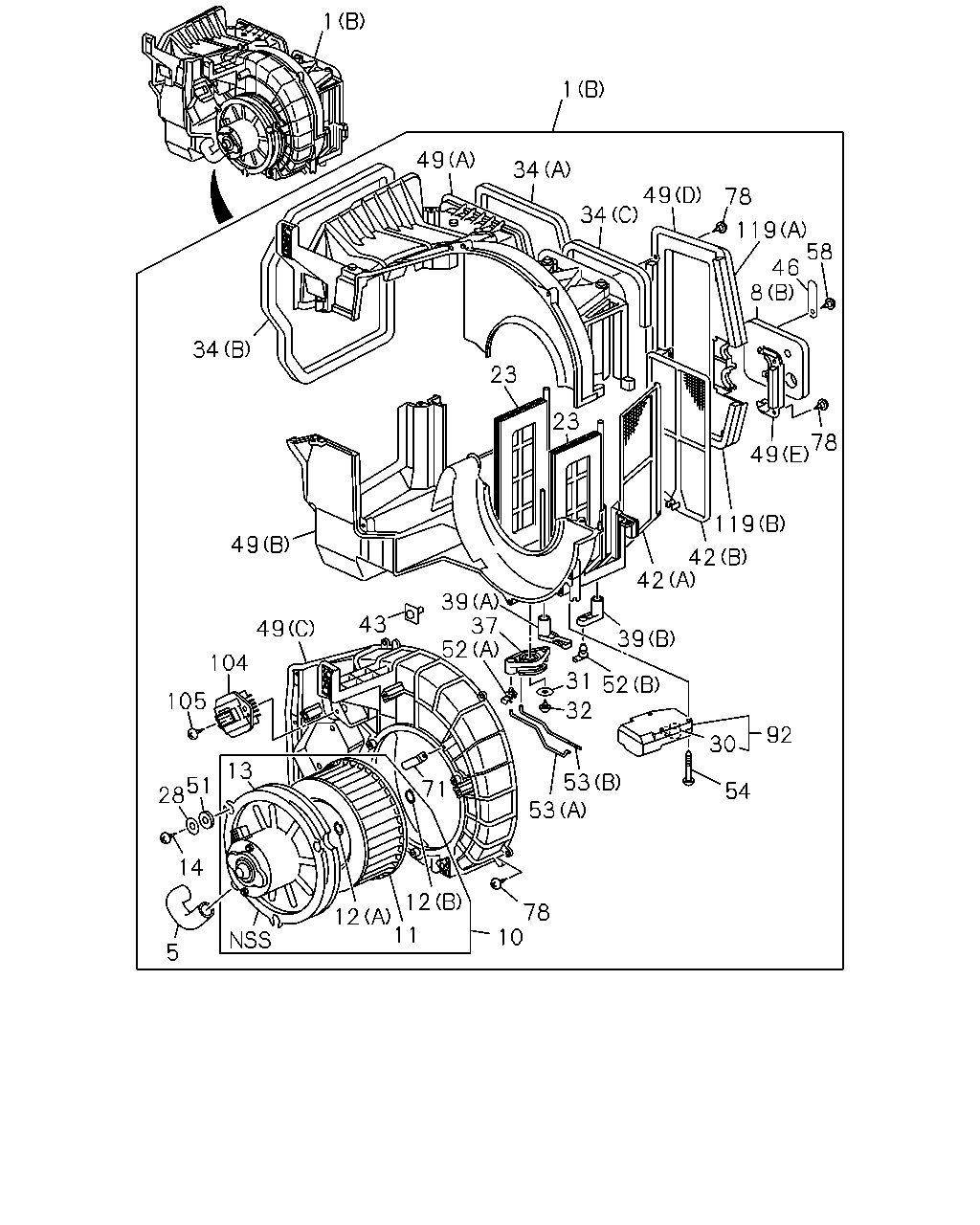

1 49 34 34 49 78 119 58 46 8 78 49 119 42 42 39 52 92 30 54 53 53 78 10 12 11 71 52 39 43 49 49 34 104 105 13 51 28 14 12 31 32 37 1 5 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM HEATER & DEFROSTER(C41) (B)	1-83561-181-2	01	1	1307-
1	BLOWER ASM (A)	1-83561-183-2	01	1	1008-1306
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83561-183-2	01	1	1307-
5	HOSE; AIR	1-83563-147-0	01	1	1008-1306
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-147-0	01	1	1307-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83579-801-1	01	1	1307-
8	SEAL; BLOWER UNIT (A)	1-83539-261-1	01	1	1008-1306
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-261-1	01	1	1307-
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-164-0	01	1	1008-1306
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	1307-
11	IMPELLER; FAN MOTOR	1-83579-796-0	01	1	1008-1306
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-796-0	01	1	1307-
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	1008-1306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	1307-
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	1008-1306
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	1307-
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	1008-1306
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	1307-
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	1008-1306
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	1307-
23	SHUTTER; BLOWER UNIT	1-83579-797-0	02	1	1008-1306
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	1307-
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	1008-1306
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	1307-
30	LEVER; ACTUATOR	1-83564-345-1	01	1	1008-1306
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	1307-
31	WASHER; LEVER	1-83579-095-0	01	1	1008-1306
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	1307-
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	1008-1306
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	1307-
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	1008-1306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	1307-
34	LINING; BLOWER UNIT (C)	1-83579-634-2	01	1	1008-1306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-634-2	01	1	1307-
34	LINING; BLOWER UNIT (B)	1-83579-644-0	01	1	1008-1306
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-644-0	01	1	1307-
37	LEVER; MODE LEVER	1-83564-375-0	01	1	1008-1306
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-375-0	01	1	1307-
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-373-0	01	1	1008-1306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-373-0	01	1	1307-
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-374-0	01	1	1008-1306
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-374-0	01	1	1307-
42	FILTER; BLOWER UNIT (B)	1-83579-800-1	01	1	1008-1306
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-800-1	01	1	1307-
42	FILTER; BLOWER UNIT (A)	1-83579-993-0	02	1	1008-1306
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	1307-
43	BOLT; CASE	1-83579-657-2	04	1	1008-1306
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	1307-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	1307-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-369-0	01	1	1307-
49	CASE; BLOWER UNIT (A)	1-83564-368-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-368-0	01	1	1307-
49	CASE; BLOWER UNIT (C)	1-83564-370-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-370-0	01	1	1307-
49	CASE; BLOWER UNIT (D)	1-83564-371-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-371-0	01	1	1307-
49	CASE; BLOWER UNIT (E)	1-83564-372-0	01	1	1008-1306
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-372-0	01	1	1307-
49	CASE; BLOWER UNIT (B)	1-83564-378-0	01	1	1008-1306
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-378-0	01	1	1307-
49	CASE; BLOWER UNIT (F)	8-97500-034-0	01	1	1008-1306
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	1307-
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	1008-1306
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	1307-
52	CLIP; LEVER TO CASE (A)	1-83574-136-0	01	1	1008-1306
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-136-0	01	1	1307-
52	CLIP; LEVER TO CASE (B)	8-94248-794-0	01	1	1008-1306
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	01	1	1307-
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	1008-1306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	1307-
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-799-0	01	1	1008-1306
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-799-0	01	1	1307-
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	1008-1306
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	1307-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	1307-
71	CLIP; HARNESS	8-97096-145-0	01	1	1008-1306
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97096-145-0	01	1	1307-
78	SCREW; CASE TO CASE M4X16	8-94324-850-0	18	1	1008-1306
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	18	1	1307-
92	ACTUATOR; BLOWER UNIT	1-83579-798-1	01	1	1008-1306
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-798-1	01	1	1307-
104	RESISTOR; BLOWER UNIT	1-83519-093-0	01	1	1008-1306
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	1307-
105	SCREW; RESISTOR M4X16	8-94324-850-0	02	1	1008-1306
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	1307-
119	LINING; CASE (A)	1-83579-670-1	01	1	1008-1306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	1307-
119	LINING; CASE (B)	1-83579-671-1	01	1	1008-1306
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	1307-
119	LINING; CASE (D)	1-83579-672-0	01	1	1008-1306
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-672-0	01	1	1307-
119	LINING; CASE (C)	1-83579-795-0	01	1	1008-1306
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-795-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
