8-60 — HEATER UNIT; FRONT (#63663) — 76 parça

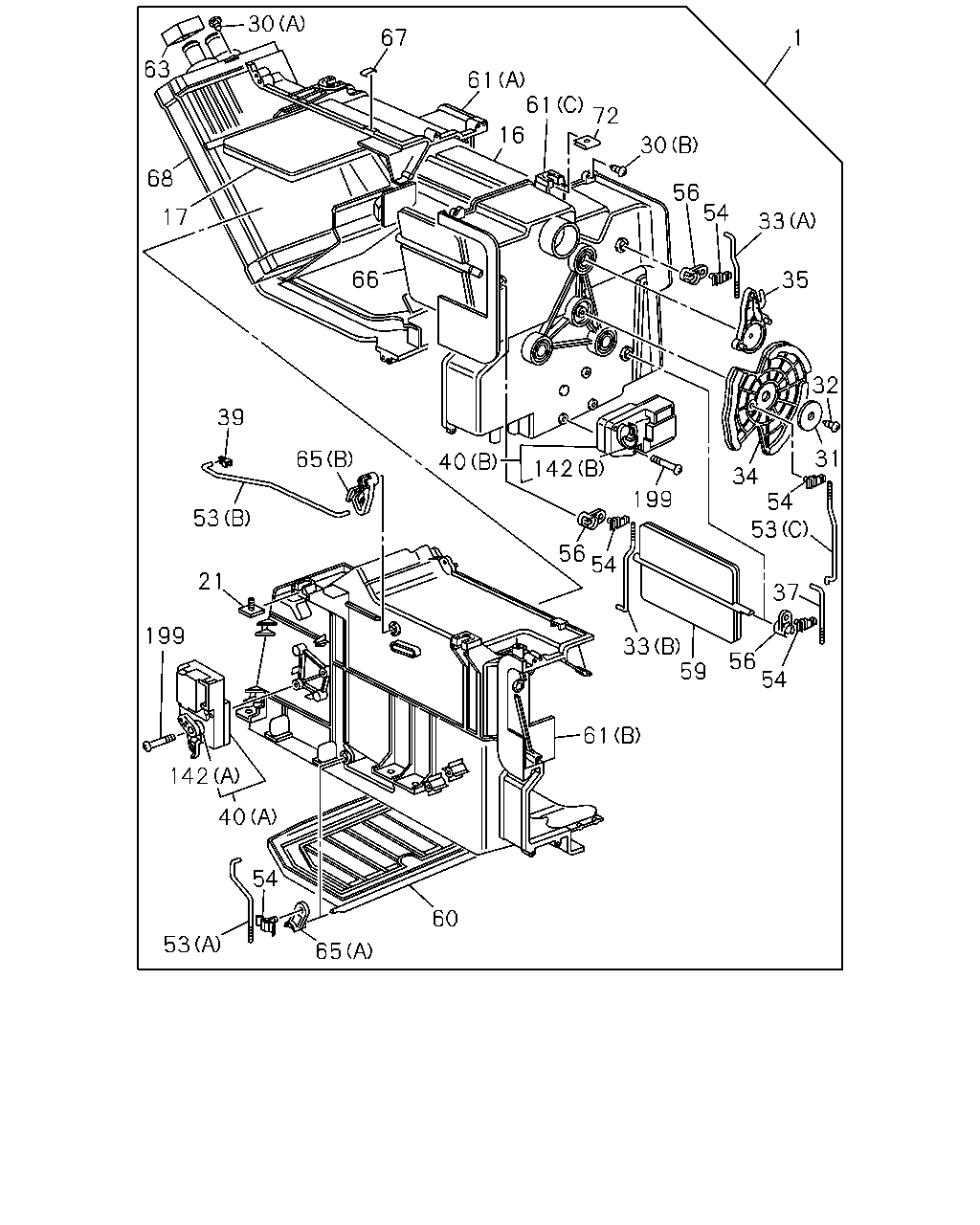

çizim 170859
53 65 60 54 40 142 61 199 21 53 39 65 40 56 33 59 54 56 37 53 54 34 199 142 66 17 31 32 35 33 54 56 1 30 72 61 16 68 63 30 67 61 54
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-137-4 01 1 1008-1306
1 HEATER UNIT 1-83511-137-4 01 1 1307-1409
1 HEATER UNIT 8-98238-491-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1008-1306
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1307-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1008-1306
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1307-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1008-1306
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1307-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1008-1306
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1307-
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1008-1306
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1307-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1008-1306
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1307-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1008-1306
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1307-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1008-1306
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1307-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1008-1306
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1307-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1008-1306
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1307-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1008-1306
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1307-
37 ROD; LEVER 1-83579-620-1 01 1 1008-1306
37 ROD; LEVER 1-83579-620-1 01 1 1307-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1008-1306
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1307-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1008-1306
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1307-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1008-1306
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1307-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1008-1306
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1307-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1008-1306
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1307-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1008-1306
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1307-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1008-1306
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1307-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1008-1306
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1307-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1008-1306
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1307-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1008-1306
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1307-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1008-1306
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1307-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1008-1306
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1307-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1008-1306
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1307-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1008-1306
63 LINING; HTR UNIT 1-83579-557-0 02 1 1307-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1008-1306
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1307-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1008-1306
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1307-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1008-1306
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1307-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1008-1306
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1307-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1008-1306
68 CORE; HTR UNIT 1-83562-078-1 01 1 1307-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1008-1306
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1307-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1008-1306
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1307-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1008-1306
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1307-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1008-1306
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1307-
