◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#6366) — 29 parça

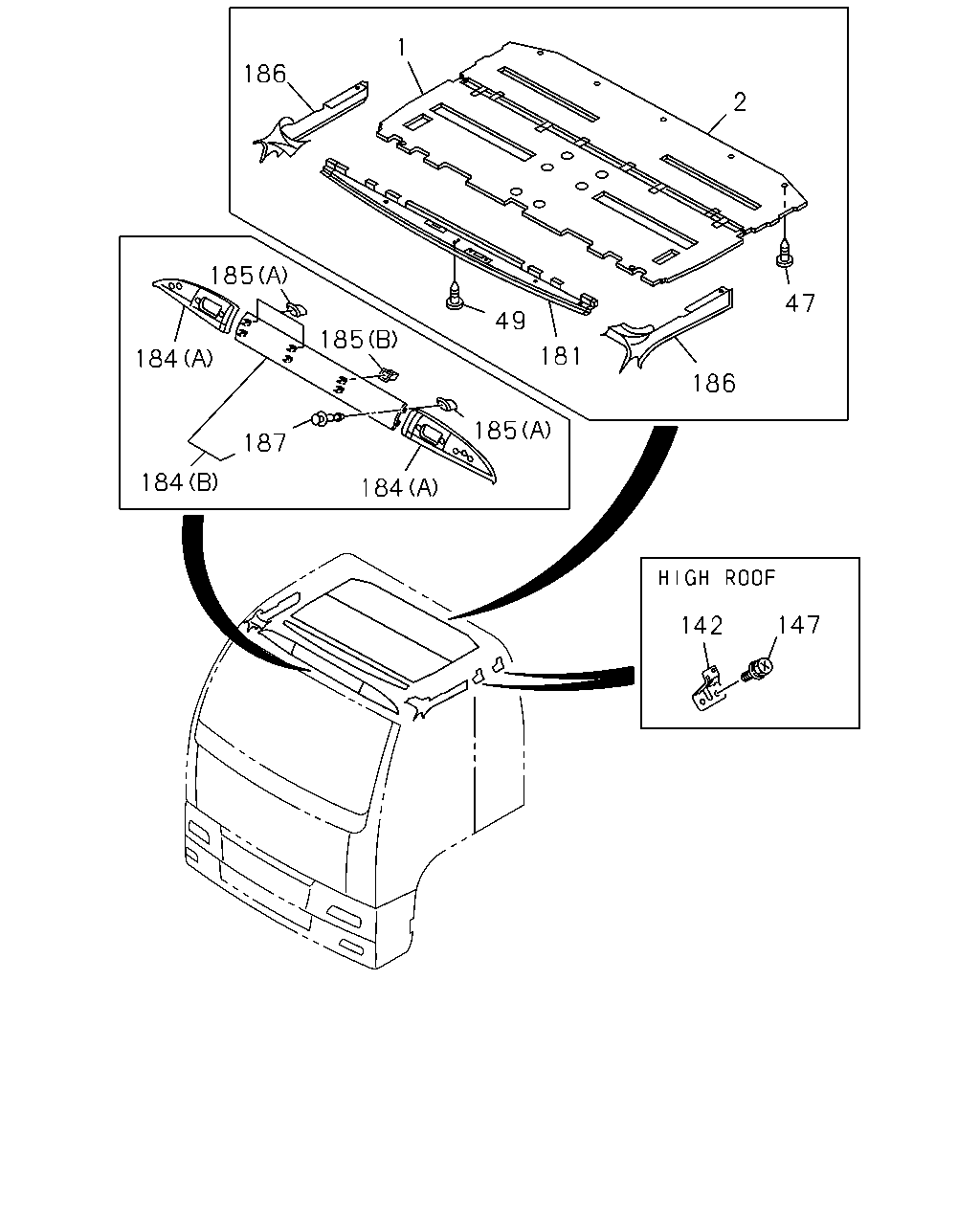

çizim 42346
1 186 2 185 47 49 185 181 184 186 185 187 184 184 147 142
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD 1-73317-342-2 01 1 9604-9904
1 LINING; HD
EXC. HIGH ROOF<S2F> 		1-73317-342-2 01 1 9905-
1 LINING; HD
HIGH ROOF<S2F> 		1-73317-426-1 01 1 9905-
2 LINING; HD,ROOF RR 1-73317-344-2 01 1 9604-9904
2 LINING; HD,ROOF RR
EXC. HIGH ROOF<S2F> 		1-73317-344-2 01 1 9905-
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> 		1-73317-373-1 01 1 9905-
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 16 1 9604-9904
47 CLIP; HEADLINING
EXC. HIGH ROOF<S2F> D6X23 LIGHT GRAY 		1-73318-629-0 16 1 9905-
47 CLIP; HEADLINING
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 13 1 9905-
49 CLIP; TRIM COVER
D6X23 DARK GRAY 		1-09987-238-0 01 1 9604-
142 BRACKET ASM; ROOF COVER
HIGH ROOF<S2F> 		1-61170-747-3 04 1 9905-
147 BOLT; SUPPORT BRKT
HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 16 1 9905-
181 TRIM; ROOM,HEADER 1-73907-422-0 01 1 9604-
184 ORNAMENT; ROOF
(B) CENTER 		1-73318-626-0 01 1 9604-9904
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (B) CENTER 		1-73318-626-0 01 1 9905-
184 ORNAMENT; ROOF
(A) 		1-73317-388-0 01 1 9604-9904
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-388-0 01 1 9905-9907
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-388-0 02 1 9908-
184 ORNAMENT; ROOF
(A) 		1-73317-387-0 01 1 9604-9904
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-387-0 01 1 9905-9907
184 ORNAMENT; ROOF
EXC. HIGH ROOF<S2F> (A) 		1-73317-387-0 02 1 9908-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 9604-9904
185 GROMMET; ORNAMENT
EXC. HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 9905-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 9604-9904
185 GROMMET; ORNAMENT
EXC. HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 9905-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-917-0 01 1 9604-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-916-0 01 1 9604-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9604-9904
187 PIN; ORNAMENT
EXC. HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 9905-
