Isuzu WW
▶
TRUCKS
▶
EXR
▶
11324 - EXR MIDDLE EAST WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#63659) — 52 parça
◀

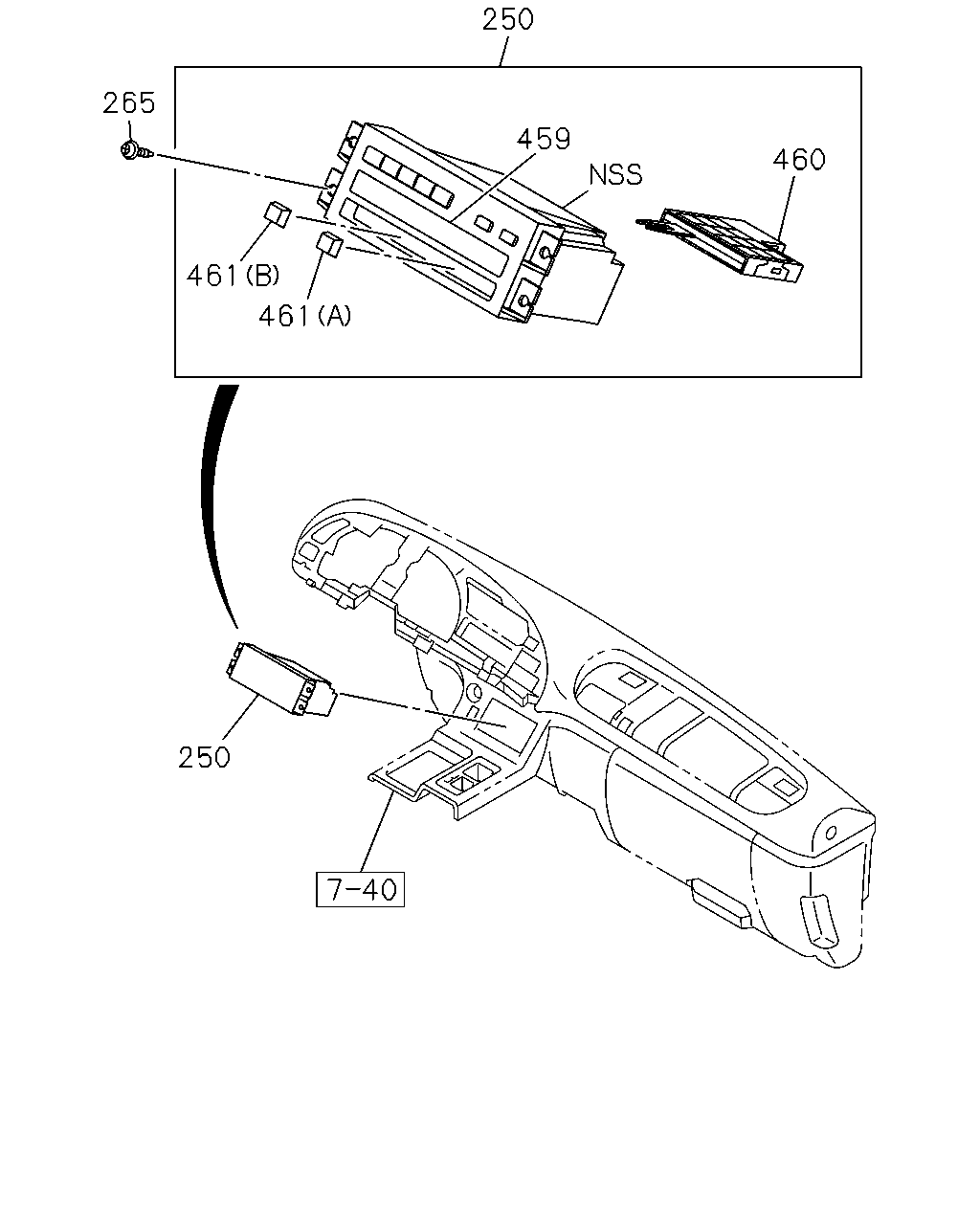

[840A] CONTROL ASM (11 parça)

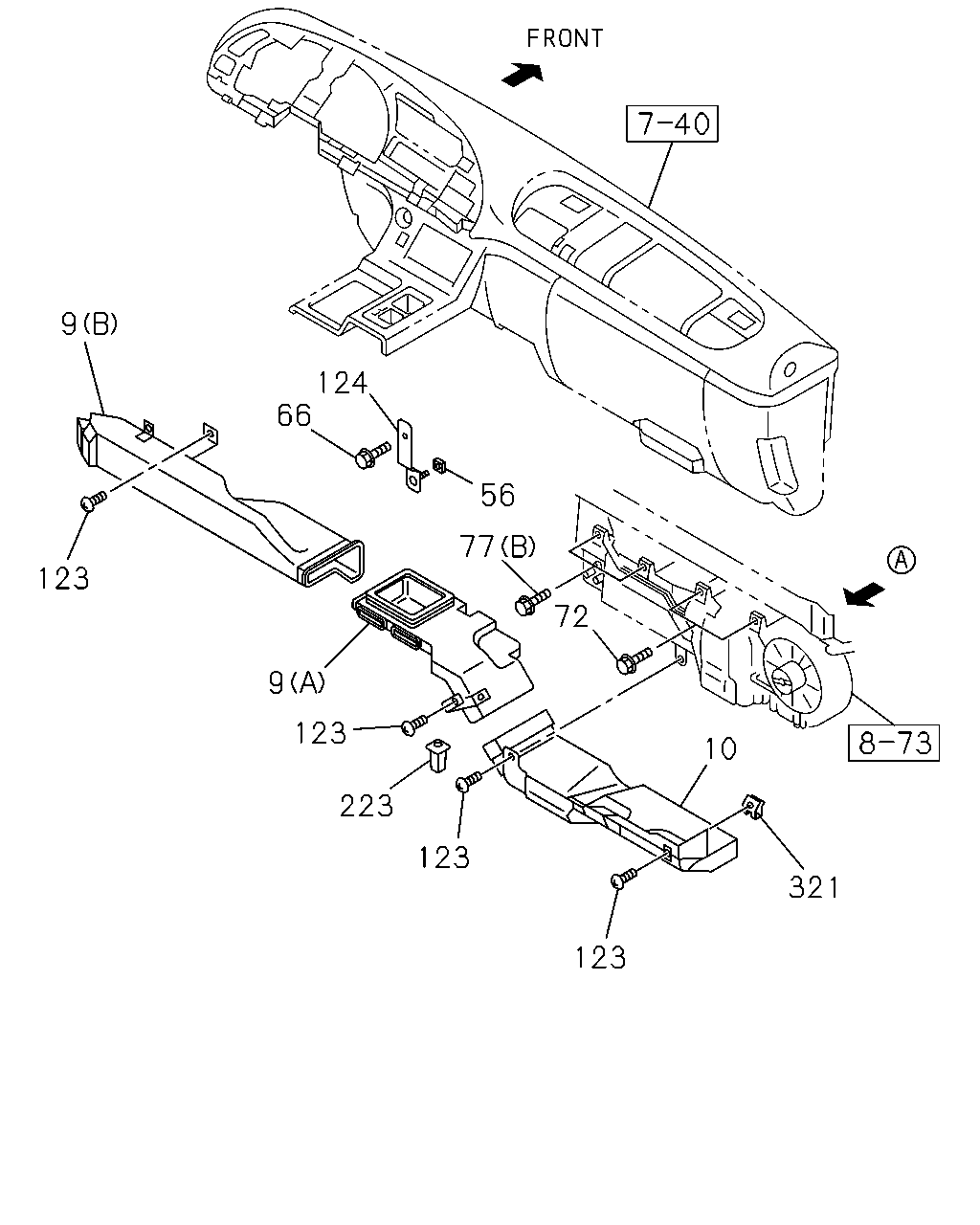

[840A] DUCT NO.2 (20 parça)

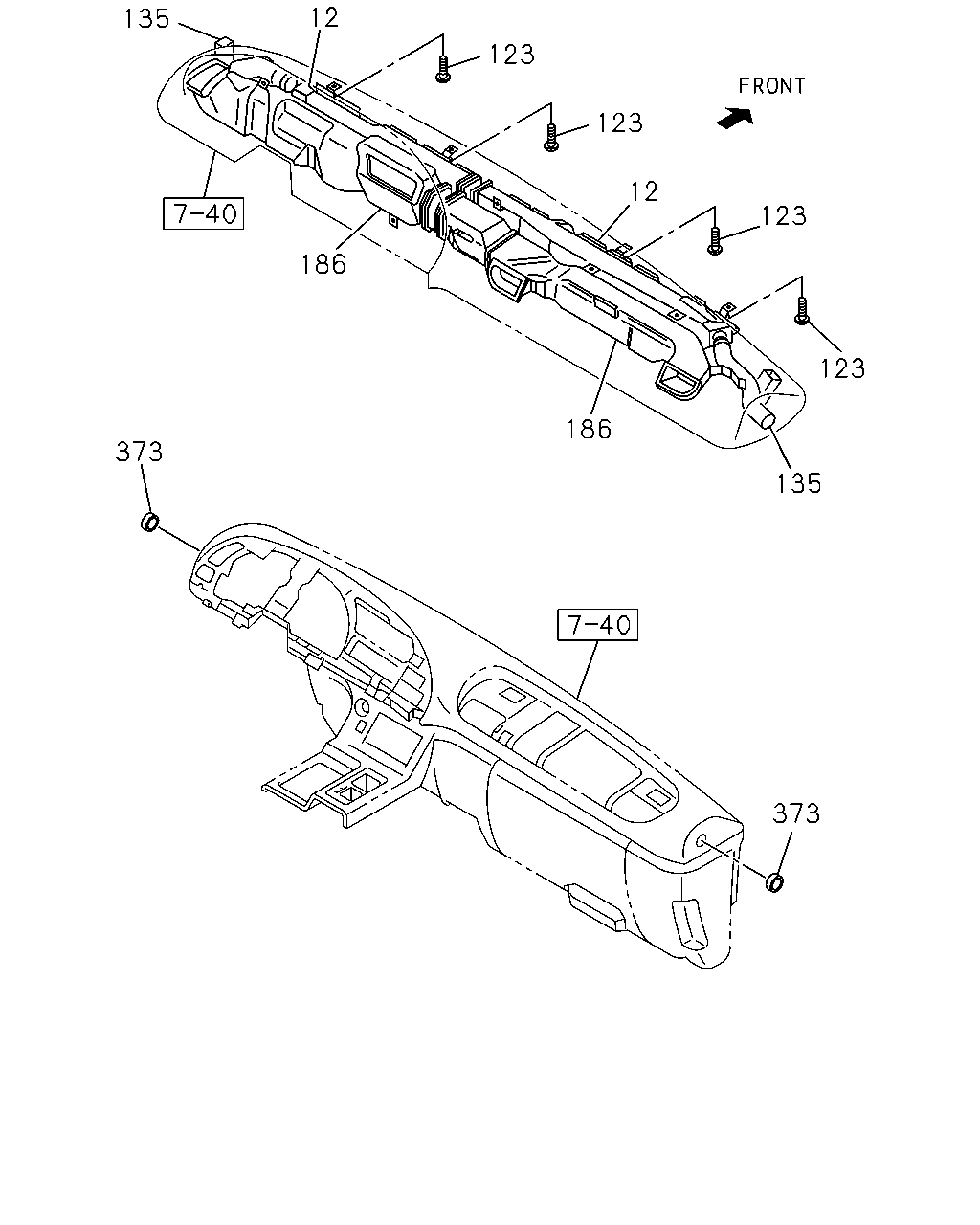

[840A] DUCT NO.1 (10 parça)

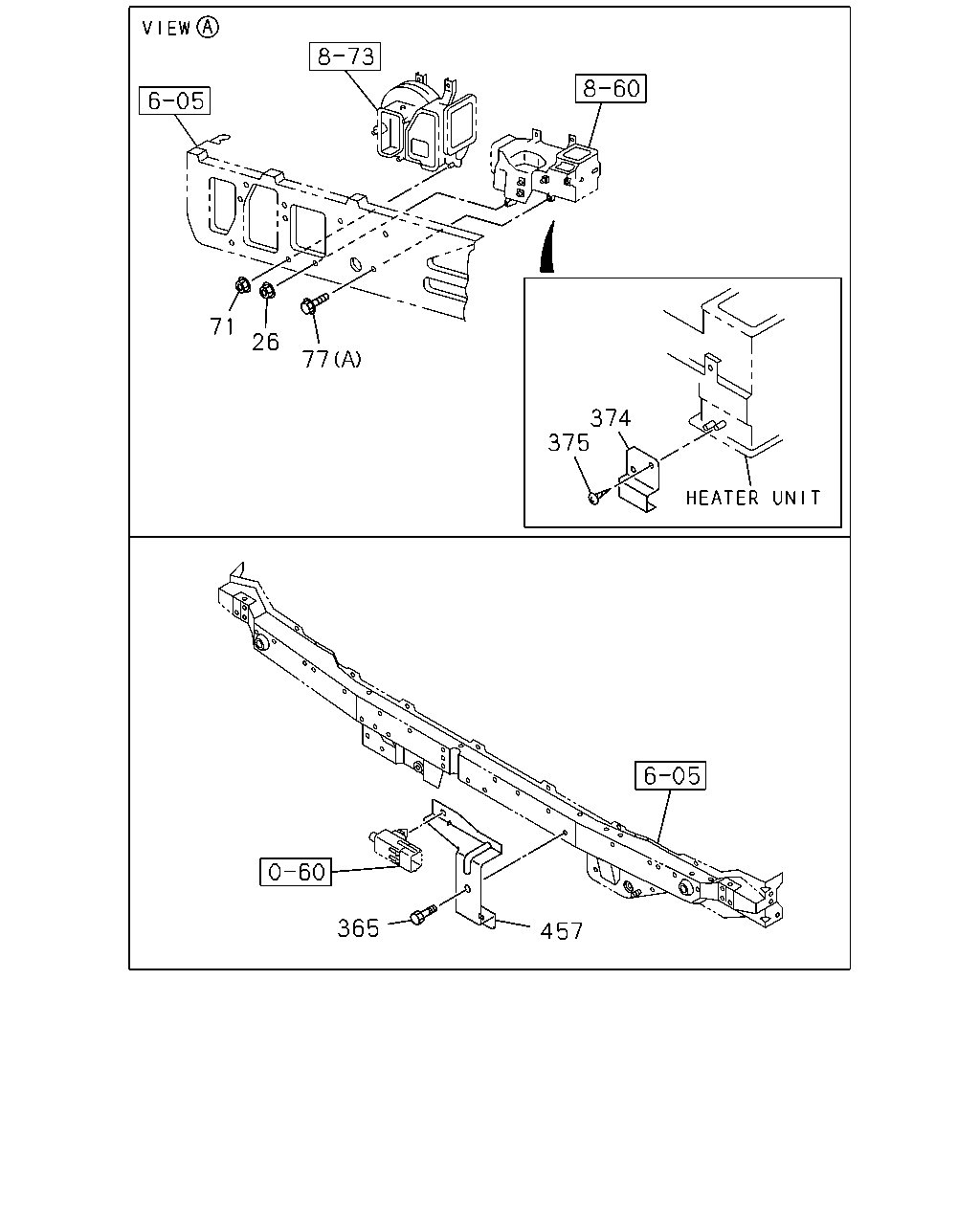

[840A] FRONT PANEL SIDE (11 parça)
▶
250
461
461
250
459
460
265
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
CONTROL ASM; A/C
8-98034-326-0
01
1
1008-1306
250
CONTROL ASM; A/C
8-98034-326-0
01
1
1307-
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
02
1
1008-
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
1008-1306
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
1307-
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
1008-1306
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
1307-
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
1008-1306
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
1307-
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
1008-1306
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
1307-
9
123
66
124
56
77
72
10
321
123
123
223
123
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
DUCT; HTR AIR,FOOT CENTER
(B)
1-76377-199-1
01
1
1008-1306
9
DUCT; HTR AIR,FOOT CENTER
(B)
1-76377-199-1
01
1
1307-
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-228-2
01
1
1008-1306
9
DUCT; HTR AIR,FOOT CENTER
(A)
1-76377-228-2
01
1
1307-
10
DUCT; HTR AIR,ASSIST FOOT
1-76377-200-1
01
1
1008-1306
10
DUCT; HTR AIR,ASSIST FOOT
1-76377-200-1
01
1
1307-
56
NUT; INL DUCT
M6 FLANGE W/RUBBER
1-09984-180-0
01
1
1008-
66
BOLT; DUCT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1008-1306
66
BOLT; DUCT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
1307-
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1008-1306
72
BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1307-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
1008-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1008-
123
SCREW; DUCT
M5X14
8-94279-325-0
03
1
1008-1306
123
SCREW; DUCT
M5X14
8-94279-325-0
11
1
1307-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
1008-1306
124
BRACKET ASM; VENT DUCT
1-79738-186-1
01
1
1008-
223
GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1008-
321
NUT; DUCT FIX
M5
1-09984-196-0
01
1
1008-1306
321
NUT; DUCT FIX
M5
1-09984-196-0
01
1
1307-
135
12
186
123
123
12
186
123
135
123
373
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
1-76378-360-2
01
1
1008-
12
NOZZLE; DEFROSTER
1-76377-196-1
01
1
1008-
123
SCREW; DUCT
M5X14
8-94279-325-0
03
1
1008-1306
123
SCREW; DUCT
M5X14
8-94279-325-0
11
1
1307-
123
SCREW; DUCT
M5X14
8-94279-325-0
08
1
1008-1306
135
HOSE; DEFROSTER
1-76378-364-3
01
1
1008-
135
HOSE; DEFROSTER
1-76377-231-0
01
1
1008-
186
DUCT; VENTILATOR
1-76378-362-4
01
1
1008-
186
DUCT; VENTILATOR
1-76377-197-2
01
1
1008-
373
RUBBER; JOINT
1-76378-291-0
02
1
1008-
457
365
374
375
77
26
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1008-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
1008-1306
71
NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER
1-09984-180-0
04
1
1307-
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
1008-
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
1008-
365
BOLT; SENSOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
1008-
374
HOLDER; DUCT
1-76398-012-1
01
1
1008-1306
374
HOLDER; DUCT
1-76398-012-1
01
1
1307-
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
1008-1306
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
1307-
457
BRACKET; SENSOR
1-71907-603-1
01
1
1008-
