◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#63653) — 468 parça
çizim 170780
14 16 51 104 206 212 305 14 16 104 171 208 228 305 369 380 470 16 14 194 14 16 48 194 470 16 51 142 162
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1008-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 04 1 1008-1306
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 03 1 1307-
14 CLIP; BAND,HARNESS
(D) L=250 		5-09707-030-1 01 1 1008-
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1008-1306
16 CLIP; HARNESS
(AL) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1307-
16 CLIP; HARNESS
(C) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(A) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1307-
16 CLIP; HARNESS
(B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(AJ) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(AJ) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1307-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 1008-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1008-1306
16 CLIP; HARNESS
(AM) ID=28 L=58 		1-09700-400-0 02 1 1307-
16 CLIP; HARNESS
(AG) ID=15 L=35 		1-09700-507-0 01 1 1008-1306
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 06 1 1307-
16 CLIP; HARNESS
(J) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 03 1 1008-1306
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1307-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1306
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1307-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(R) ID=4.8 		1-09701-218-0 01 1 1008-1306
16 CLIP; HARNESS
(I) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AL) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1008-1306
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 1307-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 06 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1307-
16 CLIP; HARNESS
(G) L=175 		1-09707-176-1 01 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 03 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1307-
16 CLIP; HARNESS
(U) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 06 1 1008-1306
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1307-1506
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 1008-
16 CLIP; HARNESS
(D) ID=5-12 L=22 		1-09709-288-0 02 1 1008-1306
16 CLIP; HARNESS
(D) ID=5-12 L=22 		1-09709-288-0 04 1 1307-
16 CLIP; HARNESS
(Y) ID=13-18 L=22 		1-09709-292-0 02 1 1008-1306
16 CLIP; HARNESS
(Y) ID=13-18 L=22 		1-09709-292-0 01 1 1307-
16 CLIP; HARNESS
(X) ID=18-24 L=22 		1-09709-295-0 01 1 1008-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 05 1 1008-
16 CLIP; HARNESS
(AI) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AI) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AI) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AI) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(AD) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(O) ID=7-10 		8-94472-578-0 01 1 1008-1306
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 1008-
16 CLIP; HARNESS
(M) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 1008-1306
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 01 1 1307-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 01 1 1008-1306
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 1307-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 05 1 1008-1306
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 06 1 1307-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 02 1 1008-1306
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1307-
16 CLIP; HARNESS
(AK) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
DIFF LOCK(C3N) (N) ID=5-12 L=18 		1-09709-287-0 02 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (K) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1008-1306
16 CLIP; HARNESS
MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1307-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (V) OD=9 H=6 		1-09709-178-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (P) ID=11 L=40 		0-95235-075-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=16 L=40 		0-95235-576-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=16 L=40 		0-95235-576-0 02 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(AJ)B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ)B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 06 1 1307-1506
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 01 1 1008-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1008-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 1008-1306
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(E) ID=11 H=30 L=17 		1-09700-113-0 01 1 1307-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1307-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1008-1306
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1307-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1008-1306
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1307-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 1307-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 1008-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
(A) L=180 		1-09707-162-1 01 1 1008-1306
162 CLIP; SW HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1307-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 05 1 1008-1306
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 03 1 1307-
194 CLIP; BAND
(B) L=300 		1-09707-001-1 01 1 1008-
194 CLIP; BAND
(A) L=350 		1-09707-183-0 05 1 1008-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1008-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 1008-1306
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 01 1 1307-
212 CLIP; HORN HARNESS
L=140 		5-09707-031-1 01 1 1008-1306
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1008-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1008-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 03 1 1307-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 1008-1306
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1008-1306
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 04 1 1008-1306
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 03 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 01 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=6 L=36 		9-09917-423-0 02 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1112-
çizim 170783
119 64 524 219 294 340 515 515 423 340 515
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 1008-1202
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 10 1 1008-1306
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1008-1306
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-
340 NUT; HARNESS CAB TO FRAME
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-1306
340 NUT; HARNESS CAB TO FRAME
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1307-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 1008-1306
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1307-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1307-
515 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1307-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
515 NUT; BRKT
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1307-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1008-
çizim 170820
224 1 1 1 1 178 178 178 178 178 178 178 292 530 510 5 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1008-
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1008-
1 SLEEVE; RUBBER
(B) ID=38.1 L=25 		1-09337-052-0 01 1 1008-1306
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 L=50 		5-09360-835-0 01 1 1307-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 1008-1201
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1008-1306
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1008-1306
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1008-1306
178 GROMMET; HARNESS
(H) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1307-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 1008-1306
178 GROMMET; HARNESS
(A) 		1-82699-891-0 01 1 1008-1306
178 GROMMET; HARNESS
(G) ID=19 OD=23 T=18 		9-09956-130-1 01 1 1008-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1008-1306
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1307-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1307-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 1008-1306
292 CAP; RUBBER 1-82691-239-0 02 1 1008-1306
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 1008-1202
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 1008-1306
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1307-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1008-
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 1008-1306

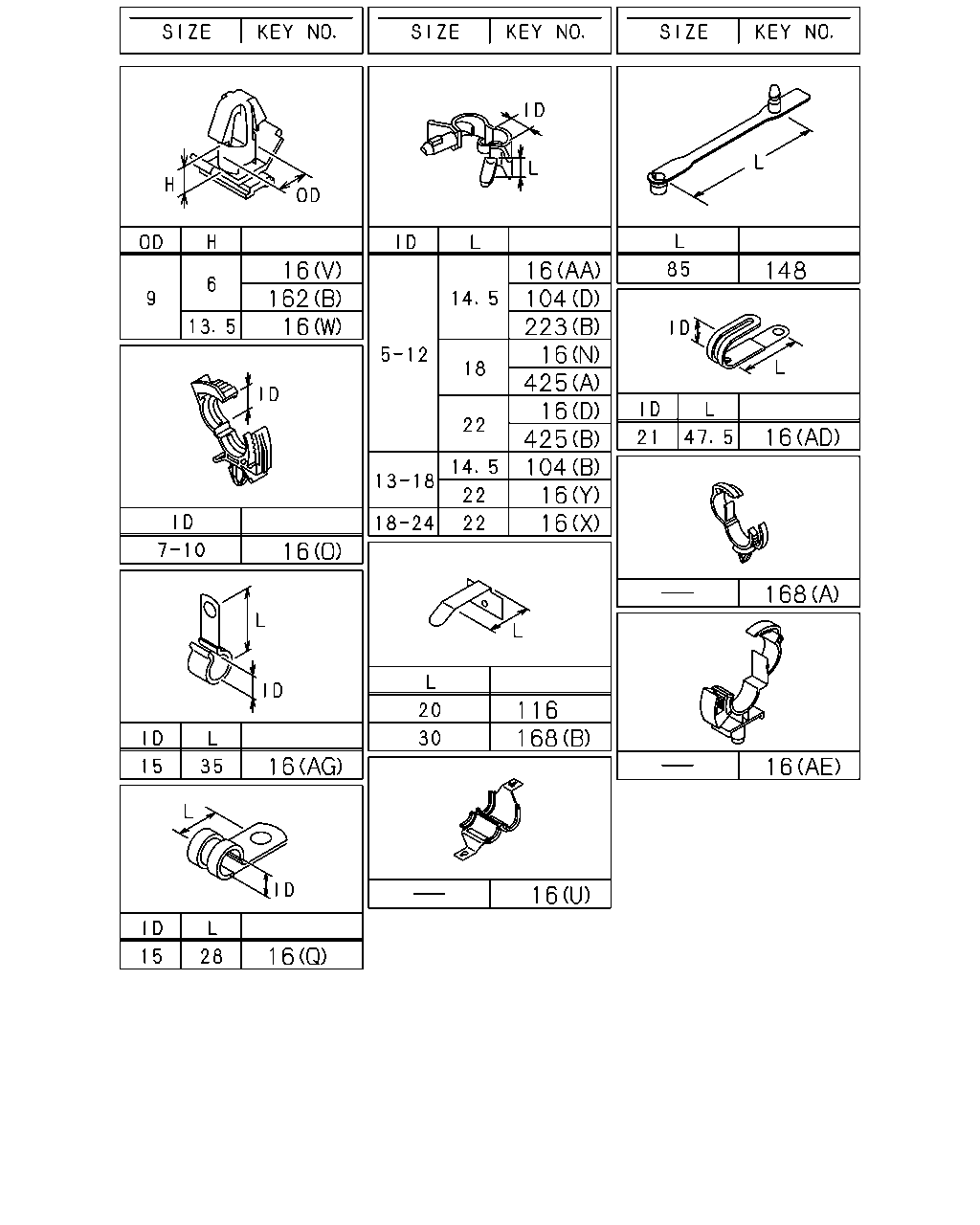

çizim 170821
148 16 168 16 16 168 16 116 104 425 16 16 16 16 223 104 425 162 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1008-1306
16 CLIP; HARNESS
(AL) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1307-
16 CLIP; HARNESS
(C) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(A) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1307-
16 CLIP; HARNESS
(B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(AJ) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(AJ) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1307-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 1008-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1008-1306
16 CLIP; HARNESS
(AM) ID=28 L=58 		1-09700-400-0 02 1 1307-
16 CLIP; HARNESS
(AG) ID=15 L=35 		1-09700-507-0 01 1 1008-1306
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 06 1 1307-
16 CLIP; HARNESS
(J) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 03 1 1008-1306
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1307-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1306
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1307-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(R) ID=4.8 		1-09701-218-0 01 1 1008-1306
16 CLIP; HARNESS
(I) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AL) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1008-1306
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 1307-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 06 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1307-
16 CLIP; HARNESS
(G) L=175 		1-09707-176-1 01 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 03 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1307-
16 CLIP; HARNESS
(U) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 06 1 1008-1306
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1307-1506
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 1008-
16 CLIP; HARNESS
(D) ID=5-12 L=22 		1-09709-288-0 02 1 1008-1306
16 CLIP; HARNESS
(D) ID=5-12 L=22 		1-09709-288-0 04 1 1307-
16 CLIP; HARNESS
(Y) ID=13-18 L=22 		1-09709-292-0 02 1 1008-1306
16 CLIP; HARNESS
(Y) ID=13-18 L=22 		1-09709-292-0 01 1 1307-
16 CLIP; HARNESS
(X) ID=18-24 L=22 		1-09709-295-0 01 1 1008-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 05 1 1008-
16 CLIP; HARNESS
(AI) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AI) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AI) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AI) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(AD) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(O) ID=7-10 		8-94472-578-0 01 1 1008-1306
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 1008-
16 CLIP; HARNESS
(M) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 1008-1306
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 01 1 1307-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 01 1 1008-1306
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 1307-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 05 1 1008-1306
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 06 1 1307-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 02 1 1008-1306
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1307-
16 CLIP; HARNESS
(AK) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
DIFF LOCK(C3N) (N) ID=5-12 L=18 		1-09709-287-0 02 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (K) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1008-1306
16 CLIP; HARNESS
MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1307-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (V) OD=9 H=6 		1-09709-178-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (P) ID=11 L=40 		0-95235-075-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=16 L=40 		0-95235-576-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=16 L=40 		0-95235-576-0 02 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(AJ)B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ)B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 06 1 1307-1506
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 01 1 1008-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 1307-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1008-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1008-
162 CLIP; SW HARNESS
(A) L=180 		1-09707-162-1 01 1 1008-1306
162 CLIP; SW HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1307-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 1008-
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1307-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1008-1306
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1307-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
425 CLIP; MODULATOR
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1008-1306
425 CLIP; MODULATOR
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1307-

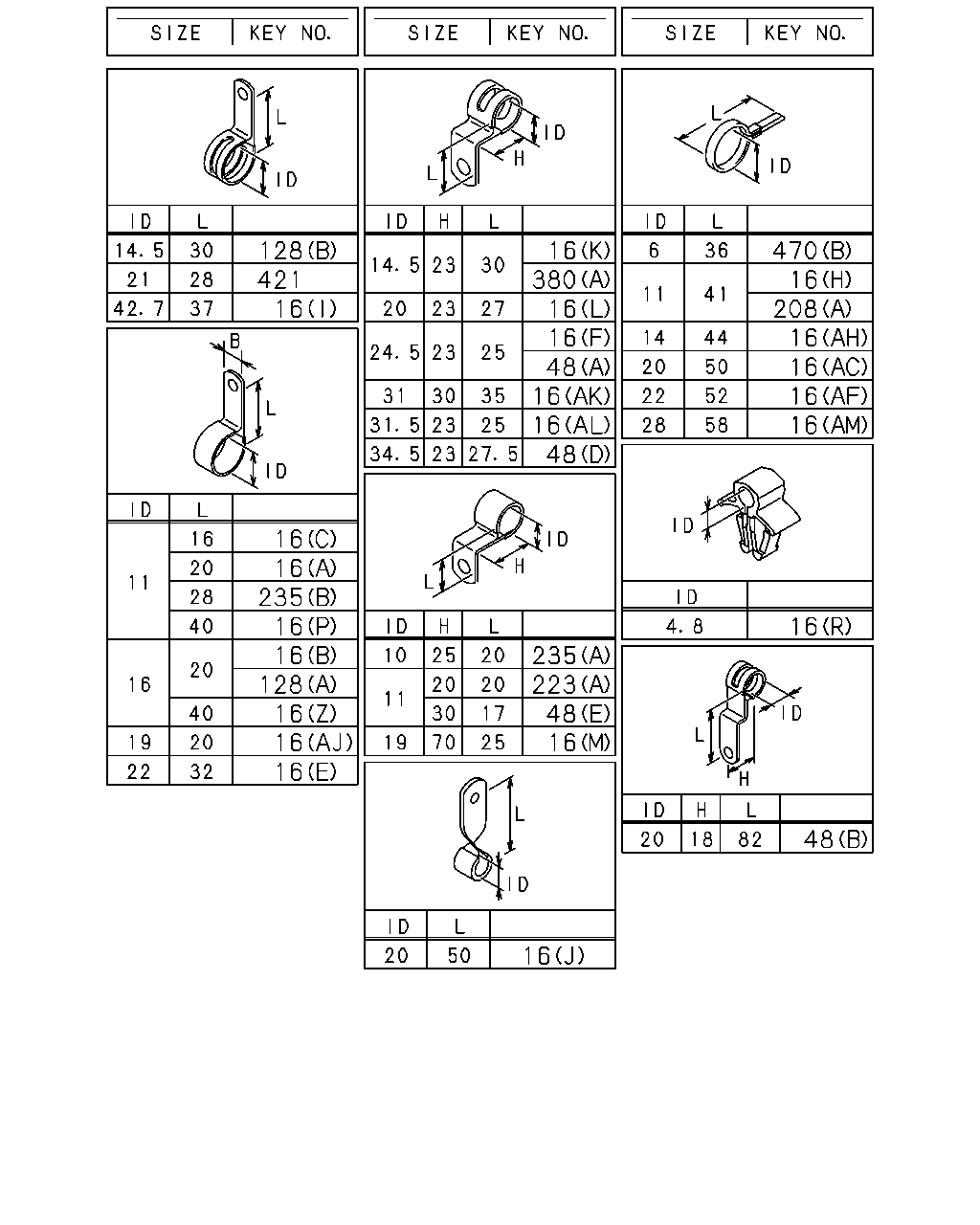

çizim 170824
128 421 16 16 16 235 16 16 128 16 16 16 16 16 48 223 235 48 16 16 16 16 16 208 16 470 16 380 16 16 48 16 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1008-1306
16 CLIP; HARNESS
(AL) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1307-
16 CLIP; HARNESS
(C) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(A) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1307-
16 CLIP; HARNESS
(B) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(AJ) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(AJ) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1307-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 1008-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 09 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1008-1306
16 CLIP; HARNESS
(AM) ID=28 L=58 		1-09700-400-0 02 1 1307-
16 CLIP; HARNESS
(AG) ID=15 L=35 		1-09700-507-0 01 1 1008-1306
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 06 1 1307-
16 CLIP; HARNESS
(J) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 03 1 1008-1306
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 1307-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1306
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 02 1 1307-
16 CLIP; HARNESS
(Q) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(R) ID=4.8 		1-09701-218-0 01 1 1008-1306
16 CLIP; HARNESS
(I) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AL) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 01 1 1008-1306
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 1307-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 06 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1307-
16 CLIP; HARNESS
(G) L=175 		1-09707-176-1 01 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 03 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1307-
16 CLIP; HARNESS
(U) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 06 1 1008-1306
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1307-1506
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 01 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 1008-
16 CLIP; HARNESS
(D) ID=5-12 L=22 		1-09709-288-0 02 1 1008-1306
16 CLIP; HARNESS
(D) ID=5-12 L=22 		1-09709-288-0 04 1 1307-
16 CLIP; HARNESS
(Y) ID=13-18 L=22 		1-09709-292-0 02 1 1008-1306
16 CLIP; HARNESS
(Y) ID=13-18 L=22 		1-09709-292-0 01 1 1307-
16 CLIP; HARNESS
(X) ID=18-24 L=22 		1-09709-295-0 01 1 1008-
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
16 CLIP; HARNESS
(AA) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 05 1 1008-
16 CLIP; HARNESS
(AI) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AI) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AI) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AI) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(AD) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(O) ID=7-10 		8-94472-578-0 01 1 1008-1306
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 1008-
16 CLIP; HARNESS
(M) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 1008-1306
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 01 1 1307-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 01 1 1008-1306
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 03 1 1307-
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 05 1 1008-1306
16 CLIP; HARNESS
(AC) ID=20 L=50 		9-09917-430-0 06 1 1307-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 02 1 1008-1306
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1307-
16 CLIP; HARNESS
(AK) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
DIFF LOCK(C3N) (N) ID=5-12 L=18 		1-09709-287-0 02 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (K) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1008-1306
16 CLIP; HARNESS
MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20 		0-95235-536-0 02 1 1307-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (V) OD=9 H=6 		1-09709-178-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (P) ID=11 L=40 		0-95235-075-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=16 L=40 		0-95235-576-0 01 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Z) ID=16 L=40 		0-95235-576-0 02 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(AJ)B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AJ)B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1008-1306
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 06 1 1307-1506
16 CLIP; HARNESS
(V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (V) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(AB) L=250 		5-09707-030-1 01 1 1008-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1008-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 1008-1306
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(E) ID=11 H=30 L=17 		1-09700-113-0 01 1 1307-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1307-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1008-
208 CLIP; HARNESS,MAG VLV
(A) ID=11 L=41 		1-09700-403-0 01 1 1008-1306
208 CLIP; HARNESS,MAG VLV
(B) L=250 		5-09707-030-1 01 1 1307-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1008-1306
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1307-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1008-1306
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJT7S M/T(Y3E) (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1307-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX16P M/T(Y3Z) (B) ID=11 L=28 		9-09917-544-0 01 1 1307-
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1008-1306
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 04 1 1008-1306
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 1008-1202
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 03 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 01 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=6 L=36 		9-09917-423-0 02 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1112-
çizim 170854
38 377 386 358 239 38 88 313 242 38 86 313 139 86 38 313 242 38 480 386 150 38 38 150 242 150 38 242 38 133 516 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-1306
19 BOLT; PROTECTOR
(B) M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 01 1 1307-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 06 1 1008-1306
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 06 1 1307-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1306
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1307-
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		1-09044-079-0 01 1 1008-1105
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1008-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1306
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1307-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1307-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 04 1 1307-
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (D) M8X20 FLANGE 		0-28650-820-0 03 1 1008-1306
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (D) M8X20 FLANGE 		0-28650-820-0 05 1 1008-
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1008-1306
86 BOLT; CLIP BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1307-
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1008-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-1306
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1307-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1008-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1008-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1202-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1307-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 01 1 1307-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 1008-1306
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
313 BOLT; BRKT
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1202-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1008-
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1307-
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-1306
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1307-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1307-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-

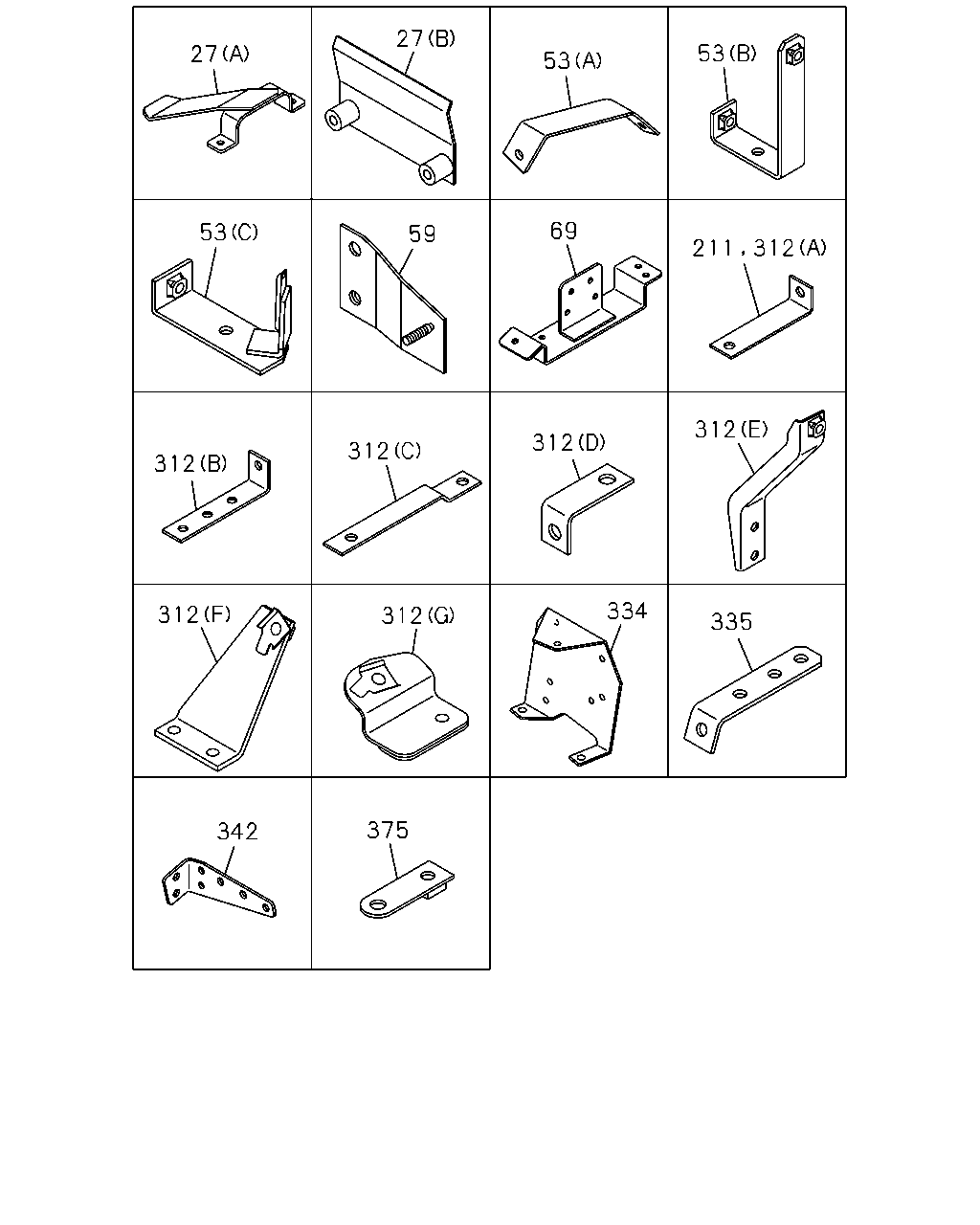

çizim 365374
27 27 53 53 69 59 53 312 312 312 312 211 312 335 334 312 375 342 312
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(A) 		8-97618-028-0 01 1 1008-1306
27 PROTECTOR; EDGE
(B) 		8-98201-145-0 01 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 1008-1306
53 BRACKET; HARNESS
(B) 		8-98212-499-0 01 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1307-
53 BRACKET; HARNESS
(C) 		8-98212-500-1 01 1 1307-
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1307-
59 BRACKET; FRAME HARNESS
FROM BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1307-
69 BRACKET; CLIP 8-98171-829-0 01 1 1202-
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1008-
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1008-1306
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1307-
312 BRACKET; CLIP HARNESS
(B) 		1-21464-481-0 01 1 1008-1306
312 BRACKET; CLIP HARNESS
(C) 		8-98201-136-0 01 1 1307-
312 BRACKET; CLIP HARNESS
(D) 		1-47477-694-0 02 1 1307-
312 BRACKET; CLIP HARNESS
(E) 		8-97636-868-1 02 1 1307-
312 BRACKET; CLIP HARNESS
(F) 		8-98225-560-0 01 1 1307-
312 BRACKET; CLIP HARNESS
(G) 		8-98233-397-0 01 1 1307-
334 BRACKET 8-98160-717-1 01 1 1008-1306
334 BRACKET 8-98212-895-0 01 1 1307-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1008-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 1008-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
