◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#63652) — 134 parça

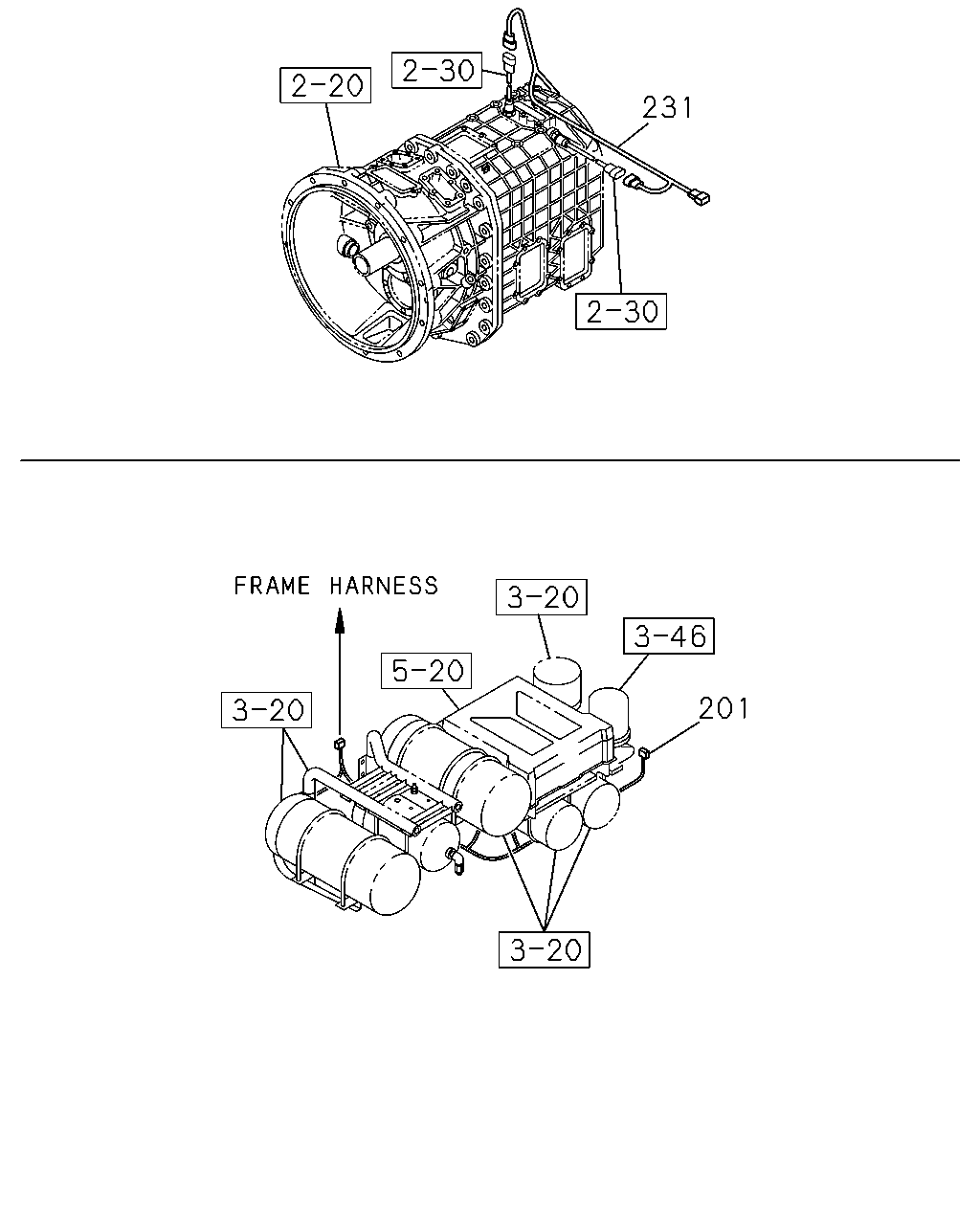

çizim 170792
231 201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 8-98149-086-3 01 1 1008-1306
201 HARNESS; AIR TANK 8-98226-519-3 01 1 1307-
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1008-1306
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1307-
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98139-486-4 01 1 1008-1306
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98221-994-2 01 1 1307-

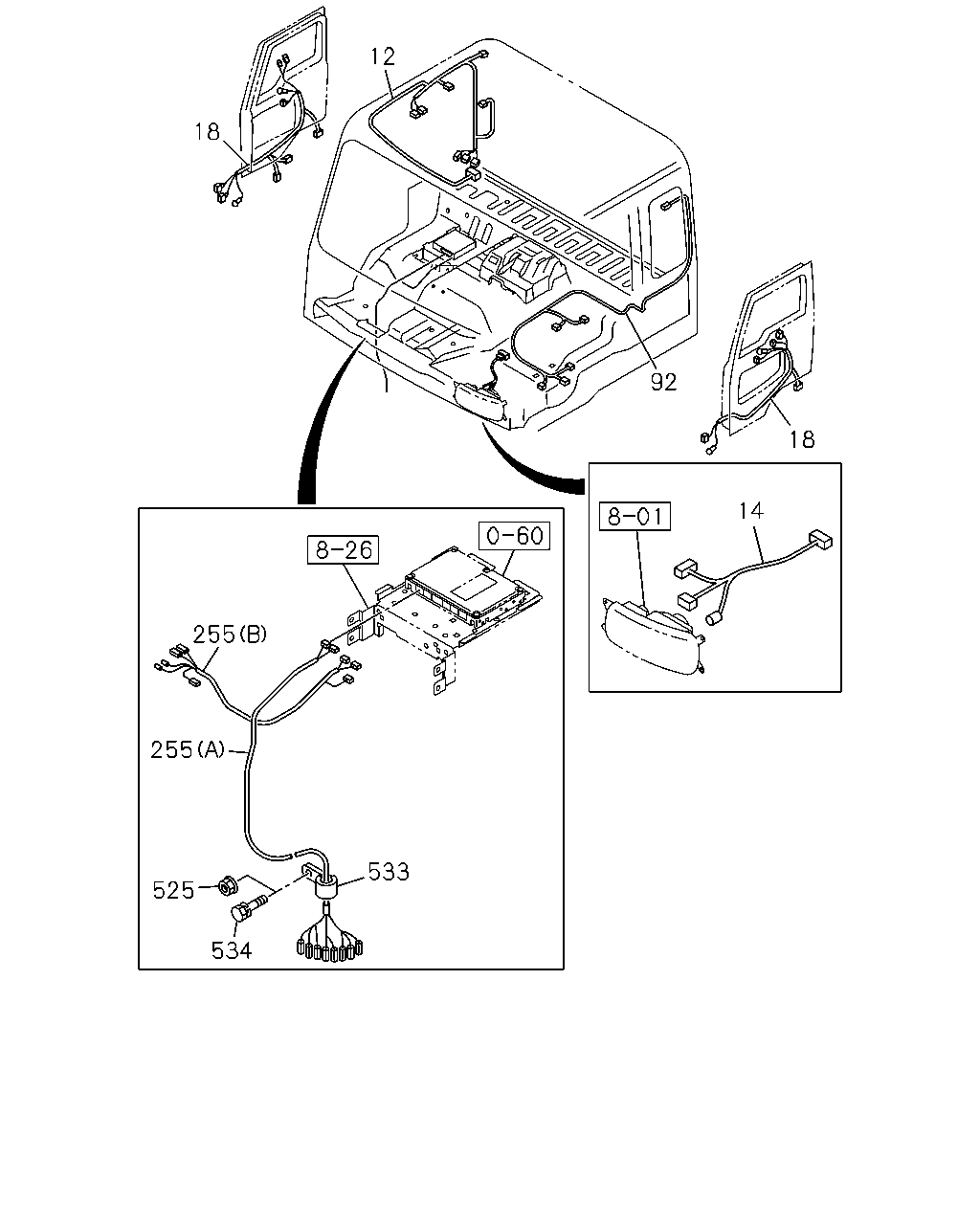

çizim 170795
18 12 92 18 14 255 255 525 533 534
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 1-82629-921-2 01 1 1008-1306
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97646-391-0 01 1 1307-
12 HARNESS; ROOF
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97646-390-0 01 1 1307-
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 1008-1306
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1307-
18 HARNESS; DOOR 8-98144-350-0 01 1 1008-1306
18 HARNESS; DOOR 8-97644-087-0 01 1 1307-
18 HARNESS; DOOR 8-98144-348-1 01 1 1008-1306
18 HARNESS; DOOR 8-97644-086-0 01 1 1307-
92 HARNESS; FLOOR 8-98093-664-0 01 1 1008-1306
92 HARNESS; FLOOR 8-97646-495-0 01 1 1307-
92 HARNESS; FLOOR
MJT7S M/T(Y3E) 		8-97646-345-0 01 1 1307-
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) 		8-97646-346-0 01 1 1307-
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 1008-1201
255 HARNESS; ELEC GOV
(A) 		8-98181-558-0 01 1 1202-1202
255 HARNESS; ELEC GOV
(A) 		8-97641-992-1 01 1 1203-1306
255 HARNESS; ELEC GOV
(A) 		8-97646-352-0 01 1 1307-
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 1008-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-1306
525 NUT; CLIP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1307-
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1008-1306
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1307-
533 CLIP
ID=32 L=50 		1-09701-055-1 02 1 1307-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-

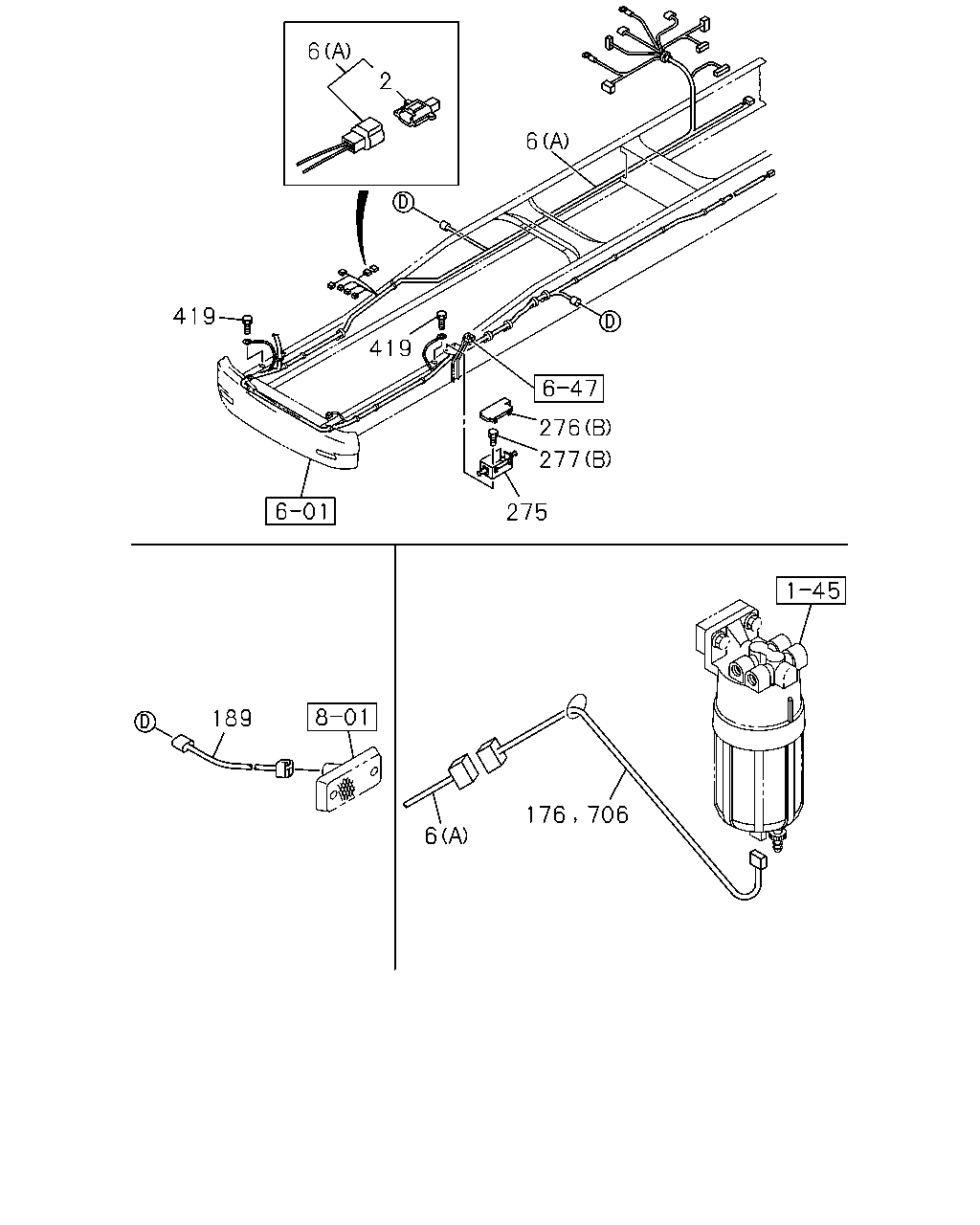

çizim 170798
6 6 276 419 419 277 275 2 706 176 189 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 1008-1306
6 HARNESS; FRAME
(B) 		1-82677-379-4 01 1 1008-1201
6 HARNESS; FRAME
(B) 		8-98181-561-0 01 1 1202-1306
6 HARNESS; FRAME
(B) 		8-98242-638-0 01 1 1307-
6 HARNESS; FRAME
(A) 		8-98139-379-4 01 1 1008-1306
6 HARNESS; FRAME
(A) 		8-98242-627-3 01 1 1307-
176 HARNESS; FUEL SEDIMENTER 8-98139-490-1 01 1 1008-1203
189 HARNESS; EXT 1-82673-735-0 06 1 1008-1306
275 BOX ASM; FRAME HARNESS 1-82699-474-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-1306
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1307-
419 BOLT; CAB EARTH
M8X30 W/LK&PL WASHER 		8-97087-204-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1202-1306
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 03 1 1307-
706 HARNESS; EXT,SEDIMENTER 8-98139-490-1 01 1 1204-1306

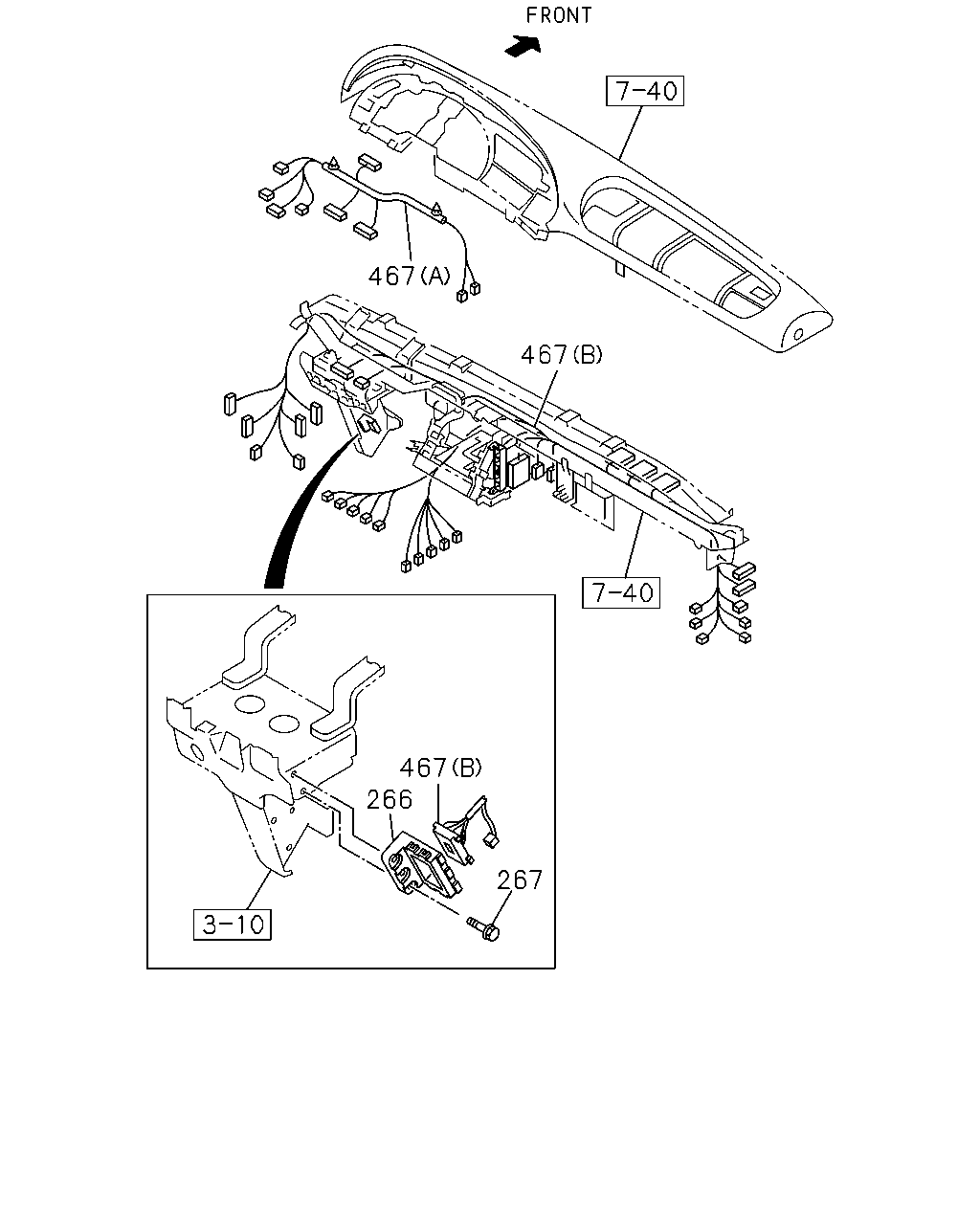

çizim 170799
467 467 266 267 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1008-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1008-
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-6 01 1 1008-1306
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1307-
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-0 01 1 1008-1306
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1307-

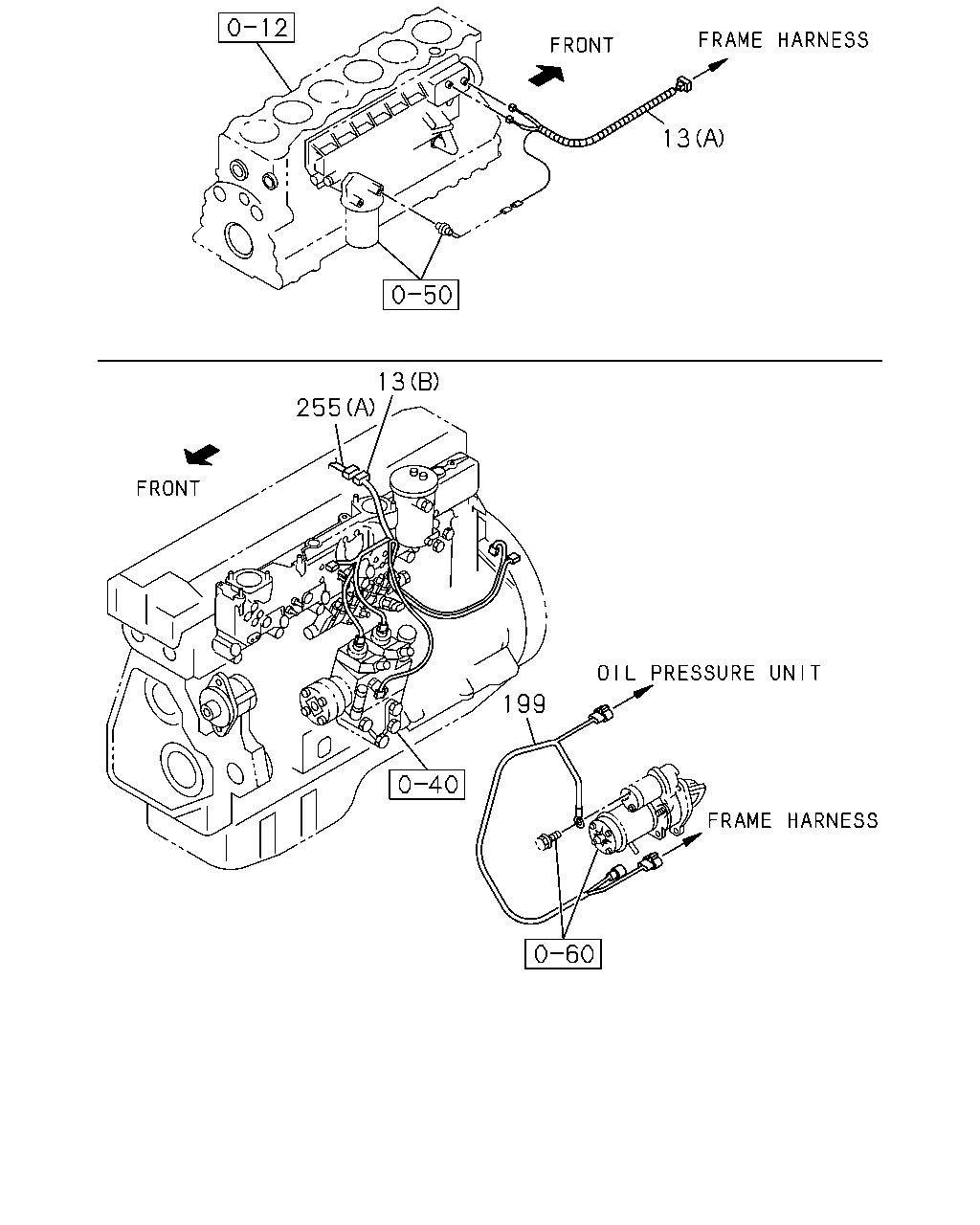

çizim 170801
199 255 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 1008-
13 HARNESS; ENG
(B) 		8-98169-641-0 01 1 1008-1201
13 HARNESS; ENG
(B) 		8-98180-788-0 01 1 1202-
199 HARNESS; STARTER 8-98139-485-0 01 1 1008-
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 1008-1201
255 HARNESS; ELEC GOV
(A) 		8-98181-558-0 01 1 1202-1202
255 HARNESS; ELEC GOV
(A) 		8-97641-992-1 01 1 1203-1306
255 HARNESS; ELEC GOV
(A) 		8-97646-352-0 01 1 1307-
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 1008-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-1306

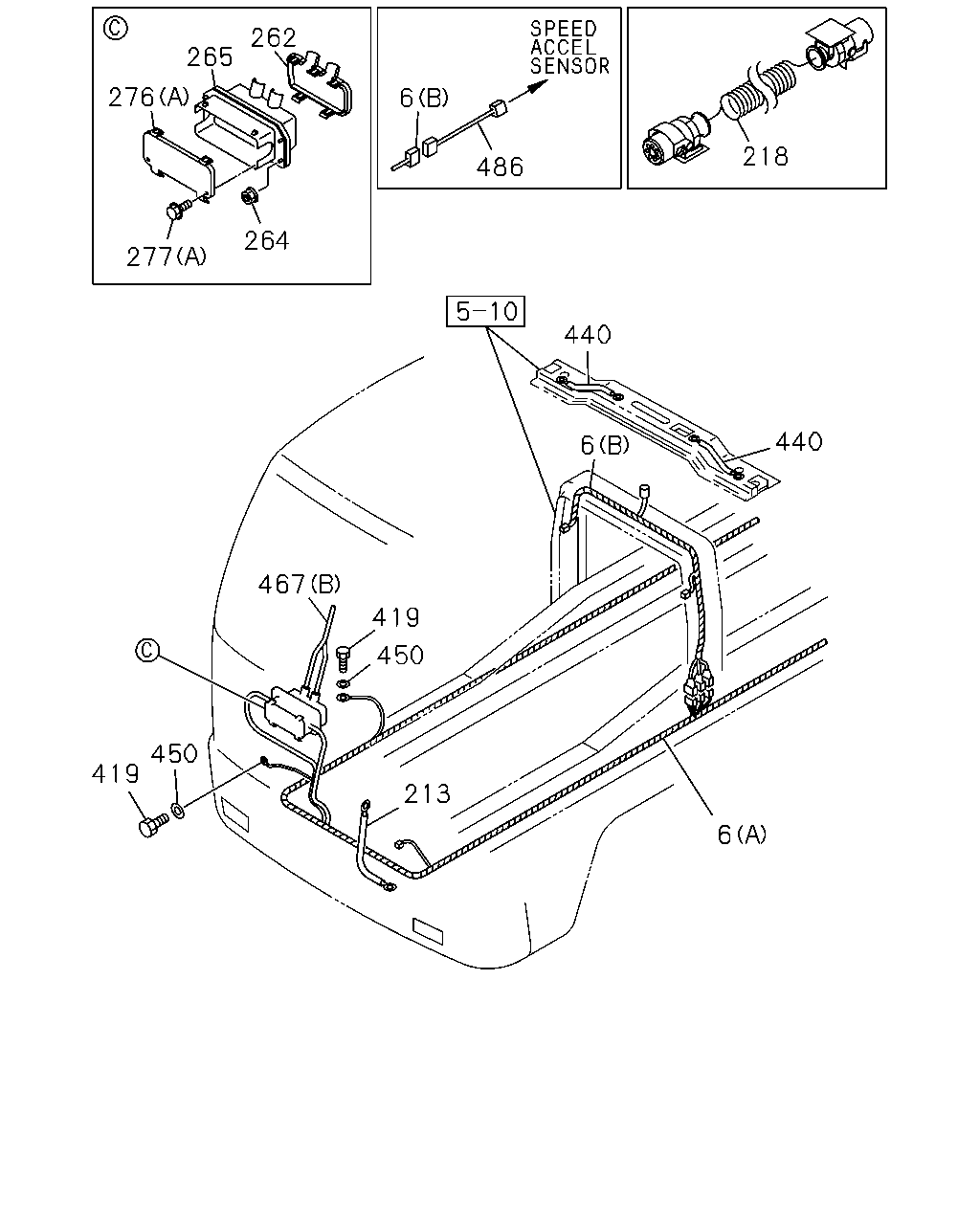

çizim 170847
440 6 6 440 419 450 213 450 419 467 264 277 276 265 262 6 486 218
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		1-82677-379-4 01 1 1008-1201
6 HARNESS; FRAME
(B) 		8-98181-561-0 01 1 1202-1306
6 HARNESS; FRAME
(B) 		8-98242-638-0 01 1 1307-
6 HARNESS; FRAME
(A) 		8-98139-379-4 01 1 1008-1306
6 HARNESS; FRAME
(A) 		8-98242-627-3 01 1 1307-
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 1008-1306
218 CABLE; JUMPER,ABS
L=4000 		1-82659-187-3 01 1 1008-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1008-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1008-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-1306
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1307-
419 BOLT; CAB EARTH
M8X30 W/LK&PL WASHER 		8-97087-204-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1202-1306
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 03 1 1307-
440 CABLE; EARTH 1-82678-273-0 02 1 1008-1306
440 CABLE; EARTH 1-82678-273-0 02 1 1307-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 1008-1306
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1307-
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-6 01 1 1008-1306
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1307-
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-0 01 1 1008-1306
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1307-
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82676-925-0 01 1 1008-

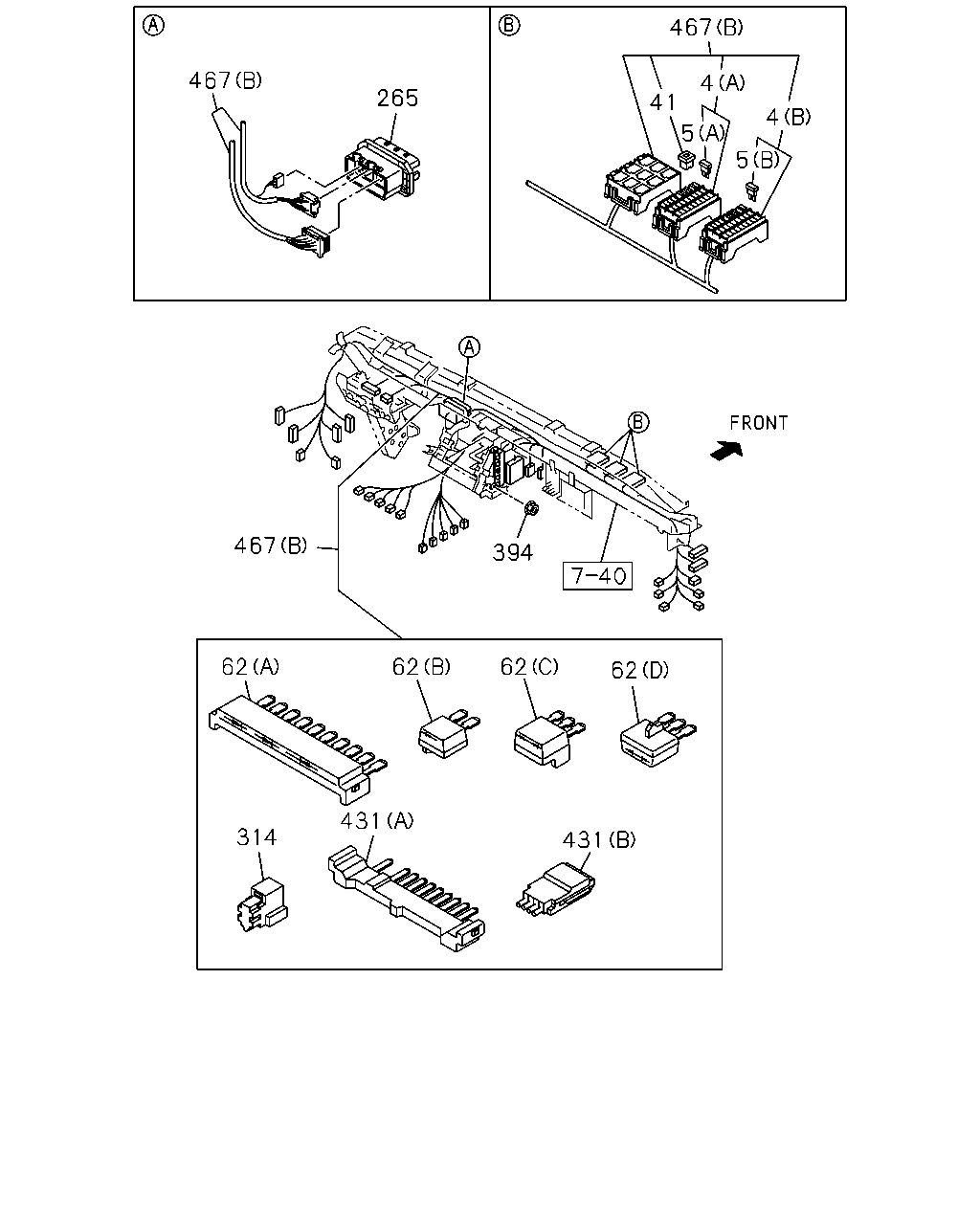

çizim 170858
467 265 467 4 41 4 5 5 394 467 62 314 62 62 431 62 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 1008-1306
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX26 		1-82510-624-0 01 1 1307-
4 BOX ASM; FUSE,HARNESS
(B) 15AX22 25AX3 		8-98126-046-0 01 1 1008-1306
4 BOX ASM; FUSE,HARNESS
(B) 15AX22 25AX3 		8-98126-046-0 01 1 1307-
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 22 1 1008-1306
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 22 1 1307-
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 03 1 1008-1306
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 1307-
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 21 1 1008-1306
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 20 1 1307-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1008-1306
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1307-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1008-1306
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1307-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 04 1 1008-1306
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1307-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1008-1112
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1201-1306
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1307-1406
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1407-1510
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1511-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1008-1306
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1307-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1008-1306
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1307-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1307-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1008-1306
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1307-
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 03 1 1008-1306
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 06 1 1307-
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-6 01 1 1008-1306
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1307-
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-0 01 1 1008-1306
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1307-
