Isuzu WW
▶
TRUCKS
▶
EXR
▶
11324 - EXR MIDDLE EAST WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#63650) — 56 parça
◀

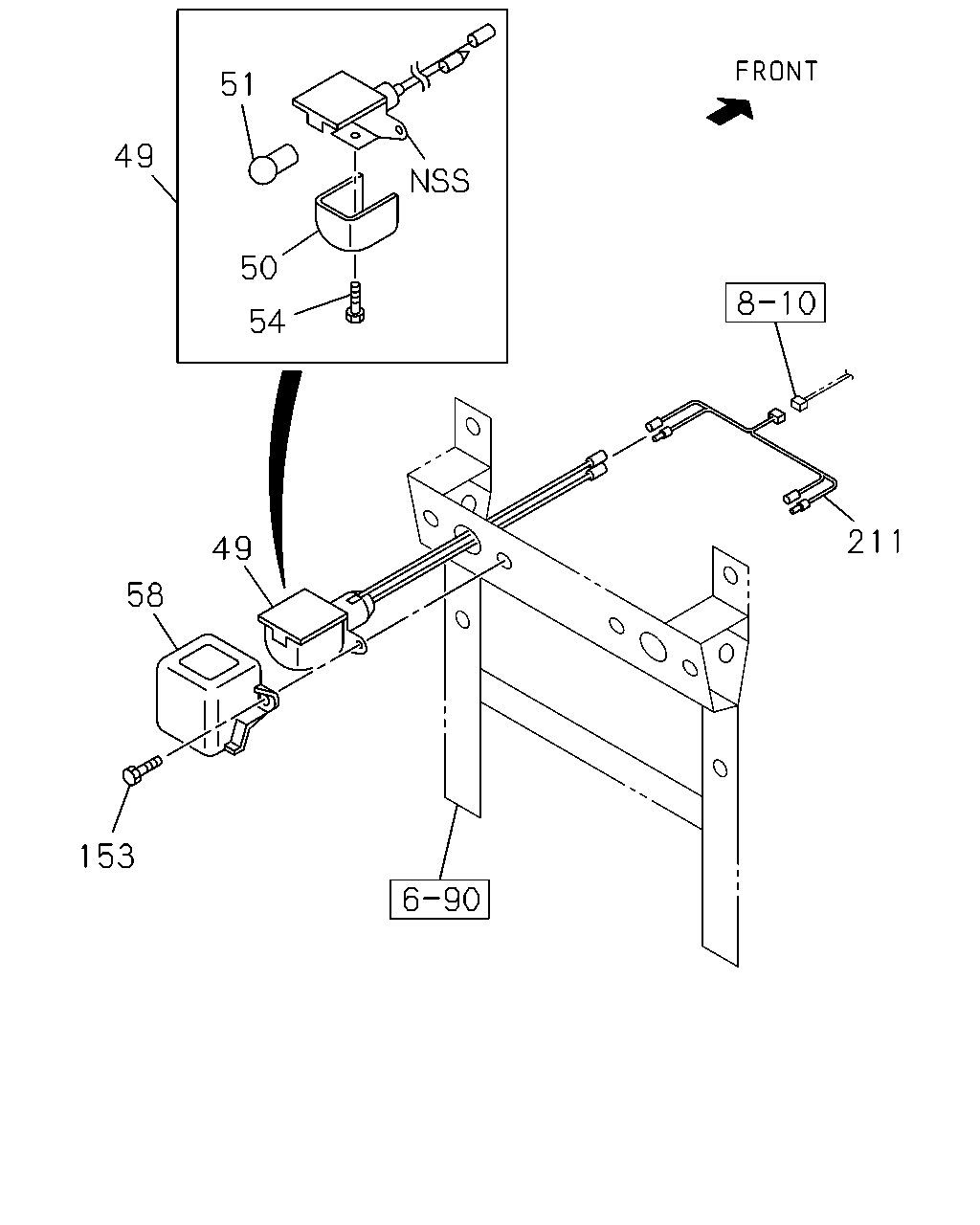

[803A] RR LAMP NO.2 (8 parça)
[803A] SEARCH LIGHT (6 parça)

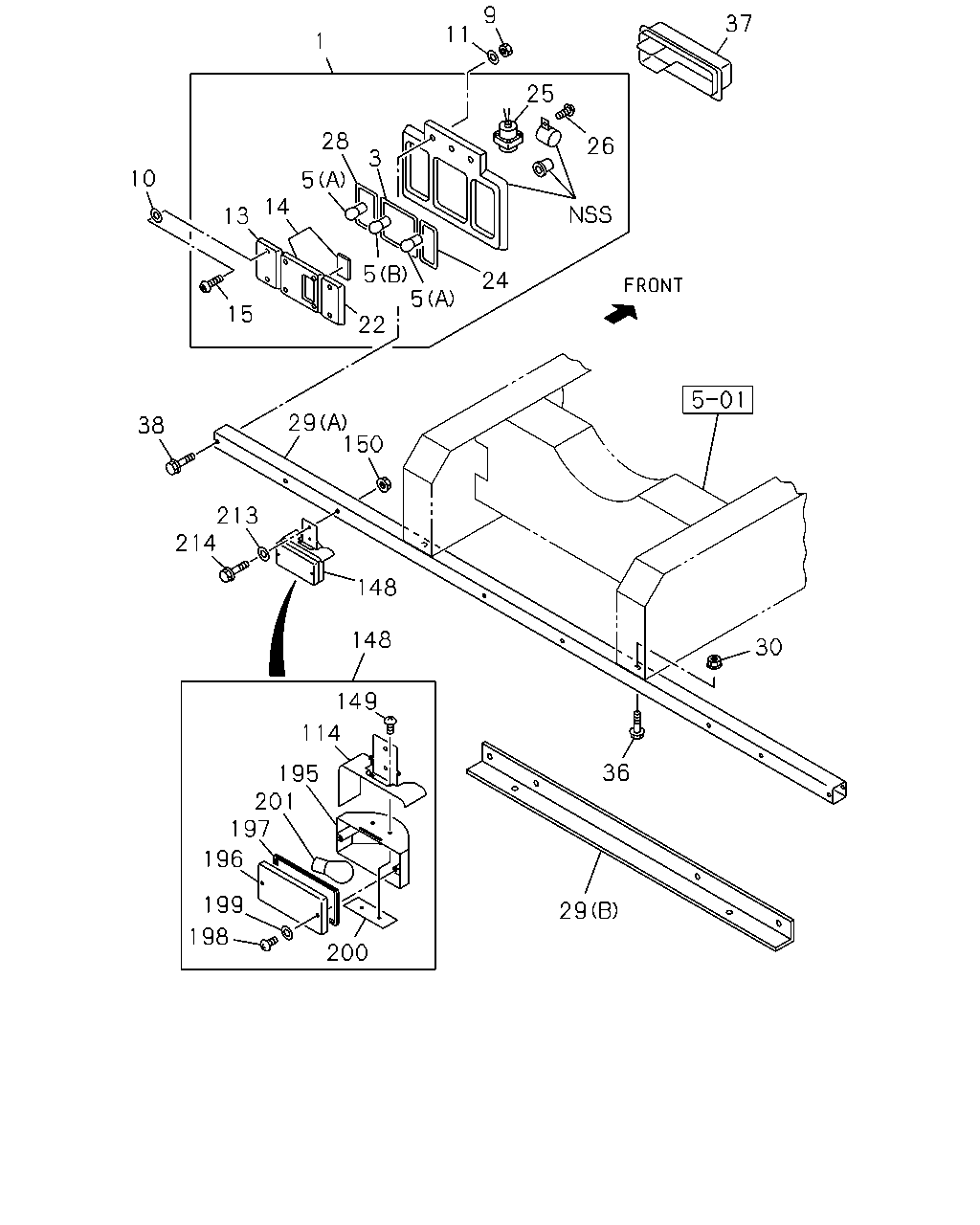

[803A] RR LAMP NO.1 (42 parça)
▶
49
51
50
54
49
58
153
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
LAMP; LICENSE PLATE
24V 5W
8-97105-380-0
02
1
1008-1509
49
LAMP; LICENSE PLATE
24V 5W
8-98329-430-0
02
1
1510-
50
LENS; LICENSE PLATE LAMP
8-97108-212-0
02
1
1008-
51
BULB; LICENSE PLATE LAMP
24V 5W
1-82194-039-0
02
1
1008-
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
02
1
1008-
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
1008-
153
BOLT; LICENSE PLATE LAMP
M5X20
9-93490-520-0
04
1
1008-
211
HARNESS; EXT
8-98131-066-0
01
1
1008-
250
255
253
254
256
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
250
LAMP ASM; SEARCH LIGHT
1-82180-012-0
01
1
1008-
253
BULB; SEARCH LIGHT
9-82691-605-0
01
1
1008-
254
LENS; SEARCH LIGHT
9-82681-207-0
01
1
1008-
255
GASKET; SEARCH LIGHT
9-82681-706-0
01
1
1008-
256
RIM; SEARCH LIGHT
9-82681-402-0
01
1
1008-
257
NUT; SEARCH LIGHT
M10 FLANGE
0-91180-110-0
01
1
1008-
1
11
9
37
25
26
28
5
3
14
13
10
5
15
22
5
24
38
29
213
150
214
148
148
30
36
29
149
114
195
201
197
196
199
198
200
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-208-0
01
1
1008-
1
LAMP ASM; RR COMB
1-82230-209-0
01
1
1008-
3
GASKET; RR COMB LAMP
8-94257-505-0
02
1
1008-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
04
1
1008-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
02
1
1008-
9
NUT; LAMP,RR COMB
M6
0-91110-506-0
04
1
1008-
10
WASHER; LK,RR COMB LAMP
ID=5.1
0-91510-505-0
04
1
1008-1106
11
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
0-91610-706-0
04
1
1008-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
1008-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
1008-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
1008-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
1008-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
16
1
1008-
22
LENS; BACKUP,RR COMB LAMP
CLEAR
8-94257-512-1
02
1
1008-
24
GASKET; BACK,LAMP
8-94257-506-0
02
1
1008-
25
HORN ASM; BACK
8-94257-518-0
01
1
1008-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1008-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
1008-
28
GASKET; TURN,LAMP
8-94257-507-0
02
1
1008-
29
BRACKET; LAMP,RR COMB
(A)
8-98153-159-0
01
1
1008-1306
29
BRACKET; LAMP,RR COMB
(B)
1-53487-021-1
01
1
1307-
30
NUT; BRKT,RR COMB
M10 FLANGE
0-91180-210-0
02
1
1008-
36
BOLT; BRKT,RR COMB
M10X70 FLANGE
0-28051-070-0
02
1
1008-1306
36
BOLT; BRKT,RR COMB
M10X40 FLANGE
0-28651-040-0
02
1
1307-
37
COVER; RR COMB LAMP
1-82239-008-0
01
1
1008-
37
COVER; RR COMB LAMP
1-82239-007-0
01
1
1008-
38
BOLT; LAMP,RR COMB
M6X70 FLANGE
0-28050-670-0
04
1
1008-1306
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
0-50640-630-0
04
1
1307-
114
BRACKET; RR FOG LAMP
8-97108-583-0
01
1
1008-1306
148
LAMP ASM; RR FOG
1-82110-477-0
01
1
1008-1306
149
SCREW; BRKT TO LAMP BODY
8-94336-372-0
02
1
1008-1306
150
NUT; RR FOG LAMP
M6
0-91110-506-0
01
1
1008-1306
195
LAMP UNIT; RR FOG
8-94336-322-0
01
1
1008-1306
196
LENS; RR FOG LAMP
8-94336-325-0
01
1
1008-1306
197
GASKET; RR FOG LAMP
8-94336-324-0
01
1
1008-1306
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1008-1306
199
WASHER; LENS,RR FOG LAMP
8-94336-326-0
02
1
1008-1306
200
PLATE; SET,RR FOG LAMP
8-94336-323-0
01
1
1008-1306
201
BULB; RR FOG LAMP
24V 21W
1-82194-036-0
01
1
1008-1306
213
WASHER; PL,RR FOG LAMP
ID=5.1
0-91510-505-0
01
1
1008-1106
213
WASHER; PL,RR FOG LAMP
ID=6.4 OD=18
0-91610-706-0
01
1
1008-1306
214
BOLT; RR FOG LAMP
M6X70 FLANGE
0-28050-670-0
01
1
1008-1306
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
