7-43 — SUN VISOR AND ASSIST GRIP (#63644) — 92 parça

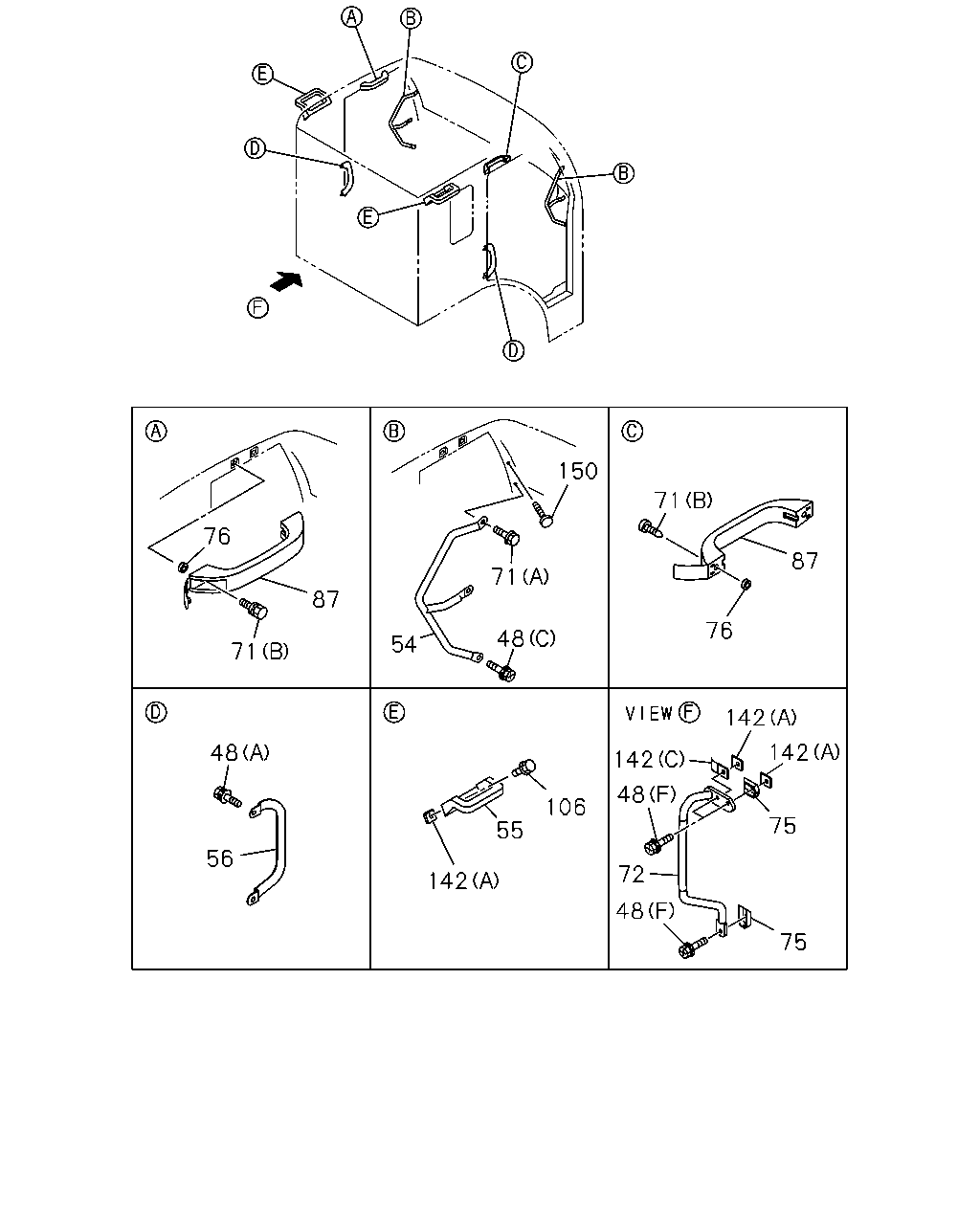

76 87 71 48 56 55 142 106 54 71 48 150 71 76 87 142 48 72 48 142 142 75 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1008-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1008-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-1306
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1307-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1008-1306
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1307-
54	GRIP; ASSIST,QUARTER SIDE	8-98139-071-2	01	1	1008-
54	GRIP; ASSIST,QUARTER SIDE	8-98139-070-2	01	1	1008-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1008-1306
55	GRIP; ASSIST,CAB SIDE UPR EXC. GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1008-1306
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1008-
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1008-
71	SCREW (B) M6X30 W/LK WASHER	5-09981-064-0	04	1	1008-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1008-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	1008-1306
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71907-543-0	01	1	1307-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	1008-1306
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-548-0	02	1	1307-
76	SPACER; ASSIST GRIP OD=13 T=4.5	8-94230-464-1	04	1	1008-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1008-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-1306
106	SCREW; ASSIST GRIP EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1008-1306
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1008-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	1008-1306
142	SEAL; ASSIST GRIP (C)	1-71997-691-1	01	1	1307-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	06	1	1008-1306
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1307-1402
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1008-1306
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1008-

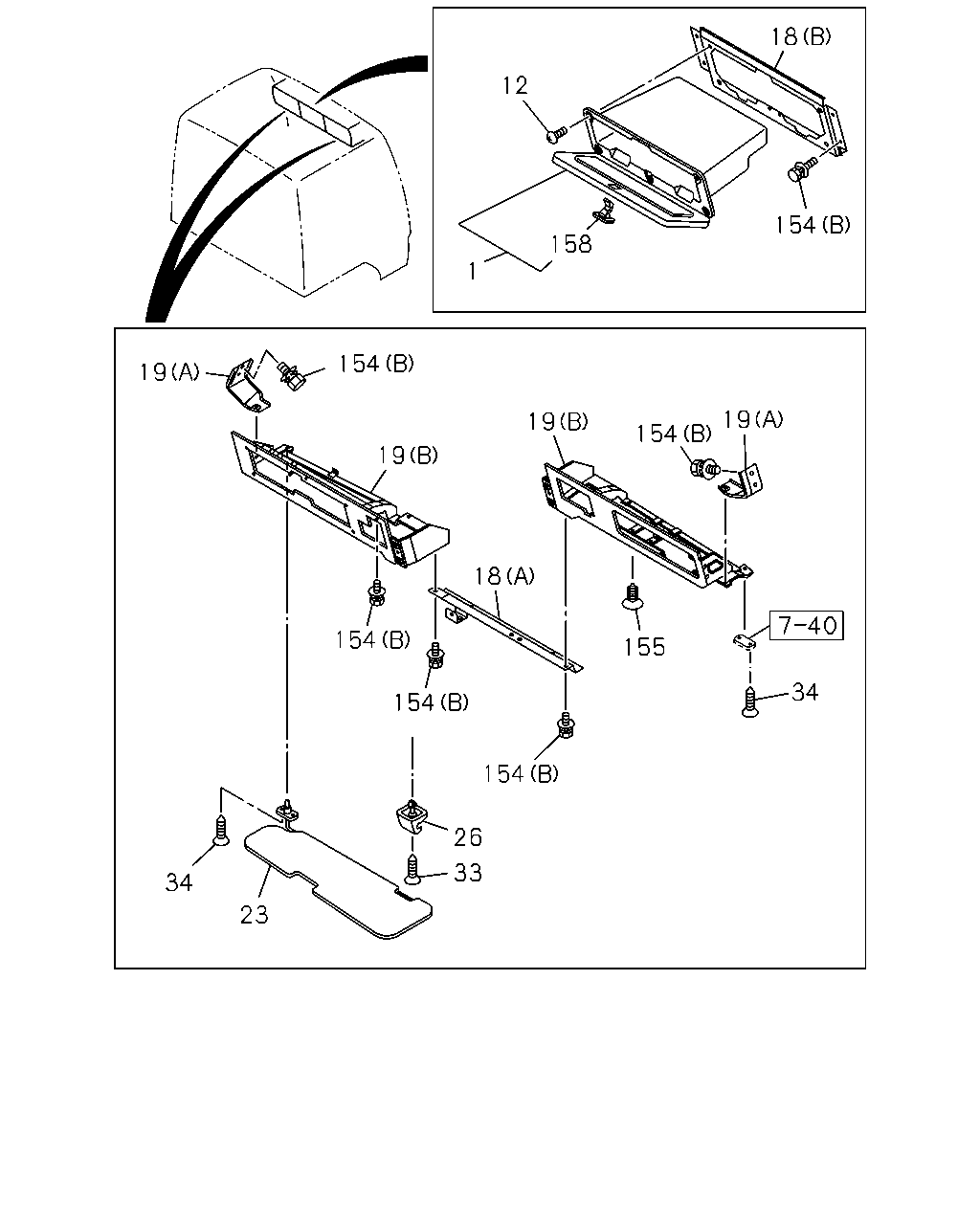

12 18 1 158 154 19 154 34 23 19 154 154 26 33 18 154 19 155 154 19 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	1008-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1008-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1008-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1008-
23	SUN VISOR	1-73138-157-1	01	1	1008-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1008-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1008-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1008-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1008-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1008-1306
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1307-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1008-1306
155	FASTENER; HOLDER	1-09983-181-0	01	1	1008-
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	1008-

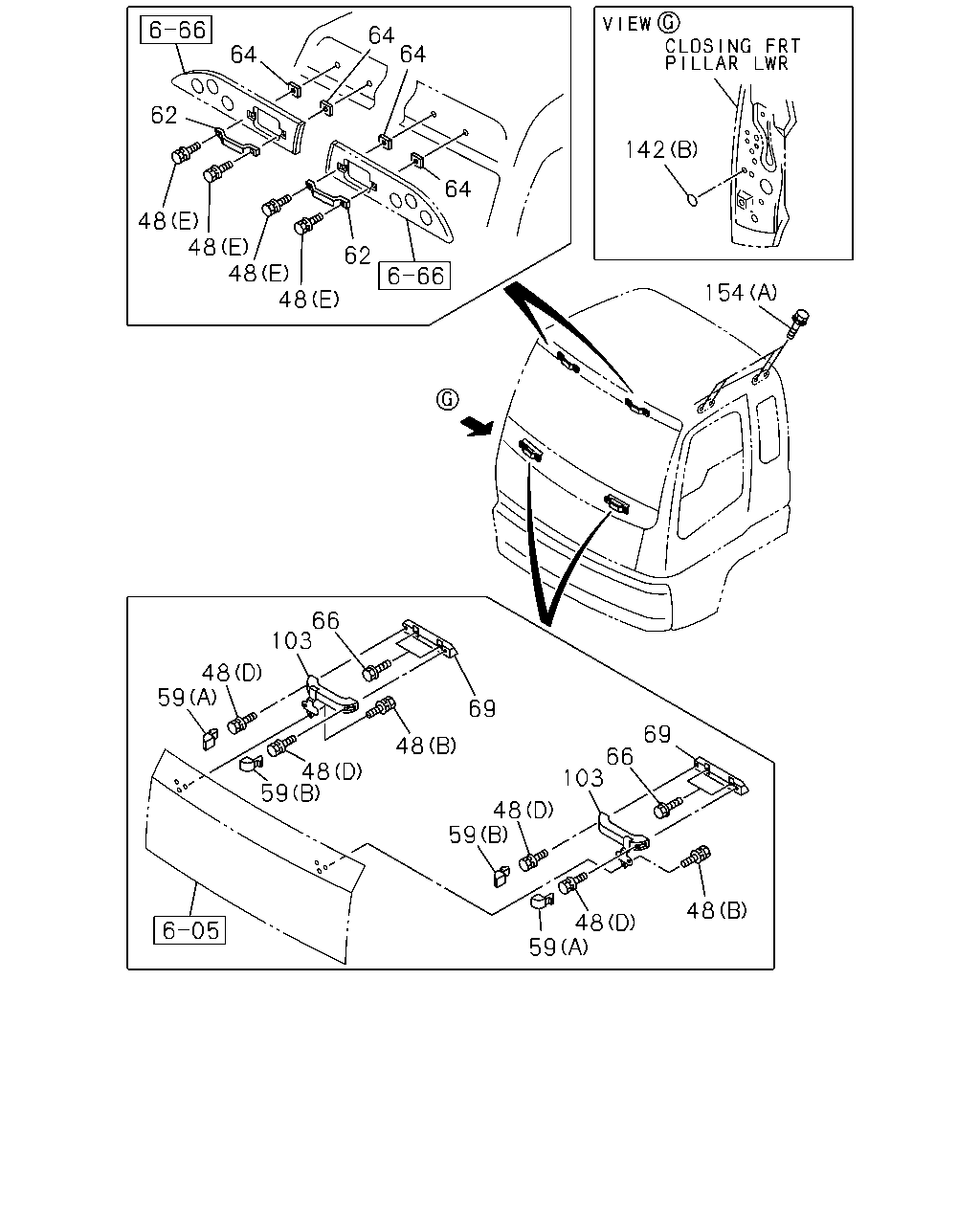

62 48 48 62 64 64 64 48 48 64 59 103 59 48 59 69 48 59 103 69 48 48 48 142 154 66 48 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1008-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1008-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-1306
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1307-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1008-1306
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1307-
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	1008-
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	1008-
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1008-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1008-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1008-
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	1008-
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	1008-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1008-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1008-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1008-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	1008-1306
142	SEAL; ASSIST GRIP (C)	1-71997-691-1	01	1	1307-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	06	1	1008-1306
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1307-1402
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1008-1306
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1008-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1008-1306
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1307-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1008-1306
