◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#63643) — 97 parça

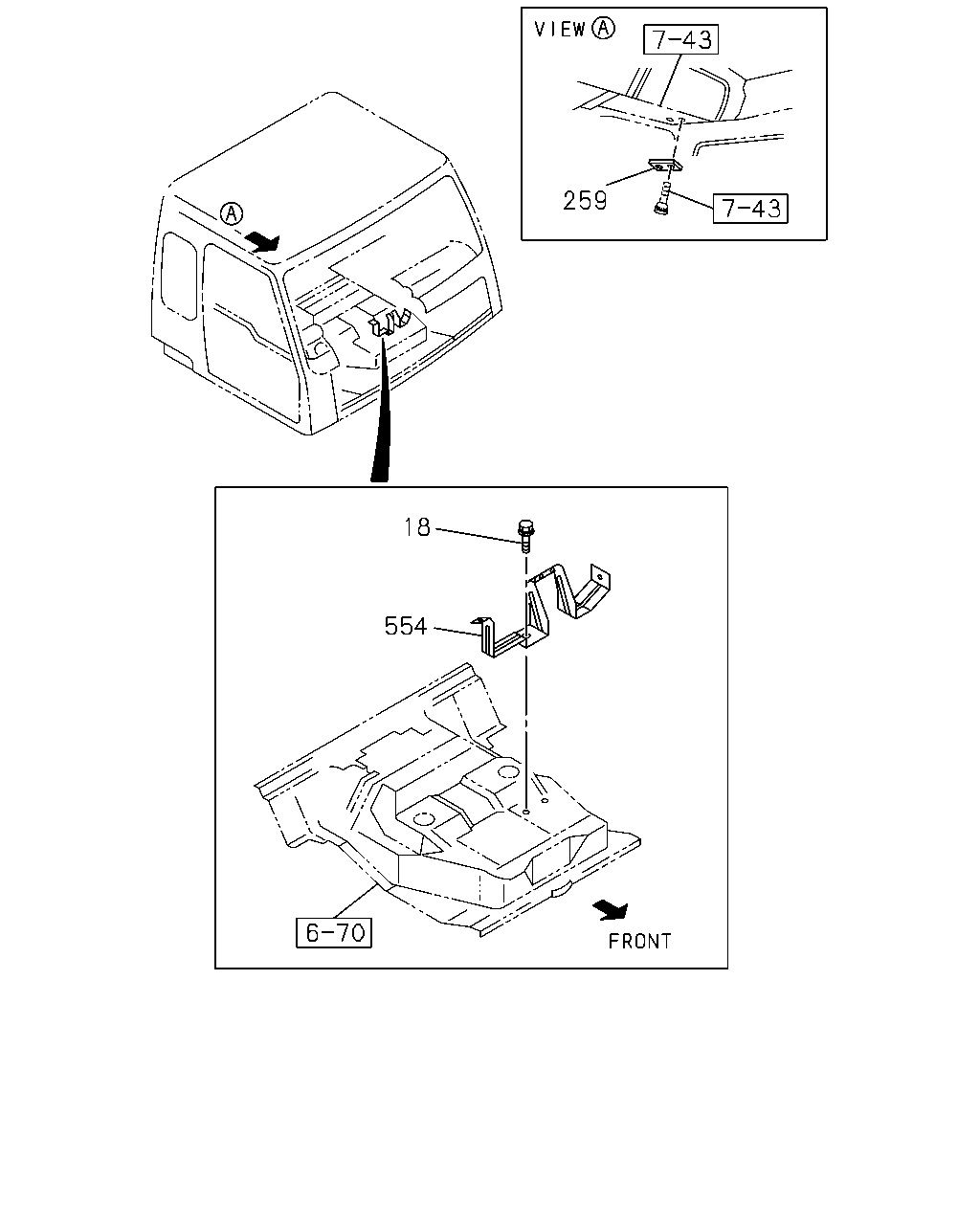

çizim 170768
259 554 18
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1008-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1008-

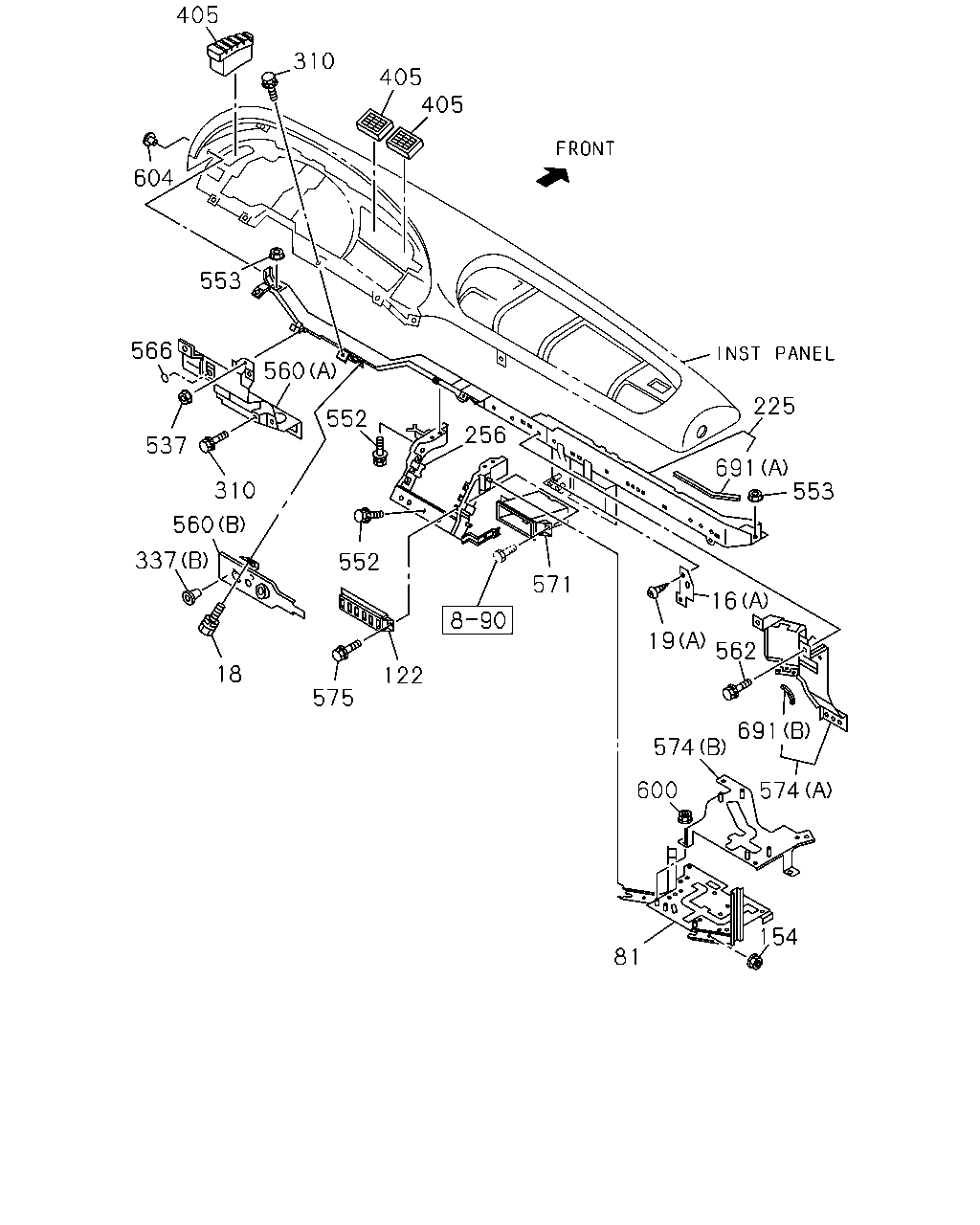

çizim 170775
405 604 553 566 537 560 310 405 405 552 310 560 337 18 575 552 571 691 562 122 16 19 574 574 600 154 81 553 225 691 256
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1008-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1008-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1008-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1008-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 1008-1306
81 BRACKET; ELEC CONT UNIT 8-98217-886-1 01 1 1307-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1008-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1008-
225 FRAME; FACIA 1-65671-727-5 01 1 1008-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1008-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1008-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 1008-1306
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1008-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1008-
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1307-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1008-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1008-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1008-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1008-
560 BRACKET
(A) 		1-65681-243-0 01 1 1008-
560 BRACKET
(B) 		1-65681-217-1 01 1 1008-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008-1306
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1307-
571 BEZEL; POCKET 1-72438-151-3 01 1 1008-
571 BEZEL; POCKET 1-72438-151-3 01 1 1008-
574 PANEL; RELAY BOX
(B) 		1-73907-647-3 01 1 1008-1108
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1109-
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1008-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1008-
604 CLIP; INST PAD 1-09983-123-0 01 1 1008-
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 1008-1306
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1307-
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1008-

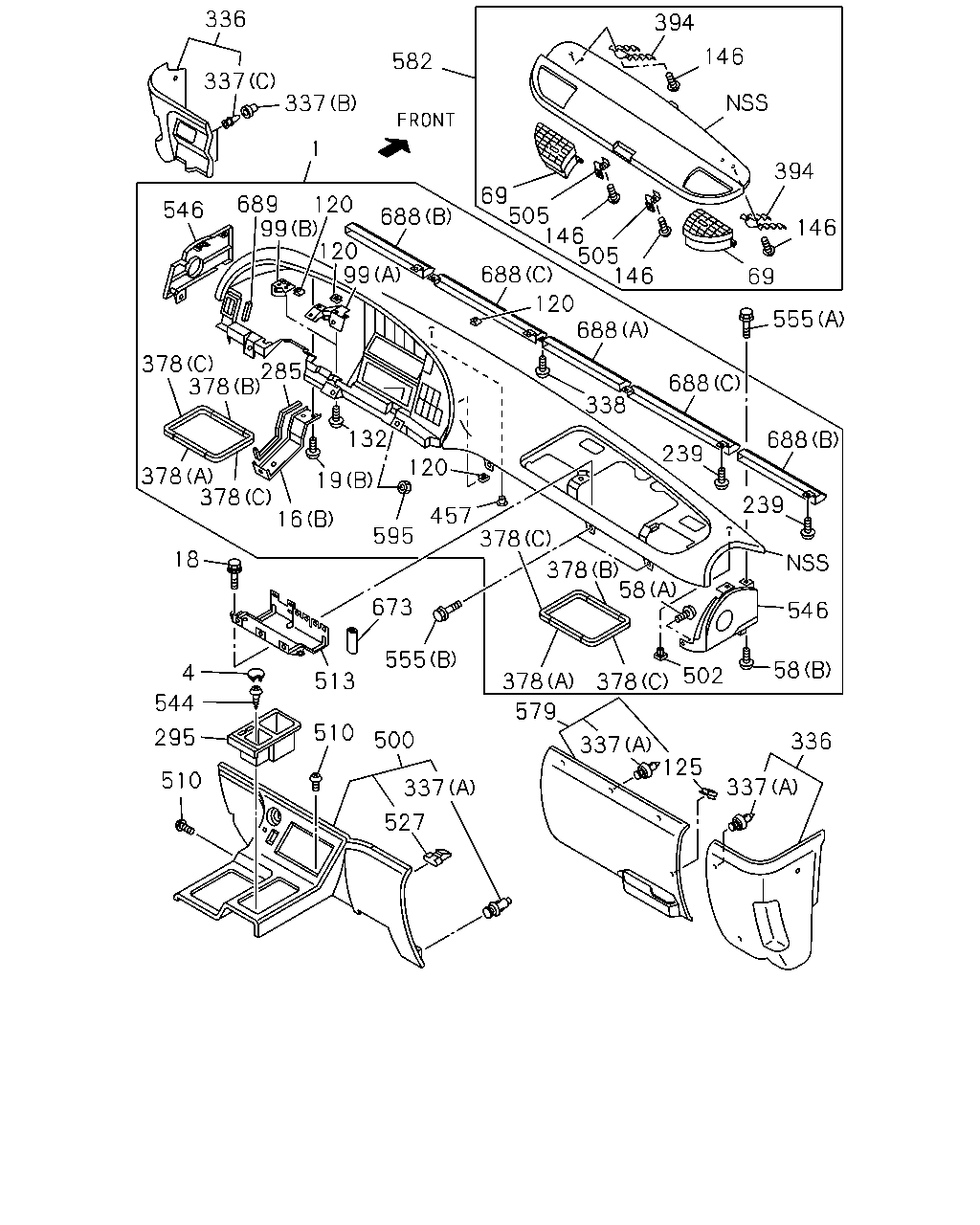

çizim 170842
336 337 582 337 546 689 1 99 120 378 378 16 378 18 4 544 295 510 510 527 500 513 673 555 337 579 337 125 337 336 120 285 378 132 19 120 595 378 378 378 378 58 502 58 688 394 394 146 688 688 688 239 688 338 457 239 546 99 120 555 69 146 505 146 505 69 146
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-370-2 01 1 1008-
4 COVER; INST PNL 1-72537-106-0 01 1 1008-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1008-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1008-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1008-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1008-
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1008-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1008-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1008-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1008-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1008-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1008-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1008-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1008-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1008-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1008-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1008-
285 FINISHER; INST PANEL
L=190 		1-71998-300-0 02 1 1008-1306
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1307-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1008-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1008-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1008-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 1008-1306
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1008-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1008-
337 FASTENER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-72438-124-2 03 1 1307-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1008-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1008-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1008-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1008-
394 HOLDER; PANEL 1-72558-048-0 02 1 1008-
457 PLATE; INST PANEL 1-72317-363-2 08 1 1008-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 1008-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1008-
505 LOCK; LID 1-72558-024-2 02 1 1008-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1008-
513 BRACKET; RELAY 8-97865-168-3 01 1 1008-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 1008-1306
527 CLIP; INST CLUSTER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97217-066-0 05 1 1307-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1008-
546 PANEL; INST,SUB 1-72317-355-4 01 1 1008-
546 PANEL; INST,SUB 1-72317-354-4 01 1 1008-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1008-
579 COVER; INST PNL 1-72438-195-1 01 1 1008-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1008-
595 NUT; HOOK 1-72418-013-0 06 1 1008-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1008-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1008-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1008-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1008-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1008-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1008-
689 SEAL; INST 1-72317-364-0 01 1 1008-
