◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#6364) — 126 parça

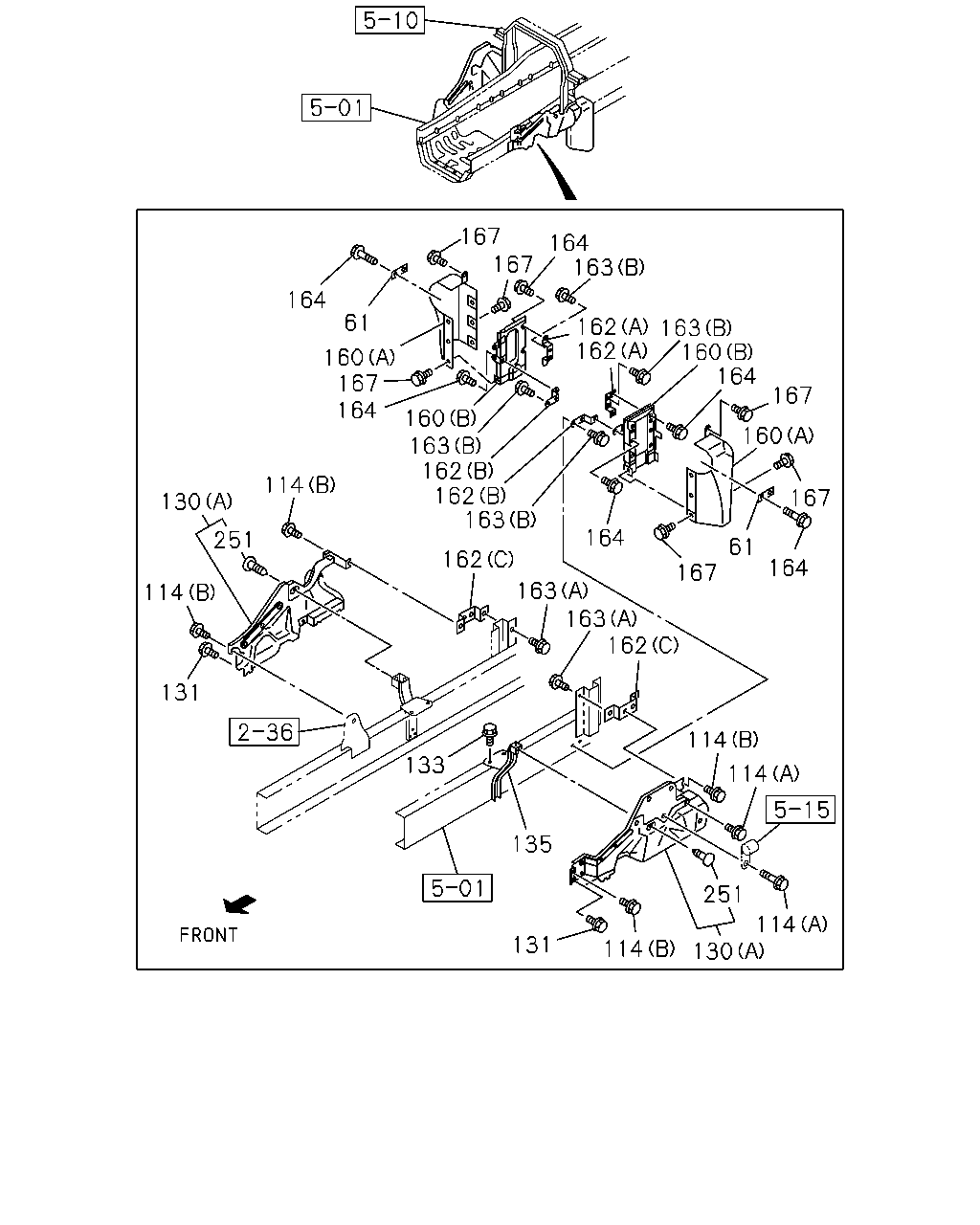

çizim 6912
167 167 164 163 164 61 162 162 163 160 164 160 167 164 167 160 163 162 162 163 160 114 167 130 164 251 61 162 164 167 163 163 162 114 131 114 133 114 135 251 114 131 114 130
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 02 1 9604-
114 BOLT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9604-0001
114 BOLT
8PE1S(59L) (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 0002-
114 BOLT
10PE1N(61L) (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0002-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-196-2 01 1 9604-0001
130 PANEL; SHUTTER NOISE
8PE1S(59L) (A) 		1-53193-196-2 01 1 0002-
130 PANEL; SHUTTER NOISE
(D) ENG SIDE REAR 		1-79937-920-2 01 1 9604-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-215-0 01 1 9604-0001
130 PANEL; SHUTTER NOISE
8PE1S(59L) (A) 		1-53193-215-0 01 1 0002-
130 PANEL; SHUTTER NOISE
(B) ENG SIDE FRONT 		1-79937-952-3 01 1 9604-
130 PANEL; SHUTTER NOISE
PARKING BRAKE TRANSFER REAR(WB5) (B) ENG SIDE FRONT 		1-79937-953-3 01 1 9604-
130 PANEL; SHUTTER NOISE
PARKING BRAKE TRANSFER REAR(WB5) (C) ENG SIDE REAR 		1-79937-917-2 01 1 9604-
130 PANEL; SHUTTER NOISE
PARKING BRAKE TRANSFER REAR(WB5) (D) ENG SIDE REAR 		1-79937-919-2 01 1 9604-
130 PANEL; SHUTTER NOISE
EXC. PARKING BRAKE TRANSFER REAR(WB5) (B) ENG SIDE FRONT 		1-79937-916-4 01 1 9604-
130 PANEL; SHUTTER NOISE
EXC. PARKING BRAKE TRANSFER REAR(WB5) (C) ENG SIDE REAR 		1-79937-971-2 01 1 9604-
130 PANEL; SHUTTER NOISE
10PE1N(61L) (A) 		1-53193-203-2 01 1 0002-
130 PANEL; SHUTTER NOISE
10PE1N(61L) (A) 		1-53193-210-1 01 1 0002-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9604-
133 BOLT; FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9607-
135 BRACKET; SIDE PANEL 1-53441-508-0 01 1 9604-
160 COVER ASM; EXH
(A) 		1-79931-063-1 01 1 9604-
160 COVER ASM; EXH
(B) 		1-79931-111-0 01 1 9604-
160 COVER ASM; EXH
(B) 		1-79931-061-1 01 1 9604-
160 COVER ASM; EXH
(A) 		1-79931-256-1 01 1 9604-
162 BRACKET
(C) 		1-53441-520-0 02 1 9604-
162 BRACKET
(A) 		1-53441-521-2 02 1 9604-
162 BRACKET
(B) 		1-53441-522-0 02 1 9604-
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28080-825-0 06 1 9604-9606
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 9607-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28080-820-0 10 1 9604-9606
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 10 1 9607-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28080-820-0 12 1 9604-9606
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 12 1 9607-
251 CLIP; NOISE INSULATOR
10PE1N(61L) 		8-94279-048-0 10 1 0002-

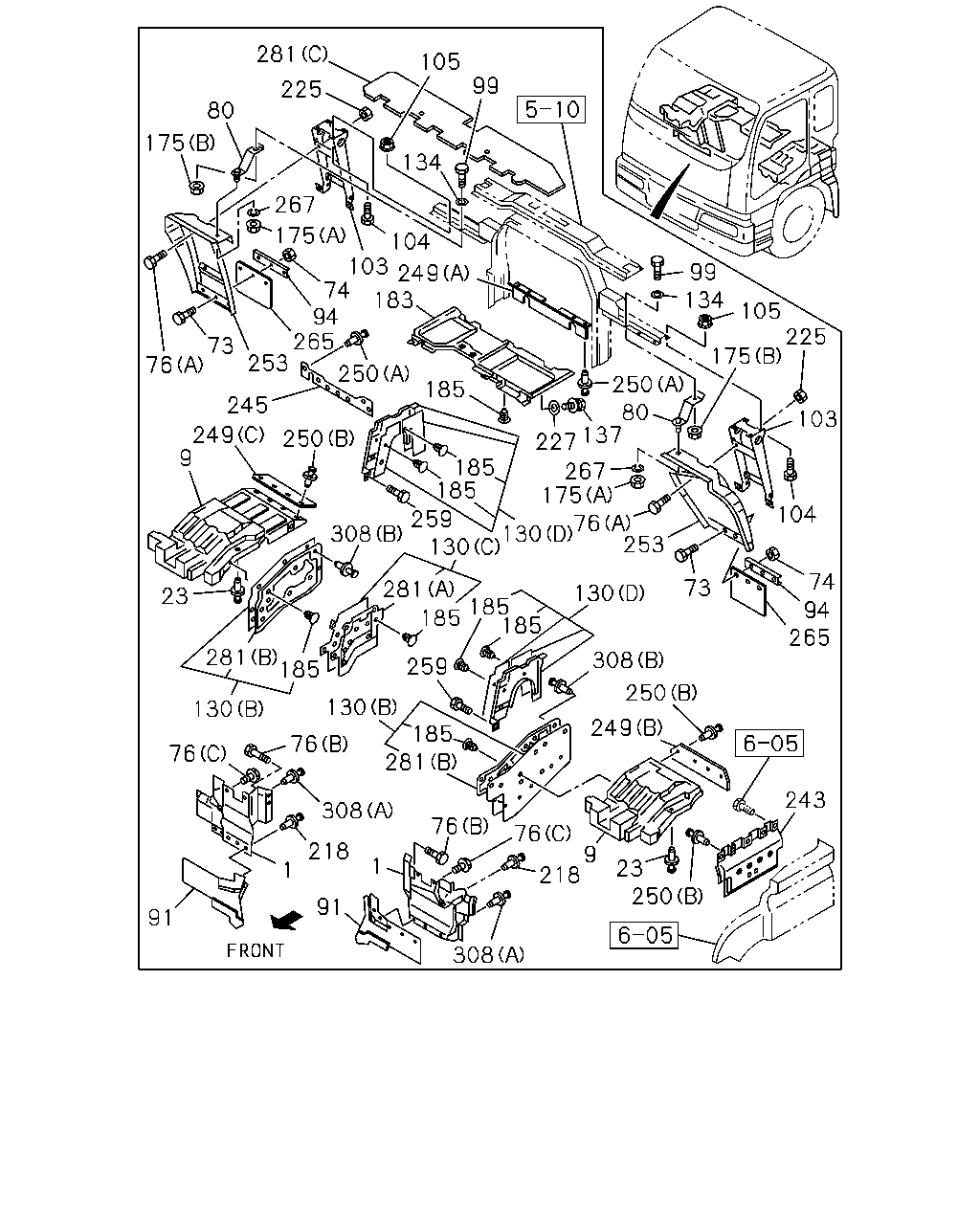

çizim 6913
281 105 99 225 80 175 134 267 175 104 103 249 74 183 94 265 253 99 134 105 225 175 73 76 250 250 80 137 227 185 103 245 249 9 250 185 185 267 175 104 259 76 308 130 130 253 74 73 281 281 185 130 23 185 185 94 265 185 308 259 250 130 130 249 185 76 76 76 281 243 308 76 218 9 218 1 23 1 250 91 91 308
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9604-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9604-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-893-3 01 1 9604-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-892-3 01 1 9604-
23 FASTENER; MUD COVER
SPLASH GUARD D8X13.5 		1-09987-248-1 23 1 9604-9710
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711-
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 9604-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9604-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9604-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9604-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9604-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9604-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9604-9908
91 COVER; MUD,FRT 1-79931-200-1 01 1 9909-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9604-9908
91 COVER; MUD,FRT 1-79931-199-1 01 1 9909-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9604-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 02 1 9604-9606
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9609
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 9610-9804
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9805-9904
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 9905-0001
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0002-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 9604-
104 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 07 1 9604-9606
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 9607-
105 NUT; BRKT
M10 FLANGE 		0-91150-110-0 07 1 9604-9606
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 9607-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-196-2 01 1 9604-0001
130 PANEL; SHUTTER NOISE
8PE1S(59L) (A) 		1-53193-196-2 01 1 0002-
130 PANEL; SHUTTER NOISE
(D) ENG SIDE REAR 		1-79937-920-2 01 1 9604-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-215-0 01 1 9604-0001
130 PANEL; SHUTTER NOISE
8PE1S(59L) (A) 		1-53193-215-0 01 1 0002-
130 PANEL; SHUTTER NOISE
(B) ENG SIDE FRONT 		1-79937-952-3 01 1 9604-
130 PANEL; SHUTTER NOISE
PARKING BRAKE TRANSFER REAR(WB5) (B) ENG SIDE FRONT 		1-79937-953-3 01 1 9604-
130 PANEL; SHUTTER NOISE
PARKING BRAKE TRANSFER REAR(WB5) (C) ENG SIDE REAR 		1-79937-917-2 01 1 9604-
130 PANEL; SHUTTER NOISE
PARKING BRAKE TRANSFER REAR(WB5) (D) ENG SIDE REAR 		1-79937-919-2 01 1 9604-
130 PANEL; SHUTTER NOISE
EXC. PARKING BRAKE TRANSFER REAR(WB5) (B) ENG SIDE FRONT 		1-79937-916-4 01 1 9604-
130 PANEL; SHUTTER NOISE
EXC. PARKING BRAKE TRANSFER REAR(WB5) (C) ENG SIDE REAR 		1-79937-971-2 01 1 9604-
130 PANEL; SHUTTER NOISE
10PE1N(61L) (A) 		1-53193-203-2 01 1 0002-
130 PANEL; SHUTTER NOISE
10PE1N(61L) (A) 		1-53193-210-1 01 1 0002-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805-9904
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0002-
137 BOLT
BED PAN M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9604-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9604-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 02 1 9604-9606
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 9607-9804
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9805-9904
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 9905-0001
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0002-
183 INSULATOR; HEAT,BED PAN
PARKING BRAKE TRANSFER REAR(WB5) 		1-71907-169-2 01 1 9604-9705
183 INSULATOR; HEAT,BED PAN
PARKING BRAKE TRANSFER REAR(WB5) 		1-71907-506-0 01 1 9706-9711
183 INSULATOR; HEAT,BED PAN
PARKING BRAKE TRANSFER REAR(WB5) 		1-71907-526-2 01 1 9712-
183 INSULATOR; HEAT,BED PAN
SPRING BRAKE(SU9) 		1-71907-374-0 01 1 9604-9705
183 INSULATOR; HEAT,BED PAN
SPRING BRAKE(SU9) 		1-71907-507-0 01 1 9706-9711
183 INSULATOR; HEAT,BED PAN
SPRING BRAKE(SU9) 		1-71907-539-2 01 1 9712-
185 CLIP; HEAT INSULATOR
ENG SIDE ID=6.2 L=11.4 		8-97808-623-0 18 1 9604-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
185 CLIP; HEAT INSULATOR
ENG SIDE ID=6.2 L=11.4 		8-97808-623-0 05 1 9604-
185 CLIP; HEAT INSULATOR
PARKING BRAKE TRANSFER REAR(WB5) BED PAN ID=6.2 L=11.4 		8-97808-623-0 06 1 9604-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-0 08 1 9604-9606
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 9607-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9604-
227 SEAL; MUD GUARD
BED PAN T=2.0 		8-94279-641-0 01 1 9604-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9604-
245 RUBBER; SHUTTER,RAD 1-79937-949-0 01 1 9604-
249 RUBBER; SHUTTER
(B) SPLASH 		1-79937-902-2 01 1 9604-
249 RUBBER; SHUTTER
(A) ENG REAR 		1-79937-924-1 01 1 9604-
249 RUBBER; SHUTTER
(C) SPLASH 		1-79937-975-0 01 1 9604-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 12 1 9604-9904
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9905-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9604-
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9604-
253 GUARD; MUD 1-79931-066-7 01 1 9604-
253 GUARD; MUD 1-79931-064-7 01 1 9604-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9604-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9604-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9604-
281 INSULATOR; NOISE
(B) ENG SIDE FRONT 		1-79937-956-1 01 1 9604-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) BED PAN 		1-73237-445-3 01 1 9604-
281 INSULATOR; NOISE
PARKING BRAKE TRANSFER REAR(WB5) (B) ENG SIDE FRONT 		1-79937-957-1 01 1 9604-
281 INSULATOR; NOISE
PARKING BRAKE TRANSFER REAR(WB5) (A) ENG SIDE REAR 		1-71907-166-0 01 1 9604-
281 INSULATOR; NOISE
EXC. PARKING BRAKE TRANSFER REAR(WB5) (B) ENG SIDE FRONT 		1-71907-171-2 01 1 9604-
281 INSULATOR; NOISE
EXC. PARKING BRAKE TRANSFER REAR(WB5) (A) ENG SIDE REAR 		1-71907-420-0 01 1 9604-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9604-
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9604-9801
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802-
