◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#63631) — 37 parça

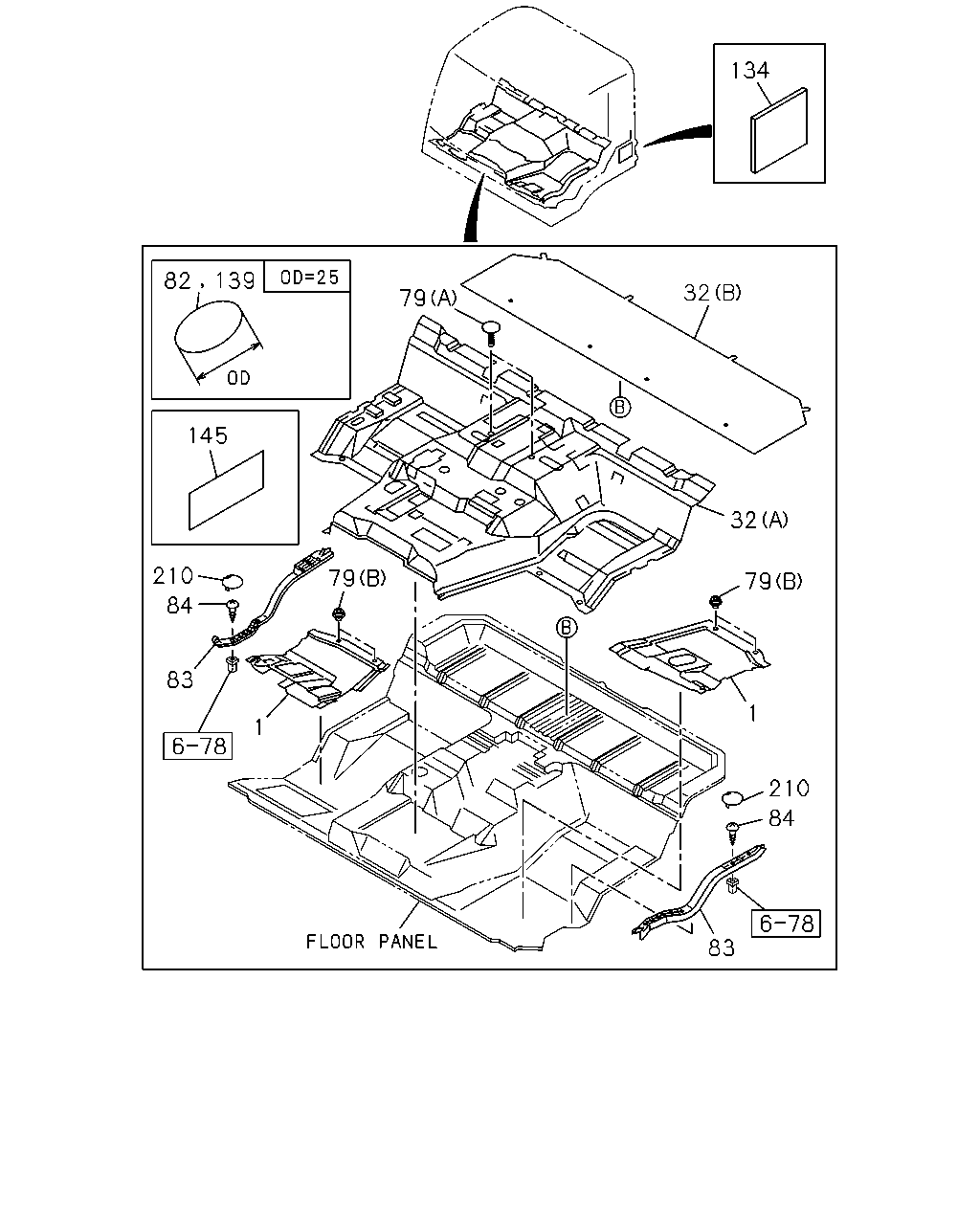

çizim 170786
134 32 32 79 210 84 83 1 83 84 210 79 145 82 139 79
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-866-1 01 1 1008-1306
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-865-1 01 1 1008-1306
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-860-4 01 1 1008-1306
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) (B) 		1-73237-867-1 01 1 1008-1306
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 1008-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1008-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 1008-1306
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1008-1306
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1307-
83 PLATE; KICKING,FLOOR MAT 8-98132-636-3 01 1 1008-1306
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1307-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1008-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1008-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 1008-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1008-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1008-

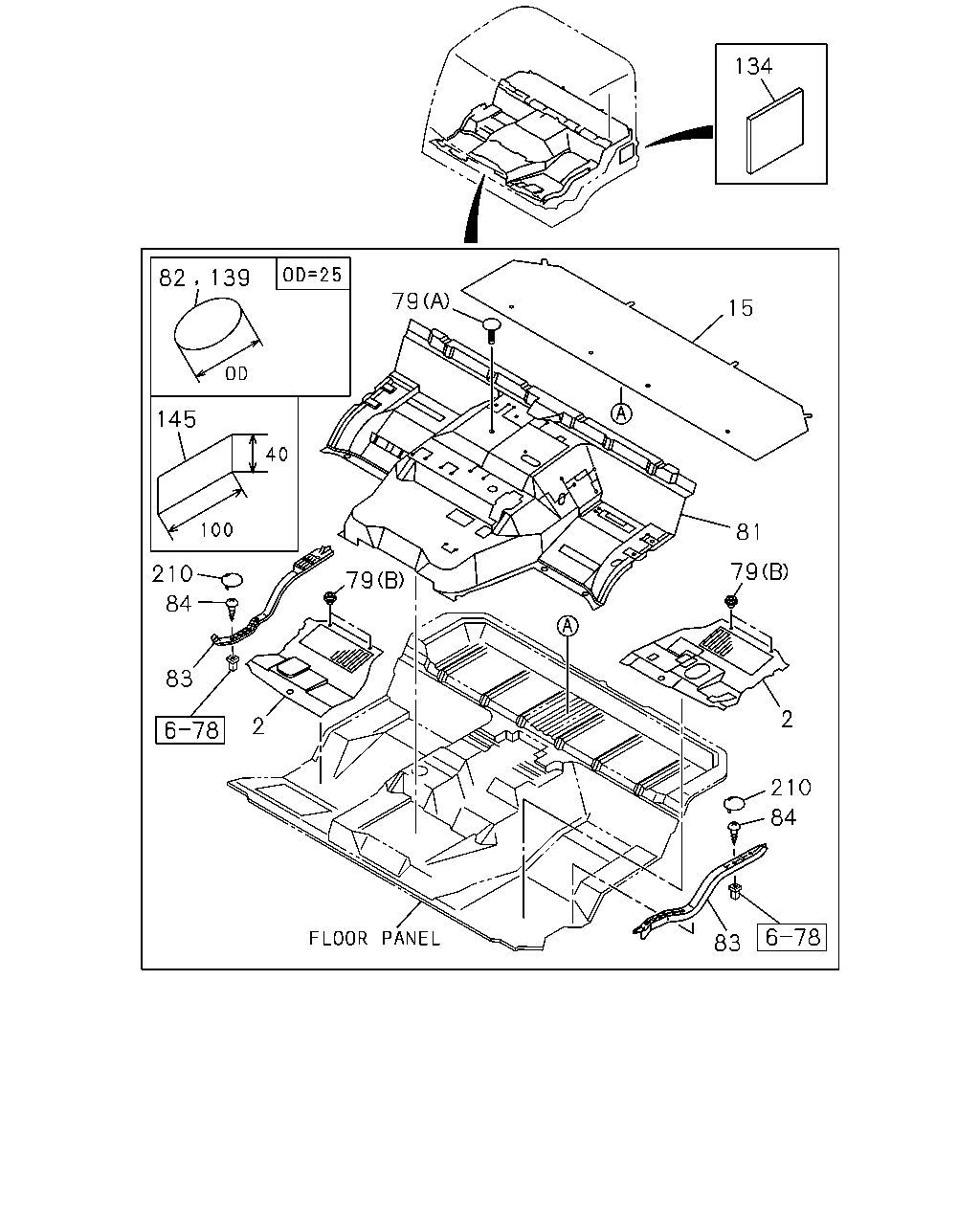

çizim 170787
134 15 79 82 139 145 210 84 83 2 79 83 84 210 2 79 81
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR 1-73237-787-1 01 1 1008-
2 MAT; FLOOR 1-73237-785-1 01 1 1008-
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-831-1 01 1 1008-1306
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 1008-1306
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 1307-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 1008-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1008-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-830-2 01 1 1008-1306
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) 		1-73237-830-2 01 1 1307-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 1008-1306
81 MAT; FLOOR,CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-73237-813-3 01 1 1307-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 1008-1306
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1008-1306
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 1307-
83 PLATE; KICKING,FLOOR MAT 8-98132-636-3 01 1 1008-1306
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 1307-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1008-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 1008-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 1008-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1008-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1008-
