Isuzu WW
▶
TRUCKS
▶
CVR
▶
10723 - CVR LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

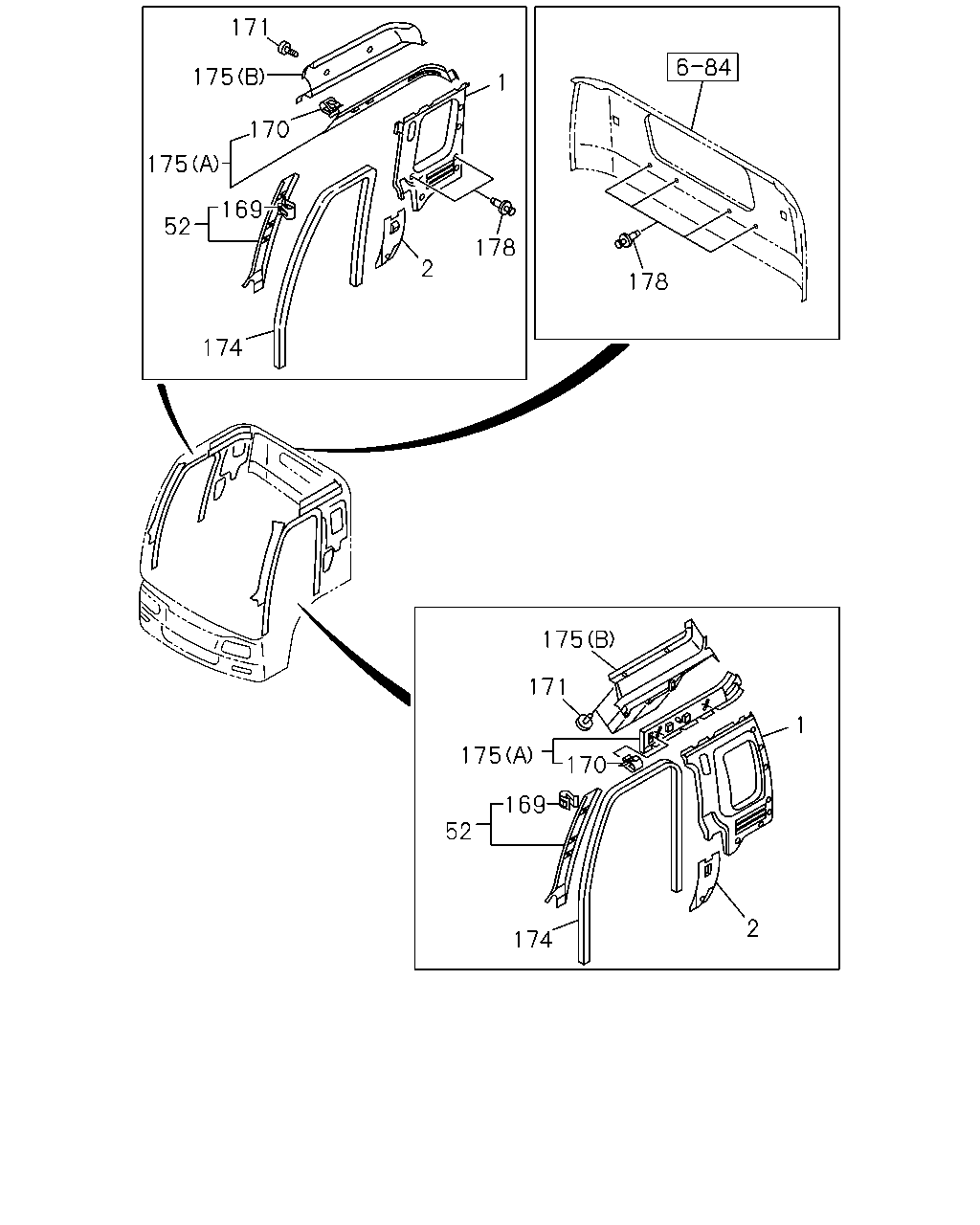

6-43 — SIDE TRIM
(#6363) — 15 parça
171
175
1
170
175
169
52
178
2
178
174
175
171
1
175
170
169
52
2
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRIM; ROOM,QUARTER WINDOW UPR
1-73347-800-3
01
1
9604-
1
TRIM; ROOM,QUARTER WINDOW UPR
1-73347-799-3
01
1
9604-
2
TRIM; ROOM,QUARTER WINDOW LWR
1-73347-780-8
01
1
9604-
2
TRIM; ROOM,QUARTER WINDOW LWR
1-73347-779-8
01
1
9604-
52
COVER; TRIM,FRT PILLAR
1-73348-484-3
01
1
9604-
52
COVER; TRIM,FRT PILLAR
1-73348-483-3
01
1
9604-
169
CLIP; TRIM COVER,FRT PILLAR
8-94313-458-0
02
1
9604-
170
CLIP; HOLE
8-94313-458-0
04
1
9604-
171
CLIP; TRIM PAD
HIGH ROOF<S2F> D6X23 DARK GRAY
1-09987-238-0
54
1
9905-
174
FINISHER; BODY SIDE
1-76718-175-3
02
1
9604-
175
COVER; TRIM,SIDE
(A)
1-73347-761-3
01
1
9604-
175
COVER; TRIM,SIDE
(A)
1-73347-797-1
01
1
9604-
175
COVER; TRIM,SIDE
HIGH ROOF<S2F> (B)
1-73347-745-1
01
1
9905-
175
COVER; TRIM,SIDE
HIGH ROOF<S2F> (B)
1-73347-744-1
01
1
9905-
178
CLIP; TRIM COVER
OD=6.2 DARK GRAY
1-09983-167-0
09
1
9604-
