6-47 — MUD GUARD AND INSULATOR (#63627) — 150 parça

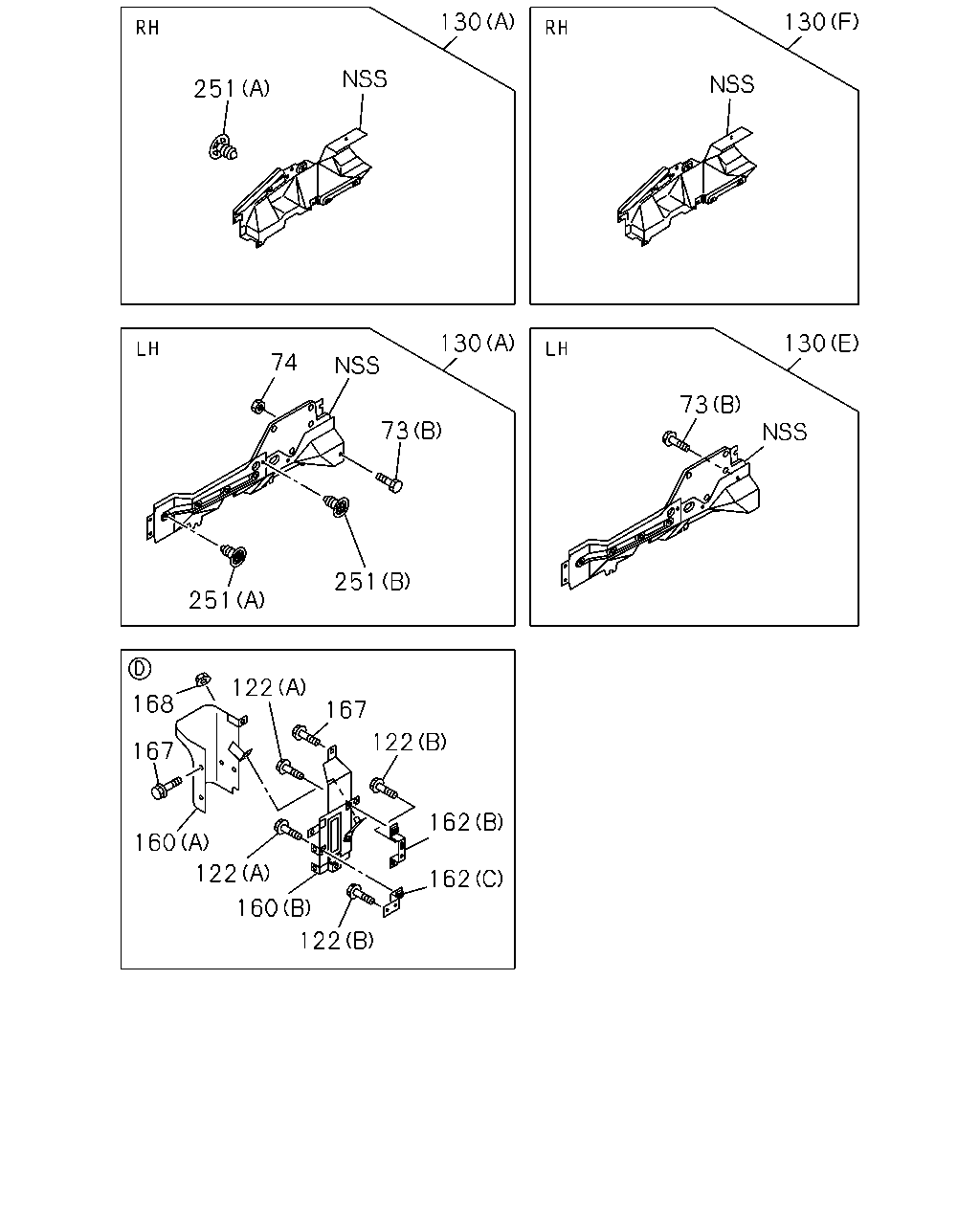

çizim 170713
162 162 122 167 122 168 167 160 122 160 122 251 251 73 74 251 130 130 130 73 130
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008-1306
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008-1306
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1008-1306
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1307-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1008-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(G) 		8-98243-959-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(F) 		1-53194-386-1 01 1 1307-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(E) 		8-98240-672-0 01 1 1307-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-1306
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-408-4 01 1 1008-1207
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-412-1 01 1 1008-
162 BRACKET
(A) 		1-53441-520-0 02 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008-
168 NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 01 1 1008-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1008-1306
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1008-1306
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1008-1306

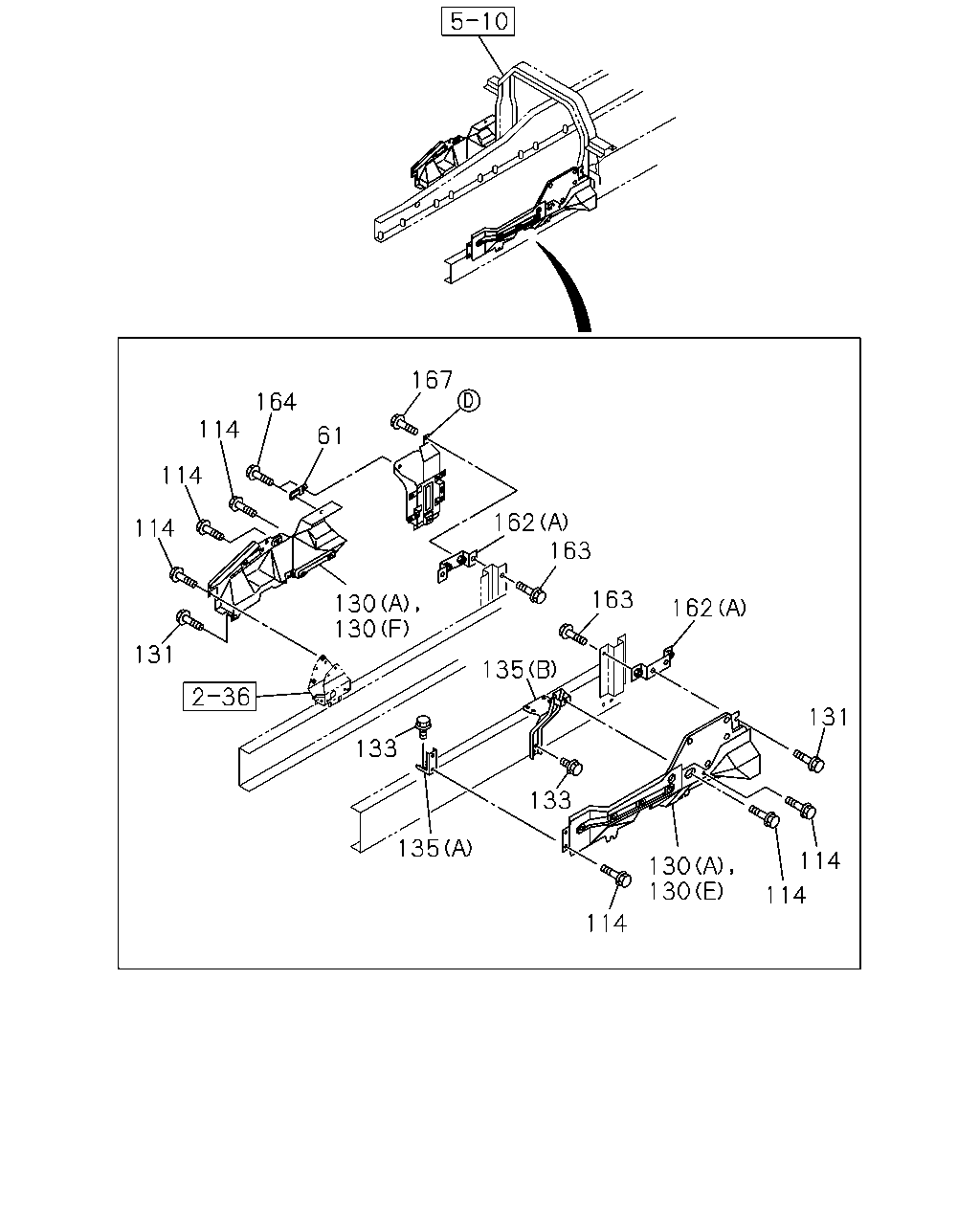

çizim 170720
114 114 131 114 130 130 133 162 163 163 162 130 130 133 131 114 114 114 164 167 61 135 135
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98039-501-1 01 1 1008-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 1008-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1008-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(G) 		8-98243-959-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(F) 		1-53194-386-1 01 1 1307-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(E) 		8-98240-672-0 01 1 1307-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-1306
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1307-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1008-1306
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 1008-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1008-1306
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1307-
162 BRACKET
(A) 		1-53441-520-0 02 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
164 BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1008-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008-

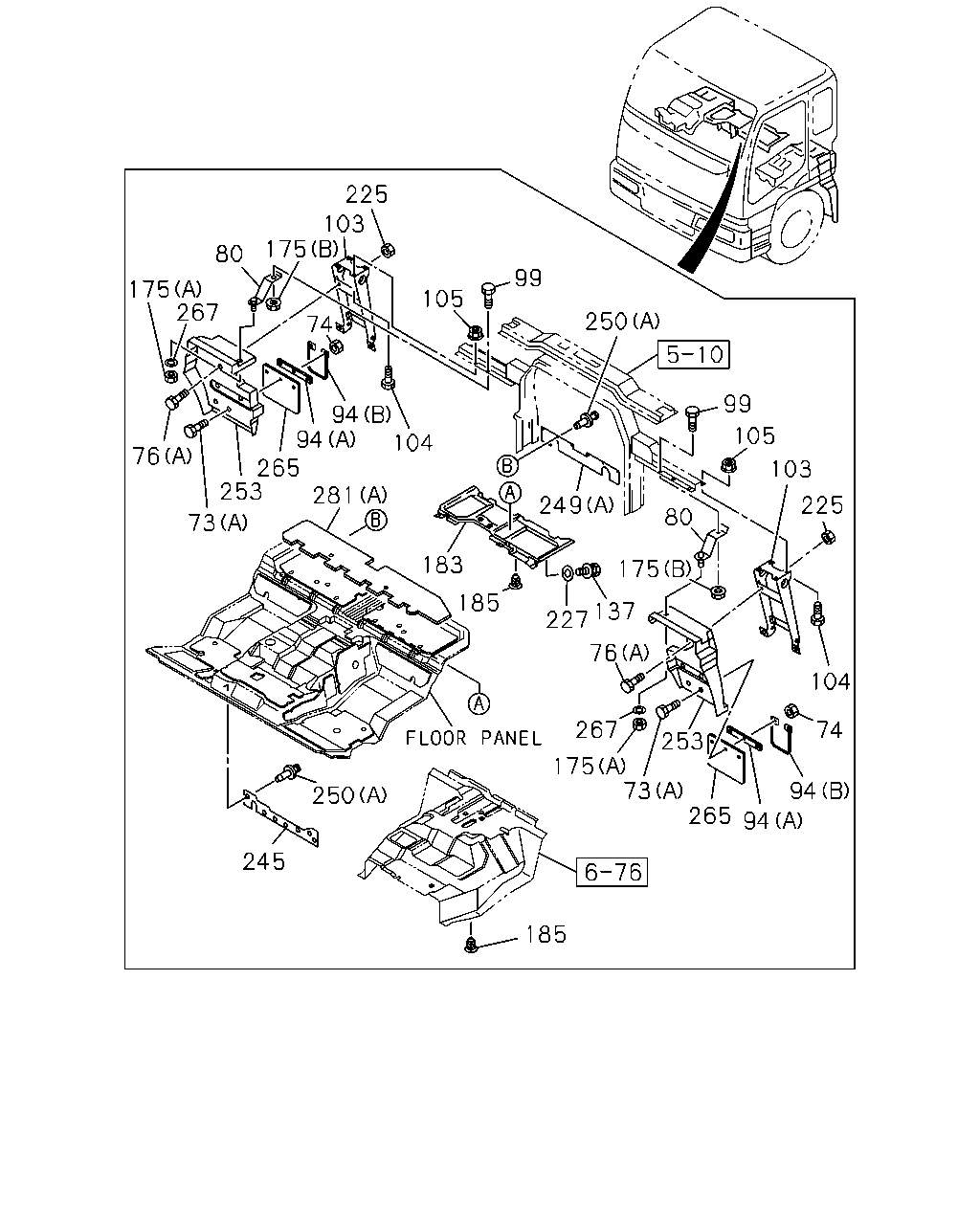

çizim 170794
245 250 185 175 73 267 253 265 94 94 104 74 225 103 105 99 80 175 137 227 76 185 183 249 250 99 105 225 103 175 80 175 76 73 253 265 94 94 281 104 267 74
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008-1306
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1307-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008-1306
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1008-1306
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1307-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1008-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1008-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1008-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1008-
103 BRACKET ASM; RR MUD FLAP 1-79931-446-0 01 1 1008-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-894-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1008-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1008-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1008-1306
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1307-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1008-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1008-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008-1306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1307-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1307-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1008-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1008-
245 RUBBER; SHUTTER,RAD 8-98198-739-0 01 1 1307-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008-1306
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1307-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-1306
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008-
253 GUARD; MUD 8-98134-766-1 01 1 1008-
253 GUARD; MUD
SILENCER SINGLE VERTICAL<N28> 		8-98134-760-0 01 1 1008-1306
253 GUARD; MUD
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98134-759-0 01 1 1008-1306
253 GUARD; MUD 8-98134-759-0 01 1 1307-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1008-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1008-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008-
281 INSULATOR; NOISE
(C) 		1-71907-825-0 01 1 1307-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008-

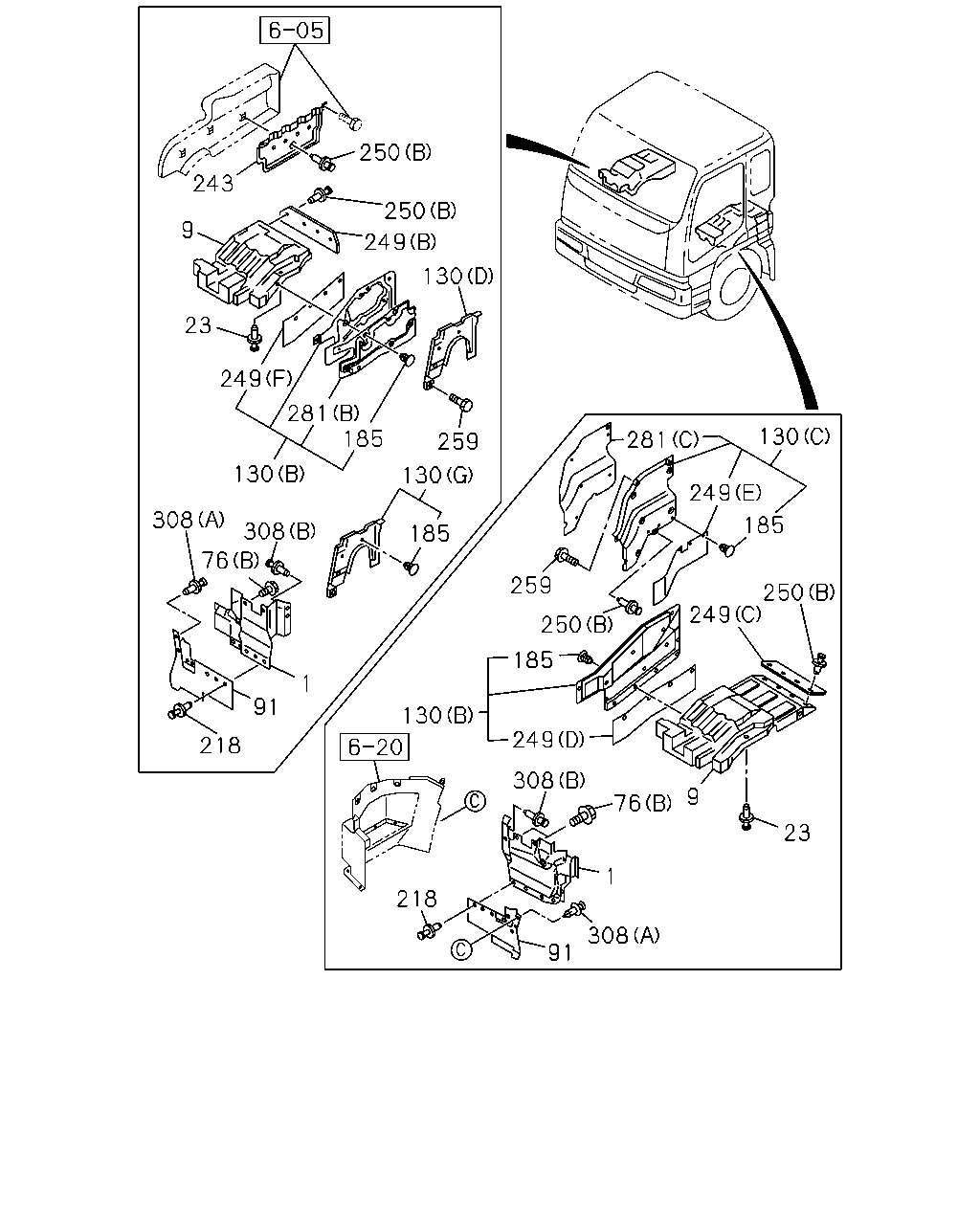

çizim 170809
281 249 130 185 250 249 250 259 185 249 76 9 23 1 308 308 91 218 130 91 1 218 185 130 259 76 308 130 308 185 281 249 23 130 249 250 250 243 9
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1008-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1008-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1008-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1008-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1008-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
91 COVER; MUD,FRT 8-98134-826-2 01 1 1008-
91 COVER; MUD,FRT 8-98134-825-2 01 1 1008-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(C) 		1-79947-081-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(G) 		8-98243-959-0 01 1 1307-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(F) 		1-53194-386-1 01 1 1307-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-1306
130 PANEL; SHUTTER NOISE
(E) 		8-98240-672-0 01 1 1307-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-1306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008-1306
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1307-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 26 1 1307-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1008-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1008-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008-1306
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 1307-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-1306
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1307-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1008-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008-
281 INSULATOR; NOISE
(C) 		1-71907-825-0 01 1 1307-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1008-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1008-
