◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#63616) — 521 parça

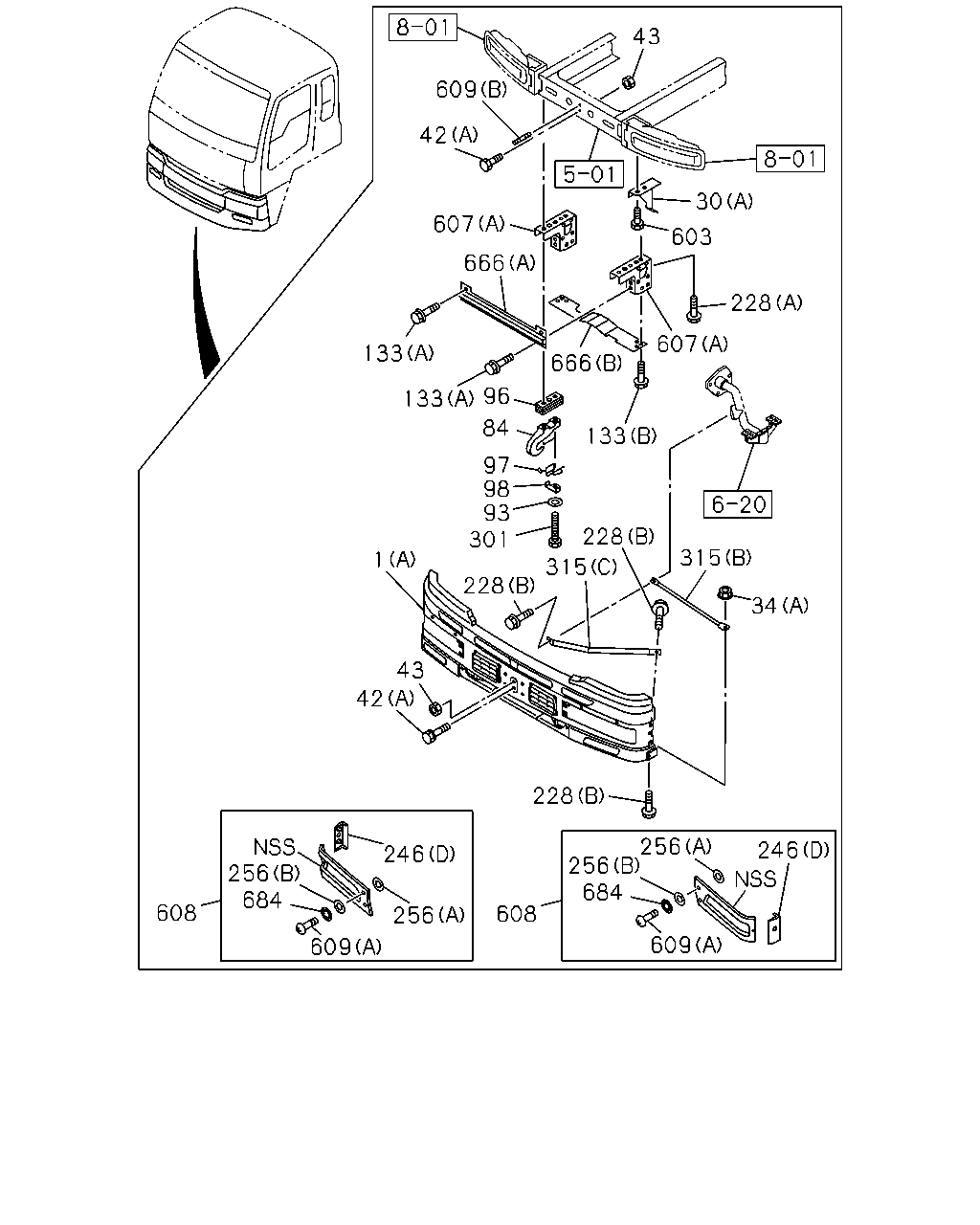

çizim 170716
609 42 607 133 666 133 1 42 43 96 97 84 98 301 228 43 30 603 228 607 666 133 228 315 315 34 228 608 246 256 684 609 256 608 256 684 256 609 246 93
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE 		8-97466-340-0 01 1 1501-
1 BUMPER ASM; FRT
(A) 		8-98138-769-3 01 1 1008-1306
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (C) WHITE 		8-97424-794-3 01 1 1307-1412
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE 		8-97424-794-3 01 1 1501-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (B) WHITE 		8-97417-846-3 01 1 1307-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98218-616-3 01 1 1411-1411
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98302-073-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98218-617-3 01 1 1411-1411
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98302-074-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98236-332-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98236-334-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (F) 		8-98286-691-0 01 1 1411-1412
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (F) 		8-98286-692-0 01 1 1411-1412
30 BRACKET; FRT BUMPER
(A) 		1-71230-638-0 01 1 1008-1306
30 BRACKET; FRT BUMPER
(C) 		8-98135-977-1 01 1 1307-1410
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98135-977-1 01 1 1411-
30 BRACKET; FRT BUMPER
(A) 		1-71230-639-0 01 1 1008-1306
30 BRACKET; FRT BUMPER
(C) 		8-98135-978-1 01 1 1307-1410
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98135-978-1 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> (B) 		8-98139-907-0 01 1 1307-1410
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-907-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> (B) 		8-98139-909-0 01 1 1307-1410
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-909-0 01 1 1411-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
34 NUT; BRKT,BUMPER
(C) M6 FLANGE 		0-91180-106-0 02 1 1307-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(D) M10 FLANGE 		0-91180-110-0 04 1 1307-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-1306
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1411-
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE>,FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1411-
42 BOLT; BUMPER
(A) M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 1008-1306
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1307-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 16 1 1411-1412
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1501-
42 BOLT; BUMPER
EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1411-1412
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 1008-1306
84 HOOK 1-57181-027-1 01 1 1008-1306
84 HOOK 8-98126-930-0 01 1 1307-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1008-
96 PLATE; DIST,HOOK
FRONT UNDER RUN PROTECTOR<EBE> 		8-98218-989-0 01 1 1411-
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 1008-1306
96 PLATE; DIST,HOOK 8-98169-197-0 01 1 1307-1410
96 PLATE; DIST,HOOK
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98169-197-0 01 1 1411-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 1008-1306
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 1008-1306
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 04 1 1008-1306
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 1008-1207
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208-1306
228 BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> (C) M16X40 FLANGE 		0-28851-640-0 10 1 1411-
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 1008-1306
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1008-1306
228 BOLT; BRKT
(C) M16X35 FLANGE 		0-28851-635-0 06 1 1307-1410
228 BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE 		0-28851-635-0 06 1 1411-1503
228 BOLT; BRKT
(C) M16X35 FLANGE 		0-28851-635-0 06 1 1504-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 1008-1306
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 1008-1306
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 1008-1306
246 PROTECTOR; BUMPER
(D) 		8-98139-105-1 01 1 1008-1306
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 1008-1306
246 PROTECTOR; BUMPER
(D) 		8-98139-104-1 01 1 1008-1306
256 WASHER; PL
(A) 		1-71260-173-0 06 1 1008-1306
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 1008-1306
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 1008-1306
301 BOLT; HOOK TO FRAME
M16X110 		8-98074-591-0 02 1 1307-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 1008-1306
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 1008-1306
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 1008-1306
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 1008-1306
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 1008-1306
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 1008-1306
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1008-1306
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-472-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-473-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-441-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-442-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-156-2 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-157-2 01 1 1411-
607 BRACKET
(A) 		8-97608-469-3 01 1 1008-1306
607 BRACKET
(C) 		8-98147-053-0 02 1 1307-
607 BRACKET
(A) 		8-97608-470-3 01 1 1008-1306
607 BRACKET
(B) 		8-98147-054-0 02 1 1307-
607 BRACKET
(D) 		8-98211-759-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-759-0 01 1 1411-
607 BRACKET
(D) 		8-98211-758-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-758-0 01 1 1411-
608 LID; BUMPER 8-98138-789-3 01 1 1008-1306
608 LID; BUMPER 8-98138-788-3 01 1 1008-1306
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 1008-1306
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 1008-1306
666 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98172-164-0 01 1 1411-
666 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (C) 		8-98220-526-0 01 1 1411-
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1008-1306
666 PROTECTOR; UNDER
(C) 		8-98198-583-0 01 1 1307-1410
666 PROTECTOR; UNDER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98198-583-0 01 1 1411-
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 1008-1306
684 WASHER 8-98148-221-0 06 1 1008-1306

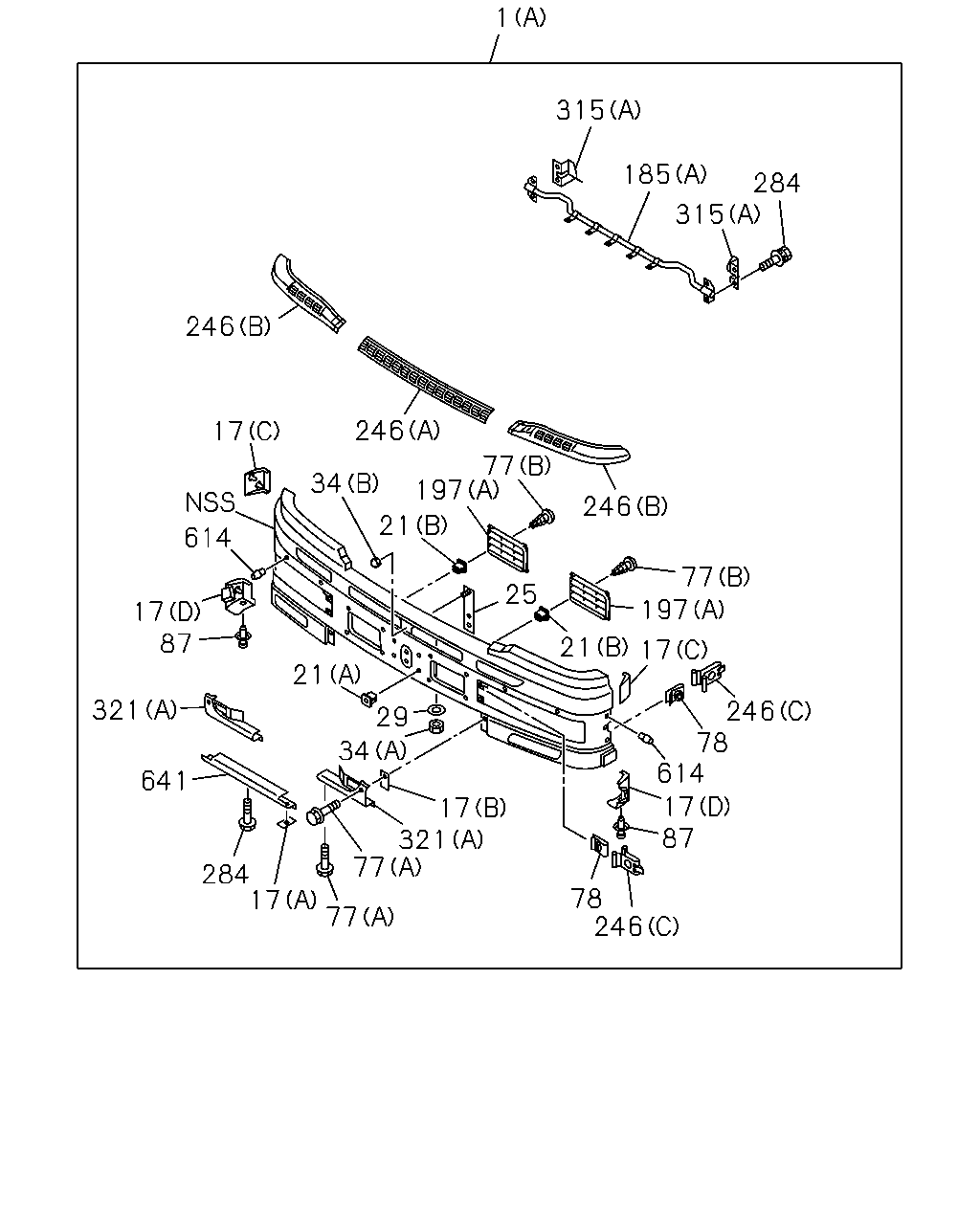

çizim 170722
1 315 185 315 284 246 17 614 17 87 321 641 284 17 77 21 34 246 21 197 77 25 29 34 77 17 321 78 246 87 614 21 246 77 197 17 246 78 17
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE 		8-97466-340-0 01 1 1501-
1 BUMPER ASM; FRT
(A) 		8-98138-769-3 01 1 1008-1306
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (C) WHITE 		8-97424-794-3 01 1 1307-1412
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE 		8-97424-794-3 01 1 1501-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (B) WHITE 		8-97417-846-3 01 1 1307-
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 1008-1306
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 1008-1306
17 PROTECTOR; FRT BUMPER
(C) 		8-98139-103-1 01 1 1008-1306
17 PROTECTOR; FRT BUMPER
(D) 		8-98139-107-2 01 1 1008-1306
17 PROTECTOR; FRT BUMPER
(C) 		8-98139-102-1 01 1 1008-1306
17 PROTECTOR; FRT BUMPER
(D) 		8-98139-106-2 01 1 1008-1306
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1008-1306
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008-
25 SPACER; PLATFORM 1-71230-640-0 01 1 1008-1306
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
34 NUT; BRKT,BUMPER
(C) M6 FLANGE 		0-91180-106-0 02 1 1307-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(D) M10 FLANGE 		0-91180-110-0 04 1 1307-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-1306
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 1008-1306
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 1008-1306
78 NUT; SPIRE 1-71260-174-0 06 1 1008-1306
87 RIVET; POP,FRT BUMPER
D8X13.5 		1-09987-248-1 02 1 1008-1306
185 BRACKET; BUMPER,INNER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98302-730-0 01 1 1501-
185 BRACKET; BUMPER,INNER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98302-731-0 01 1 1501-
185 BRACKET; BUMPER,INNER
(A) 		1-71230-610-0 01 1 1008-1306
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> (B) 		8-98139-739-0 02 1 1307-1412
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-739-0 02 1 1501-
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 1008-1306
197 GRILLE; BUMPER
(B) 		8-98144-188-4 01 1 1307-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 1008-1306
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 1008-1306
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 1008-1306
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 1008-1306
246 PROTECTOR; BUMPER
(D) 		8-98139-105-1 01 1 1008-1306
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 1008-1306
246 PROTECTOR; BUMPER
(D) 		8-98139-104-1 01 1 1008-1306
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 1008-1306
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1008-1306
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 1008-1306
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 1008-1306
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 1008-1306
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 1008-1306
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-263-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(C) 		8-98132-737-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-264-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1307-
614 STOPPER; LID 1-71260-163-0 12 1 1008-1306
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 1008-1306

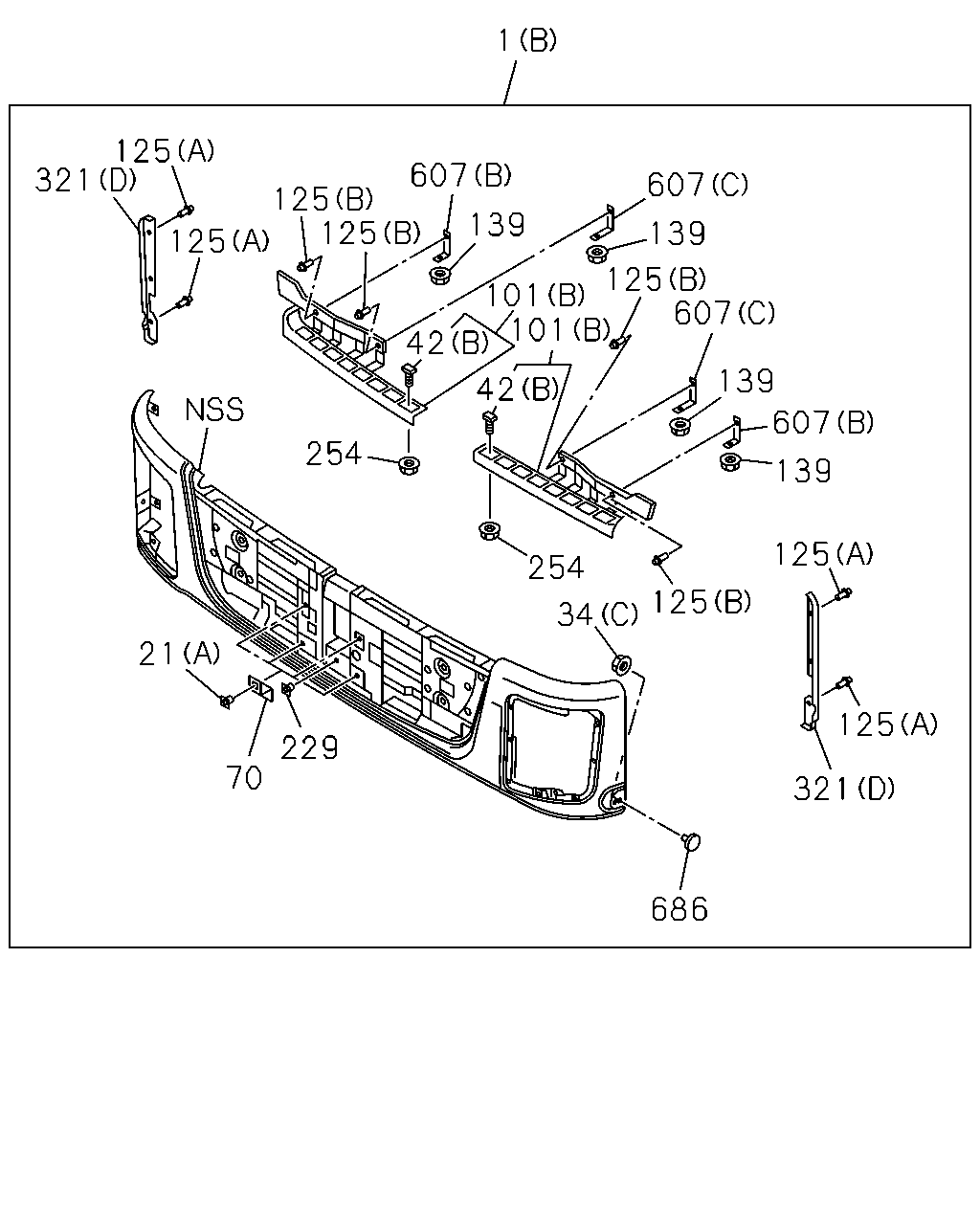

çizim 364826
321 125 125 125 34 254 254 125 125 125 321 1 607 125 607 125 139 139 607 607 101 139 42 101 42 139 21 70 386 229
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE 		8-97466-340-0 01 1 1501-
1 BUMPER ASM; FRT
(A) 		8-98138-769-3 01 1 1008-1306
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (C) WHITE 		8-97424-794-3 01 1 1307-1412
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE 		8-97424-794-3 01 1 1501-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (B) WHITE 		8-97417-846-3 01 1 1307-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1008-1306
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
34 NUT; BRKT,BUMPER
(C) M6 FLANGE 		0-91180-106-0 02 1 1307-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(D) M10 FLANGE 		0-91180-110-0 04 1 1307-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-1306
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1411-
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE>,FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1411-
42 BOLT; BUMPER
(A) M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 1008-1306
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1307-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 16 1 1411-1412
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1501-
42 BOLT; BUMPER
EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1411-1412
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1307-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1307-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1307-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1307-
125 CLIP; STEP
EXC. FRONT SPOILER<VP1> (A) 		8-98157-186-0 06 1 1307-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1307-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1307-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-263-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(C) 		8-98132-737-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-264-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1307-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-472-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-473-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-441-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-442-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-156-2 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-157-2 01 1 1411-
607 BRACKET
(A) 		8-97608-469-3 01 1 1008-1306
607 BRACKET
(C) 		8-98147-053-0 02 1 1307-
607 BRACKET
(A) 		8-97608-470-3 01 1 1008-1306
607 BRACKET
(B) 		8-98147-054-0 02 1 1307-
607 BRACKET
(D) 		8-98211-759-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-759-0 01 1 1411-
607 BRACKET
(D) 		8-98211-758-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-758-0 01 1 1411-

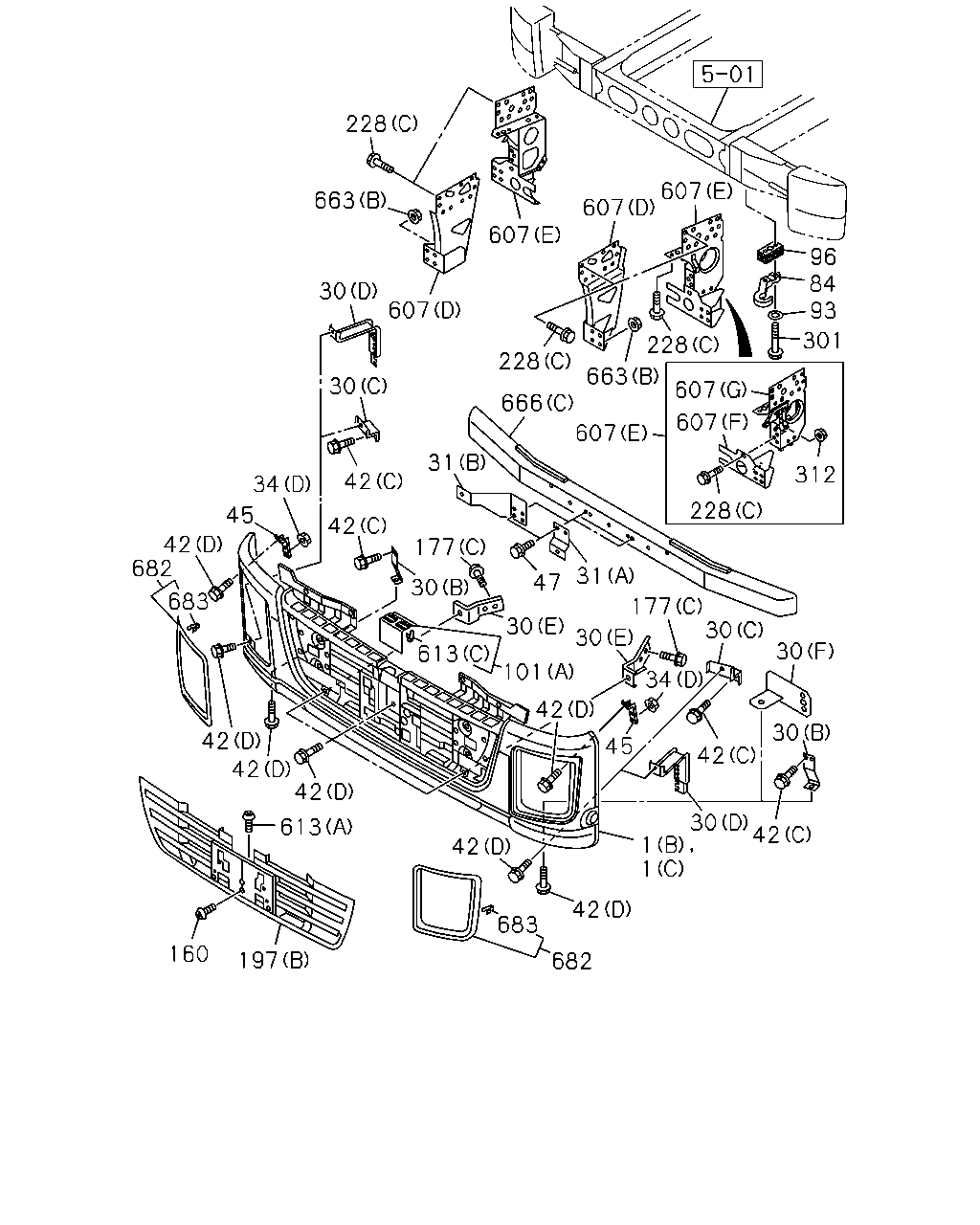

çizim 365629
228 663 30 607 607 228 666 663 607 228 607 607 228 312 301 93 84 96 607 607 30 42 31 42 177 30 613 47 31 177 30 30 101 42 30 34 45 42 30 30 42 30 1 1 42 42 682 683 613 42 42 42 197 160 683 682 34 45 42
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE 		8-97466-340-0 01 1 1501-
1 BUMPER ASM; FRT
(A) 		8-98138-769-3 01 1 1008-1306
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (C) WHITE 		8-97424-794-3 01 1 1307-1412
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE 		8-97424-794-3 01 1 1501-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (B) WHITE 		8-97417-846-3 01 1 1307-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98218-616-3 01 1 1411-1411
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98302-073-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98218-617-3 01 1 1411-1411
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98302-074-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98236-332-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98236-334-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (F) 		8-98286-691-0 01 1 1411-1412
30 BRACKET; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (F) 		8-98286-692-0 01 1 1411-1412
30 BRACKET; FRT BUMPER
(A) 		1-71230-638-0 01 1 1008-1306
30 BRACKET; FRT BUMPER
(C) 		8-98135-977-1 01 1 1307-1410
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98135-977-1 01 1 1411-
30 BRACKET; FRT BUMPER
(A) 		1-71230-639-0 01 1 1008-1306
30 BRACKET; FRT BUMPER
(C) 		8-98135-978-1 01 1 1307-1410
30 BRACKET; FRT BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98135-978-1 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> (B) 		8-98139-907-0 01 1 1307-1410
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-907-0 01 1 1411-
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> (B) 		8-98139-909-0 01 1 1307-1410
30 BRACKET; FRT BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-909-0 01 1 1411-
31 SUPPORT; FRT BUMPER,LWR
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) 		8-98286-670-0 01 1 1411-1412
31 SUPPORT; FRT BUMPER,LWR
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) 		8-98286-671-0 01 1 1411-1412
31 SUPPORT; FRT BUMPER,LWR
FRONT SPOILER<VP1> (A) 		8-98139-742-0 02 1 1307-1410
31 SUPPORT; FRT BUMPER,LWR
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98139-742-0 02 1 1411-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
34 NUT; BRKT,BUMPER
(C) M6 FLANGE 		0-91180-106-0 02 1 1307-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(D) M10 FLANGE 		0-91180-110-0 04 1 1307-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-1306
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1411-
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE>,FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1411-
42 BOLT; BUMPER
(A) M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 1008-1306
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1307-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 16 1 1411-1412
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1501-
42 BOLT; BUMPER
EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1411-1412
45 BRACKET; BRKT TO BUMPER 8-98126-935-2 02 1 1307-
47 BOLT; SUPPORT TO BODY
FRONT SPOILER<VP1> M10X30 FLANGE 		0-28051-030-0 04 1 1307-1412
47 BOLT; SUPPORT TO BODY
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M10X30 FLANGE 		0-28051-030-0 04 1 1501-
84 HOOK 1-57181-027-1 01 1 1008-1306
84 HOOK 8-98126-930-0 01 1 1307-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1008-
96 PLATE; DIST,HOOK
FRONT UNDER RUN PROTECTOR<EBE> 		8-98218-989-0 01 1 1411-
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 1008-1306
96 PLATE; DIST,HOOK 8-98169-197-0 01 1 1307-1410
96 PLATE; DIST,HOOK
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98169-197-0 01 1 1411-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1307-
160 SCREW
M5X16 		8-94380-268-0 01 1 1307-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE 		0-28051-020-0 02 1 1501-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE 		0-28650-820-0 04 1 1411-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1307-1410
177 BOLT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1411-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1307-
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 1008-1306
197 GRILLE; BUMPER
(B) 		8-98144-188-4 01 1 1307-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 1008-1306
228 BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> (C) M16X40 FLANGE 		0-28851-640-0 10 1 1411-
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 1008-1306
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1008-1306
228 BOLT; BRKT
(C) M16X35 FLANGE 		0-28851-635-0 06 1 1307-1410
228 BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M16X35 FLANGE 		0-28851-635-0 06 1 1411-1503
228 BOLT; BRKT
(C) M16X35 FLANGE 		0-28851-635-0 06 1 1504-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 1008-1306
301 BOLT; HOOK TO FRAME
M16X110 		8-98074-591-0 02 1 1307-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 1008-1306
312 NUT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> M16 		0-91110-516-0 02 1 1504-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-472-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-473-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-441-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-442-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-156-2 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-157-2 01 1 1411-
607 BRACKET
(A) 		8-97608-469-3 01 1 1008-1306
607 BRACKET
(C) 		8-98147-053-0 02 1 1307-
607 BRACKET
(A) 		8-97608-470-3 01 1 1008-1306
607 BRACKET
(B) 		8-98147-054-0 02 1 1307-
607 BRACKET
(D) 		8-98211-759-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-759-0 01 1 1411-
607 BRACKET
(D) 		8-98211-758-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-758-0 01 1 1411-
613 CLIP
(D) 		8-97581-651-2 04 1 1307-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1307-
613 CLIP
(B) 		8-98025-698-0 08 1 1307-
613 CLIP
(C) 		8-98144-173-1 06 1 1307-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1307-1410
663 NUT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE 		0-91180-108-0 06 1 1411-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1307-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1307-
666 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98172-164-0 01 1 1411-
666 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (C) 		8-98220-526-0 01 1 1411-
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1008-1306
666 PROTECTOR; UNDER
(C) 		8-98198-583-0 01 1 1307-1410
666 PROTECTOR; UNDER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) 		8-98198-583-0 01 1 1411-
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 1008-1306
682 BEZEL; BUMPER 8-98123-445-2 01 1 1307-
682 BEZEL; BUMPER 8-98123-444-2 01 1 1307-
683 CLIP; BEZEL,BUMPER 8-98144-173-1 16 1 1307-

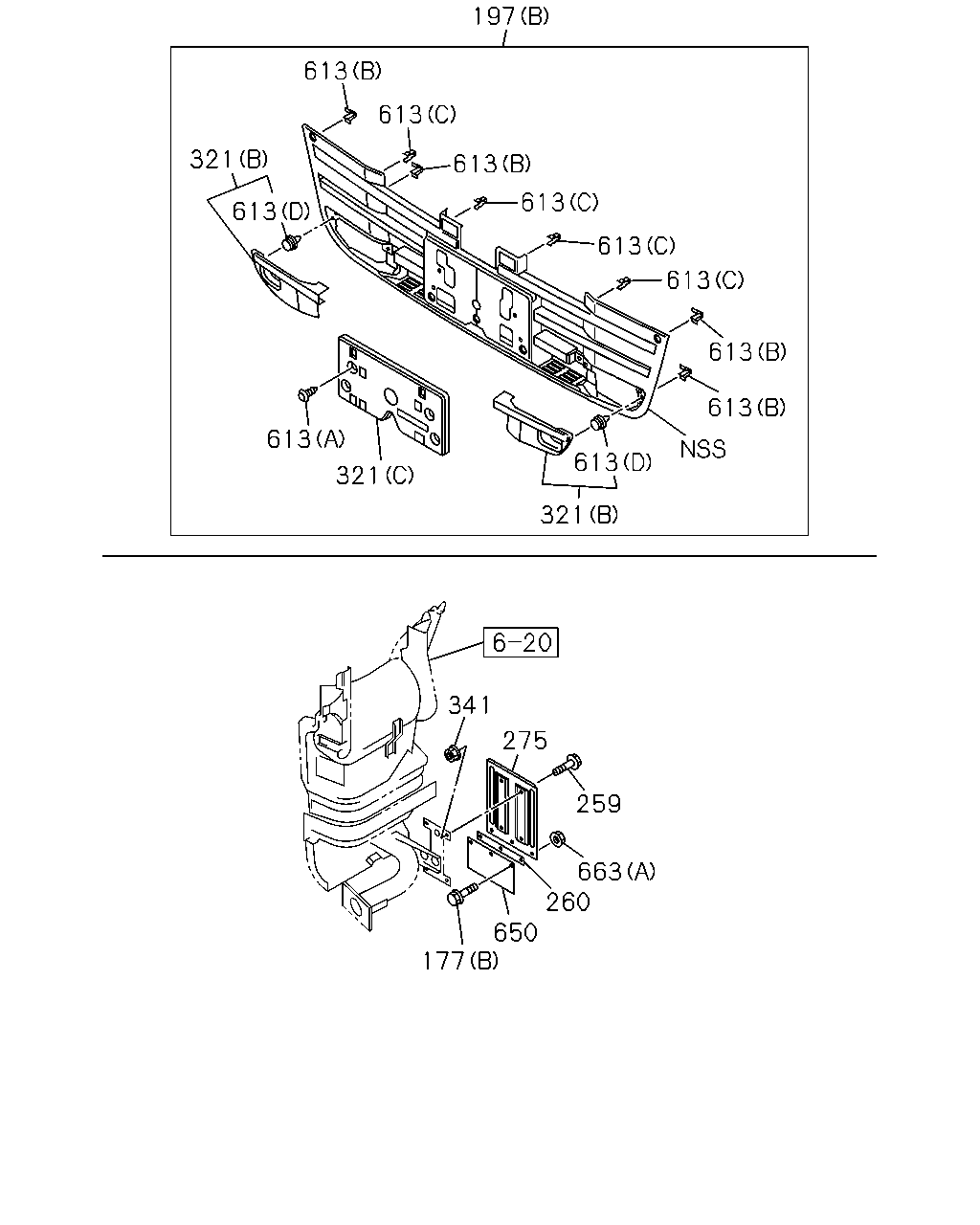

çizim 365880
197 613 613 613 613 613 613 613 613 613 321 321 613 613 321 341 275 259 663 260 650 177
BalonParca AdiParca NoAdetTipApplied Date
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE 		0-28051-020-0 02 1 1501-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE 		0-28650-820-0 04 1 1411-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1307-1410
177 BOLT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1411-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1307-
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 1008-1306
197 GRILLE; BUMPER
(B) 		8-98144-188-4 01 1 1307-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 1008-1306
259 BOLT; COVER
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1307-1410
259 BOLT; COVER
EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1411-
260 RETAINER; UPR SKIRT 8-98125-829-0 02 1 1307-1410
260 RETAINER; UPR SKIRT
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98125-829-0 02 1 1411-
275 GUARD; FRT 8-98125-825-0 02 1 1307-1410
275 GUARD; FRT
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98125-825-0 02 1 1411-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-263-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(C) 		8-98132-737-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-264-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1307-
341 NUT; COVER
M8 FLANGE 		0-91180-108-0 08 1 1307-1410
341 NUT; COVER
EXC. FRONT UNDER RUN PROTECTOR<EBE> M8 FLANGE 		0-91180-108-0 08 1 1411-
613 CLIP
(D) 		8-97581-651-2 04 1 1307-
613 CLIP
(A) D8X13.5 		1-09987-248-1 05 1 1307-
613 CLIP
(B) 		8-98025-698-0 08 1 1307-
613 CLIP
(C) 		8-98144-173-1 06 1 1307-
650 RUBBER; MUD COVER 8-98125-828-0 02 1 1307-1410
650 RUBBER; MUD COVER
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98125-828-0 02 1 1411-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1307-1410
663 NUT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE 		0-91180-108-0 06 1 1411-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1307-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1307-

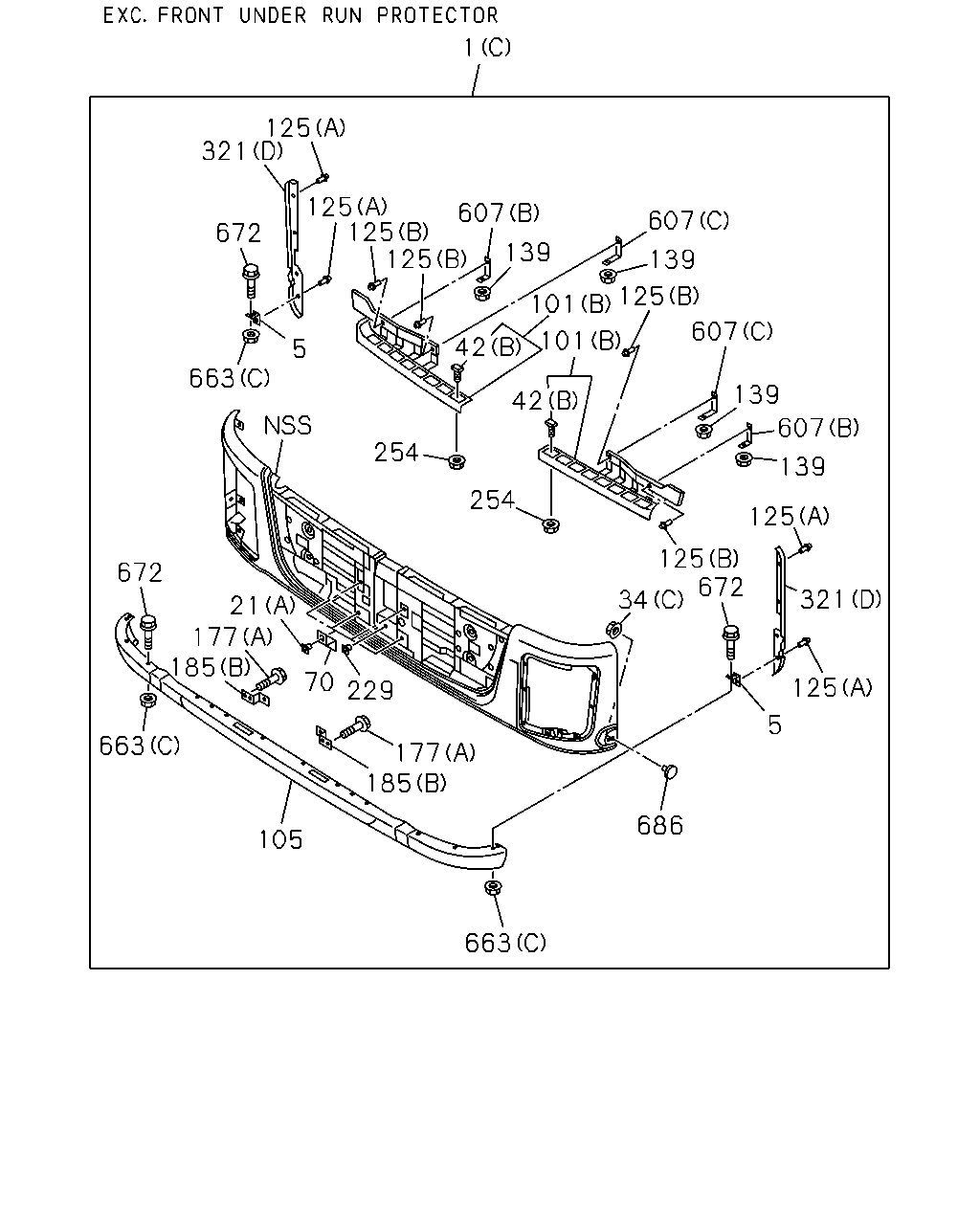

çizim 365937
1 125 321 672 125 125 125 607 607 139 101 101 42 254 663 5 254 125 139 607 139 139 607 125 125 321 125 5 672 34 229 177 185 70 21 177 185 672 663 105 663 686 42
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE 		8-97466-340-0 01 1 1501-
1 BUMPER ASM; FRT
(A) 		8-98138-769-3 01 1 1008-1306
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (C) WHITE 		8-97424-794-3 01 1 1307-1412
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE 		8-97424-794-3 01 1 1501-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (B) WHITE 		8-97417-846-3 01 1 1307-
5 BRACKET; AIR DAM
FRONT SPOILER<VP1> 		8-98154-762-0 02 1 1307-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1008-1306
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
34 NUT; BRKT,BUMPER
(C) M6 FLANGE 		0-91180-106-0 02 1 1307-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(D) M10 FLANGE 		0-91180-110-0 04 1 1307-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-1306
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1411-
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE>,FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1411-
42 BOLT; BUMPER
(A) M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 1008-1306
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1307-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 16 1 1411-1412
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1501-
42 BOLT; BUMPER
EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1411-1412
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1307-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1307-
105 AIR DAM
FRONT SPOILER<VP1> WHITE 		8-97417-859-4 01 1 1307-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1307-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1307-
125 CLIP; STEP
EXC. FRONT SPOILER<VP1> (A) 		8-98157-186-0 06 1 1307-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1307-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE 		0-28051-020-0 02 1 1501-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE 		0-28650-820-0 04 1 1411-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1307-1410
177 BOLT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1411-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1307-
185 BRACKET; BUMPER,INNER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98302-730-0 01 1 1501-
185 BRACKET; BUMPER,INNER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98302-731-0 01 1 1501-
185 BRACKET; BUMPER,INNER
(A) 		1-71230-610-0 01 1 1008-1306
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> (B) 		8-98139-739-0 02 1 1307-1412
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-739-0 02 1 1501-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1307-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-263-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(C) 		8-98132-737-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-264-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1307-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-472-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-473-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-441-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-442-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-156-2 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-157-2 01 1 1411-
607 BRACKET
(A) 		8-97608-469-3 01 1 1008-1306
607 BRACKET
(C) 		8-98147-053-0 02 1 1307-
607 BRACKET
(A) 		8-97608-470-3 01 1 1008-1306
607 BRACKET
(B) 		8-98147-054-0 02 1 1307-
607 BRACKET
(D) 		8-98211-759-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-759-0 01 1 1411-
607 BRACKET
(D) 		8-98211-758-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-758-0 01 1 1411-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1307-1410
663 NUT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE 		0-91180-108-0 06 1 1411-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1307-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1307-
672 STUD; STEP
FRONT SPOILER<VP1> M6X16 FLANGE 		0-28050-616-0 13 1 1307-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1307-

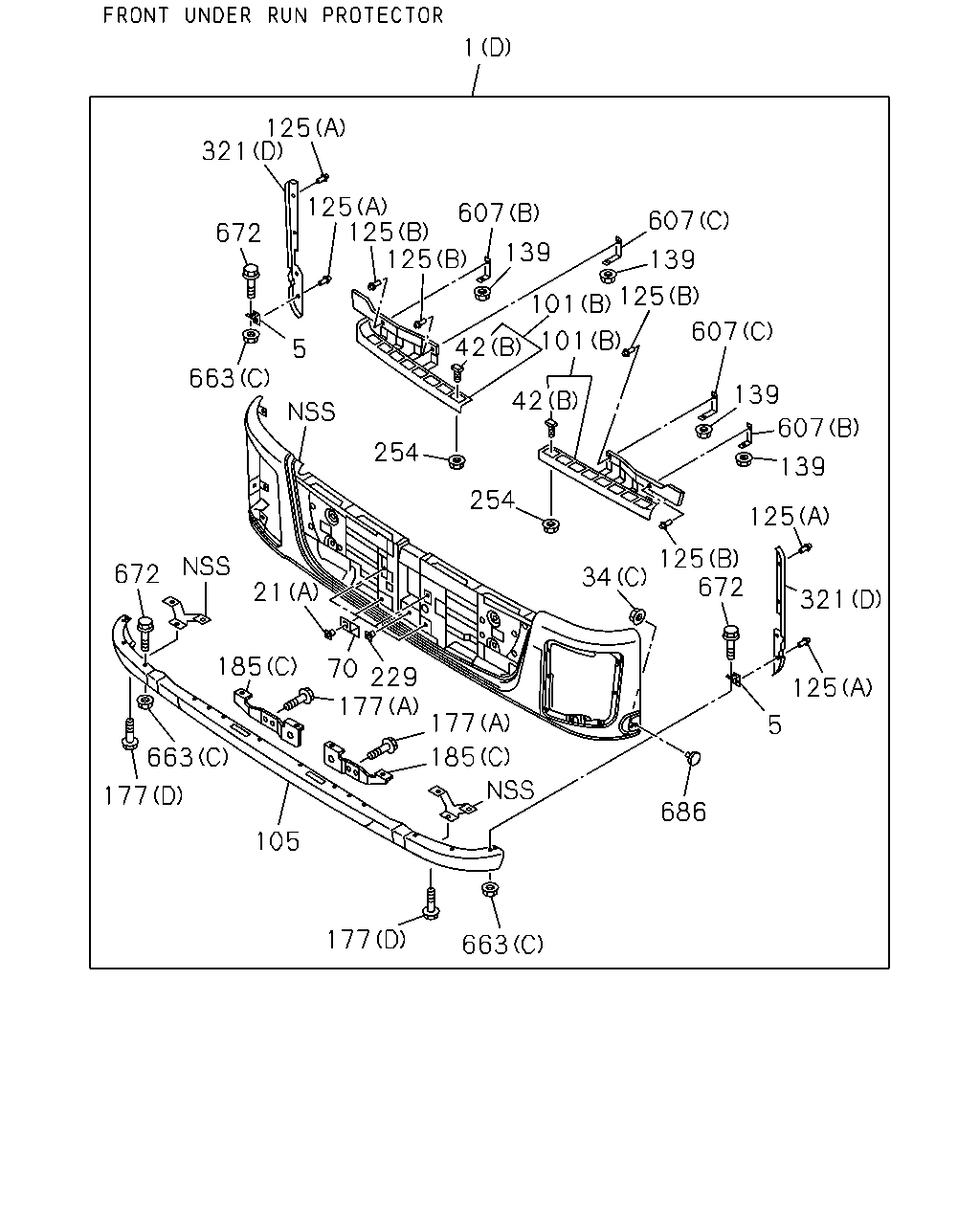

çizim 481021
1 125 321 672 125 5 663 254 254 34 672 125 321 125 5 686 125 139 607 139 607 125 139 607 607 125 139 125 42 101 101 185 663 177 177 177 70 229 21 672 185 663 177 105 42
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) WHITE 		8-97466-340-0 01 1 1501-
1 BUMPER ASM; FRT
(A) 		8-98138-769-3 01 1 1008-1306
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> (C) WHITE 		8-97424-794-3 01 1 1307-1412
1 BUMPER ASM; FRT
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) WHITE 		8-97424-794-3 01 1 1501-
1 BUMPER ASM; FRT
EXC. FRONT SPOILER<VP1> (B) WHITE 		8-97417-846-3 01 1 1307-
5 BRACKET; AIR DAM
FRONT SPOILER<VP1> 		8-98154-762-0 02 1 1307-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1008-1306
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
34 NUT; BRKT,BUMPER
(C) M6 FLANGE 		0-91180-106-0 02 1 1307-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-1306
34 NUT; BRKT,BUMPER
(D) M10 FLANGE 		0-91180-110-0 04 1 1307-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-1306
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1411-
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE>,FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1411-
42 BOLT; BUMPER
(A) M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 1008-1306
42 BOLT; BUMPER
(B) M6X20 		8-97611-666-0 06 1 1307-
42 BOLT; BUMPER
(C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1410
42 BOLT; BUMPER
FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1411-1412
42 BOLT; BUMPER
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) M10X30 FLANGE 		0-28051-030-0 04 1 1501-
42 BOLT; BUMPER
FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 14 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 16 1 1411-1412
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1501-
42 BOLT; BUMPER
EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 10 1 1307-1410
42 BOLT; BUMPER
FRONT UNDER RUN PROTECTOR<EBE> EXC. FRONT SPOILER<VP1> (D) M10X30 FLANGE 		8-98055-942-0 12 1 1411-1412
70 BRACKET; LICENSE PLATE,FRT 8-98128-625-0 04 1 1307-
101 STEP; BUMPER
(A) 		8-98123-450-2 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-452-1 01 1 1307-
101 STEP; BUMPER
(B) 		8-98123-453-1 01 1 1307-
105 AIR DAM
FRONT SPOILER<VP1> WHITE 		8-97417-859-4 01 1 1307-
125 CLIP; STEP
(B) 		8-98157-167-0 04 1 1307-
125 CLIP; STEP
FRONT SPOILER<VP1> (A) 		8-98157-186-0 08 1 1307-
125 CLIP; STEP
EXC. FRONT SPOILER<VP1> (A) 		8-98157-186-0 06 1 1307-
139 NUT; BRKT FIX
M8 FLANGE 		0-91180-208-0 04 1 1307-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (D) M10X20 FLANGE 		0-28051-020-0 02 1 1501-
177 BOLT
FRONT UNDER RUN PROTECTOR<EBE> (C) M8X20 FLANGE 		0-28650-820-0 04 1 1411-
177 BOLT
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1307-1410
177 BOLT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1411-
177 BOLT
FRONT SPOILER<VP1> (A) M8X20 FLANGE 		0-28050-820-0 04 1 1307-
185 BRACKET; BUMPER,INNER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98302-730-0 01 1 1501-
185 BRACKET; BUMPER,INNER
FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (C) 		8-98302-731-0 01 1 1501-
185 BRACKET; BUMPER,INNER
(A) 		1-71230-610-0 01 1 1008-1306
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> (B) 		8-98139-739-0 02 1 1307-1412
185 BRACKET; BUMPER,INNER
FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98139-739-0 02 1 1501-
229 GROMMET
D=7X7 L=7.5 		8-94291-927-0 01 1 1307-
254 NUT; STEP
M6 FLANGE 		0-91180-106-0 06 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-263-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(C) 		8-98132-737-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(A) 		1-71260-264-1 01 1 1008-1306
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-446-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
(B) 		8-98123-447-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-455-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1> (D) 		8-98123-456-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-457-1 01 1 1307-
321 COVER; BUMPER FRT SIDE
EXC. FRONT SPOILER<VP1> (D) 		8-98123-458-1 01 1 1307-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-472-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (G) 		8-98290-473-1 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-441-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98304-442-0 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-156-2 01 1 1411-
607 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98288-157-2 01 1 1411-
607 BRACKET
(A) 		8-97608-469-3 01 1 1008-1306
607 BRACKET
(C) 		8-98147-053-0 02 1 1307-
607 BRACKET
(A) 		8-97608-470-3 01 1 1008-1306
607 BRACKET
(B) 		8-98147-054-0 02 1 1307-
607 BRACKET
(D) 		8-98211-759-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-759-0 01 1 1411-
607 BRACKET
(D) 		8-98211-758-0 01 1 1307-1410
607 BRACKET
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98211-758-0 01 1 1411-
663 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 1307-1410
663 NUT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8 FLANGE 		0-91180-108-0 06 1 1411-
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1307-
663 NUT
FRONT SPOILER<VP1> (C) M6 FLANGE 		0-91180-106-0 13 1 1307-
672 STUD; STEP
FRONT SPOILER<VP1> M6X16 FLANGE 		0-28050-616-0 13 1 1307-
686 REFLECTOR; REFLEX 8-98121-023-0 02 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
