11324 - EXR MIDDLE EAST WITH 3STEPS
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

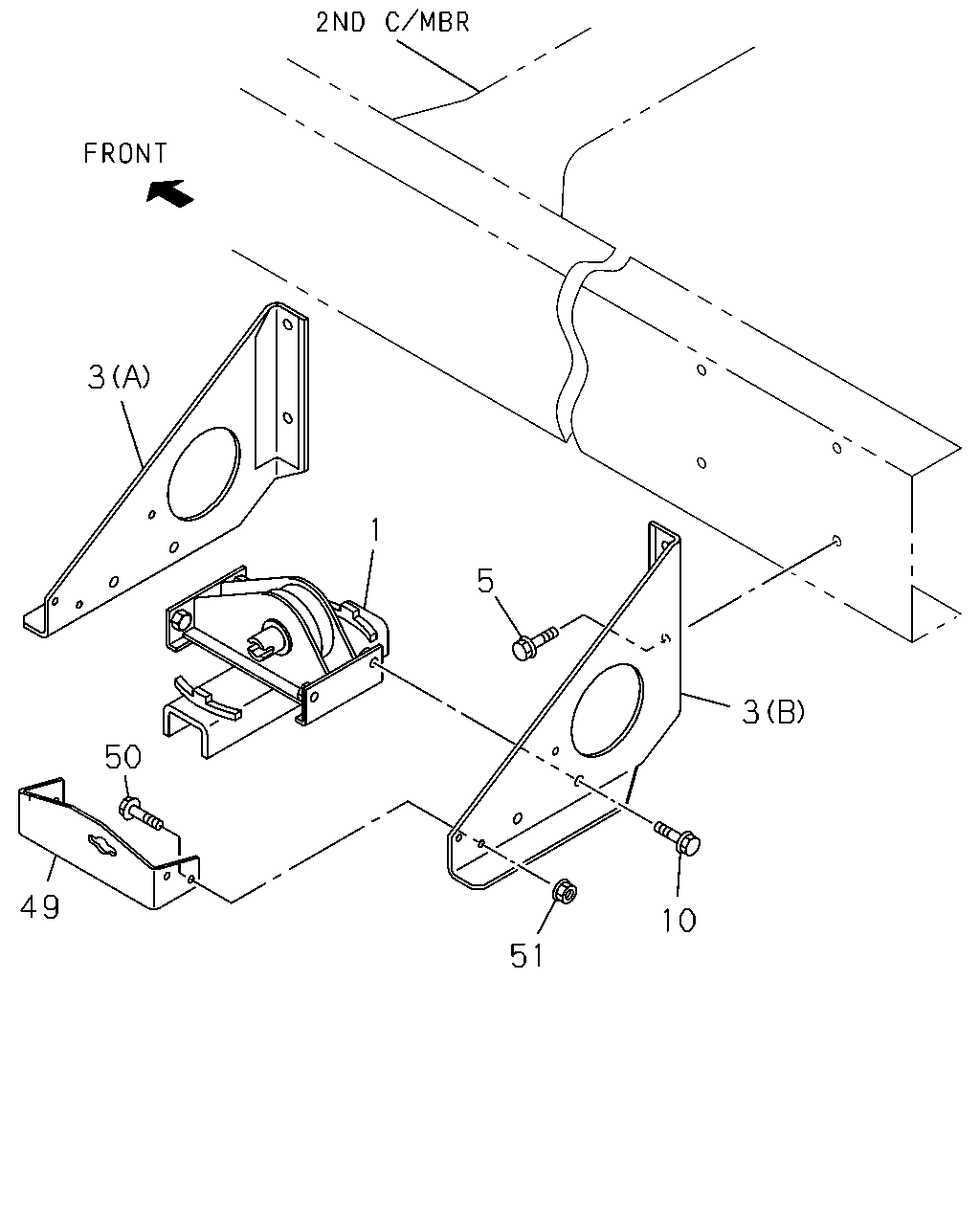

5-30 — SPARE TIRE CARRIER AND COVER
(#63615) — 16 parça
3
10
51
5
1
3
49
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
1008-1306
1
HANGER ASM; TIRE FT
1-53630-210-4
01
1
1307-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-479-0
01
1
1008-1306
3
BRACKET; TIRE CARRIER,FRT
(B)
1-53631-479-0
01
1
1307-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-480-0
01
1
1008-1306
3
BRACKET; TIRE CARRIER,FRT
(A)
1-53631-480-0
01
1
1307-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE
0-28651-235-0
04
1
1008-1306
5
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28651-235-0
04
1
1307-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
1008-1306
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28651-230-0
04
1
1307-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
8-97383-722-0
01
1
1008-1306
49
STAY; TIRE CARRIER
8-97383-722-0
01
1
1307-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE
0-28650-825-0
04
1
1008-1306
50
BOLT; BRKT TO STAY
M8X25 FLANGE
0-28650-825-0
04
1
1307-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1008-1306
51
NUT; BRKT TO STAY
M8 FLANGE
0-91180-108-0
04
1
1307-
