Isuzu WW
▶
TRUCKS
▶
EXR
▶
11324 - EXR MIDDLE EAST WITH 3STEPS
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#63611) — 75 parça
◀

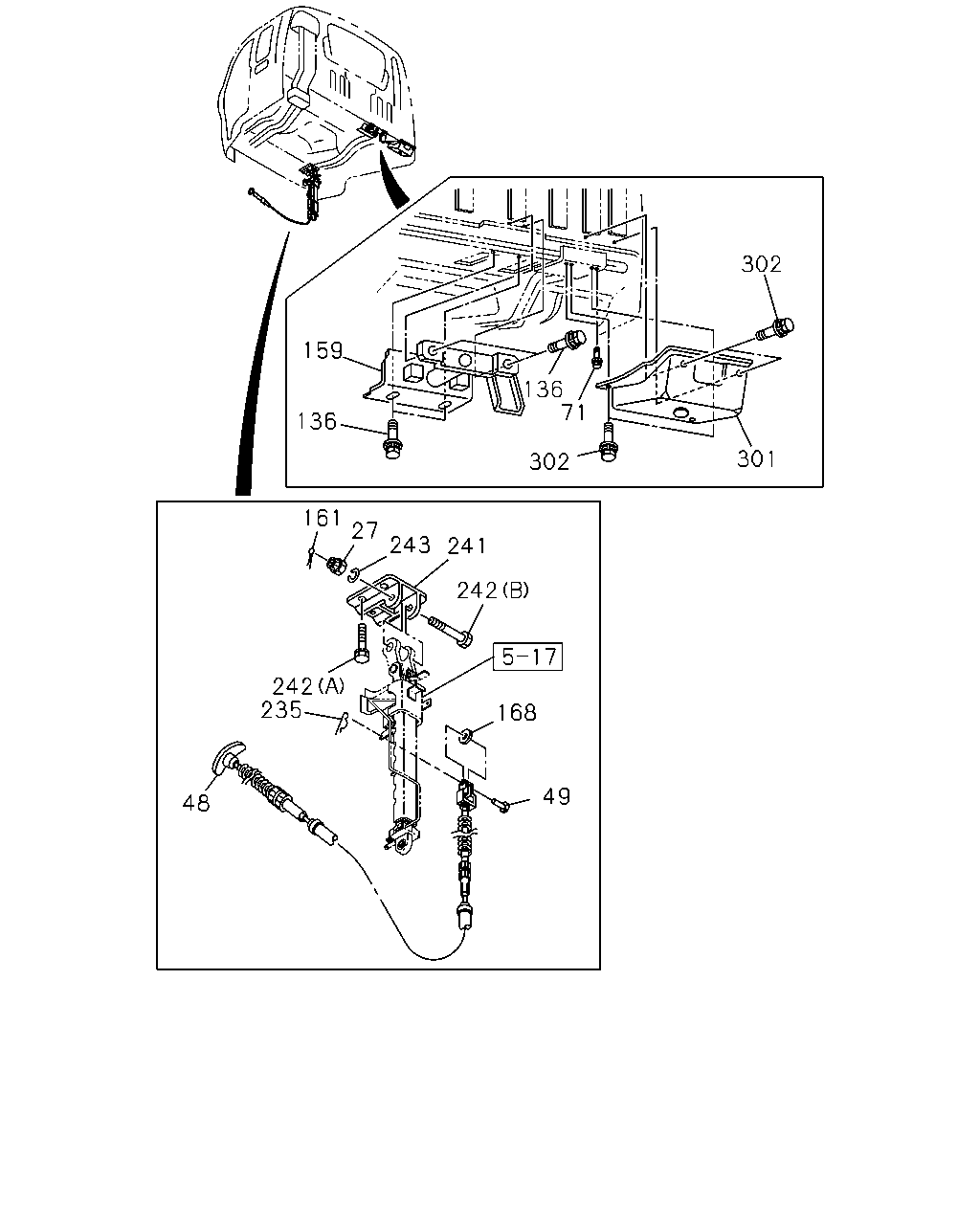

[515A] BRACKET,PIN AND OTHER PARTS (15 parça)

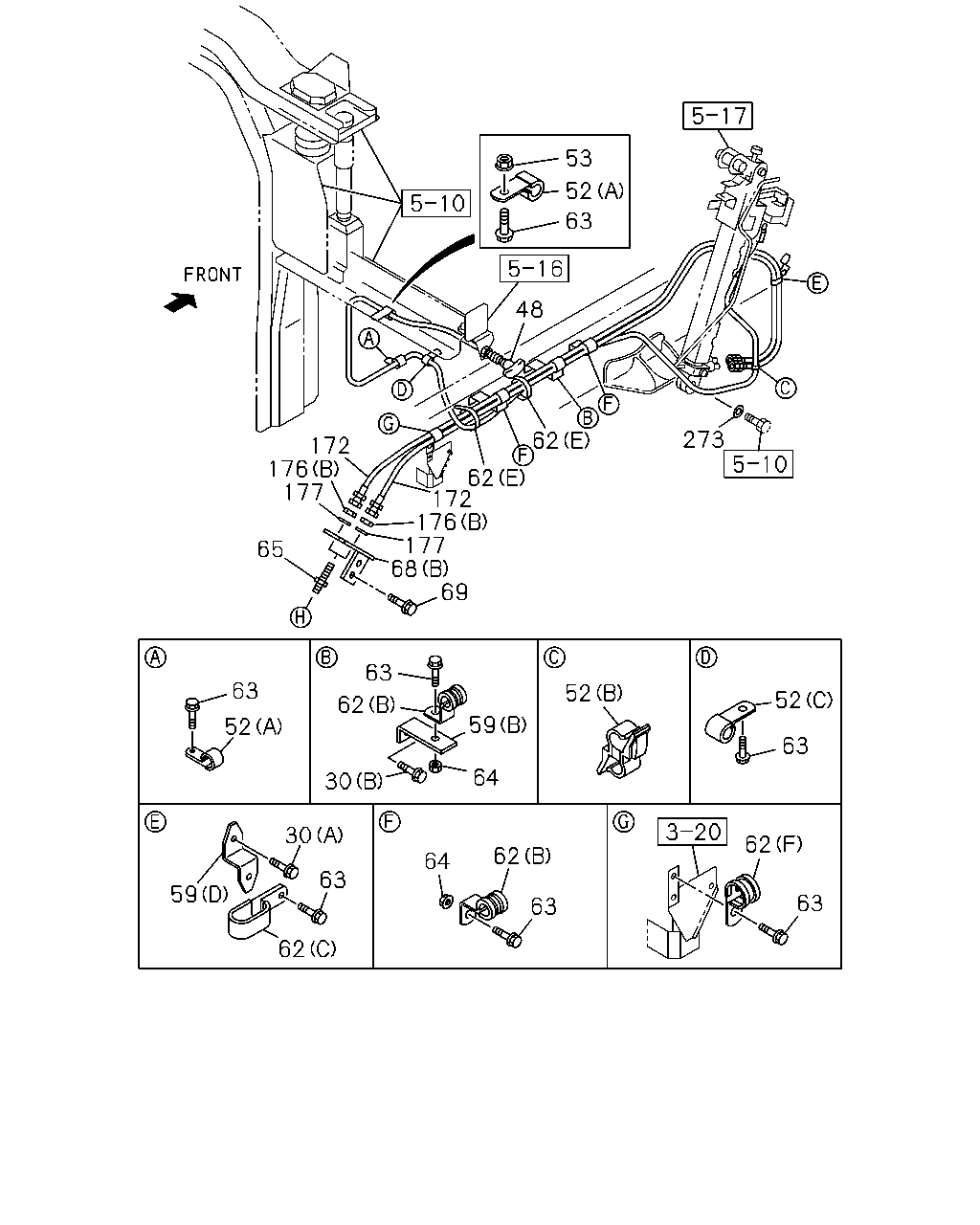

[515A] CAB TILT PIPING;FRAME SIDE (32 parça)

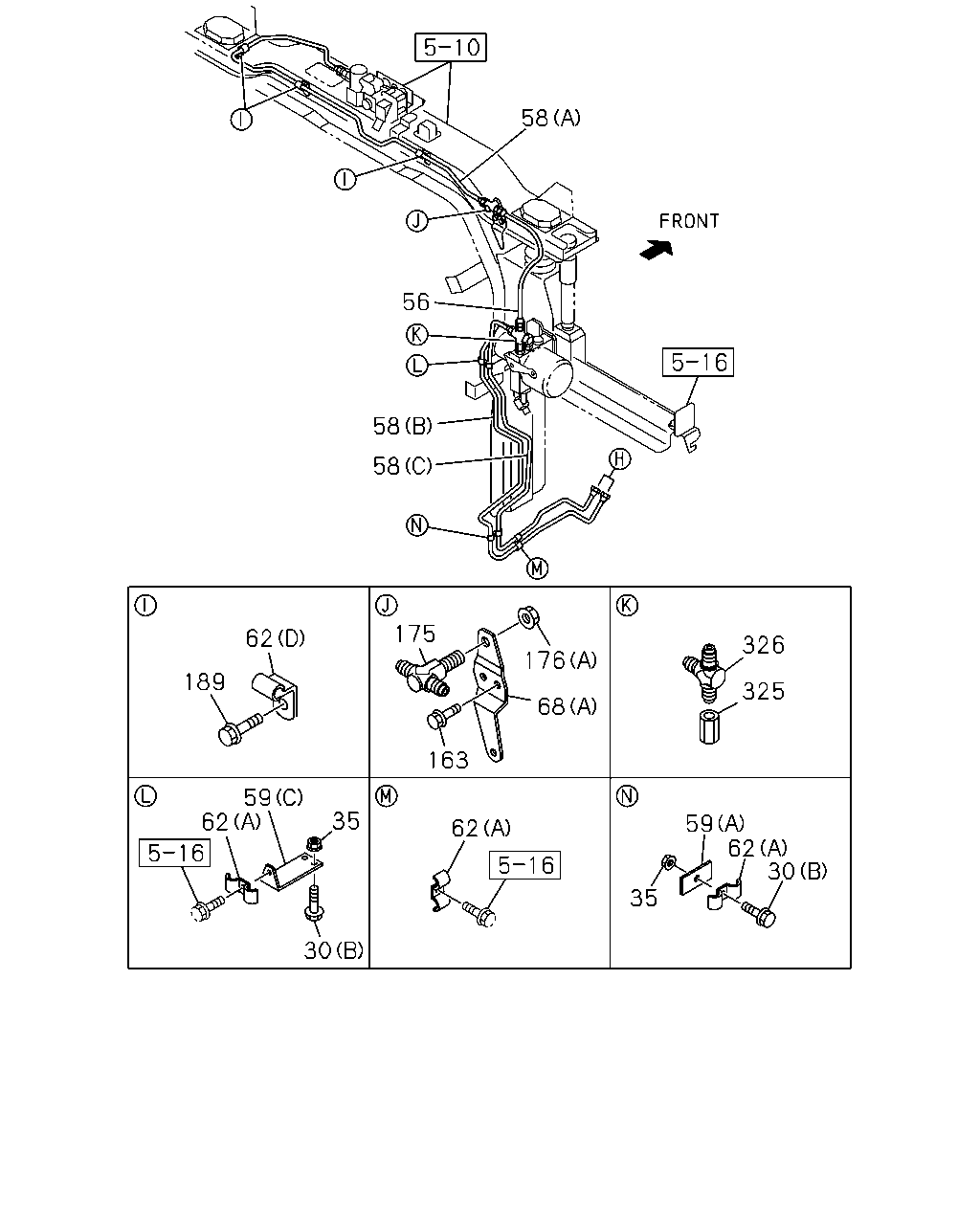

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (28 parça)
▶
48
235
242
168
49
242
241
243
27
161
302
71
136
301
136
159
302
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
1008-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
1008-1306
49
PIN; JAW FIX
OD=6 L=17
0-82253-617-0
01
1
1008-1306
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
1008-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
1008-
159
PIN
1-79717-627-1
01
1
1008-
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1008-
168
WASHER; PL
ID=6.4
9-09160-506-0
01
1
1008-1306
235
PIN; SNAP
L=21.2
8-94157-840-0
01
1
1008-1306
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-660-1
01
1
1008-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
1008-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
1008-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
1008-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
1008-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
1008-
53
52
63
48
62
62
172
176
177
68
65
176
177
172
69
273
52
52
63
62
63
63
62
64
30
64
59
62
63
63
52
30
63
62
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
03
1
1008-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
01
1
1008-
30
BOLT; BRKT FIX
(A) M12X25 FLANGE
0-28651-225-0
01
1
1008-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
1008-1306
52
CLIP; CONT CABLE
(C) ID=7 L=20
0-95234-635-0
01
1
1008-1306
52
CLIP; CONT CABLE
(A) ID=7 L=50
0-95234-685-0
02
1
1008-1306
52
CLIP; CONT CABLE
(B) ID=6-10 & 10-14
1-09709-201-1
01
1
1008-1306
53
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1008-1306
59
BRACKET; CLIP
(A) L=50
1-47475-299-2
01
1
1008-
59
BRACKET; CLIP
(B) L=115 B=25
1-47476-758-0
01
1
1008-
59
BRACKET; CLIP
(C)
1-47477-317-0
01
1
1008-
59
BRACKET; CLIP
(D)
1-47477-631-1
01
1
1008-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
1008-
62
CLIP; OIL PIPE
(D) ID=6 H=20 L=20
1-09700-603-0
03
1
1008-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
03
1
1008-
62
CLIP; OIL PIPE
(F) ID=24 L=27
1-09700-809-0
01
1
1008-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
1008-
62
CLIP; OIL PIPE
(E) L=140
5-09707-031-1
02
1
1008-1306
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
07
1
1008-1306
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
1307-
63
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
01
1
1008-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1008-
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1008-
68
BRACKET; UNION
(A)
1-53458-374-1
01
1
1008-
68
BRACKET; UNION
(B)
8-98147-166-0
01
1
1008-
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1008-1306
69
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1307-
172
HOSE; FLEX,OIL TILT
L=1600
8-97634-002-0
02
1
1008-
176
NUT; UNION
(A) M12 FLANGE
0-91180-212-0
01
1
1008-
176
NUT; UNION
(B) M12
9-09840-280-0
02
1
1008-
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1008-
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
0-91614-810-0
01
1
1008-
58
56
58
58
62
189
175
163
68
176
326
325
59
62
30
35
62
30
35
59
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X20 FLANGE
0-28650-820-0
03
1
1008-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
01
1
1008-
30
BOLT; BRKT FIX
(A) M12X25 FLANGE
0-28651-225-0
01
1
1008-
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1008-
56
HOSE; FLEX,OIL PIPE
L=400
1-09365-060-0
01
1
1008-
58
PIPE; OIL,POWER UNIT
(B) L=1108 SERVICED BY L=1200
1-47428-732-0
01
1
1008-1009
58
PIPE; OIL,POWER UNIT
(B) L=1219 SERVICED BY L=1250
1-47428-733-0
01
1
1010-
58
PIPE; OIL,POWER UNIT
(C) L=1162 SERVICED BY L=1200
1-47428-732-0
01
1
1008-
58
PIPE; OIL,POWER UNIT
(A) L=1401 SERVICED BY L=1500
1-47428-735-0
01
1
1008-
59
BRACKET; CLIP
(A) L=50
1-47475-299-2
01
1
1008-
59
BRACKET; CLIP
(B) L=115 B=25
1-47476-758-0
01
1
1008-
59
BRACKET; CLIP
(C)
1-47477-317-0
01
1
1008-
59
BRACKET; CLIP
(D)
1-47477-631-1
01
1
1008-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
1008-
62
CLIP; OIL PIPE
(D) ID=6 H=20 L=20
1-09700-603-0
03
1
1008-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
03
1
1008-
62
CLIP; OIL PIPE
(F) ID=24 L=27
1-09700-809-0
01
1
1008-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
1008-
62
CLIP; OIL PIPE
(E) L=140
5-09707-031-1
02
1
1008-1306
68
BRACKET; UNION
(A)
1-53458-374-1
01
1
1008-
68
BRACKET; UNION
(B)
8-98147-166-0
01
1
1008-
163
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
02
1
1008-
175
UNION; FLEX HOSE
M12 2WAY
1-09654-234-2
01
1
1008-
176
NUT; UNION
(A) M12 FLANGE
0-91180-212-0
01
1
1008-
176
NUT; UNION
(B) M12
9-09840-280-0
02
1
1008-
189
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1008-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1008-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1008-
