6-35 — FRONT DOOR TRIM (#6361) — 72 parça

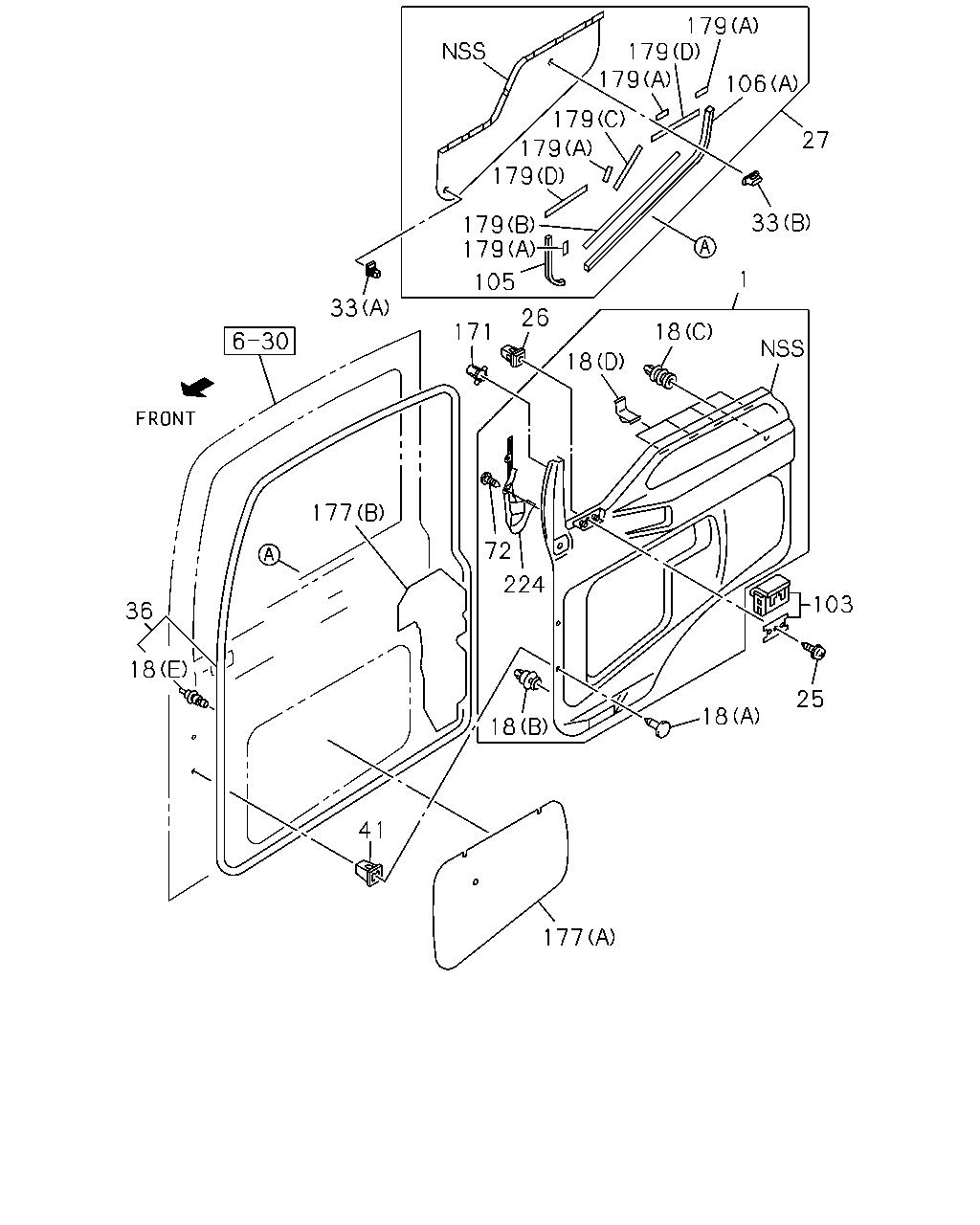

çizim 41228
179 179 179 106 179 27 179 179 33 179 179 1 105 33 26 171 18 18 177 72 224 103 36 18 25 18 18 41 177
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9604-0012
1 PAD; TRIM,FRT DOOR 1-73338-531-0 01 1 0101-
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9604-0012
1 PAD; TRIM,FRT DOOR 1-73338-535-0 01 1 0101-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9604-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9604-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9604-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9604-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9604-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9604-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9604-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-
27 PANEL; ORNAMENT,DOOR 1-76218-096-5 01 1 9604-
27 PANEL; ORNAMENT,DOOR 1-76218-125-5 01 1 9604-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9604-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9604-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 9604-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 9604-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9604-
72 SCREW; DOOR TRIM 1-73338-527-0 08 1 0006-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9604-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9604-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9604-
106 SEAL; DOOR ORNAMENT
(A) REAR 		1-76218-083-2 02 1 9604-
106 SEAL; DOOR ORNAMENT
(B) CENTER 		1-76218-104-0 02 1 9604-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9604-
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 9604-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9604-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 08 1 9604-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-1 02 1 9604-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-0 02 1 9604-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-0 04 1 9604-
224 DEFLECTOR; DUCT 1-73338-529-0 01 1 0006-
224 DEFLECTOR; DUCT 1-73338-528-0 01 1 0006-

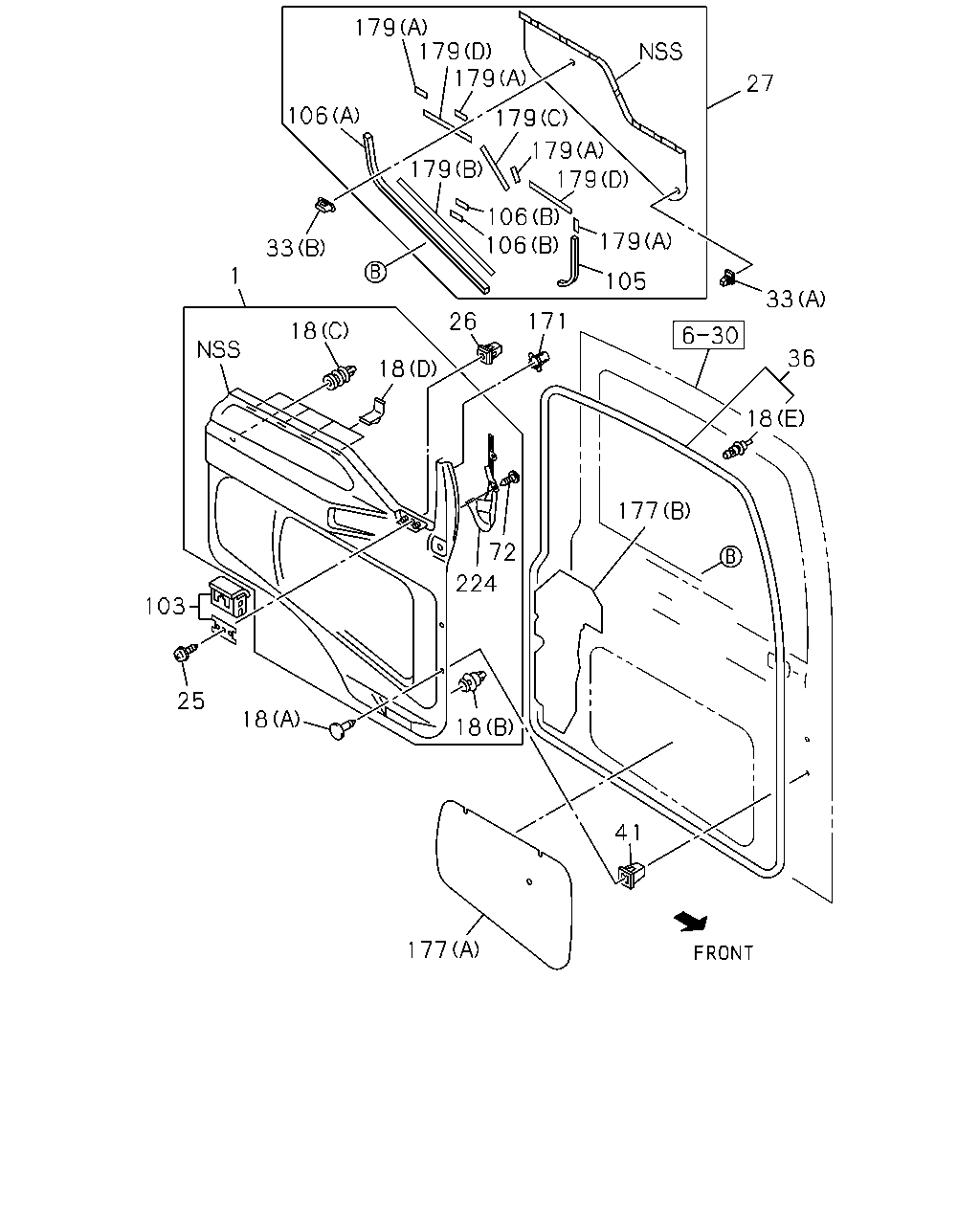

çizim 41261
179 179 179 27 106 179 179 179 179 106 106 179 33 1 105 33 26 171 18 36 18 18 177 72 224 103 25 18 18 41 177
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 9604-0012
1 PAD; TRIM,FRT DOOR 1-73338-531-0 01 1 0101-
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 9604-0012
1 PAD; TRIM,FRT DOOR 1-73338-535-0 01 1 0101-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9604-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9604-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9604-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9604-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9604-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9604-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9604-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-
27 PANEL; ORNAMENT,DOOR 1-76218-096-5 01 1 9604-
27 PANEL; ORNAMENT,DOOR 1-76218-125-5 01 1 9604-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9604-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9604-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-7 01 1 9604-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-7 01 1 9604-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9604-
72 SCREW; DOOR TRIM 1-73338-527-0 08 1 0006-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9604-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9604-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9604-
106 SEAL; DOOR ORNAMENT
(A) REAR 		1-76218-083-2 02 1 9604-
106 SEAL; DOOR ORNAMENT
(B) CENTER 		1-76218-104-0 02 1 9604-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9604-
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 9604-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9604-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 08 1 9604-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-1 02 1 9604-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-0 02 1 9604-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-0 04 1 9604-
224 DEFLECTOR; DUCT 1-73338-529-0 01 1 0006-
224 DEFLECTOR; DUCT 1-73338-528-0 01 1 0006-
