Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#63609) — 460 parça

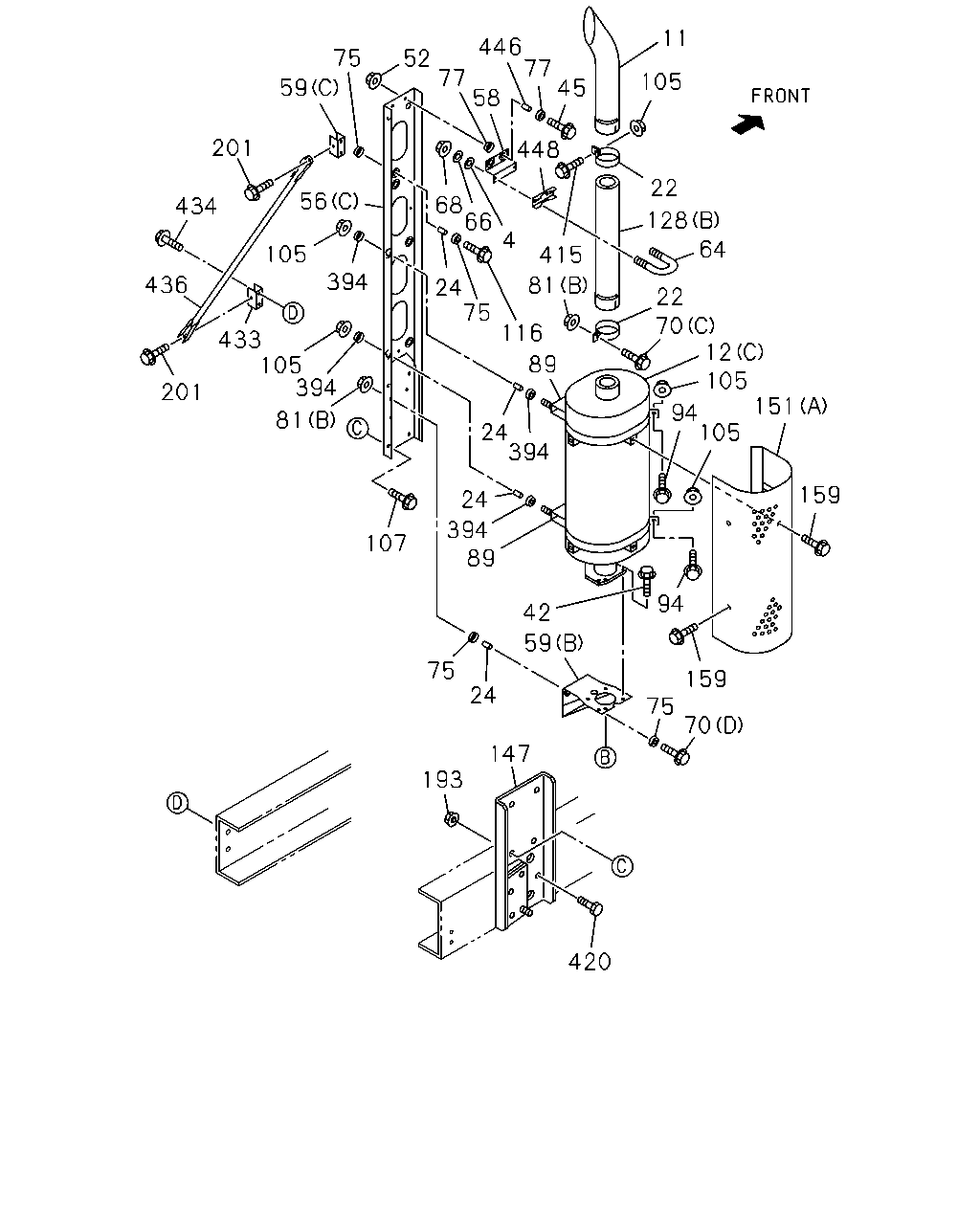

11 446 77 45 75 52 77 58 105 59 201 448 68 22 56 434 128 4 64 105 415 394 436 81 24 75 22 70 12 105 151 116 433 105 394 89 201 94 105 81 24 394 24 159 394 89 107 94 42 59 75 159 24 75 70 147 193 420 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1008-	●	●
11	PIPE; EXH,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1008-	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-116-0	01	1	1008-	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97637-116-0	01	1	1008-		●
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-814-0	01	1	1008-	●	●
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-113-1	01	1	1008-	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> (A)	8-98169-659-0	01	1	1008-1201	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97641-953-1	01	1	1202-	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97632-337-2	01	1	1008-	●	●
12	SILENCER ASM; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-115-0	01	1	1008-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-	●	●
22	CLAMP; EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	1008-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-		●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1008-	●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1008-		●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1008-	●	●
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97632-335-0	01	1	1008-	●	●
56	BRACKET; CLAMP,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1008-	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97632-346-0	01	1	1008-		●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1008-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1008-	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1008-	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1008-	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1008-	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1008-	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-	●	●
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1008-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-		●
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-	●	●
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-		●
89	CLAMP; EXH SILENCER,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1008-	●	●
89	CLAMP; EXH SILENCER,RR 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28>	8-97632-339-0	02	1	1008-	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1008-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1008-		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-		●
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-152-0	01	1	1008-	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97634-152-0	01	1	1008-		●
128	PIPE; EXH,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B)	1-22123-087-1	01	1	1008-	●	●
128	PIPE; EXH,RR 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1008-	●	●
128	PIPE; EXH,RR SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97632-392-1	01	1	1008-		●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1008-	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1208-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1208-	●	●
151	PROTECTOR; HEAT,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-	●	●
151	PROTECTOR; HEAT,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1008-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER LAYOUT REAR VAR1<JAZ> SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	04	1	1008-		●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1008-	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1008-	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1008-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1008-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X35 FLANGE	0-28061-235-0	02	1	1008-		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER LAYOUT REAR VAR1<JAZ> SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	06	1	1008-		●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1008-	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1008-	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1008-	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1008-	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1008-	●	●

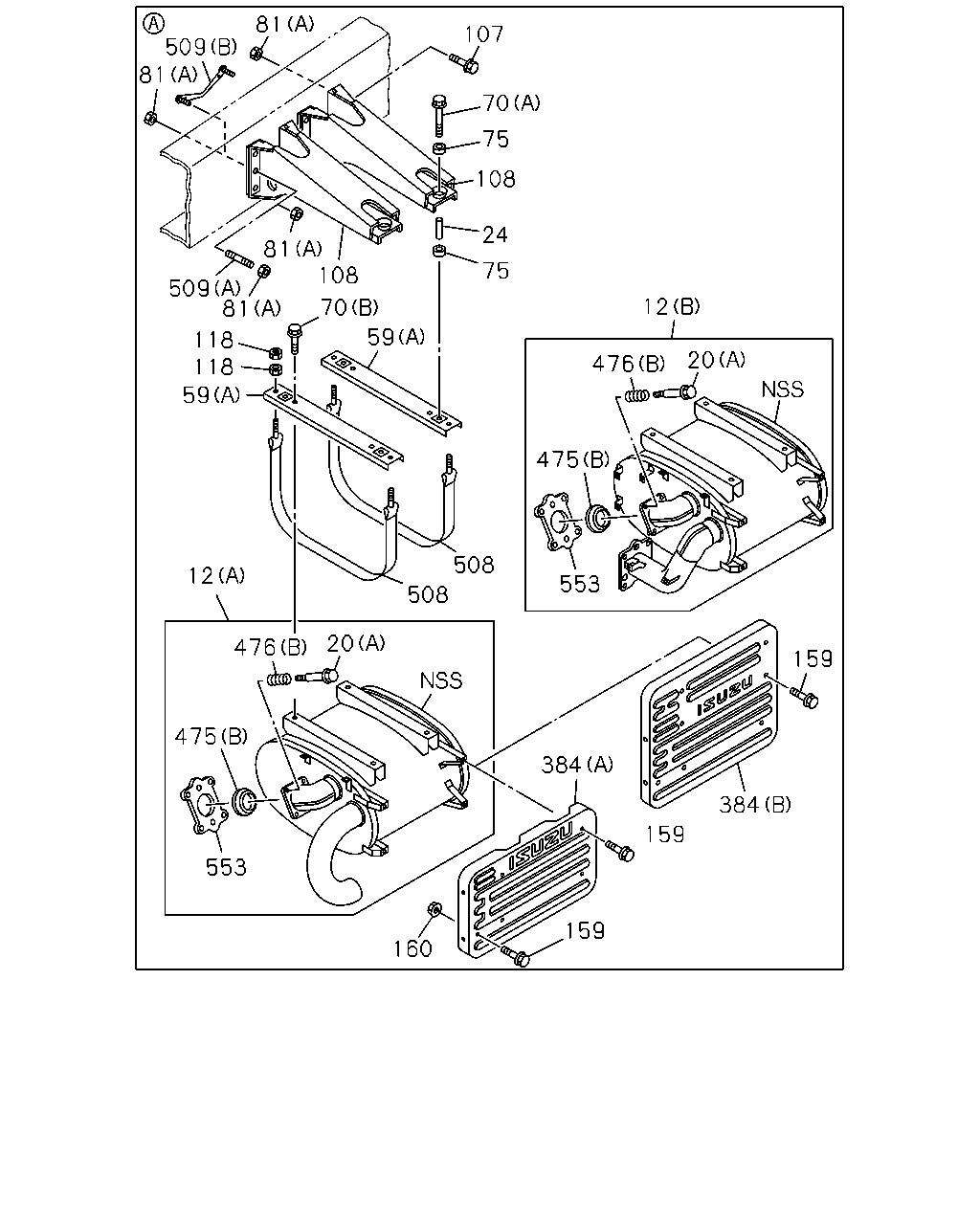

81 509 81 107 70 75 108 24 81 108 75 509 81 12 70 59 118 118 20 476 59 475 508 12 553 508 20 476 159 475 384 384 159 553 159 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-116-0	01	1	1008-	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97637-116-0	01	1	1008-		●
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-814-0	01	1	1008-	●	●
12	SILENCER ASM; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97637-113-1	01	1	1008-	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> (A)	8-98169-659-0	01	1	1008-1201	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97641-953-1	01	1	1202-	●	●
12	SILENCER ASM; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97632-337-2	01	1	1008-	●	●
12	SILENCER ASM; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97637-115-0	01	1	1008-		●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	03	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1201	●	●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-	●	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-	●	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1008-	●	●
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1008-	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-	●	●
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1008-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-	●	●
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-	●	●
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-		●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-	●
107	BOLT; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28051-240-0	06	1	1008-		●
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-	●	●
107	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> FRONT	8-97642-260-0	01	1	1202-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	8-97642-260-0	01	1	1202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> REAR	1-22134-148-3	01	1	1202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> FRONT	8-97642-261-0	01	1	1202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1008-1201	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1008-1201		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1202-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28>,CHINA EQUIPMENT(YT2) FRONT	1-22134-145-0	01	1	1202-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> FRONT	1-22134-145-0	01	1	1202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28>,CHINA EQUIPMENT(YT2) FRONT	1-22134-145-0	01	1	1202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1008-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> REAR	1-22134-146-0	01	1	1008-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	1-22134-148-3	02	1	1008-1201		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28>	1-22134-148-3	02	1	1202-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28>,CHINA EQUIPMENT(YT2)	1-22134-148-3	02	1	1202-		●
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1008-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-	●	●
160	NUT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-		●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-557-1	01	1	1008-	●
384	PROTECTOR; HEAT SILENCER MTG DUMP TRUCK<RA1> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-557-1	01	1	1008-		●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>,DUMP TRUCK<RA1> ,MIXER TRUCK<RA2> (A)	1-22119-556-0	01	1	1008-	●
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28>,DUMP TRUCK<RA1> (A)	1-22119-556-0	01	1	1008-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1003-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	1008-1201	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	1008-1201		●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1003-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-1201	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-1201		●
476	SPRING; VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-		●
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1008-	●	●
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1008-	●
509	STUD; BRKT EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	06	1	1008-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X40 L=56	1-09300-123-0	04	1	1008-		●
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22152-152-0	02	1	1008-		●
553	FLANGE; SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1008-1201	●	●
553	FLANGE; SILENCER 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1202-	●	●
553	FLANGE; SILENCER 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1202-	●	●
553	FLANGE; SILENCER 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1202-	●	●

52 44 168 70 81 65 65 77 77 77 573 70 573 77 81 105 220 290 1 36 34 20 476 26 17 1 475 475 476 476 41 36 475 220 1 42

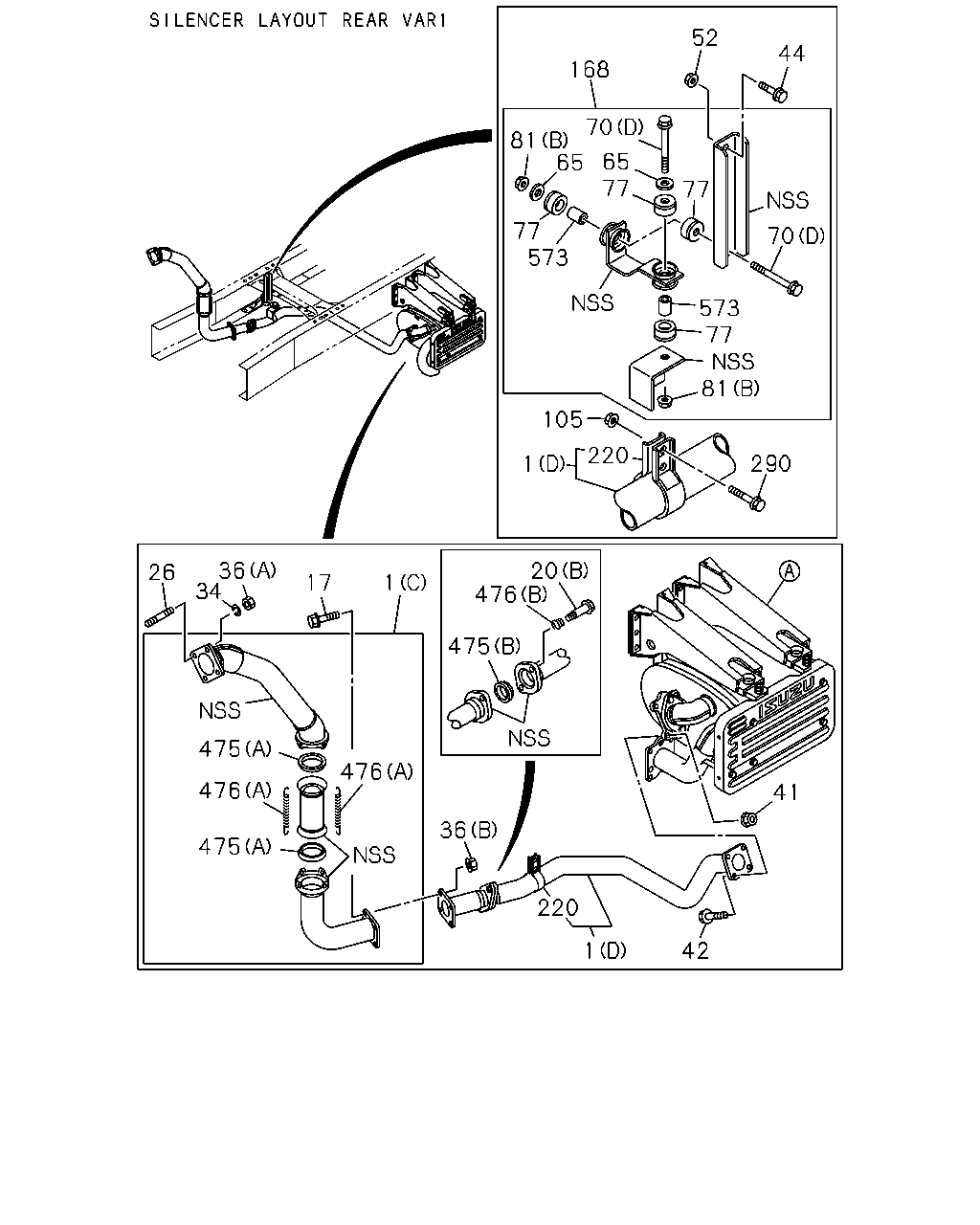

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-		●
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-	●
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-		●
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-	●
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-		●
1	PIPE; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1008-	●	●
1	PIPE; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (E)	8-97635-683-1	01	1	1008-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97633-176-1	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-394-0	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-393-0	01	1	1008-		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	03	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1201	●	●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402	●	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	1008-		●
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10X35 FLANGE	0-28051-035-0	02	1	1008-		●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1008-		●
65	WASHER; PL SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=32	0-91614-810-0	02	1	1008-		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-	●	●
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1008-		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-	●	●
77	RUBBER; CUSHION,BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-		●
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-	●	●
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-	●	●
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1008-		●
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28>	8-97633-177-1	01	1	1008-		●
220	CLAMP; EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> D=101.4	1-22133-170-1	01	1	1008-		●
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1003-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	1008-1201	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	1008-1201		●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1003-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-1201	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-1201		●
476	SPRING; VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-		●
573	TUBE; DIST SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1008-		●

36 34 1 26 475 475 476 476 17 151 42 36 1 41

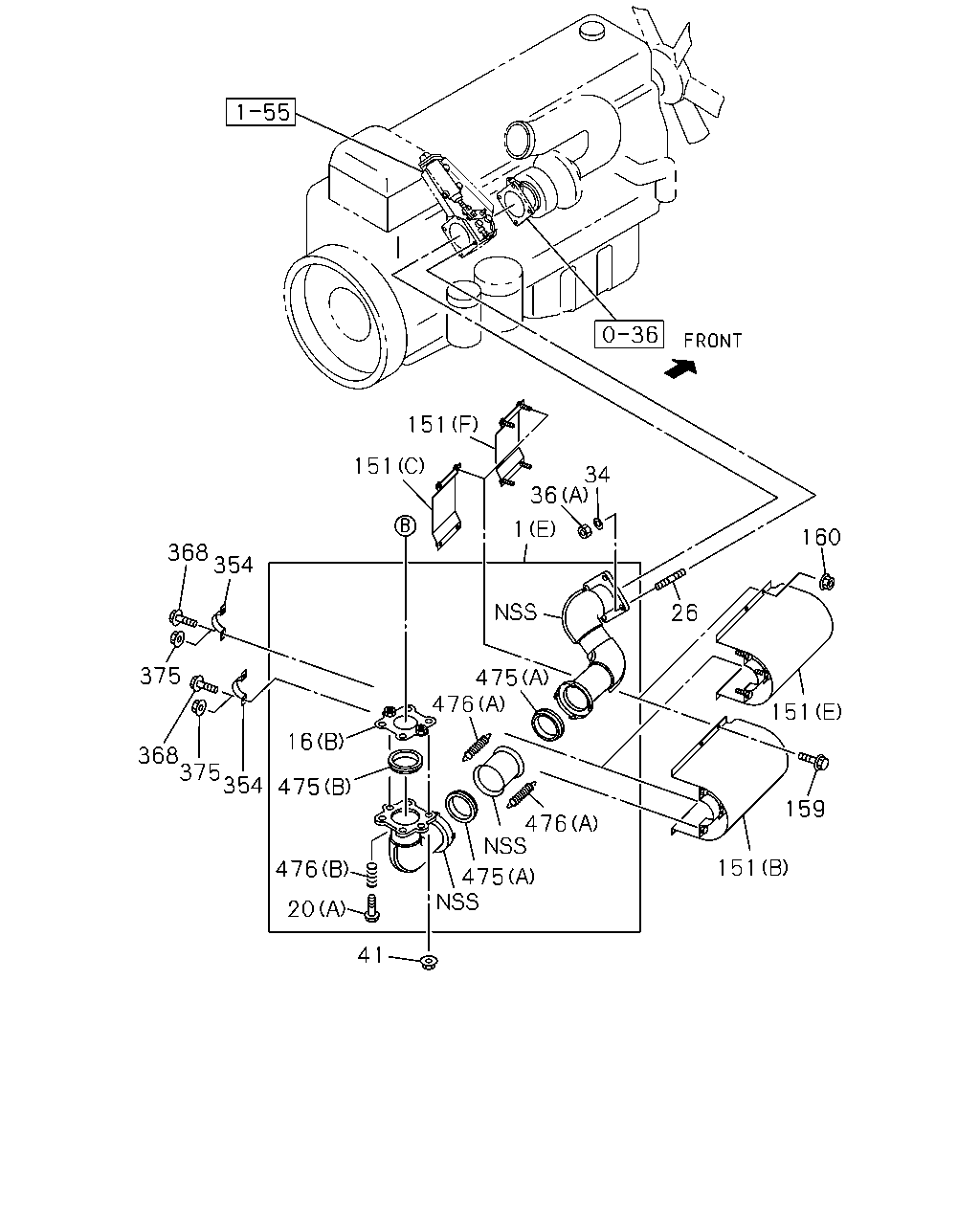

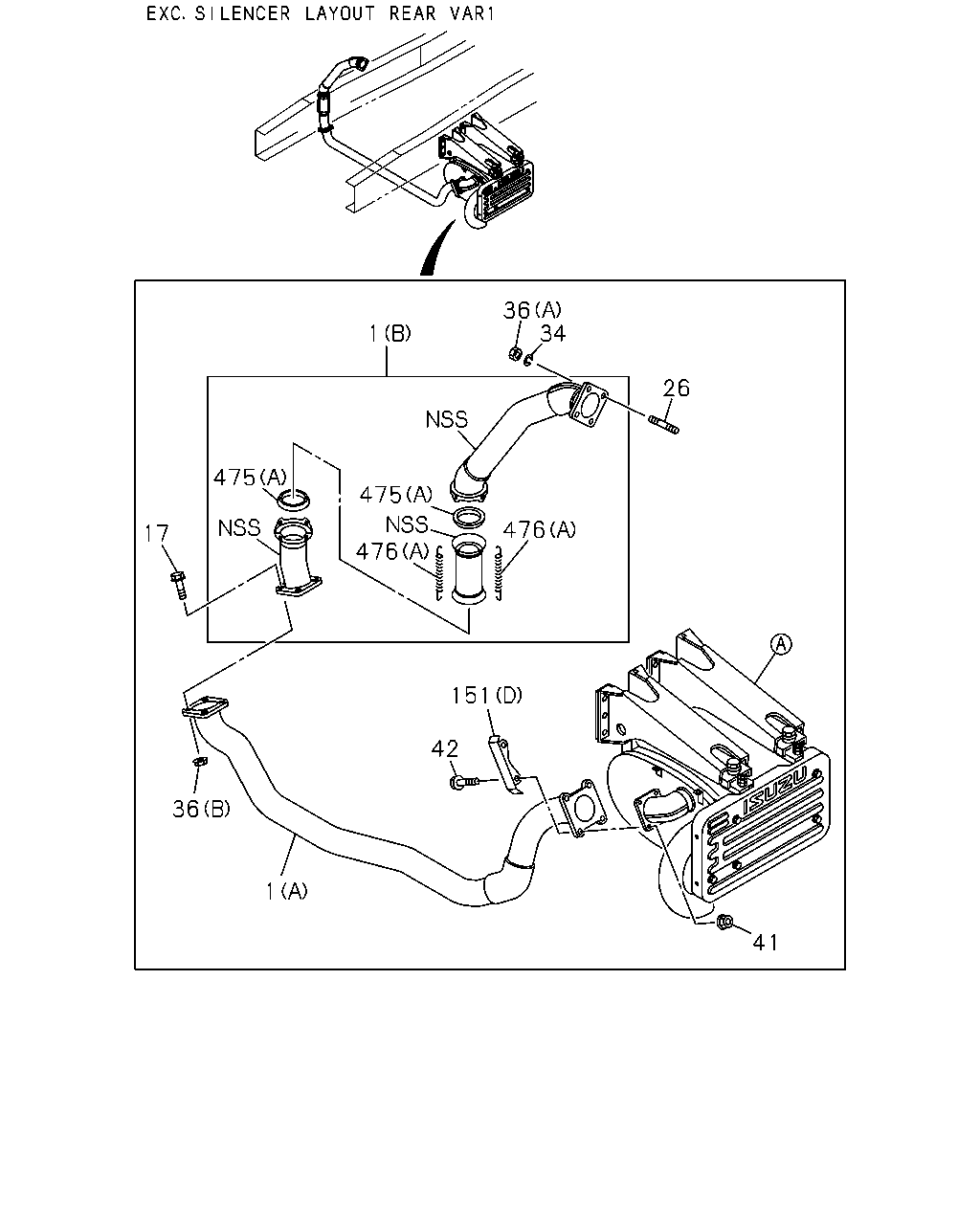

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-		●
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-	●
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-		●
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-	●
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-		●
1	PIPE; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1008-	●	●
1	PIPE; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (E)	8-97635-683-1	01	1	1008-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97633-176-1	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-394-0	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-393-0	01	1	1008-		●
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-	●	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402	●	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	1008-		●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1208-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1208-	●	●
151	PROTECTOR; HEAT,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-	●	●
151	PROTECTOR; HEAT,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1003-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	1008-1201	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	1008-1201		●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1003-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-1201	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-1201		●
476	SPRING; VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-		●

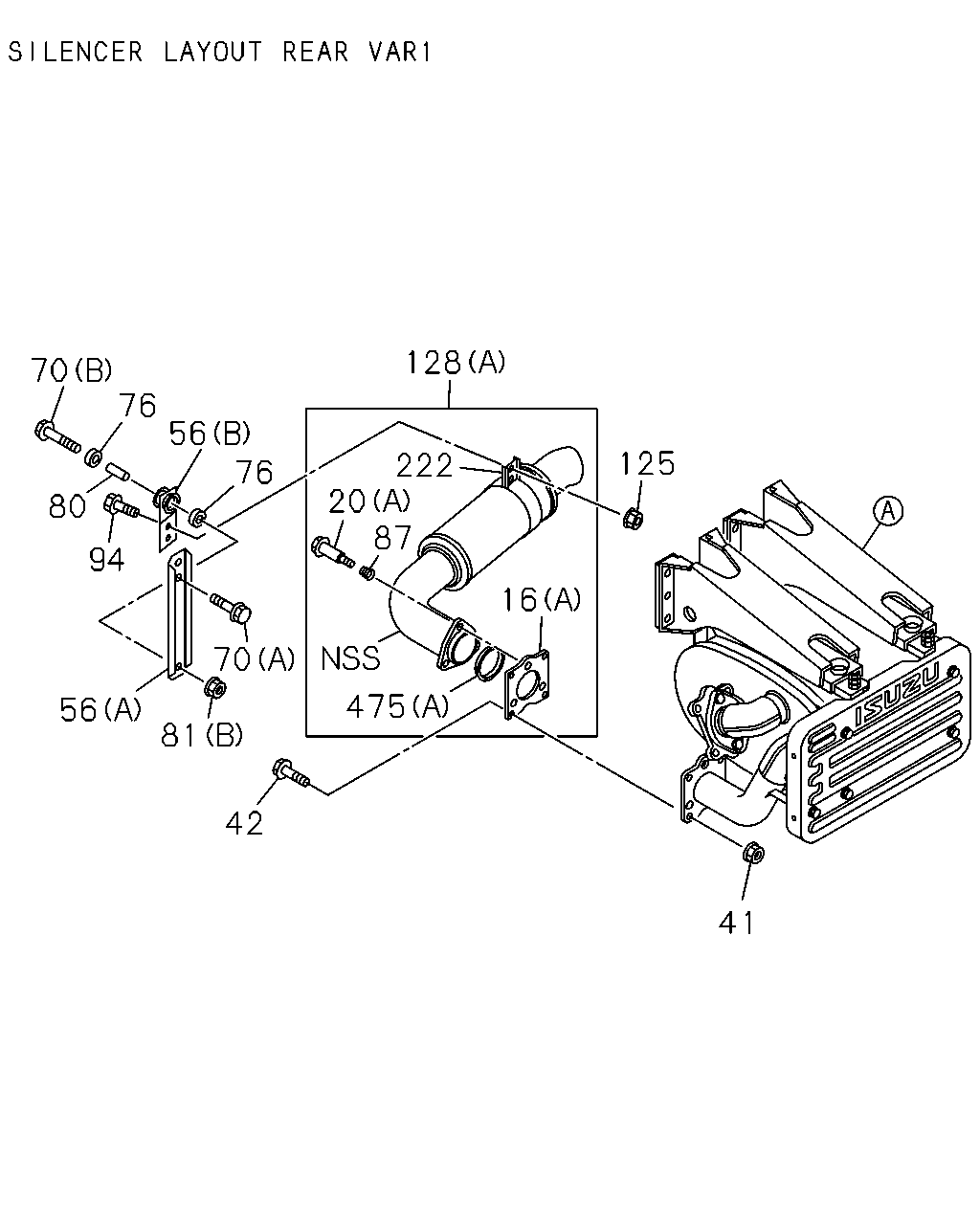

128 70 76 56 76 222 20 87 125 80 94 16 70 475 56 81 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1008-	●	●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22115-148-1	01	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	03	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1201	●	●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
41	NUT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	04	1	1008-		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	1008-		●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1008-	●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	8-97615-957-0	01	1	1008-		●
56	BRACKET; CLAMP,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1008-	●	●
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C)	8-97632-335-0	01	1	1008-	●	●
56	BRACKET; CLAMP,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1008-	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97632-346-0	01	1	1008-		●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1008-	●	●
70	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-	●	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-	●	●
70	BOLT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-	●	●
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	02	1	1008-		●
76	SUPPORT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	1008-	●	●
80	COLLAR; DIST,SUPPORT RUBBER SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> L=22	1-22159-392-0	01	1	1008-		●
80	COLLAR; DIST,SUPPORT RUBBER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	1008-	●
80	COLLAR; DIST,SUPPORT RUBBER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	1008-		●
81	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1008-	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	02	1	1008-	●	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	12	1	1008-	●	●
81	NUT; BRKT 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-		●
87	SPRING; PRE SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	1008-	●	●
94	BOLT; CLAMP ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1008-	●	●
125	NUT; CLAMP ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-152-0	01	1	1008-	●
128	PIPE; EXH,RR ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	8-97634-152-0	01	1	1008-		●
128	PIPE; EXH,RR 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (B)	1-22123-087-1	01	1	1008-	●	●
128	PIPE; EXH,RR 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1008-	●	●
128	PIPE; EXH,RR SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97632-392-1	01	1	1008-		●
222	CLAMP; EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-293-0	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1003-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	1008-1201	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	1008-1201		●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-		●

151 151 36 34 1 26 160 151 159 151 476 475 41 20 476 475 16 476 475 375 368 375 354 354 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-	●
1	PIPE; EXH EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (A)	1-22123-762-1	01	1	1008-		●
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-	●
1	PIPE; EXH 6WF1 TC-C(1B8) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-033-0	01	1	1008-		●
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-	●
1	PIPE; EXH 6WG1 TC-R(75L) EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B)	1-22124-034-0	01	1	1008-		●
1	PIPE; EXH 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (E)	8-97636-102-1	01	1	1008-	●	●
1	PIPE; EXH 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (E)	8-97635-683-1	01	1	1008-	●	●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97633-176-1	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> (D)	8-97634-143-1	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-394-0	01	1	1008-		●
1	PIPE; EXH SILENCER LAYOUT REAR VAR1<JAZ> 6WG1 TC-R(75L) EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97632-393-0	01	1	1008-		●
16	FLANGE; EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1008-	●	●
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22115-148-1	01	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	03	1	1008-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	8-94436-943-0	02	1	1008-1201	●	●
20	BOLT; FLANGE,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) M10X51.4	8-94436-943-0	02	1	1202-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X49.8	8-97039-586-0	02	1	1008-		●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402	●	●
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-	●	●
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1008-	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-	●
151	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (D)	8-97635-597-0	01	1	1008-		●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-322-0	01	1	1208-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (F)	8-97641-323-0	01	1	1208-	●	●
151	PROTECTOR; HEAT,EXH PIPE 6WF1 TC-C(1B8) SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-	●	●
151	PROTECTOR; HEAT,EXH PIPE 6WG1 TC-R(75L) SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1008-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	1008-	●	●
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-	●	●
160	NUT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>, SILENCERSINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-		●
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1008-	●	●
368	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28050-830-0	04	1	1008-1207	●	●
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	1003-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	01	1	1008-1201	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	1008-1201		●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-1	01	1	1202-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1003-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-1201	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1008-1201		●
476	SPRING; VIBNON,EXH PIPE 6WF1 TC-C(1B8) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE 6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	1202-		●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER LAYOUT REAR VAR1<JAZ> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1008-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
