Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#63607) — 162 parça

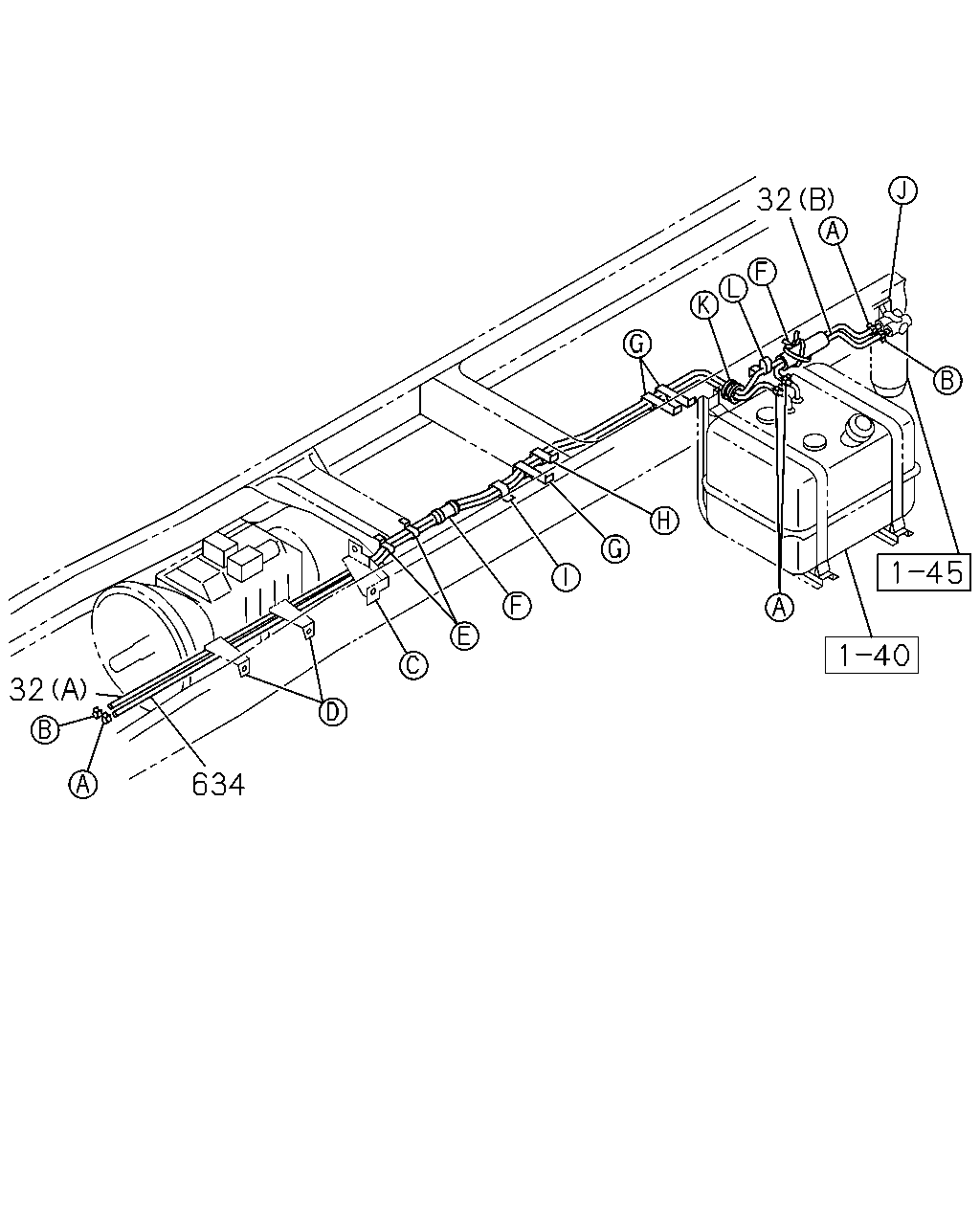

101 101 101 41 100 41 100 102 100 102 102 48 101 48 101 101 289 289 100 100 100 97 97 103 103 102 102 102 38 95 622 290 220 345 80 41 41 291 97 303 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1106-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1008-1105		●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1008-1105	●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1106-		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1106-	●
38	SLEEVE; RUBBER,RUBBER HOSE BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1008-1105	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-		●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-	●
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1106-1109	●	●
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1008-1105		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1008-1105	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1106-1109		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1106-1109	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=14	1-09704-102-0	04	1	1008-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (B) ID=19	8-94238-569-0	02	1	1008-	●	●
48	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●
48	BOLT; BRKT BATTERY LAYOUT REAR VAR1<NCT> (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1008-1105		●
80	BOLT; CLIP,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1008-1105	●
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	01	1	1106-	●	●
80	BOLT; CLIP,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	01	1	1106-		●
80	BOLT; CLIP,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1106-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1008-1105		●
83	NUT; CLIP,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1008-1105	●
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1106-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1106-		●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1106-	●
95	BUSHING; PIPE,FUEL TANK FUEL TANK 400L<SDH> ID=32 OD=40 T=23	1-09332-112-0	01	1	1008-	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	8-98186-869-0	01	1	1106-	●	●
97	BRACKET; CLIP (B)	1-47475-927-0	01	1	1008-1010		●
97	BRACKET; CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-47475-927-0	01	1	1008-1010	●
97	BRACKET; CLIP (B) L=68	1-47475-525-0	01	1	1011-1105		●
97	BRACKET; CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=68	1-47475-525-0	01	1	1011-1105	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B) L=68	1-47475-525-0	01	1	1106-	●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=68	1-47475-525-0	01	1	1106-		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (B) L=68	1-47475-525-0	01	1	1106-	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> (C) L=55	1-47475-304-0	01	1	1008-	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98172-059-0	02	1	1008-	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1008-		●
100	CLIP; FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5	1-09701-315-0	05	1	1008-	●
100	CLIP; FUEL PIPE BATTERY LAYOUT REAR VAR1<NCT> ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	1008-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	1008-		●
101	BOLT; CLIP,FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	05	1	1008-	●
101	BOLT; CLIP,FUEL PIPE BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	08	1	1008-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	05	1	1008-		●
102	NUT; CLIP,FUEL PIPE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	05	1	1008-	●
102	NUT; CLIP,FUEL PIPE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1008-	●
103	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1008-	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1108-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1008-1107	●	●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1108-	●	●
289	CLIP; BAND,HOSE BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1106-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1008-1105		●
289	CLIP; BAND,HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	04	1	1008-1105	●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1106-		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	02	1	1106-	●
289	CLIP; BAND,HOSE BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	06	1	1008-1105	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1106-		●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	1106-	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> L=250	5-09707-030-1	04	1	1106-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1008-1107	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1108-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1008-1105		●
303	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-1105	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	01	1	1106-	●	●
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	01	1	1106-		●
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1106-	●
345	PLUG RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) NPTF3/8-18	8-97329-623-0	02	1	1009-1109	●	●
345	PLUG RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1110-	●	●
622	SPACER; BRKT RUSSIA EQUIPMENT(B12)	8-98124-944-0	01	1	1008-1008	●	●

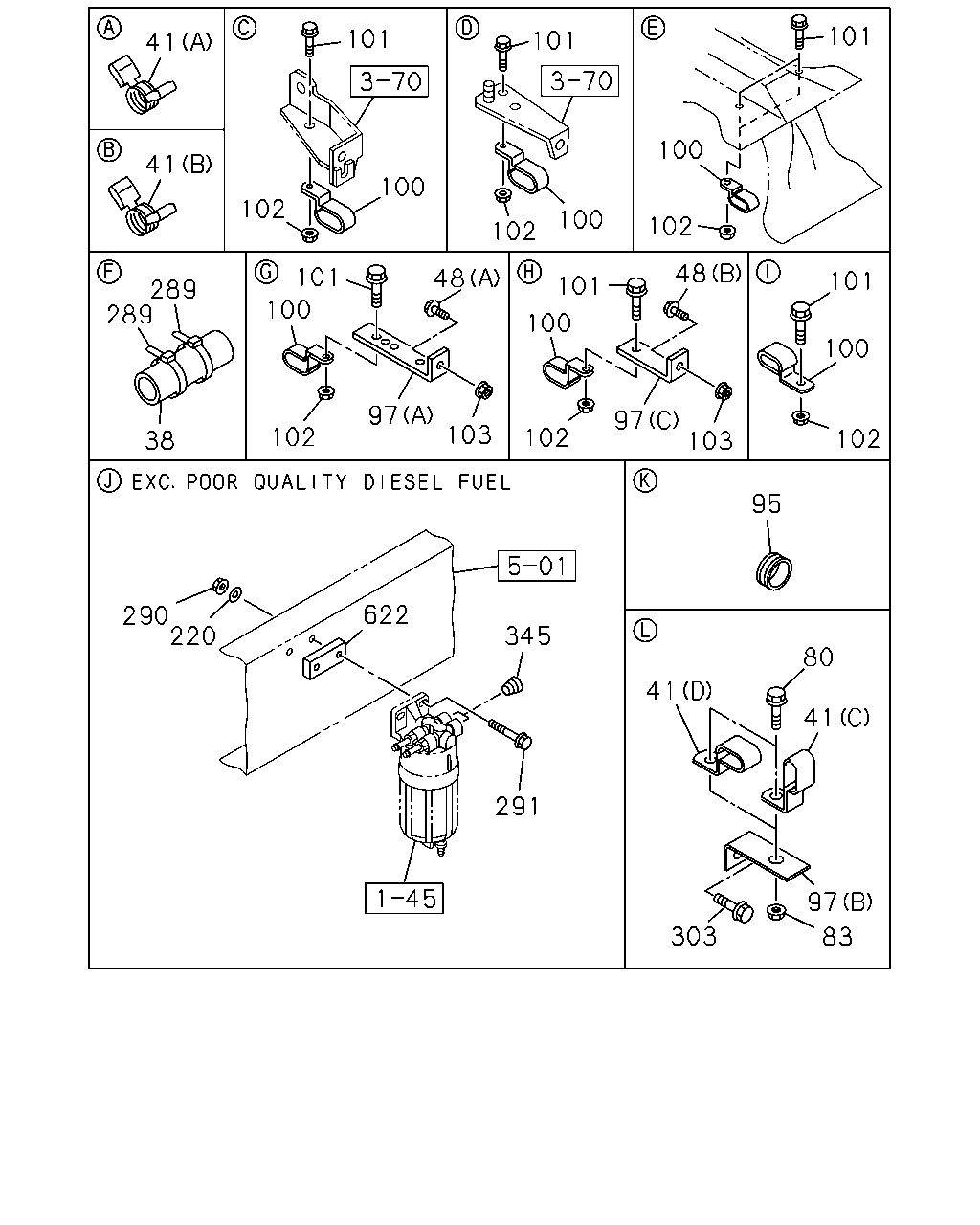

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105		●
32	PIPE; DELIVERY,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105		●
32	PIPE; DELIVERY,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1106-	●
634	HOSE; RUBBER RETURN L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1008-		●
634	HOSE; RUBBER RETURN EXC. BATTERY LAYOUT REAR VAR1<NCT> L=1950 SERVICED BY L=3000	0-01260-300-0	01	1	1008-	●
634	HOSE; RUBBER RETURN BATTERY LAYOUT REAR VAR1<NCT> L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	1008-	●

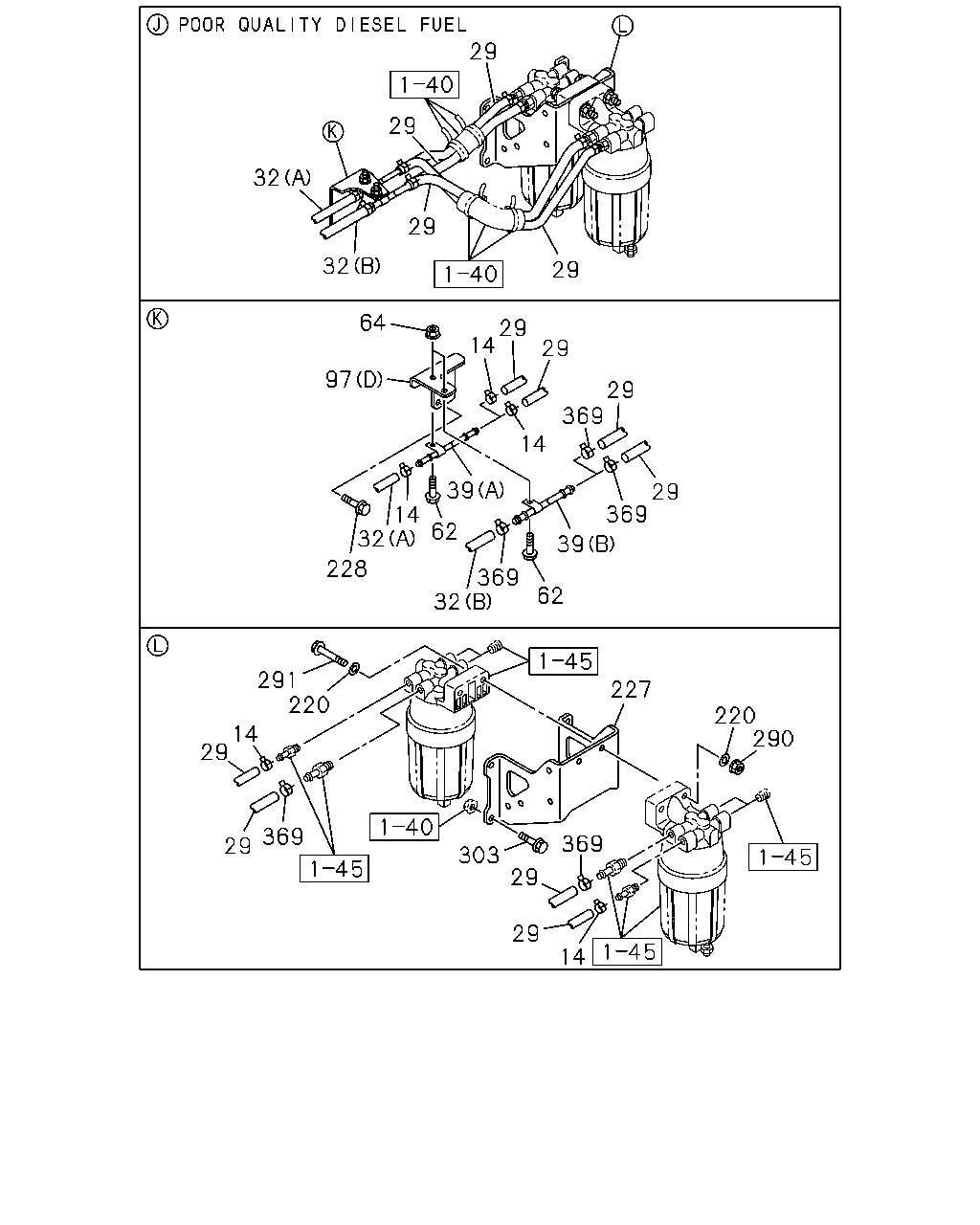

29 29 32 29 29 29 29 14 32 64 97 39 62 14 32 228 32 62 369 39 369 29 14 369 29 227 220 290 14 29 369 29 303 369 29 29 14 220 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1106-	●	●
29	HOSE; FUEL WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> L=350 OD=19	8-98188-464-0	01	1	1106-		●
29	HOSE; FUEL WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=350 OD=19	8-98188-464-0	01	1	1106-	●
29	HOSE; FUEL WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> L=350 OD=14.5	8-98188-445-0	01	1	1106-		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=350 OD=14.5	8-98188-445-0	01	1	1106-	●
29	HOSE; FUEL WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> L=390 OD=19	8-98188-465-0	01	1	1106-		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=390 OD=19	8-98188-465-0	01	1	1106-	●
29	HOSE; FUEL WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> L=430 OD=14.5	8-98188-469-0	01	1	1106-		●
29	HOSE; FUEL WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=430 OD=14.5	8-98188-469-0	01	1	1106-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> L=260 OD=14.5	8-98188-441-0	01	1	1106-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> L=370 OD=14.5	8-98188-446-0	01	1	1106-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> L=270 OD=19	8-98188-457-0	01	1	1106-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> L=330 OD=19	8-98188-461-0	01	1	1106-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=310 OD=14.5	8-98188-443-0	01	1	1106-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=400 OD=14.5	8-98188-447-0	01	1	1106-	●
29	HOSE; FUEL WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT> L=310 OD=19	8-98188-459-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5200MM(52W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105		●
32	PIPE; DELIVERY,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105		●
32	PIPE; DELIVERY,FUEL TANK EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1106-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (A) L=2300 SERVICED BY L=3000	0-01262-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1106-	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1008-1105	●
32	PIPE; DELIVERY,FUEL TANK BATTERY LAYOUT REAR VAR1<NCT> FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	1106-	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1106-	●	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1106-	●	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1106-	●	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1106-	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	8-98186-869-0	01	1	1106-	●	●
97	BRACKET; CLIP (B)	1-47475-927-0	01	1	1008-1010		●
97	BRACKET; CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-47475-927-0	01	1	1008-1010	●
97	BRACKET; CLIP (B) L=68	1-47475-525-0	01	1	1011-1105		●
97	BRACKET; CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) L=68	1-47475-525-0	01	1	1011-1105	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (B) L=68	1-47475-525-0	01	1	1106-	●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=68	1-47475-525-0	01	1	1106-		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> (B) L=68	1-47475-525-0	01	1	1106-	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> (C) L=55	1-47475-304-0	01	1	1008-	●
97	BRACKET; CLIP BATTERY LAYOUT REAR VAR1<NCT> (A)	8-98172-059-0	02	1	1008-	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1108-	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1008-1107	●	●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1108-	●	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1108-	●	●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1106-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1008-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1008-1107	●	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1108-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1008-1105		●
303	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1008-1105	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	01	1	1106-	●	●
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	01	1	1106-		●
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1106-	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1106-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
