1-40 — FUEL TANK (#63606) — 49 parça

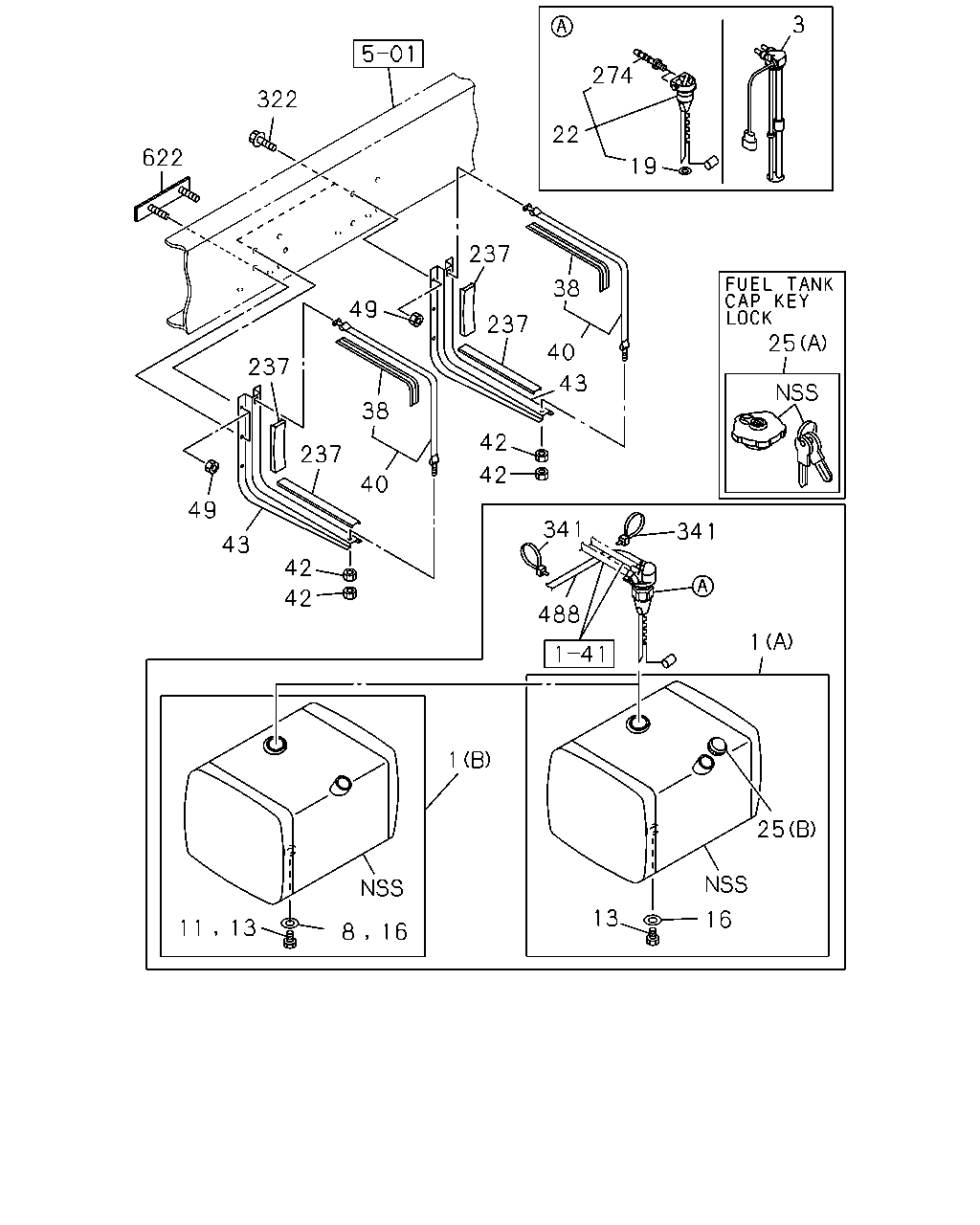

çizim 167438
322 622 237 237 49 38 49 43 42 42 40 237 237 43 42 38 42 3 274 22 25 19 40 341 341 488 1 1 11 13 8 16 13 16 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L 		1-87411-699-1 01 1 1008-1109 ● ●
1 TANK; FUEL
CHINA EQUIPMENT(YT2) (B) 1050X680X625 400L 		1-87412-299-1 01 1 1110- ● ●
1 TANK; FUEL
EXC. CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L 		1-87412-050-4 01 1 1008- ● ●
3 UNIT; FUEL TANK,SUB
CHINA EQUIPMENT(YT2) 		8-98217-749-0 01 1 1211-1304 ● ●
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1305- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
CHINA EQUIPMENT(YT2) ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-1304 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1305- ● ●
11 PLUG; DRAIN,FUEL TANK
CHINA EQUIPMENT(YT2) M18X12 		0-92002-418-0 01 1 1211-1304 ● ●
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1305- ● ●
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 1008-1210 ● ●
13 PLUG; SCREW,SUB TANK JOINT
EXC. CHINA EQUIPMENT(YT2) M18X12 		0-92002-418-0 01 1 1211-1304 ● ●
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 1008-1210 ● ●
16 GASKET; PLUG
EXC. CHINA EQUIPMENT(YT2) ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-1304 ● ●
19 GASKET; FUEL TANK UNIT
CHINA EQUIPMENT(YT2) ID=54.5 		8-98299-580-0 01 1 1211-1304 ● ●
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1305- ● ●
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 1008-1210 ● ●
19 GASKET; FUEL TANK UNIT
EXC. CHINA EQUIPMENT(YT2) ID=58 		1-83149-005-0 01 1 1211-1304 ● ●
22 UNIT; FUEL TANK 1-83141-132-0 01 1 1008-1210 ● ●
22 UNIT; FUEL TANK
EXC. CHINA EQUIPMENT(YT2) 		1-83141-132-0 01 1 1211-1304 ● ●
25 CAP; FILLER,FUEL TANK
(B) 		8-98115-780-0 01 1 1008-1109 ● ●
25 CAP; FILLER,FUEL TANK
EXC. CHINA EQUIPMENT(YT2) (B) 		8-98182-306-0 01 1 1110- ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98108-595-0 01 1 1008-1210 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (A) 		8-98108-595-0 01 1 1211- ● ●
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 1008- ● ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 1008-1110 ● ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111- ● ●
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1008- ● ●
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 1008- ● ●
49 NUT; BRKT
M12 		0-91110-512-0 08 1 1008- ●
49 NUT; BRKT
WHEEL BASE 5900MM(59W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12 		0-91110-512-0 08 1 1008- ●
49 NUT; BRKT
SILENCER LAYOUT REAR VAR1<JAZ> M12 		0-91110-512-0 12 1 1008-1008 ●
49 NUT; BRKT
SILENCER LAYOUT REAR VAR1<JAZ> M12 		0-91110-512-0 06 1 1009- ●
49 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12 		0-91110-512-0 02 1 1008- ●
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 1008- ● ●
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 1008-1210 ● ●
274 CONNECTOR; ELBOW,FUEL TANK PIPE
EXC. CHINA EQUIPMENT(YT2) 		1-83149-006-0 02 1 1211-1304 ● ●
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 10 1 1008- ●
322 BOLT; BRKT FIX
EXC. SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE 		0-28051-240-0 10 1 1008- ●
322 BOLT; BRKT FIX
SILENCER LAYOUT REAR VAR1<JAZ> M12X40 FLANGE 		0-28051-240-0 12 1 1008- ●
341 CLIP; BAND,RUBBER HOSE
FUEL TANK 400L<SDH> L=350 		1-09707-183-0 02 1 1008- ● ●
488 HOSE; RUBBER
FUEL TANK 400L<SDH> 		8-98134-936-0 01 1 1008- ● ●
622 STUD; BRACKET 1-53461-534-0 01 1 1008- ●
622 STUD; BRACKET
EXC. SILENCER LAYOUT REAR VAR1<JAZ> 		1-53461-534-0 01 1 1008- ●

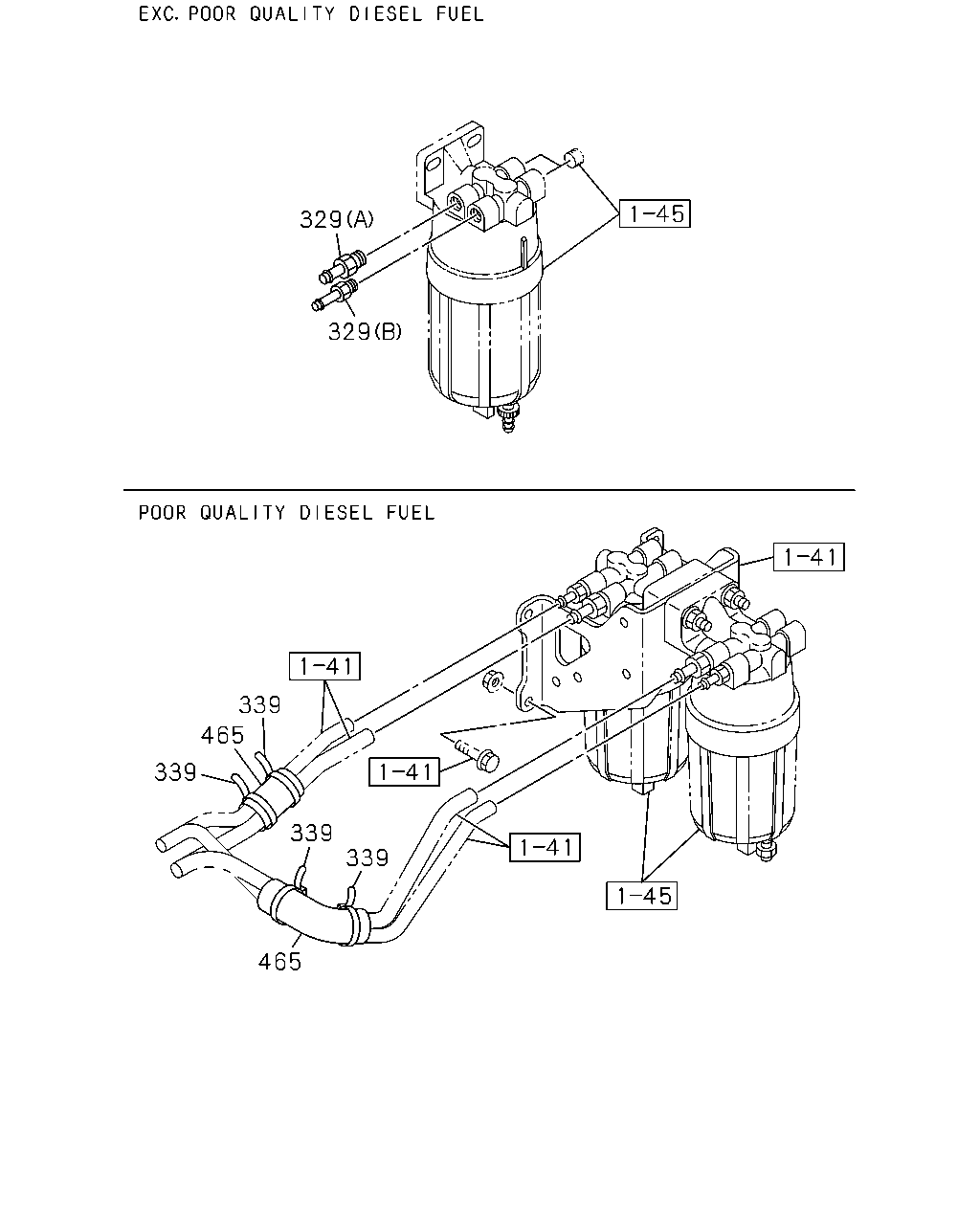

çizim 167541
329 329 339 465 339 339 339 465
BalonParca AdiParca NoAdetTipApplied Date A B
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) (A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1009-1109 ● ●
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1110- ● ●
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) (B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1009-1109 ● ●
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1110- ● ●
339 CLIP; BAND,FUEL HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 04 1 1106- ● ●
465 SLEEVE; RUBBER
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1106- ● ●
