◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#63605) — 15 parça

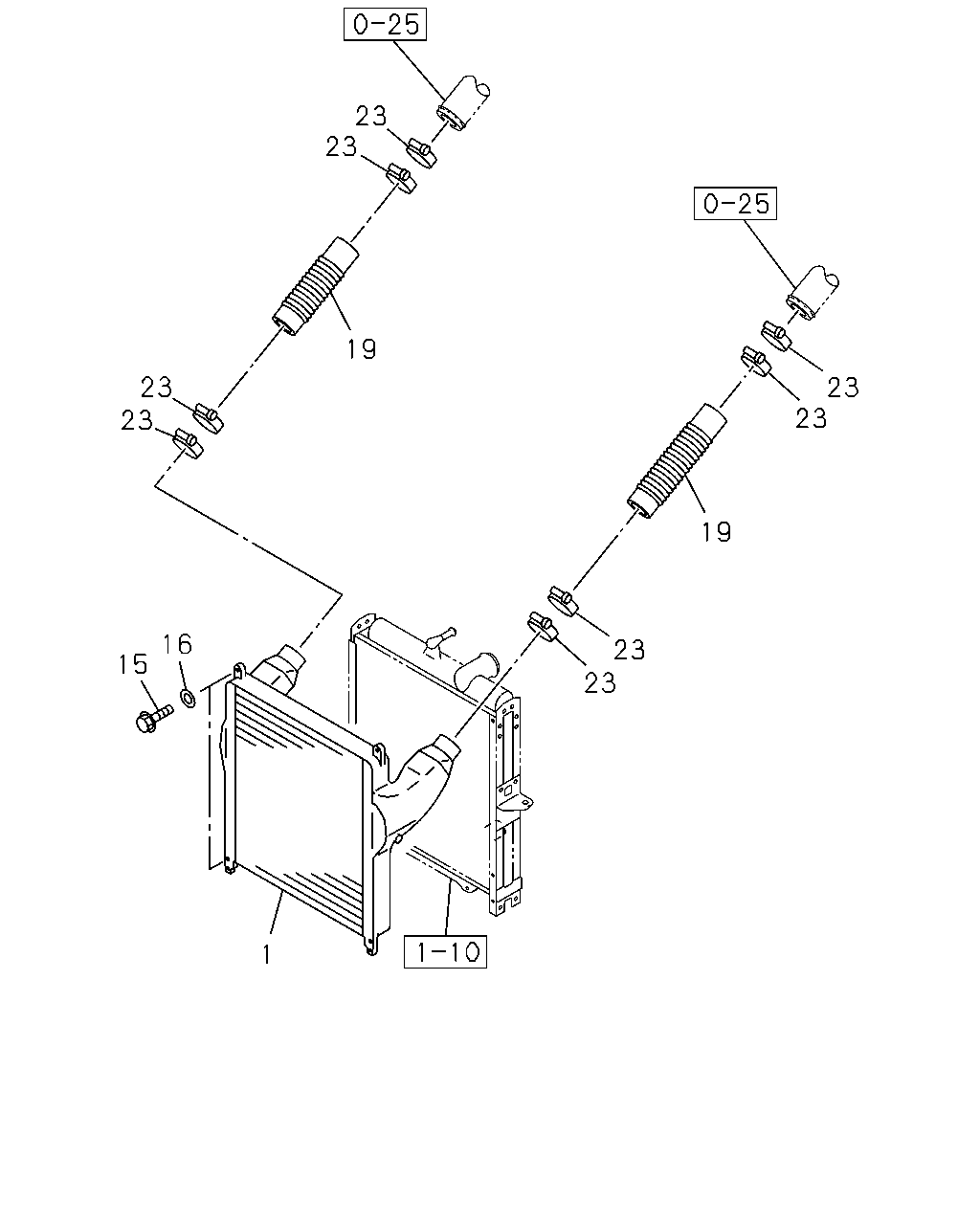

çizim 167450
23 23 19 23 23 23 23 19 16 23 23 15 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR 1-14431-055-6 01 1 1008- ●
1 COOLER; CHARGE AIR 8-97604-525-4 01 1 1008- ●
15 BOLT; CHARGE AIR COOLER
M8X35 FLANGE 		1-21469-151-0 04 1 1008- ● ●
16 WASHER; PL,CHARGE AIR COOLER 1-21469-132-0 02 1 1008-1112 ●
16 WASHER; PL,CHARGE AIR COOLER
EXC. CONCRETE PUMP<RA5> 		1-21469-132-0 02 1 1201- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 1-09361-130-0 01 1 1008- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 1-09361-131-0 01 1 1008-1402 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 8-98258-227-0 01 1 1403- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 1-09361-141-1 01 1 1008-1010 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 8-98170-413-0 01 1 1011-1511 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 8-98317-805-0 01 1 1512- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 1-09361-142-1 01 1 1008-1010 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 8-98170-414-0 01 1 1011- ●
23 CLIP; HOSE
ID=87-112 		8-97375-040-0 08 1 1008-1010 ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-138-0 08 1 1011- ● ●
