◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#63601) — 64 parça
çizim 167468
1 528 526 529 232 267 89 528 529 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-921-4 01 1 1008- ●
1 RADIATOR ASM 8-98162-867-1 01 1 1008- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1008- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1008- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1008- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1008- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1008- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1008- ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 1008- ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 1008- ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-125-0 01 1 1008- ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-126-0 01 1 1008- ●
528 PLATE; SIDE,RADIATOR CORE 8-98162-865-0 01 1 1008- ●
528 PLATE; SIDE,RADIATOR CORE 8-98162-866-0 01 1 1008- ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 1008- ● ●
çizim 167491

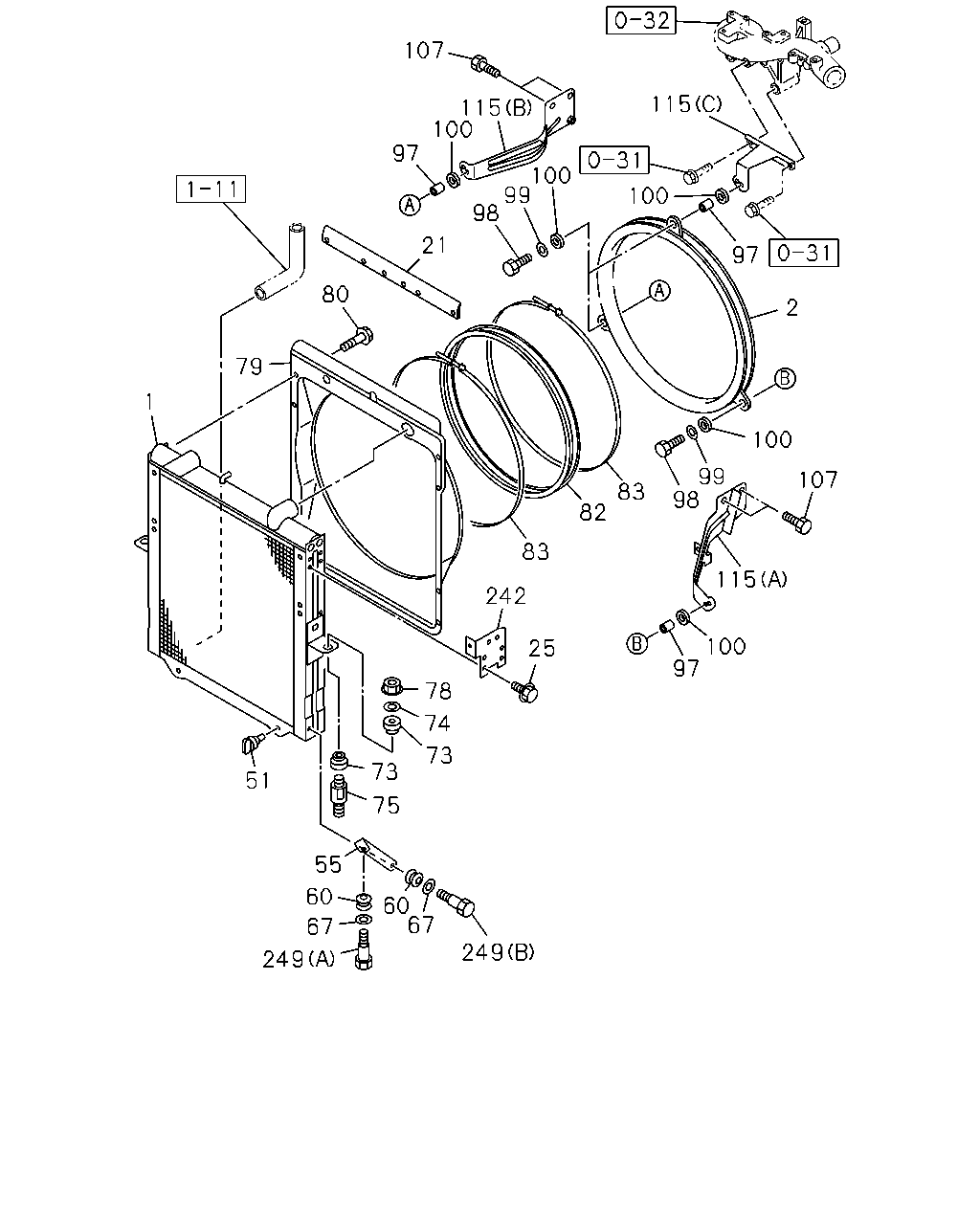

107 115 115 100 97 100 99 98 100 21 97 80 2 79 1 100 99 98 107 83 82 83 115 242 100 97 25 78 74 73 51 73 75 55 60 60 67 67 249 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-921-4 01 1 1008- ●
1 RADIATOR ASM 8-98162-867-1 01 1 1008- ●
2 GUIDE; FAN 8-98171-163-0 01 1 1008- ● ●
21 SEAL; RAD
CONCRETE PUMP<RA5> 		1-21460-139-0 01 1 1201- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 1008- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1008- ● ●
55 STAY; RAD TO UPR MBR 1-21464-766-0 01 1 1008- ●
55 STAY; RAD TO UPR MBR 1-21464-767-0 01 1 1008- ●
55 STAY; RAD TO UPR MBR 1-21464-778-0 01 1 1008- ●
55 STAY; RAD TO UPR MBR 1-21464-779-0 01 1 1008- ●
60 GROMMET 1-09332-117-0 04 1 1008- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 1008- ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 1008- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1008- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 1008- ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 1008- ● ●
79 GUIDE; FAN,RAD 1-21551-558-0 01 1 1008- ●
79 GUIDE; FAN,RAD 1-21551-546-1 01 1 1008- ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 1008- ● ●
82 COVER; FAN,RAD 1-21559-465-0 01 1 1008- ●
82 COVER; FAN,RAD 1-21559-491-1 01 1 1008- ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 1008- ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 1008- ● ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 1008- ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 1008- ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 1008- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 1008- ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 1008- ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 1008- ● ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 1008-1301 ● ●
115 BRACKET; FAN GUIDE
(C) 		8-97643-211-0 01 1 1302- ● ●
115 BRACKET; FAN GUIDE
(A) 		8-97612-230-0 01 1 1008-1301 ● ●
115 BRACKET; FAN GUIDE
(A) 		8-97643-212-0 01 1 1302- ● ●
242 BRACKET; RAD
CONCRETE PUMP<RA5> 		1-21464-799-0 01 1 1201- ●
242 BRACKET; RAD
CONCRETE PUMP<RA5> 		1-21464-800-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-801-0 01 1 1008-1112 ●
242 BRACKET; RAD
EXC. CONCRETE PUMP<RA5> 		1-21464-801-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-802-0 01 1 1008-1112 ●
242 BRACKET; RAD
EXC. CONCRETE PUMP<RA5> 		1-21464-802-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-790-0 01 1 1008- ●
242 BRACKET; RAD 1-21464-791-0 01 1 1008- ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 1008- ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 1008- ● ●
çizim 292171

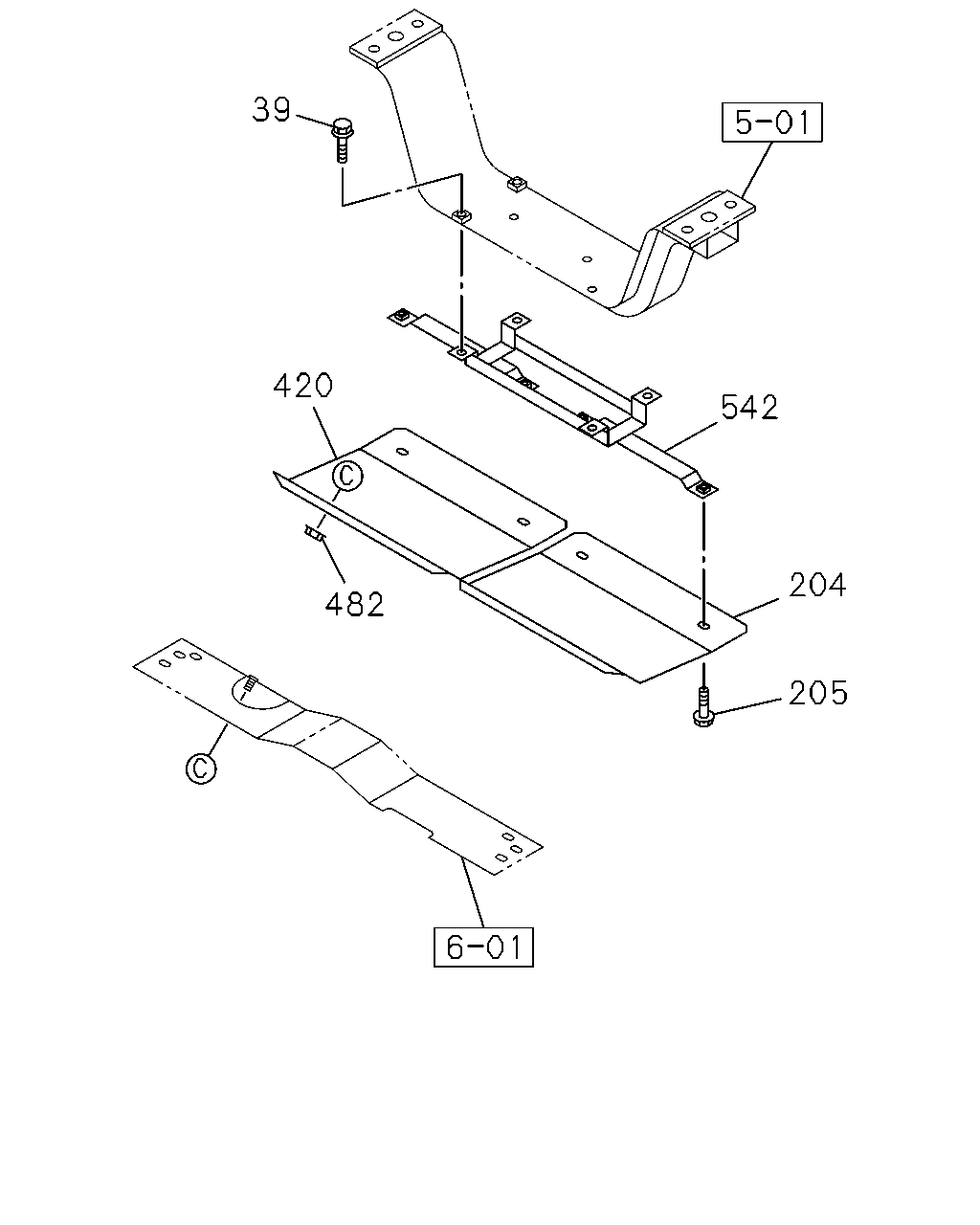

542 204 205 482 420 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28661-025-0 04 1 1208- ● ●
204 GUIDE ASM; AIR
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 		8-98210-491-0 01 1 1208- ● ●
205 BOLT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8X25 FLANGE 		8-98074-570-0 04 1 1208- ● ●
420 GUIDE; AIR,RAD
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 		8-98210-490-0 01 1 1208- ● ●
482 NUT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE 		1-09440-049-0 04 1 1208- ● ●
542 BRACKET; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 		8-98210-495-0 01 1 1208- ● ●
