Isuzu WW
▶
TRUCKS
▶
CVR
▶
10723 - CVR LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

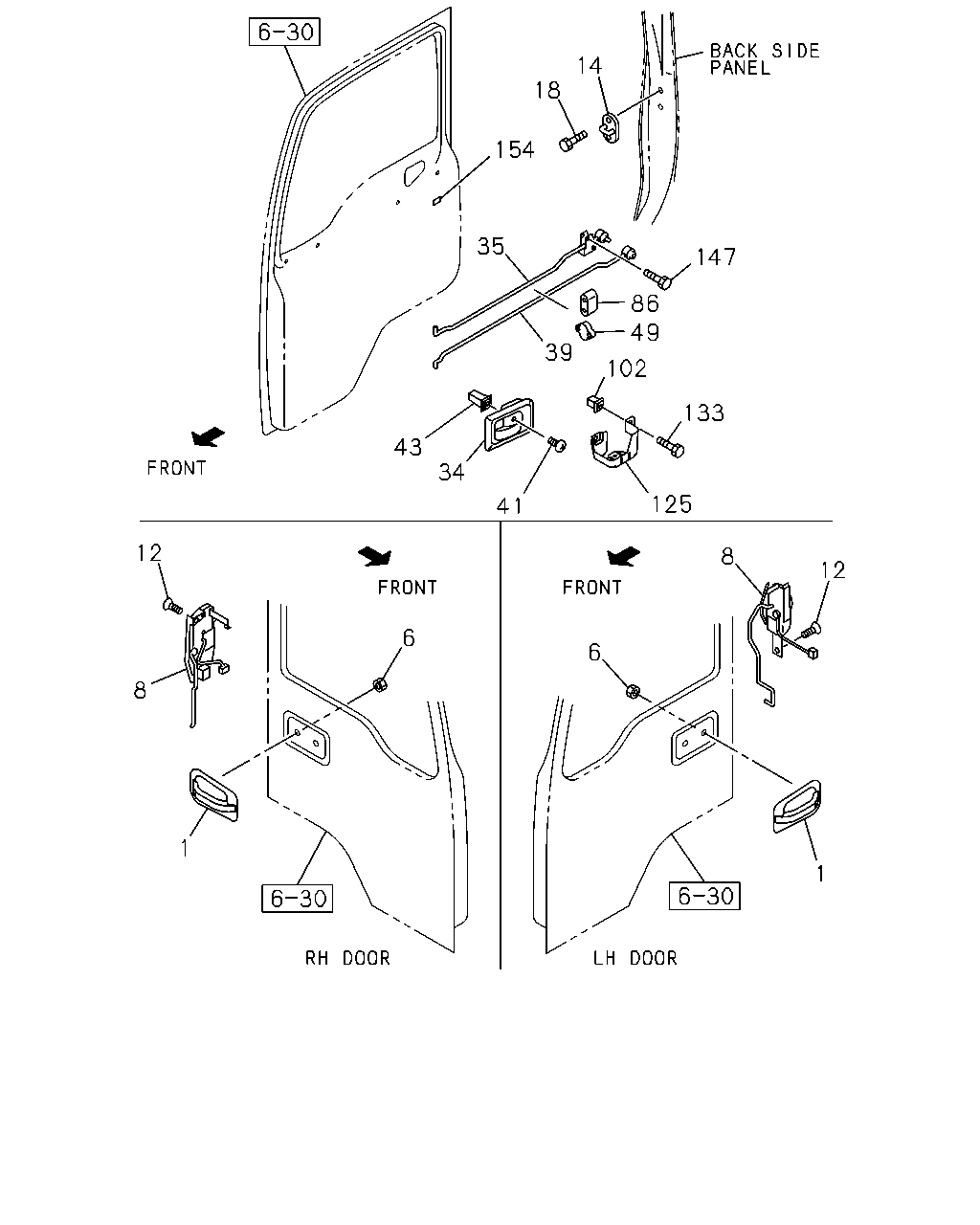

6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#6360) — 28 parça
14
18
154
35
147
86
49
39
102
133
43
34
125
41
12
8
12
6
6
8
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
1-74618-024-4
02
1
9604-9904
1
HANDLE; OUTSIDE,FRT DOOR
1-74618-040-0
02
1
9905-9905
1
HANDLE; OUTSIDE,FRT DOOR
1-74618-024-4
02
1
9906-
6
NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
9604-
8
LOCK; DOOR,FRT DOOR
1-74518-119-2
01
1
9604-
8
LOCK; DOOR,FRT DOOR
1-74518-118-2
01
1
9604-
12
SCREW; DOOR LK
M6X16
1-09981-447-1
06
1
9604-
12
SCREW; DOOR LK
M6X14
1-09981-512-1
04
1
9604-
14
STRIKER; FRT DOOR
8-97852-106-1
02
1
9604-9903
14
STRIKER; FRT DOOR
8-97221-702-0
02
1
9904-
18
SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9604-9903
18
SCREW; DOOR STRIKER
M8X23 W/LK WASHER
8-97221-701-0
04
1
9904-
34
HANDLE; INSIDE,FRT DOOR
1-74718-023-4
01
1
9604-
34
HANDLE; INSIDE,FRT DOOR
1-74718-022-4
01
1
9604-
35
LINK; DOOR LOCK,INSIDE
DOOR LOCK
1-74518-094-3
01
1
9604-
35
LINK; DOOR LOCK,INSIDE
DOOR LOCK
1-74518-093-3
01
1
9604-
39
LINK; INSIDE HANDLE,FRT DOOR
DOOR OPEN
1-74758-022-2
01
1
9604-
39
LINK; INSIDE HANDLE,FRT DOOR
DOOR OPEN
1-74758-021-2
01
1
9604-
41
SCREW; INSIDE HANDLE
M5X14
8-94152-495-0
02
1
9604-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
9604-
49
CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE
8-94217-699-0
04
1
9604-
86
SEAL; DOOR LOCK LINK
1-76778-044-1
02
1
9604-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
04
1
9604-
125
BRACKET; DOOR PULL
1-74718-011-4
01
1
9604-
125
BRACKET; DOOR PULL
1-74718-010-4
01
1
9604-
133
SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING
8-94279-123-0
04
1
9604-
147
BOLT; ROD
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9604-
154
SEAL; DOOR
15X30
1-74998-069-0
02
1
9604-
