1 |
CABLE; BATTERY

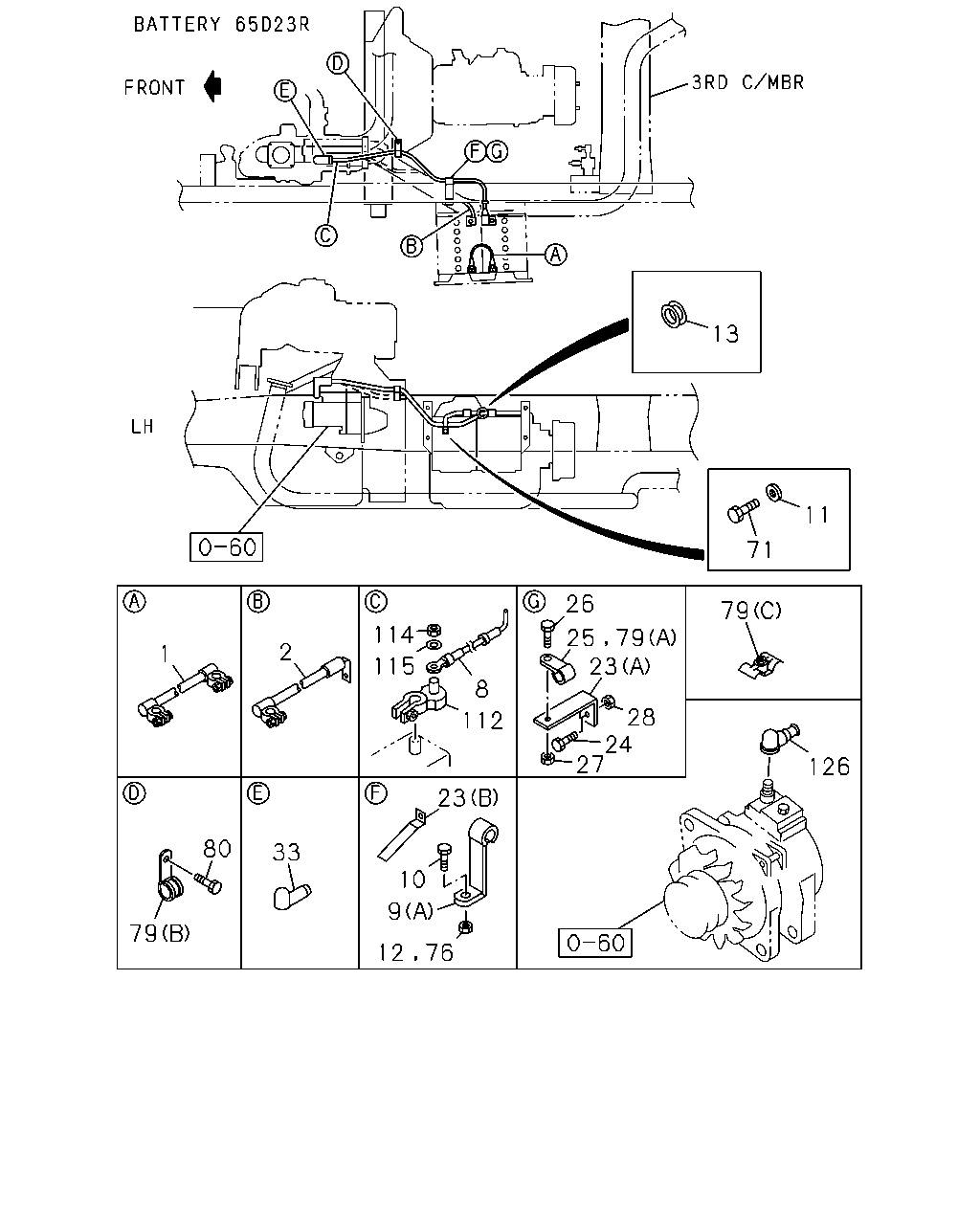

BATTERY 65D23R MAINTENANCE FREE<WL4>
L=180
|
9-82932-233-1 |
01 |
1 |
9202-9407 |
● |
● |
| |
1 |
CABLE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
L=180
|
1-82650-265-0 |
01 |
1 |
9408- |
● |
● |
| |
1 |
CABLE; BATTERY

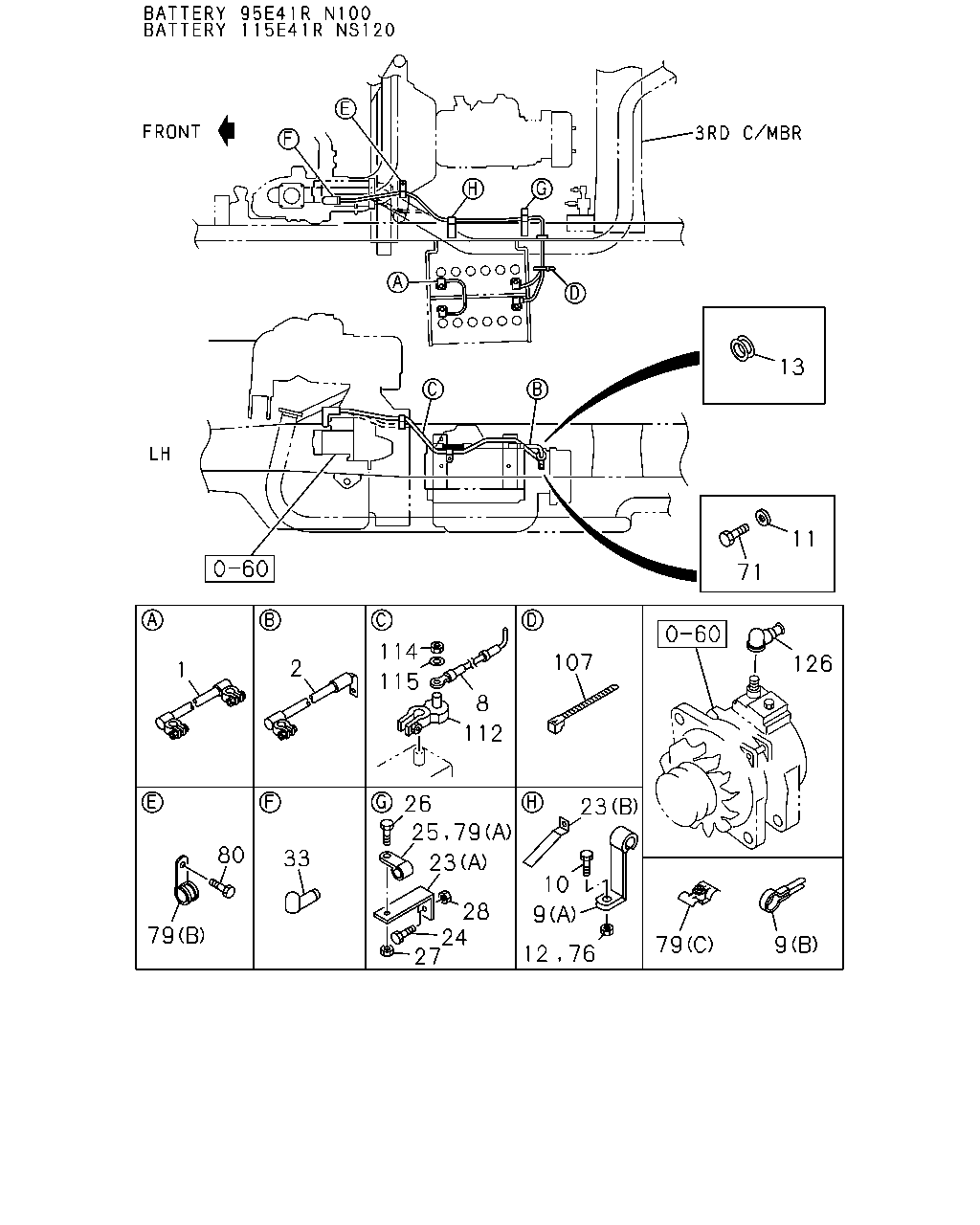

BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=450
|
9-82932-417-1 |
01 |
1 |
9202- |
● |
● |
| |
2 |
CABLE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4>
L=185
|
1-82650-067-2 |
01 |
1 |
9202- |
● |
● |
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=380
|
9-82932-713-2 |
01 |
1 |
9202- |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
L=1550
|
1-82650-208-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
L=1450
|
1-82650-217-1 |
01 |
1 |
9203- |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
L=1950
|
1-82650-211-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BRAKE SYSTEM HEAVY
DUTY VAR2(WG3),BATTERY 115E41R NS120<W73>
L=1700
|
1-82650-209-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
L=1700
|
1-82650-209-1 |
01 |
1 |
9203- |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=950
|
1-82650-207-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=850
|
1-82650-219-1 |
01 |
1 |
9203- |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
(A) L=80
ID=16 T=1.6
|
1-09700-981-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
(B)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9203- |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
(B)
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
9203- |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
(A)
ID=16 L=50 H=25
|
1-09700-838-0 |
01 |
1 |
9203-9207 |
● |
● |
| |
9 |
CLIP; BATTERY CABLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
(A)
ID=16 H=45 L=20
|
1-09701-161-0 |
01 |
1 |
9212- |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X35 W/SP WASHER
|
9-01901-035-0 |
01 |
1 |
9202-9204 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X35 W/SP WASHER
|
0-50041-035-0 |
01 |
1 |
9205- |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M10X20 W/SP WASHER
|
9-01901-020-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9203-9204 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9208- |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M10X20 W/SP WASHER
|
0-50041-020-0 |
02 |
1 |
9205- |
● |
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9212- |
● |
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9202- |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
BATTERY 65D23R MAINTENANCE FREE<WL4>
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
MLD6 M/T<X9Y>
M8
|
9-09110-408-0 |
01 |
1 |
9203-9207 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8
|
9-09110-408-0 |
01 |
1 |
9203-9207 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
MLD6 M/T<X9Y>
M8
|
9-09110-408-0 |
01 |
1 |
9208- |
● |
● |
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
9202- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(A)
L=112
|
1-47475-694-1 |
01 |
1 |
9202-9202 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
(A)
L=55
|
1-47475-304-0 |
01 |
1 |
9203- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BRAKE SYSTEM HEAVY
DUTY VAR2(WG3),BATTERY 115E41R NS120<W73>
(A)
L=95
|
1-82699-085-0 |
01 |
1 |
9203- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
(B)
|
1-82699-584-0 |
01 |
1 |
9203-9207 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
|
1-82699-584-0 |
01 |
1 |
9208- |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 W/LK WASHER
|
9-01900-825-0 |
01 |
1 |
9202-9204 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9208- |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X22 FLANGE
|
0-28080-822-0 |
02 |
1 |
9203-9207 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9208-9208 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9209- |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BRAKE SYSTEM HEAVY
DUTY VAR2(WG3),BATTERY 115E41R NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9209- |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BRAKE SYSTEM HEAVY
DUTY VAR2(WG3),BATTERY 115E41R NS120<W73>
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9203-9207 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9208- |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
9203-9207 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
9208- |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
ID=16 L=28
|
1-09700-872-0 |
02 |
1 |
9203- |
● |
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
ID=16 L=28
|
1-09700-872-0 |
02 |
1 |
9203- |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9203-9207 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9208- |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9208- |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9203-9204 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9208- |
● |
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9210- |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9203-9207 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8
|
9-09110-408-0 |
01 |
1 |
9203-9207 |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8
|
9-09110-408-0 |
02 |
1 |
9208- |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8
|
9-09110-408-0 |
02 |
1 |
9208- |
● |
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
01 |
1 |
9210- |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
03 |
1 |
9203- |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BRAKE SYSTEM HEAVY
DUTY VAR2(WG3),BATTERY 115E41R NS120<W73>
M8
|
9-09110-408-0 |
02 |
1 |
9203- |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M8
|
9-09110-408-0 |
01 |
1 |
9208- |
● |
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
9202- |
● |
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
9202- |
● |
● |
| |
76 |
NUT; BATTERY CABLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M8
|
9-09110-408-0 |
01 |
1 |
9212- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X>
(A)
|
1-09700-838-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(C)
ID=16 H=30 L=30
|
1-09701-080-0 |
01 |
1 |
9203- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
MLD6 M/T<X9Y>
(B)
|
1-09700-872-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9202-9202 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
EXC. MLD6 M/T<X9Y>
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9203-9204 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9208-9209 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X14 FLANGE
|
0-28080-814-0 |
01 |
1 |
9210- |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
MLD6 M/T<X9Y>
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9203-9204 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
BATTERY 65D23R MAINTENANCE FREE<WL4>
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205- |
● |
● |
| |
107 |
CLIP; BAND
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=140
|
5-09707-031-0 |
01 |
1 |
9202- |
● |
● |
| |
112 |
TERMINAL; BATTERY
|
1-82695-003-0 |
01 |
1 |
9202- |
● |
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
9202- |
● |
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9202- |
● |
● |
| |
126 |
CAP; TERMINAL,AC GEN
|
9-82951-331-0 |
01 |
1 |
9202-9204 |
● |
● |
