◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#63599) — 51 parça

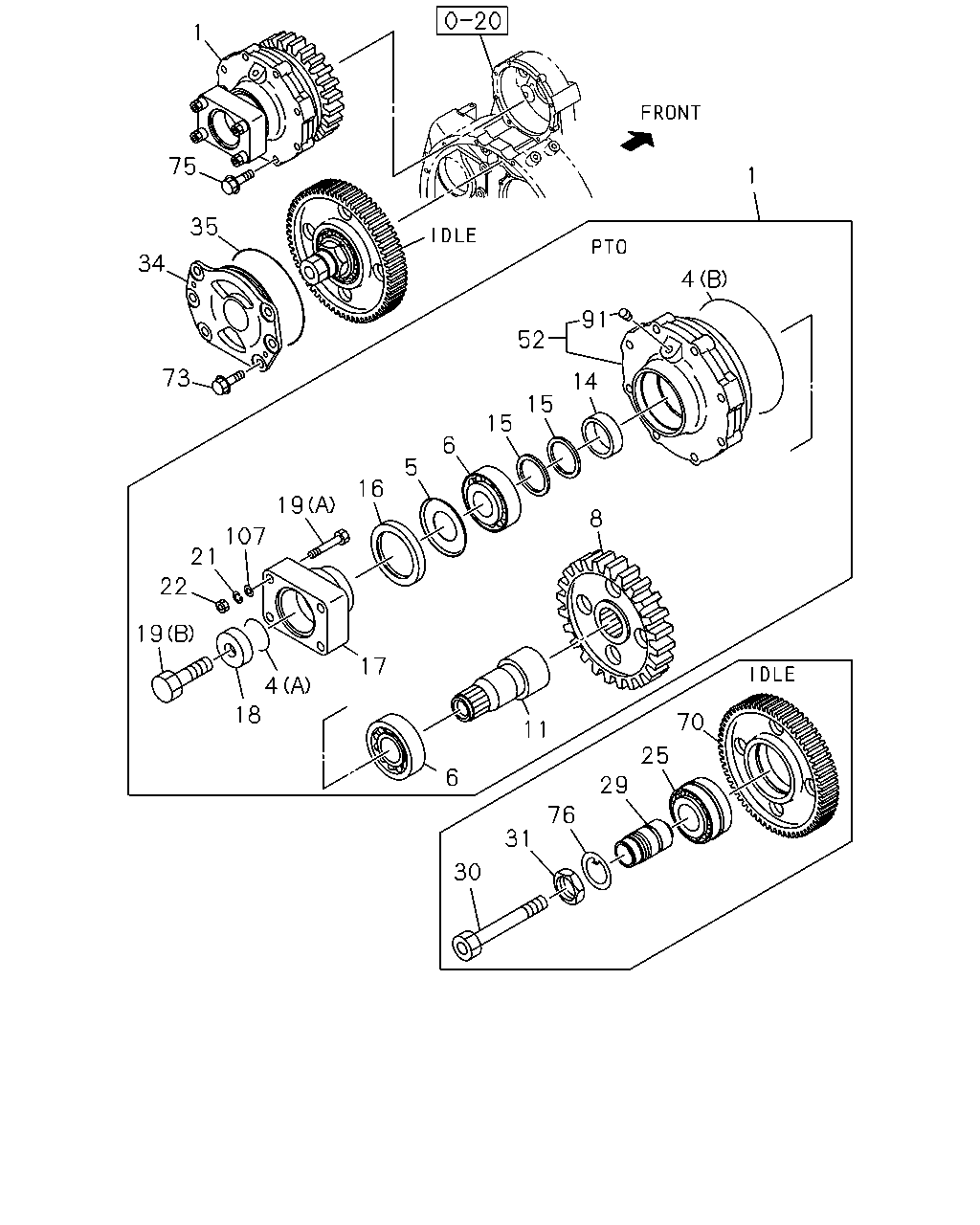

çizim 167482
1 75 35 34 73 1 4 91 52 14 15 15 6 5 16 19 107 21 17 4 18 19 22 6 11 76 31 30 29 70 8 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-394-5 01 1 1008- ● ●
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) (A) 		9-09920-533-0 01 1 1008- ● ●
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) (B) 		9-09920-778-0 01 1 1008- ● ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		8-97388-533-0 01 1 1008- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-94248-088-2 02 1 1008-1204 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-98171-254-0 02 1 1205- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 1008- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) BEST VALUE PARTS 		1-87610-134-0 02 1 1205- ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		8-98012-348-0 01 1 1008- ● ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-98012-349-1 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=17.95 		9-38226-045-0 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.20 		9-38226-046-0 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.45 		9-38226-047-0 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.70 		9-38226-048-0 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.95 		9-38226-049-0 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 1008- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.45 		9-38226-051-0 01 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.50 		9-41229-324-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.51 		9-41229-325-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.52 		9-41229-326-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.53 		9-41229-327-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.54 		9-41229-328-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.55 		9-41229-329-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.56 		9-41229-330-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.57 		9-41229-331-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.58 		9-41229-332-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.59 		9-41229-333-0 AR 1 1008- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.60 		9-41229-334-0 AR 1 1008- ● ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-38175-011-0 01 1 1008- ● ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-2 01 1 1008- ● ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-1 01 1 1008- ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M20X60 		0-20852-060-0 01 1 1008- ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (A) M12X40 		0-20951-240-0 04 1 1008- ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-812-0 04 1 1008- ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 1008- ● ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09820-105-0 01 1 1008- ● ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1) 		1-12531-108-0 01 1 1008- ● ●
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) 		9-09805-081-1 01 1 1008- ● ●
31 NUT; IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09843-063-0 01 1 1008- ● ●
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11343-012-1 01 1 1008- ● ●
35 GASKET; COVER
ENGINE REAR PTO(SV1) 		1-09623-266-0 01 1 1008- ● ●
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		9-38181-007-4 01 1 1008- ● ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1) Z=63 		1-38261-040-0 01 1 1008- ● ●
73 BOLT; COVER,PTO
ENGINE REAR PTO(SV1) 		0-28161-220-0 06 1 1008- ● ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28751-030-0 06 1 1104- ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X35 FLANGE 		0-28751-035-0 02 1 1104- ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28751-030-0 08 1 1008-1103 ● ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28751-030-0 08 1 1104- ●
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09854-034-0 01 1 1008- ● ●
91 CUP; SEALING
ENGINE REAR PTO(SV1) 		8-97374-579-0 01 1 1008- ● ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		0-91610-512-0 04 1 1008- ● ●
