◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#63596) — 41 parça

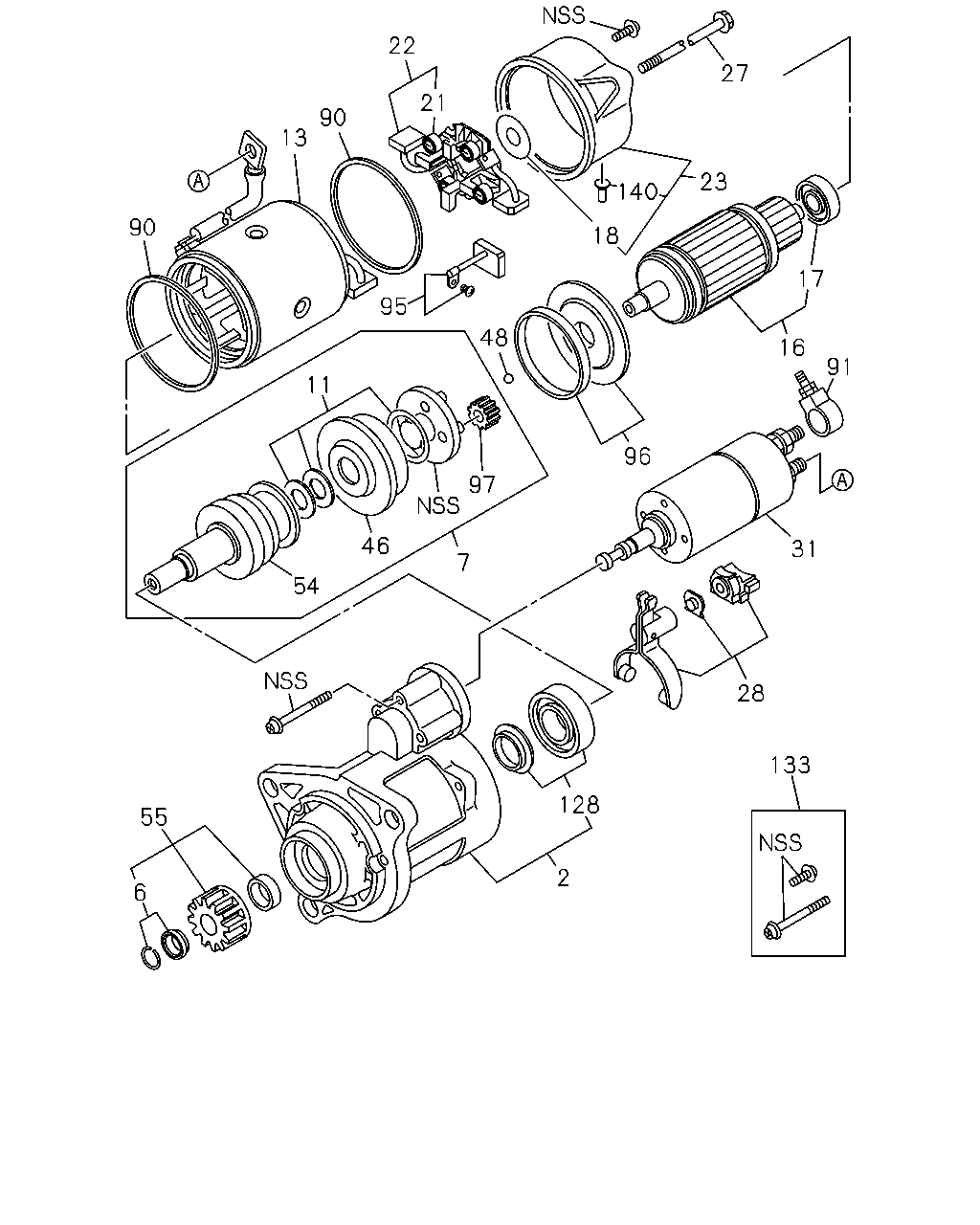

çizim 167490
90 13 90 22 21 95 27 140 18 23 17 16 91 96 48 97 7 46 54 11 55 6 2 128 133 28 31
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-341-4, C = 8-97380-508-4 		1-81123-065-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: B = 1-81100-352-4 		1-81123-069-1 01 1 -
2 CASE; PINION,STARTER
ASM PART: D = 8-97380-509-4 		1-81123-069-1 01 1 -1304
2 CASE; PINION,STARTER
ASM PART: D = 8-97380-509-4 		8-98238-471-0 01 1 1305-
6 STOPPER; PINION STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-785-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-794-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-781-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-341-4 		1-81129-840-1 01 1 -
13 YOKE; STARTER
ASM PART: B = 1-81100-352-4 		1-81129-847-1 01 1 -
13 YOKE; STARTER
ASM PART: C = 8-97380-508-4 		8-97381-362-1 01 1 -
13 YOKE; STARTER
ASM PART: D = 8-97380-509-4 		8-97381-363-1 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81121-067-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-952-0 01 1 -
18 WASHER; THRUST,ARMATURE,STARTER
ASM PART: C = 8-97380-508-4, D = 8-97380-509-4 		8-98237-580-0 01 1 1305-
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-828-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81121-071-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4 		1-81115-233-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: C = 8-97380-508-4, D = 8-97380-509-4 		1-81115-233-0 01 1 -1304
23 COVER; RR COVER STARTER
ASM PART: C = 8-97380-508-4 		8-98237-570-0 01 1 1305-
23 COVER; RR COVER STARTER
ASM PART: D = 8-97380-509-4 		8-98238-473-0 01 1 1305-
27 BOLT; THROUGH,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-783-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4 		1-81151-129-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: C = 8-97380-508-4, D = 8-97380-509-4 		8-97381-364-0 01 1 -
46 GEAR; CLU STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81123-061-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-782-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4 		1-81129-784-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-784-0 01 1 -1209
55 PINION; CLU,STARTER
ASM PART: C = 8-97380-508-4, D = 8-97380-509-4 		8-98222-732-0 01 1 1210-
90 GASKET; ARMATURE
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-827-0 02 1 -
91 COVER; STARTER
ASM PART: C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-786-0 01 1 -
95 BRUSH ASM; STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81116-067-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4 		1-81129-796-0 01 1 -
96 GASKET; FRT CASE
ASM PART: D = 8-97380-509-4 		1-81129-796-0 01 1 -1304
96 GASKET; FRT CASE
ASM PART: D = 8-97380-509-4 		8-98238-472-0 01 1 1305-
97 GEAR; STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81123-056-0 04 1 -
128 BEARING; STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-780-0 01 1 -
133 SCREW SET; STARTER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4, D = 8-97380-509-4 		1-81129-787-0 01 1 -
140 GROMMET; RR COVER
ASM PART: A = 1-81100-341-4, B = 1-81100-352-4, C = 8-97380-508-4 		8-97376-389-0 01 1 -
140 GROMMET; RR COVER
ASM PART: D = 8-97380-509-4 		8-97376-389-0 01 1 -1304
