Sayfa 0-61 - Isuzu EPC

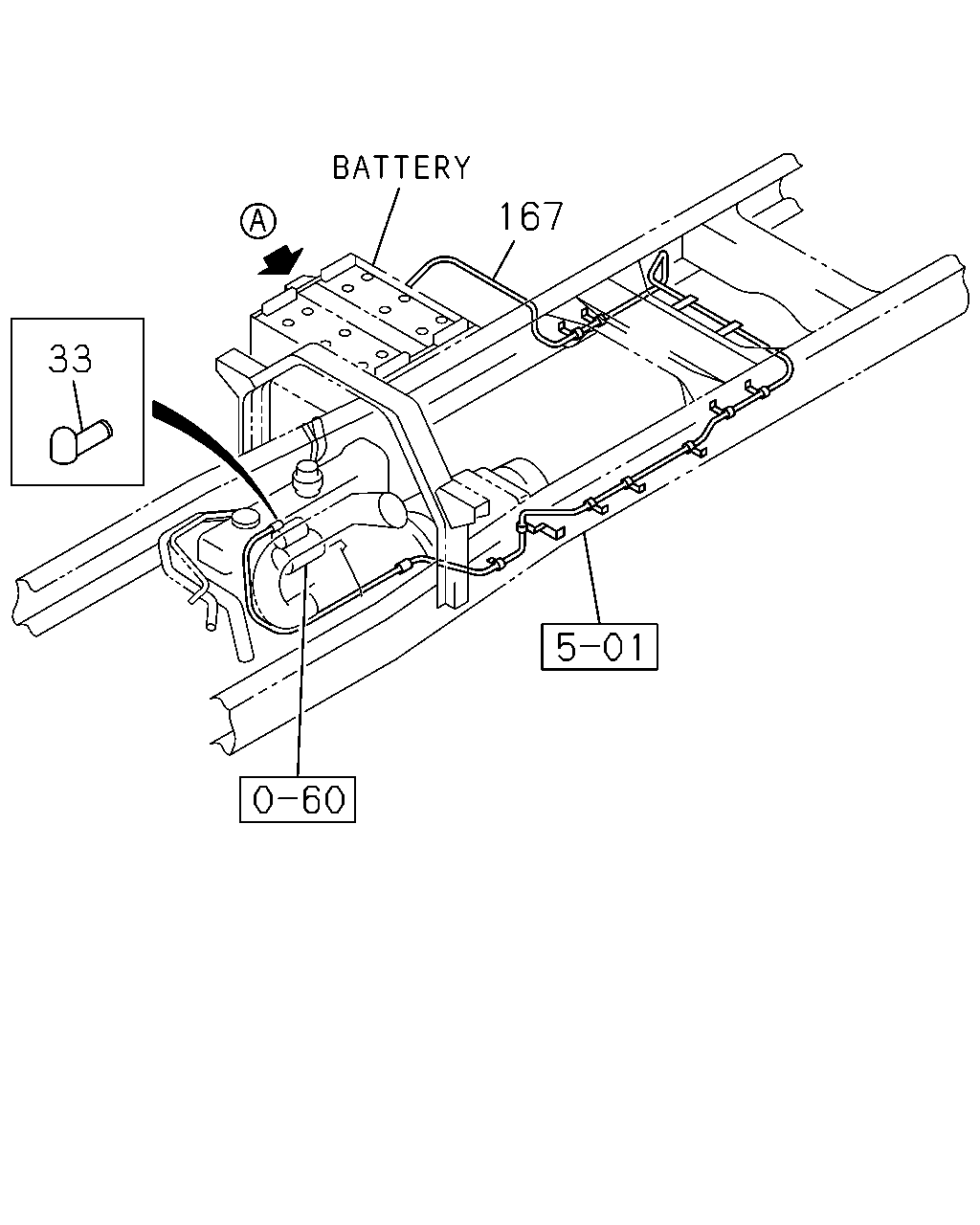

167 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CAP; INSULATOR	8-97181-965-0	01	1	1008-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1) L=5520	8-97616-788-1	01	1	1008-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1) L=5500	8-97616-651-1	01	1	1008-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1008-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT> L=4740	8-97618-796-0	01	1	1008-		●

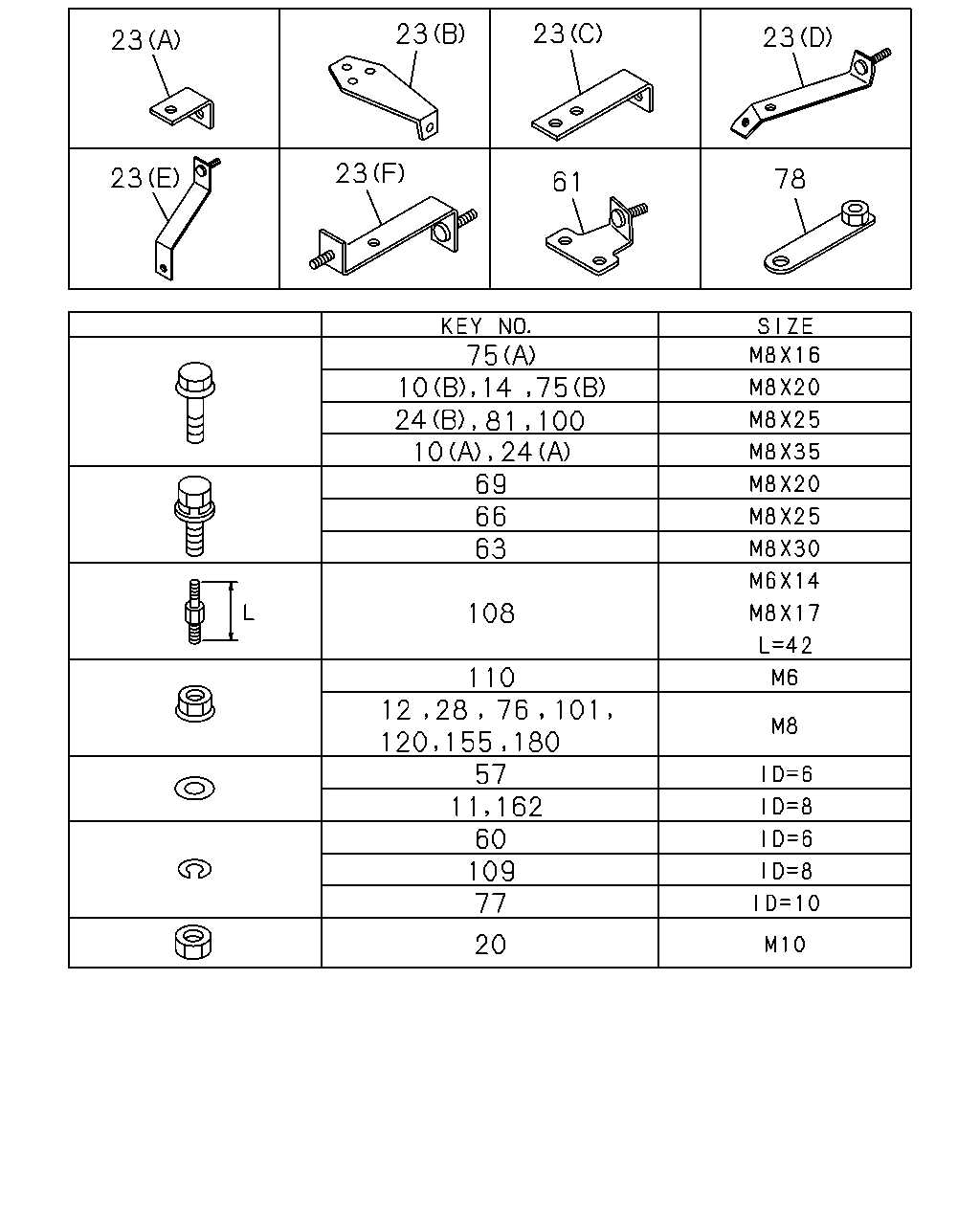

23 23 23 23 23 23 78 61 75 10 100 69 66 63 108 110 57 11 162 60 109 77 20 10 24 24 81 14 75 12 28 76 101 120 155 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; BATTERY CABLE CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1008-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1008-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	1008-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-	●
14	BOLT; BRKT CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1008-		●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-82698-590-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME ENGINE REAR PTO(SV1) (E)	1-82698-628-0	01	1	1008-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. ENGINE REAR PTO(SV1) (E)	1-82698-575-1	01	1	1008-	●
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1008-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98171-604-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1008-	●	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1008-	●	●
24	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
24	BOLT; BRKT TO FRAME (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1008-	●	●
57	WASHER; PL,BATTERY CABLE 6WF1 TC-C(1B8) ID=6.4	9-09164-506-0	01	1	1008-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1008-	●	●
61	BRACKET; BATTERY CABLE 6WF1 TC-C(1B8)	8-98147-302-0	01	1	1008-1112	●	●
61	BRACKET; BATTERY CABLE 6WF1 TC-C(1B8)	8-98147-302-0	01	1	1201-	●	●
61	BRACKET; BATTERY CABLE 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7>	8-98147-302-0	01	1	1201-	●	●
61	BRACKET; BATTERY CABLE 6WG1 TC-R(75L)	1-82698-587-0	01	1	1008-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1008-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1008-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1008-	●	●
75	BOLT; BRKT 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28050-820-0	02	1	1008-1112	●	●
75	BOLT; BRKT 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28050-820-0	02	1	1201-	●	●
75	BOLT; BRKT 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (B) M8X20 FLANGE	0-28050-820-0	02	1	1201-	●	●
75	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1008-	●
76	NUT; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	03	1	1008-		●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	04	1	1008-		●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1008-	●	●
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	1008-	●
78	BRACKET; CLIP BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	1-47476-396-1	01	1	1008-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1008-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1008-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1008-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1008-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1008-	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1008-	●	●

9 9 9 18 22 22 99 99 9 9 22 9 158 9 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1008-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1008-		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1008-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (D) ID=18 L=28	1-09701-067-0	03	1	1008-		●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	02	1	1008-	●	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (E) ID=18 L=28 H=30	1-09701-110-0	02	1	1008-	●	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	03	1	1008-		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (G) ID=19 L=28	0-95235-856-0	01	1	1008-		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (D) ID=18 L=28	1-09701-067-0	02	1	1008-		●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1008-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	1008-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	1008-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1008-	●	●

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT)	1-82510-648-0	01	1	1008-	●	●
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82510-651-0	01	1	1008-		●
208	FUSE (C) 80A	1-82516-031-0	01	1	1008-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	1008-	●	●
208	FUSE GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (B) 100A	1-82516-032-0	01	1	1008-	●	●
208	FUSE GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 125A	9-82941-130-1	01	1	1008-		●

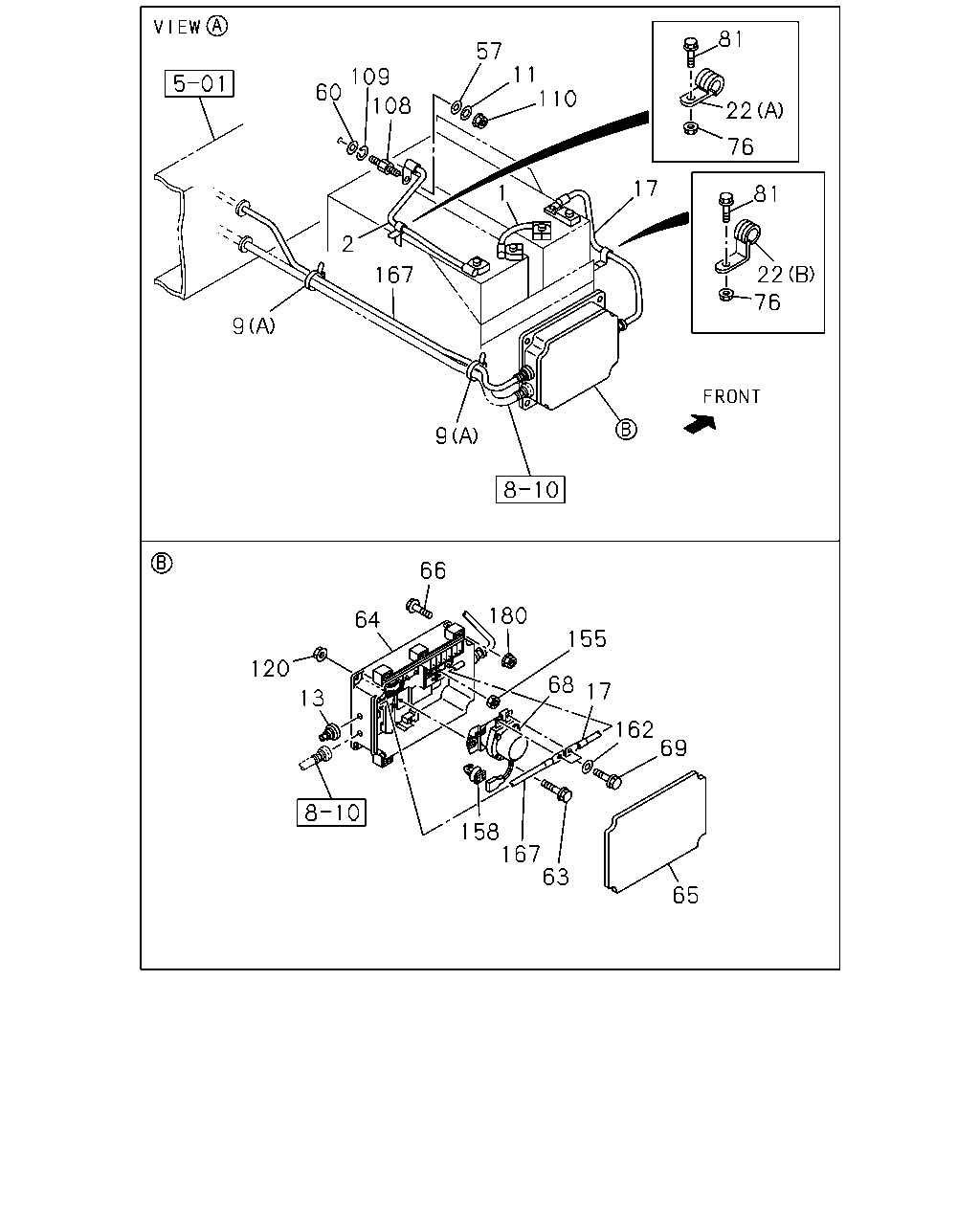

81 57 11 110 109 60 108 22 76 17 1 81 2 22 76 167 9 9 66 180 64 155 120 68 17 13 162 69 158 167 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	1008-	●	●
1	CABLE; BATTERY BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	1008-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	1008-	●
2	CABLE; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> L=720	1-82650-384-1	01	1	1008-		●
2	CABLE; BATTERY BATTERY LAYOUT REAR VAR1<NCT> L=680	1-82650-385-1	01	1	1008-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1008-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	02	1	1008-		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1008-	●
9	CLIP; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> (D) ID=18 L=28	1-09701-067-0	03	1	1008-		●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	02	1	1008-	●	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-	●	●
9	CLIP; BATTERY CABLE (E) ID=18 L=28 H=30	1-09701-110-0	02	1	1008-	●	●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (A) L=350	1-09707-183-0	03	1	1008-		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (G) ID=19 L=28	0-95235-856-0	01	1	1008-		●
9	CLIP; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> (D) ID=18 L=28	1-09701-067-0	02	1	1008-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1008-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1008-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1008-	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1008-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1008-	●	●
57	WASHER; PL,BATTERY CABLE 6WF1 TC-C(1B8) ID=6.4	9-09164-506-0	01	1	1008-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1008-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1008-	●	●
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT)	1-82510-648-0	01	1	1008-	●	●
64	BOX; BATTERY RELAY GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82510-651-0	01	1	1008-		●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1008-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1008-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	1008-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1008-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1008-	●
76	NUT; BATTERY CABLE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	03	1	1008-		●
76	NUT; BATTERY CABLE BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	04	1	1008-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	1008-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1008-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1008-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1008-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1008-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1008-	●	●
167	CABLE; BATTERY RELAY TO STARTER ENGINE REAR PTO(SV1) L=5520	8-97616-788-1	01	1	1008-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. ENGINE REAR PTO(SV1) L=5500	8-97616-651-1	01	1	1008-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. BATTERY LAYOUT REAR VAR1<NCT> L=5500	8-97616-651-1	01	1	1008-		●
167	CABLE; BATTERY RELAY TO STARTER BATTERY LAYOUT REAR VAR1<NCT> L=4740	8-97618-796-0	01	1	1008-		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
