0-41 — FUEL FILTER AND BRACKET (#63588) — 66 parça

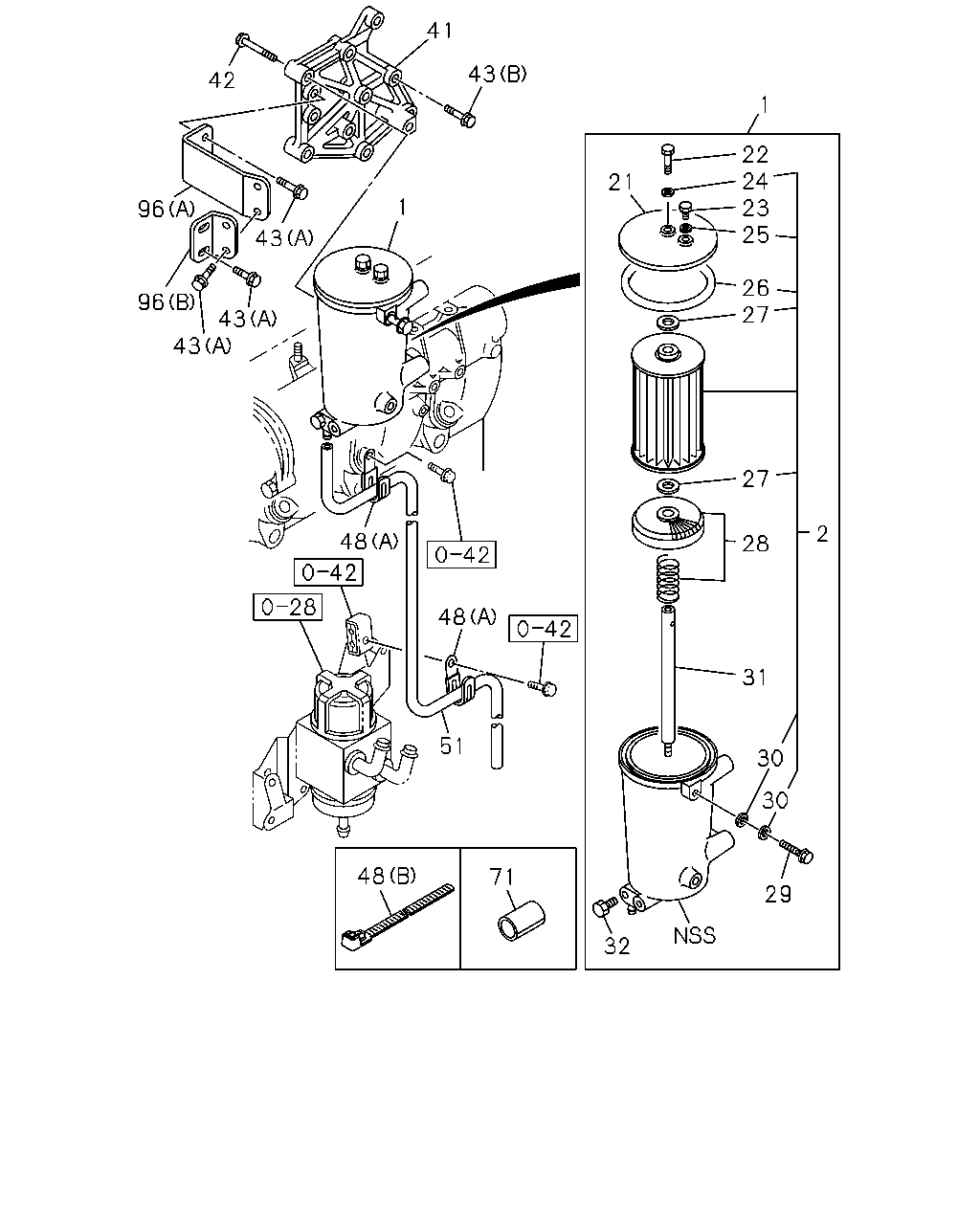

41 43 42 1 22 24 23 25 21 1 96 43 26 27 96 43 43 27 2 48 28 48 31 51 30 30 48 71 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL	1-13201-006-1	01	1	1008-1106	●	●
1	FILTER ASM; FUEL	8-98175-164-0	01	1	1107-	●	●
2	ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-152-0	02	1	1107-	●	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	1008-1106	●	●
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	01	1	1107-	●	●
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	1008-	●	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	1008-	●	●
23	PLUG; COVER	1-13219-074-0	01	1	1008-	●	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-	●	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-	●	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	1008-	●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	1008-	●	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	1008-	●	●
29	VALVE; OVERFLOW	1-13260-116-0	01	1	1008-	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-	●	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	1008-	●	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	1008-	●	●
41	BRACKET; FUEL FILTER	8-97628-937-0	01	1	1008-	●
41	BRACKET; FUEL FILTER	8-97608-898-1	01	1	1008-		●
42	BOLT; FUEL FILTER M10X40 FLANGE	0-28051-040-0	04	1	1008-	●
42	BOLT; FUEL FILTER M10X45 FLANGE	0-28051-045-0	04	1	1008-		●
43	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	02	1	1008-	●
43	BOLT; BRKT (D) M10X60 FLANGE	0-28151-060-0	02	1	1008-	●
43	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	06	1	1008-		●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1008-		●
43	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	02	1	1008-	●
48	CLIP; VINYL PIPE (A) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
48	CLIP; VINYL PIPE (B) L=140	5-09707-031-1	01	1	1008-1205		●
48	CLIP; VINYL PIPE (B) L=140	8-98216-431-0	01	1	1206-		●
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	1008-	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1008-		●
71	SLEEVE; RUBBER,PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	1008-		●
96	STAY; FUEL FILTER (A)	8-97613-183-0	01	1	1008-		●
96	STAY; FUEL FILTER (B)	8-97613-237-1	01	1	1008-		●

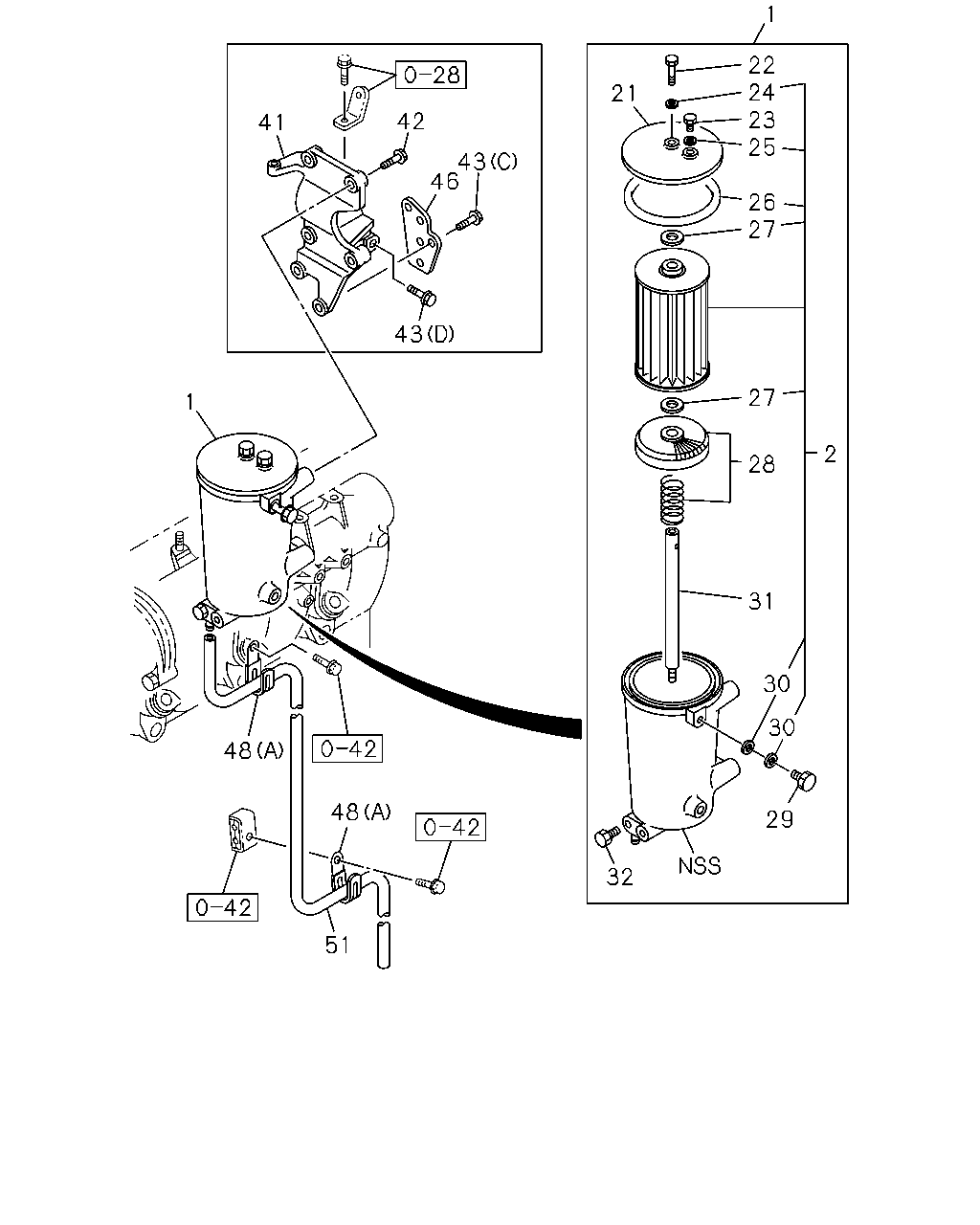

1 22 24 23 25 21 42 41 43 46 26 27 43 27 1 2 28 31 30 30 48 48 29 32 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL	1-13201-006-1	01	1	1008-1106	●	●
1	FILTER ASM; FUEL	8-98175-164-0	01	1	1107-	●	●
2	ELEMENT KIT; FUEL FILTER BEST VALUE PARTS	1-87610-152-0	02	1	1107-	●	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	1008-1106	●	●
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	01	1	1107-	●	●
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	1008-	●	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	1008-	●	●
23	PLUG; COVER	1-13219-074-0	01	1	1008-	●	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-	●	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-	●	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	1008-	●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	1008-	●	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	1008-	●	●
29	VALVE; OVERFLOW	1-13260-116-0	01	1	1008-	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-	●	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	1008-	●	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	1008-	●	●
41	BRACKET; FUEL FILTER	8-97628-937-0	01	1	1008-	●
41	BRACKET; FUEL FILTER	8-97608-898-1	01	1	1008-		●
42	BOLT; FUEL FILTER M10X40 FLANGE	0-28051-040-0	04	1	1008-	●
42	BOLT; FUEL FILTER M10X45 FLANGE	0-28051-045-0	04	1	1008-		●
43	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	02	1	1008-	●
43	BOLT; BRKT (D) M10X60 FLANGE	0-28151-060-0	02	1	1008-	●
43	BOLT; BRKT (A) M10X20 FLANGE	0-28151-020-0	06	1	1008-		●
43	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1008-		●
43	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	02	1	1008-	●
46	BRACKET	8-97629-738-1	01	1	1008-	●
48	CLIP; VINYL PIPE (A) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
48	CLIP; VINYL PIPE (B) L=140	5-09707-031-1	01	1	1008-1205		●
48	CLIP; VINYL PIPE (B) L=140	8-98216-431-0	01	1	1206-		●
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	1008-	●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	1008-		●
