◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#63560) — 24 parça

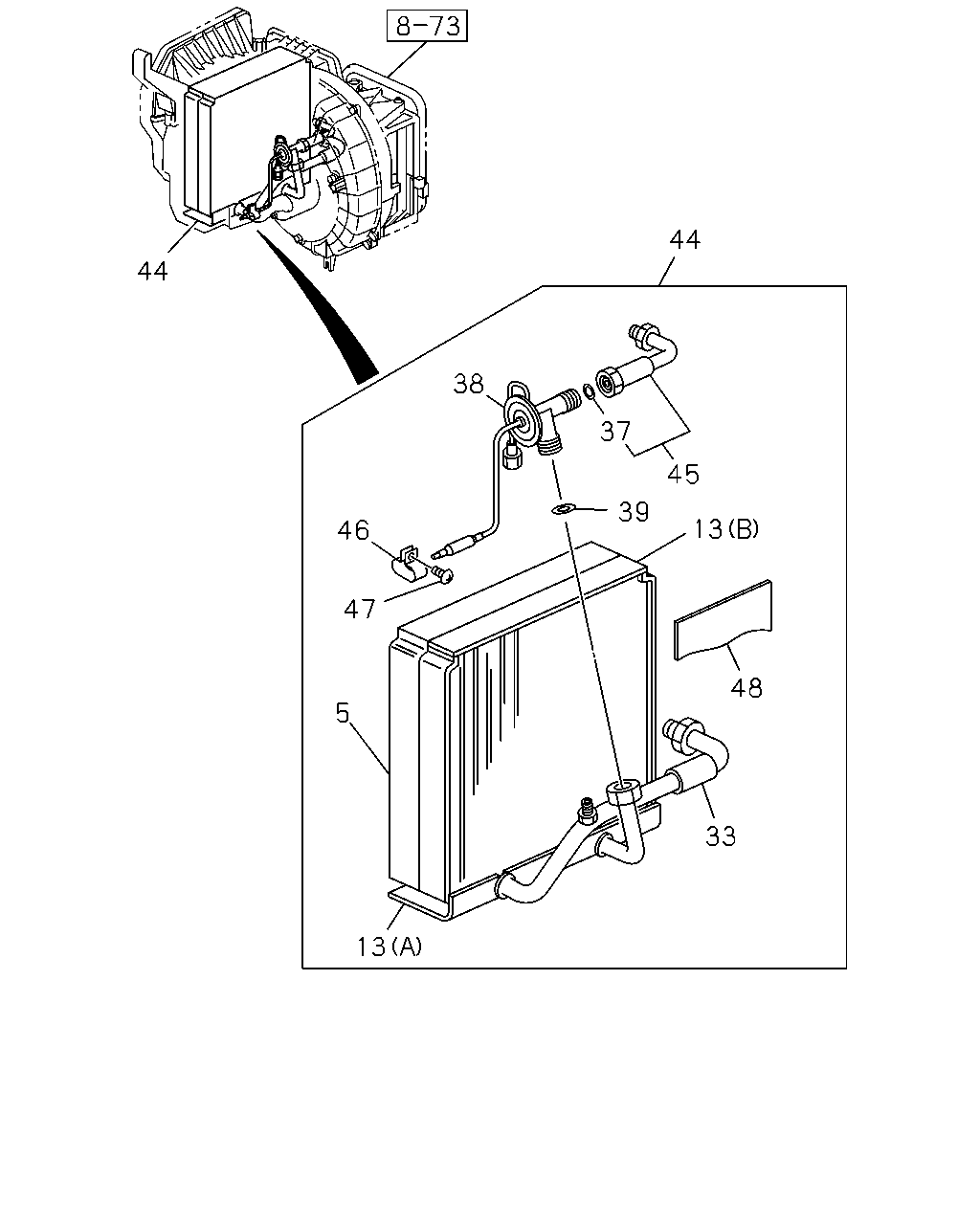

çizim 167076
44 44 38 37 45 39 13 46 47 48 5 33 13
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR 1-83562-098-0 01 1 1008-1104
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-098-0 01 1 1105-
13 SEAL; EVAP
(B) 		1-83579-669-1 01 1 1008-1104
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-669-1 01 1 1105-
13 SEAL; EVAP
(A) 		1-83579-816-0 01 1 1008-1104
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-816-0 01 1 1105-
33 LINING; EVAP 1-83579-817-0 01 1 1008-1104
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-817-0 01 1 1105-
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 1008-1104
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 1105-
38 VALVE; EXPANSION 1-83569-158-0 01 1 1008-1104
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 1105-
39 GASKET; EVAP 8-94481-717-0 01 1 1008-1104
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 1105-
44 EVAPORATOR ASM; A/C 1-83541-142-0 01 1 1008-1104
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83541-142-0 01 1 1105-
45 PIPE; EXPANSION VLV 1-83567-689-0 01 1 1008-1104
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-689-0 01 1 1105-
46 CLIP; EXPANSION VLV
ID=8X2 		8-94344-881-1 01 1 1008-1104
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) ID=8X2 		8-94344-881-1 01 1 1105-
47 SCREW; EVAP 8-97130-601-0 01 1 1008-1104
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 1105-
48 INSULATOR; EVAP 1-83579-784-0 01 1 1008-1104
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-784-0 01 1 1105-
