◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#63559) — 94 parça

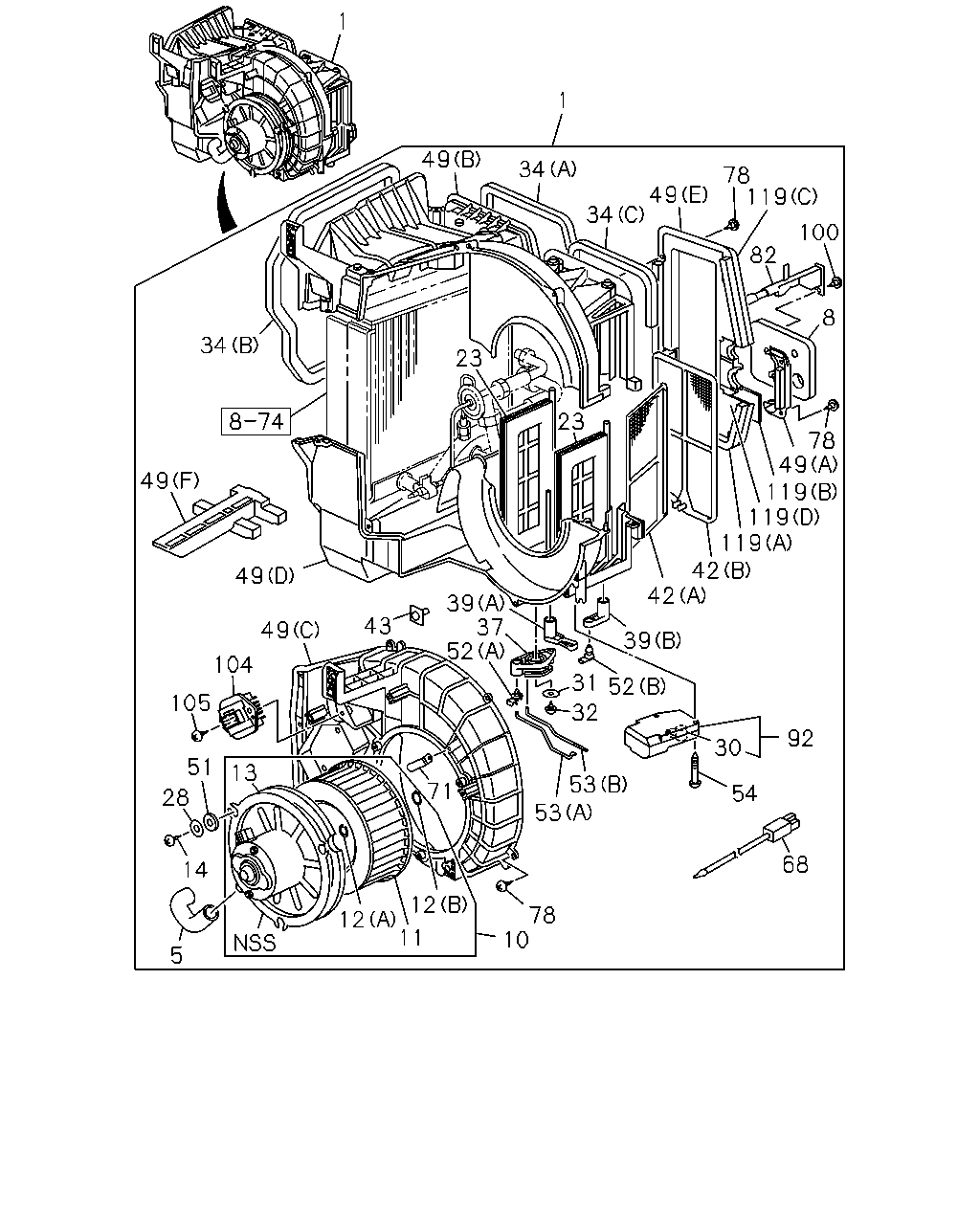

çizim 167111
1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 92 30 51 13 53 53 71 54 28 68 14 12 78 10 12 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-183-2 01 1 1008-1104
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-183-2 01 1 1105-
5 HOSE; AIR 1-83563-147-0 01 1 1008-1104
5 HOSE; AIR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-147-0 01 1 1105-
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 1008-1104
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 1105-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1008-1104
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-164-0 01 1 1105-
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1008-1104
11 IMPELLER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-796-0 01 1 1105-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1008-1104
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1105-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1008-1104
12 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1105-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1008-1104
13 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1105-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1008-1104
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1105-
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1008-1104
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1105-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1008-1104
28 WASHER; PL,FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1105-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1008-1104
30 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1105-
31 WASHER; LEVER 1-83579-095-0 01 1 1008-1104
31 WASHER; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1105-
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1008-1104
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1105-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1008-1104
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1105-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1008-1104
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1105-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1008-1104
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1105-
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1008-1104
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-375-0 01 1 1105-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1008-1104
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-373-0 01 1 1105-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1008-1104
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-374-0 01 1 1105-
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1008-1104
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-800-1 01 1 1105-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1008-1104
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1105-
43 BOLT; CASE 1-83579-657-2 04 1 1008-1104
43 BOLT; CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1105-
49 CASE; BLOWER UNIT
(B) 		1-83564-368-0 01 1 1008-1104
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-368-0 01 1 1105-
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1008-1104
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-370-0 01 1 1105-
49 CASE; BLOWER UNIT
(E) 		1-83564-371-0 01 1 1008-1104
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-371-0 01 1 1105-
49 CASE; BLOWER UNIT
(A) 		1-83564-372-0 01 1 1008-1104
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-372-0 01 1 1105-
49 CASE; BLOWER UNIT
(D) 		1-83564-378-0 01 1 1008-1104
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-378-0 01 1 1105-
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 1008-1104
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		8-97500-034-0 01 1 1105-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1008-1104
51 ISOLATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1105-
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1008-1104
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-136-0 01 1 1105-
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1008-1104
52 CLIP; LEVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94248-794-0 01 1 1105-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1008-1104
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1105-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1008-1104
53 ROD; ACTUATOR,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-799-0 01 1 1105-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1008-1104
54 SCREW; ACTUATOR TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1105-
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 1008-1104
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1105-
71 CLIP; HARNESS 8-97096-145-0 01 1 1008-1104
71 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97096-145-0 01 1 1105-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1008-1104
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 18 1 1105-
82 BRACKET; BLOWER UNIT 1-83571-932-0 01 1 1008-1104
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-932-0 01 1 1105-
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1008-1104
92 ACTUATOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-798-1 01 1 1105-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1008-1104
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1105-
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1008-1104
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1105-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1008-1104
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1105-
119 LINING; CASE
(C) 		1-83579-670-1 01 1 1008-1104
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-670-1 01 1 1105-
119 LINING; CASE
(A) 		1-83579-671-1 01 1 1008-1104
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-671-1 01 1 1105-
119 LINING; CASE
(B) 		1-83579-672-0 01 1 1008-1104
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-672-0 01 1 1105-
119 LINING; CASE
(D) 		1-83579-795-0 01 1 1008-1104
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-795-0 01 1 1105-
