8-60 — HEATER UNIT; FRONT (#63557) — 76 parça

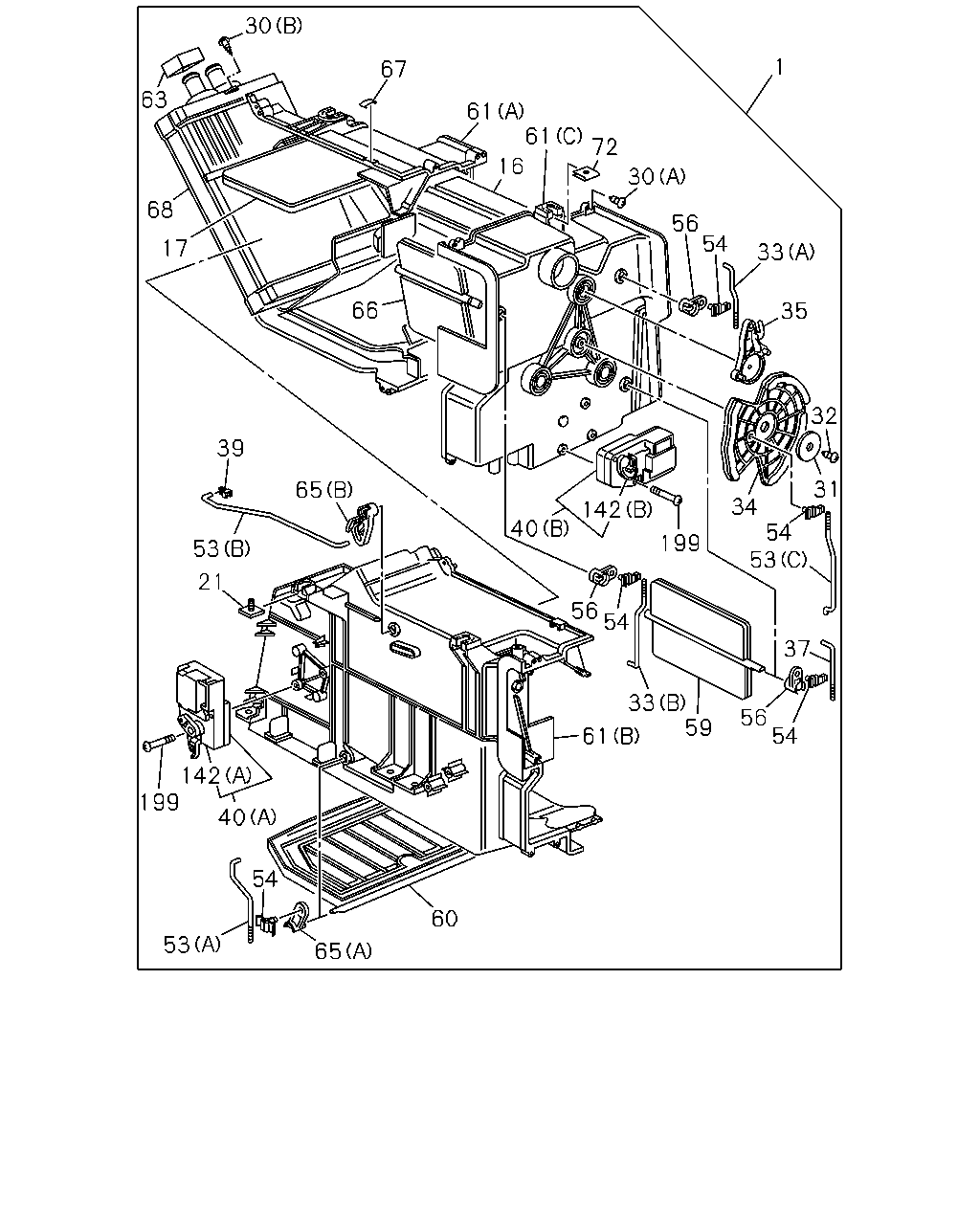

çizim 167120
30 1 67 63 61 61 72 16 30 68 56 54 17 33 66 35 32 39 31 65 34 54 53 142 40 199 53 21 56 54 37 33 59 56 54 61 142 199 40 54 60 53 65
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-137-4 01 1 1008-1104
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-137-4 01 1 1105-1409
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-491-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1008-1104
16 SHUTTER; HTR UNIT,CENTER UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-789-0 01 1 1105-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1008-1104
17 SHUTTER; HTR UNIT,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-787-0 01 1 1105-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1008-1104
21 BOLT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 1105-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1008-1104
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16 		8-94324-850-0 12 1 1105-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 1008-1104
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20 		9-09829-324-1 01 1 1105-1409
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1008-1104
31 WASHER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 1105-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1008-1104
32 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1105-1409
32 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1008-1104
33 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 1105-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1008-1104
33 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 1105-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1008-1104
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-367-0 01 1 1105-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1008-1104
35 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94380-580-0 03 1 1105-
37 ROD; LEVER 1-83579-620-1 01 1 1008-1104
37 ROD; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 1105-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1008-1104
39 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 1105-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1008-1104
40 ACTUATOR; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-792-1 01 1 1105-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1008-1104
40 ACTUATOR; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97087-574-1 01 1 1105-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1008-1104
53 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-623-0 01 1 1105-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1008-1104
53 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-793-0 01 1 1105-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1008-1104
53 ROD; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-794-0 01 1 1105-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1008-1104
54 CLIP; SHUTTER LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 1105-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1008-1104
56 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 1105-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1008-1104
59 SHUTTER; HTR UNIT,SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-790-0 01 1 1105-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1008-1104
60 DOOR; MIX,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-788-0 01 1 1105-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1008-1104
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-363-0 01 1 1105-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1008-1104
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-364-0 01 1 1105-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1008-1104
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-365-1 01 1 1105-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1008-1104
63 LINING; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 1105-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1008-1104
65 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-328-1 01 1 1105-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1008-1104
65 LEVER; MIX,DOOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-366-0 01 1 1105-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1008-1104
66 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-791-0 01 1 1105-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1008-1104
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 1105-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1008-1104
68 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 1105-1409
68 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1008-1104
72 NUT; CASE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 1105-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1008-1104
142 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-384-0 01 1 1105-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1008-1104
142 LEVER; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-385-0 01 1 1105-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1008-1104
199 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 1105-
