◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#63556) — 216 parça

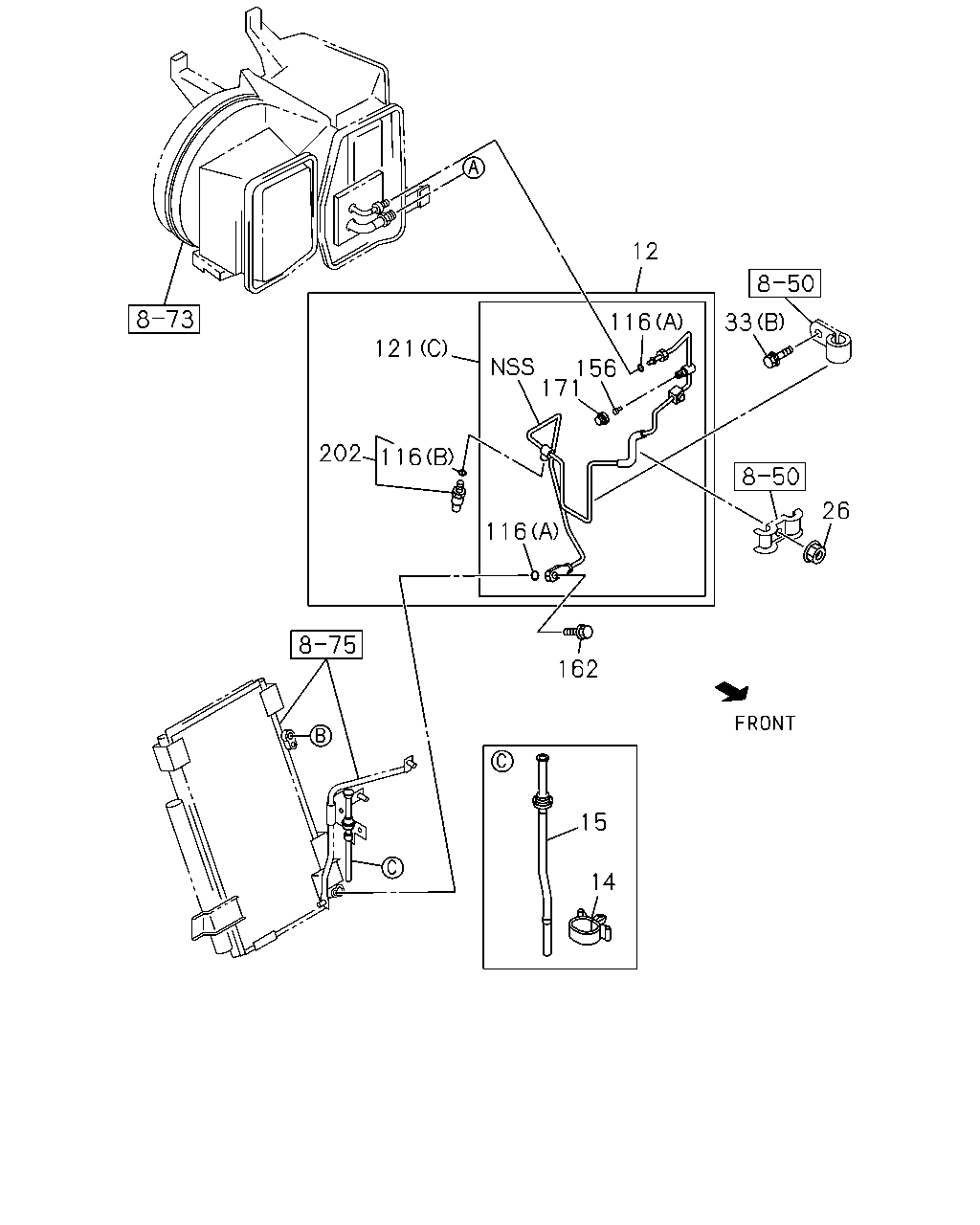

çizim 167101
12 116 33 121 156 171 202 116 26 116 162 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK 1-83567-718-3 01 1 1008-1104
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-718-3 01 1 1105-
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 1008-1104
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 1105-
15 HOSE; DRAIN 1-83572-635-0 01 1 1008-1104
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-635-0 01 1 1105-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-1104
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 1105-
26 NUT; PIPE CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE 		0-91180-108-0 03 1 1008-
33 BOLT; CLIP
ENGINE CONTROL-B2(Q4T) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1010-
33 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-1104
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1105-
33 BOLT; CLIP
ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
116 GASKET; PIPE
(A) ID=7.4 		8-97095-906-0 02 1 1008-1104
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 1105-
116 GASKET; PIPE
(B) 		8-97178-772-0 01 1 1008-1104
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 1105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (I) 		8-98204-808-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (H) 		8-98204-810-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98204-809-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98204-811-0 01 1 1110-
121 HOSE; COOLER
(C) 		1-83567-795-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 1105-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (H) 		1-83572-801-1 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (H) 		1-83572-801-1 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (H) 		1-83572-801-1 01 1 1110-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (I) 		1-83572-802-1 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (I) 		1-83572-802-1 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (I) 		1-83572-802-1 01 1 1110-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (F) 		1-83577-066-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (G) 		1-83577-067-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (E) 		1-83577-135-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (E) 		1-83577-135-0 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		1-83577-135-0 01 1 1110-1307
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98248-121-0 01 1 1308-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (D) 		1-83577-136-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (D) 		1-83577-136-0 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-83577-136-0 01 1 1110-1307
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98248-120-0 01 1 1308-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (A) 		8-98162-077-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (B) 		8-98162-078-0 01 1 1008-
156 VALVE; PIPE 8-97095-909-0 01 1 1008-1104
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 1105-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 1008-1104
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 1105-
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 1008-1104
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 1105-
202 SWITCH; PRESSURE 1-83564-392-1 01 1 1008-1104
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 1105-

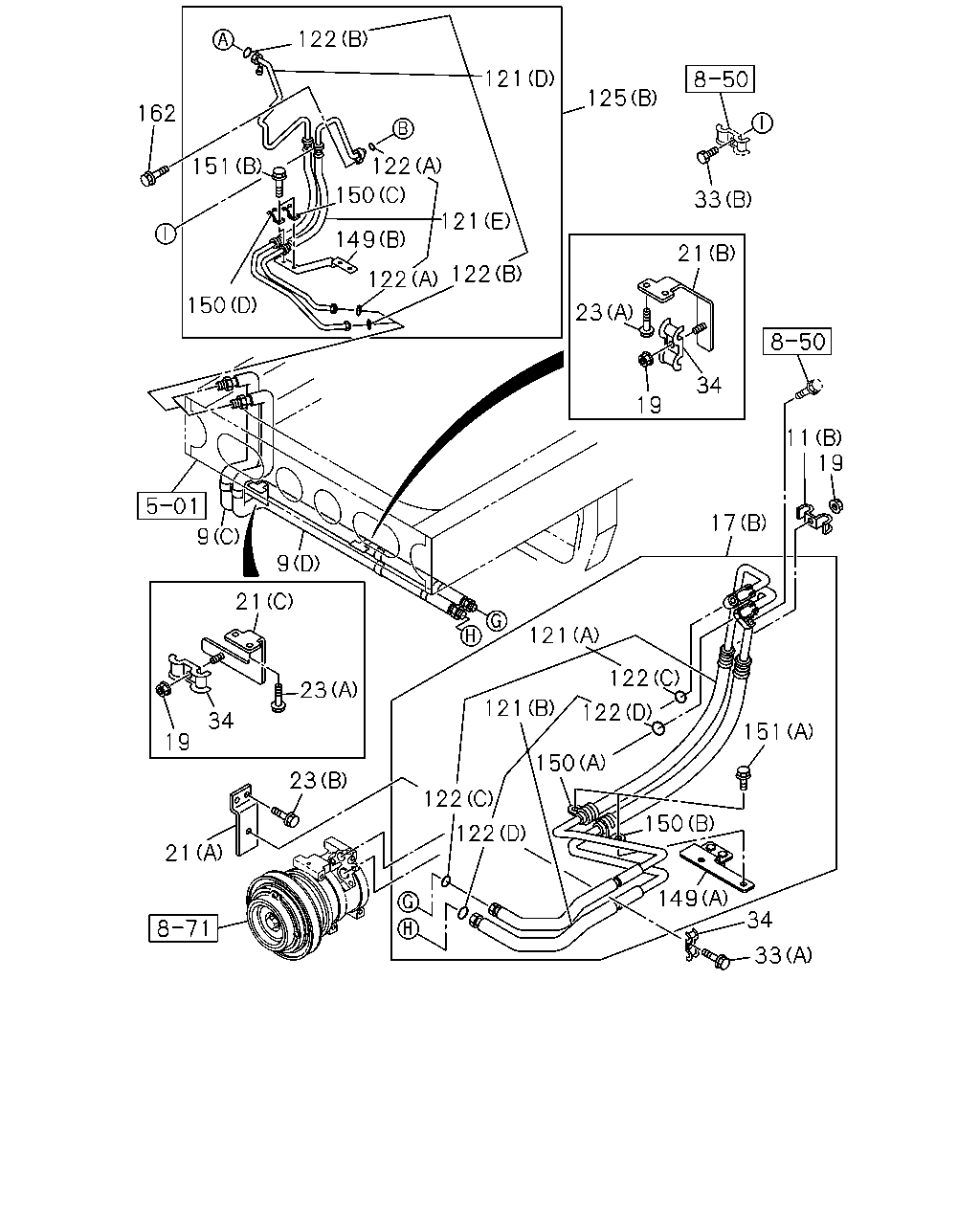

çizim 167104
122 121 125 162 122 151 150 33 121 149 21 122 122 150 23 34 19 11 19 17 9 9 21 121 122 23 121 122 34 151 19 150 23 122 150 122 21 149 34 33
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83577-059-0 01 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-83577-060-0 01 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL-B2(Q4T) (C) 		8-98145-221-0 01 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL-B2(Q4T) (D) 		8-98145-222-0 01 1 1008-
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 1008-
11 CLIP; COOLER PIPE
ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=20 & 20 		1-83574-195-1 03 1 1008-
17 HOSE; FLEX,CMPR TO PIPE
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83577-058-1 01 1 1008-
17 HOSE; FLEX,CMPR TO PIPE
ENGINE CONTROL-B2(Q4T) (B) 		8-98145-220-0 01 1 1008-
19 NUT; CLIP FIX
ENGINE CONTROL-B2(Q4T) M8 FLANGE 		0-91180-108-0 03 1 1008-1009
19 NUT; CLIP FIX
ENGINE CONTROL-B2(Q4T) M8 FLANGE 		0-91180-108-0 01 1 1010-
21 BRACKET; COOLER HOSE
(A) 		1-83573-295-0 01 1 1008-
21 BRACKET; COOLER HOSE
ENGINE CONTROL-B2(Q4T) (B) 		8-97615-591-1 01 1 1008-
21 BRACKET; COOLER HOSE
ENGINE CONTROL-B2(Q4T) (C) 		8-97615-592-1 01 1 1008-
21 BRACKET; COOLER HOSE
MJT7S M/T(Y3E) ENGINE CONTROL COMMON RAIL(Q4R) (D) 		1-83573-202-0 01 1 1008-
21 BRACKET; COOLER HOSE
MJX16P M/T(Y3Z) ENGINE CONTROL COMMON RAIL(Q4R) (D) 		1-83573-282-1 01 1 1008-
23 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
23 BOLT; BRKT
ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28050-820-0 02 1 1008-
23 BOLT; BRKT
ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE 		0-28050-820-0 04 1 1008-
33 BOLT; CLIP
ENGINE CONTROL-B2(Q4T) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1010-
33 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-1104
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1105-
33 BOLT; CLIP
ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
34 CLIP; COOLER PIPE
ENGINE CONTROL-B2(Q4T) ID=20 & 20 		1-83574-195-1 03 1 1008-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (I) 		8-98204-808-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (H) 		8-98204-810-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98204-809-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98204-811-0 01 1 1110-
121 HOSE; COOLER
(C) 		1-83567-795-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 1105-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (H) 		1-83572-801-1 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (H) 		1-83572-801-1 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (H) 		1-83572-801-1 01 1 1110-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (I) 		1-83572-802-1 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (I) 		1-83572-802-1 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (I) 		1-83572-802-1 01 1 1110-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (F) 		1-83577-066-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (G) 		1-83577-067-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (E) 		1-83577-135-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (E) 		1-83577-135-0 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		1-83577-135-0 01 1 1110-1307
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98248-121-0 01 1 1308-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (D) 		1-83577-136-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (D) 		1-83577-136-0 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-83577-136-0 01 1 1110-1307
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98248-120-0 01 1 1308-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (A) 		8-98162-077-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (B) 		8-98162-078-0 01 1 1008-
122 GASKET
(A) ID=11.7 		1-83539-317-0 02 1 1008-1104
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 1105-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=11.7 		1-83539-317-0 02 1 1110-
122 GASKET
(B) ID=14.5 		1-83539-324-0 02 1 1008-1104
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 1105-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=14.5 		1-83539-324-0 02 1 1110-
122 GASKET
(C) ID=11.7 		8-97095-907-0 02 1 1008-1109
122 GASKET
(C) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (C) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
(D) ID=14.5 		8-97095-908-0 02 1 1008-1109
122 GASKET
(D) ID=14.5 		8-97095-908-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) ID=14.5 		8-97095-908-0 02 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (A) 		8-98192-080-0 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98198-462-0 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83572-704-1 01 1 1008-1104
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83572-704-1 01 1 1105-1109
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-83572-704-2 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
ENGINE CONTROL-B2(Q4T) (B) 		8-98056-613-0 01 1 1008-1104
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (B) 		8-98056-613-0 01 1 1105-1109
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98056-613-1 01 1 1110-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98204-812-0 01 1 1110-
149 BRACKET; COOLER HOSE
(B) 		1-83573-206-0 01 1 1008-1104
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-206-0 01 1 1105-1109
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) 		1-83573-206-1 01 1 1110-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 1008-
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 1008-
150 CLIP; HOSE
(C) 		1-83574-254-0 01 1 1008-1104
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-254-0 01 1 1105-
150 CLIP; HOSE
(D) 		1-83574-255-0 01 1 1008-1104
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-255-0 01 1 1105-
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 1008-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 1008-1104
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 1105-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 1008-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 1008-1104
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 1105-

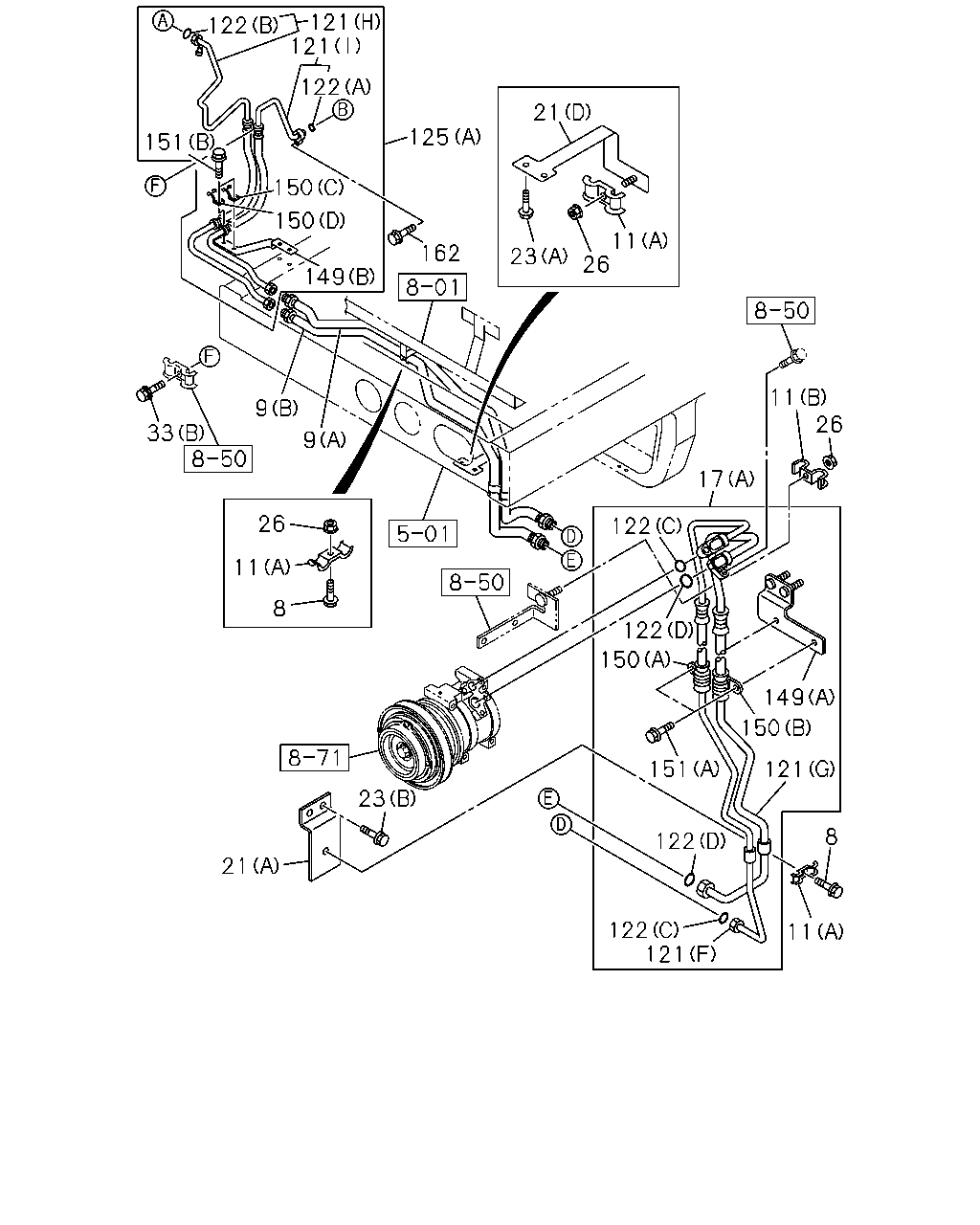

çizim 167122
121 121 122 122 21 125 151 150 150 11 26 149 162 23 11 26 9 33 9 17 26 122 11 8 122 150 149 150 151 121 23 8 122 21 122 121 11
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M8X20 FLANGE 		0-28650-820-0 02 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83577-059-0 01 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-83577-060-0 01 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL-B2(Q4T) (C) 		8-98145-221-0 01 1 1008-
9 PIPE; COOLER,HOSE TO HOSE
ENGINE CONTROL-B2(Q4T) (D) 		8-98145-222-0 01 1 1008-
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 1008-
11 CLIP; COOLER PIPE
ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=20 & 20 		1-83574-195-1 03 1 1008-
17 HOSE; FLEX,CMPR TO PIPE
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83577-058-1 01 1 1008-
17 HOSE; FLEX,CMPR TO PIPE
ENGINE CONTROL-B2(Q4T) (B) 		8-98145-220-0 01 1 1008-
21 BRACKET; COOLER HOSE
(A) 		1-83573-295-0 01 1 1008-
21 BRACKET; COOLER HOSE
ENGINE CONTROL-B2(Q4T) (B) 		8-97615-591-1 01 1 1008-
21 BRACKET; COOLER HOSE
ENGINE CONTROL-B2(Q4T) (C) 		8-97615-592-1 01 1 1008-
21 BRACKET; COOLER HOSE
MJT7S M/T(Y3E) ENGINE CONTROL COMMON RAIL(Q4R) (D) 		1-83573-202-0 01 1 1008-
21 BRACKET; COOLER HOSE
MJX16P M/T(Y3Z) ENGINE CONTROL COMMON RAIL(Q4R) (D) 		1-83573-282-1 01 1 1008-
23 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
23 BOLT; BRKT
ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28050-820-0 02 1 1008-
23 BOLT; BRKT
ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE 		0-28050-820-0 04 1 1008-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-1104
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 1105-
26 NUT; PIPE CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE 		0-91180-108-0 03 1 1008-
33 BOLT; CLIP
ENGINE CONTROL-B2(Q4T) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1010-
33 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-1104
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1105-
33 BOLT; CLIP
ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (I) 		8-98204-808-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (H) 		8-98204-810-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98204-809-0 01 1 1110-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98204-811-0 01 1 1110-
121 HOSE; COOLER
(C) 		1-83567-795-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 1105-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (H) 		1-83572-801-1 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (H) 		1-83572-801-1 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (H) 		1-83572-801-1 01 1 1110-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (I) 		1-83572-802-1 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (I) 		1-83572-802-1 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (I) 		1-83572-802-1 01 1 1110-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (F) 		1-83577-066-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL COMMON RAIL(Q4R) (G) 		1-83577-067-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (E) 		1-83577-135-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (E) 		1-83577-135-0 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		1-83577-135-0 01 1 1110-1307
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) 		8-98248-121-0 01 1 1308-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (D) 		1-83577-136-0 01 1 1008-1104
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (D) 		1-83577-136-0 01 1 1105-1109
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		1-83577-136-0 01 1 1110-1307
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) 		8-98248-120-0 01 1 1308-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (A) 		8-98162-077-0 01 1 1008-
121 HOSE; COOLER
ENGINE CONTROL-B2(Q4T) (B) 		8-98162-078-0 01 1 1008-
122 GASKET
(A) ID=11.7 		1-83539-317-0 02 1 1008-1104
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 1105-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=11.7 		1-83539-317-0 02 1 1110-
122 GASKET
(B) ID=14.5 		1-83539-324-0 02 1 1008-1104
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 1105-1109
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=14.5 		1-83539-324-0 02 1 1110-
122 GASKET
(C) ID=11.7 		8-97095-907-0 02 1 1008-1109
122 GASKET
(C) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (C) ID=11.7 		8-97095-907-0 02 1 1110-
122 GASKET
(D) ID=14.5 		8-97095-908-0 02 1 1008-1109
122 GASKET
(D) ID=14.5 		8-97095-908-0 02 1 1110-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (D) ID=14.5 		8-97095-908-0 02 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (A) 		8-98192-080-0 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98198-462-0 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83572-704-1 01 1 1008-1104
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-83572-704-1 01 1 1105-1109
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-83572-704-2 01 1 1110-
125 HOSE; FLEX,UNIT TO CMPR
ENGINE CONTROL-B2(Q4T) (B) 		8-98056-613-0 01 1 1008-1104
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (B) 		8-98056-613-0 01 1 1105-1109
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98056-613-1 01 1 1110-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-98204-812-0 01 1 1110-
149 BRACKET; COOLER HOSE
(B) 		1-83573-206-0 01 1 1008-1104
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-206-0 01 1 1105-1109
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) 		1-83573-206-1 01 1 1110-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 1008-
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 1008-
150 CLIP; HOSE
(C) 		1-83574-254-0 01 1 1008-1104
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-254-0 01 1 1105-
150 CLIP; HOSE
(D) 		1-83574-255-0 01 1 1008-1104
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-255-0 01 1 1105-
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 1008-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 1008-1104
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 1105-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 1008-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 1008-1104
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 1105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
